Special Price: $8.99
Check this 9*22mm led strip silicone tube with 180° side-emitting led light for nonwaterproof IP20 led strip lights up to 10mm FPCB width. Installing led strip light in the silicone led channel can get an IP67 waterproof rating and uniform led lighting effect, which can be used for neon advertising light and linear light applications.
The silicone material has good flexibility, good weather resistance, UV resistance, pulling resistance, and the white silicone tube channel is not easy to yellow, suitable for indoor and outdoor use.
This silicone led strip channel has three installations, mounting clips installation, aluminum channel installation, and flexible profile installation, you can find them in the led neon flex light accessories.

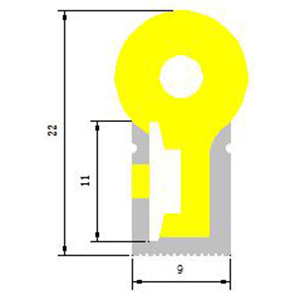

Model: | FLNLT-T0922 |
Tube Material: | Food-grade Silicone |
Lighting Direction: | Top-emitting |
External Width: | 9mm/0.35in |
External Height: | 22mm/0.87in |
Inner Width: | 11mm/0.43in |
Max LED Strip Width: | 0.39" (10mm) |
Available LED Strip Type: | Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip |
Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
Beam Angle: | 180° |
Accessories: | End Caps (come with), Mounting clips (Please choose in the "Kit" option) |
Waterproof Rating: | IP67 |
UV Resistant: | Yes |
Working Temperature: | -50℃ to 200℃ |
LED Neon Light Knowledge Source: |
Note:
The product does not include led light strips.
If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.
If you insist on completing the production of neon lights by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
We are not responsible for any damage caused by your own operation!

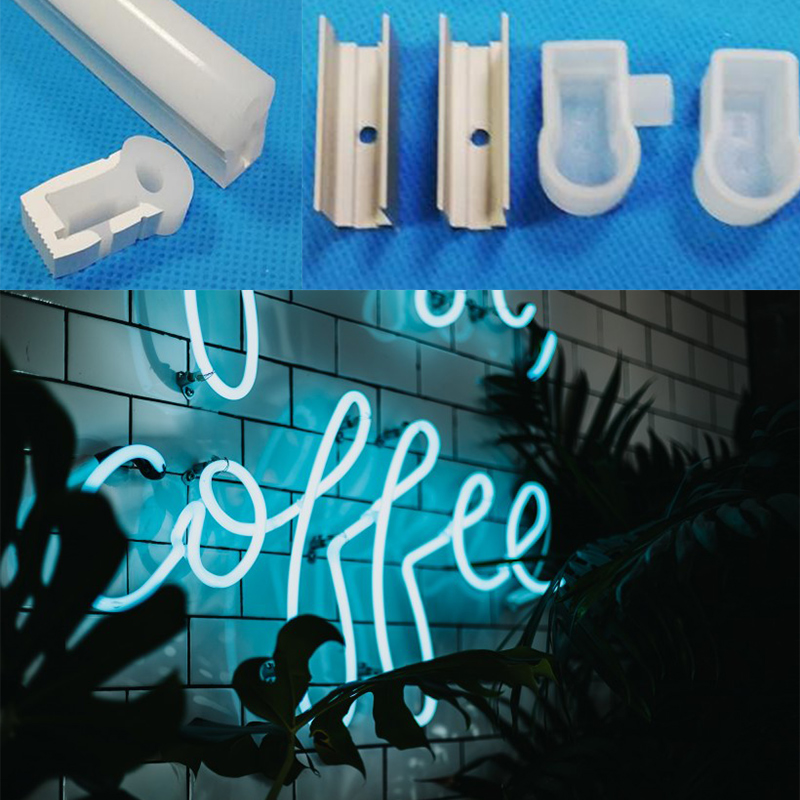

Flex LED Neon Tube Installation:
There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
Using Application:
LED neon tube with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.
1.Building outline lighting
2.Hotel lighting project
3.Bridge lighting project
4.Cultural tourism town lighting project
5.City park lighting project
6.Festival atmosphere decoration project
7.Airport lighting project, etc.
