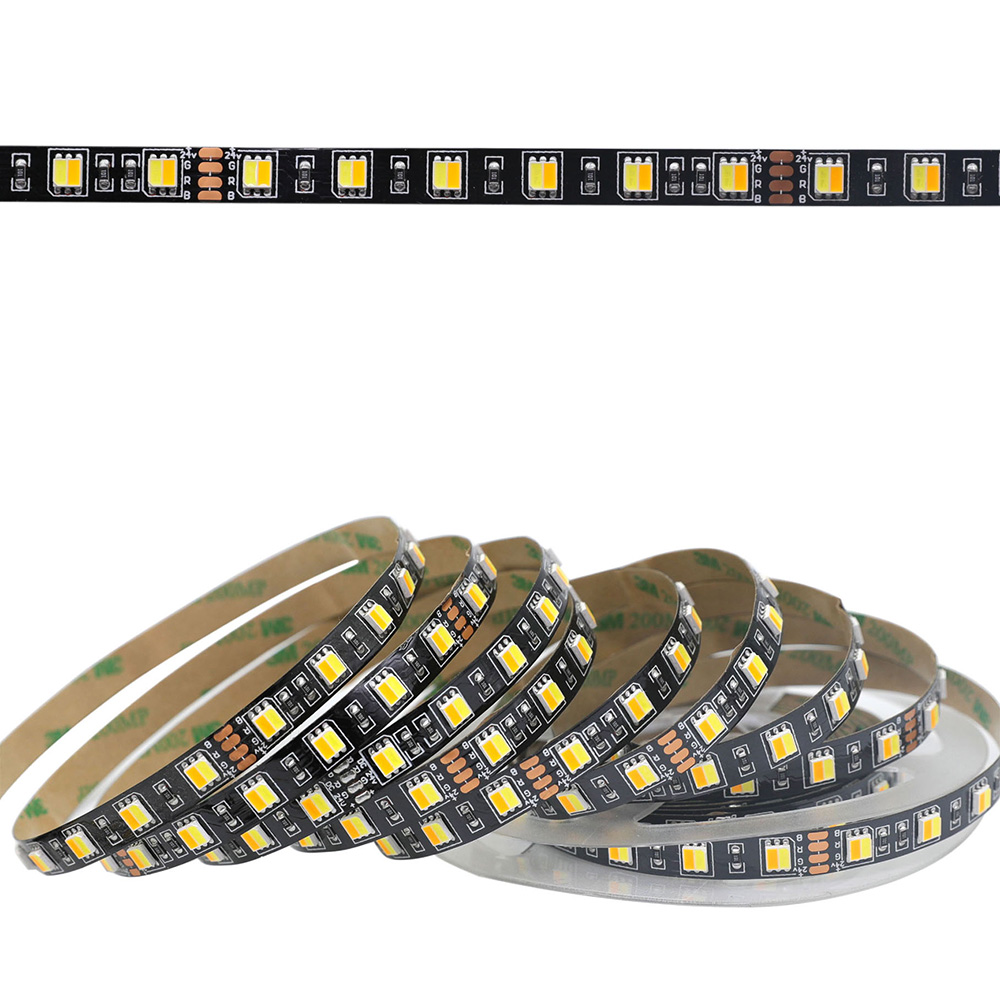

DC12/24V 5050SMD 60LEDs/M 2PIN1 CCT Flexible LED Strip Light - Pure White+Warm White,16.4FT/Roll
This CCT tunable white led strip product is a high-brightness dual white light color temperature SMD5050 LED chip flexible LED strip light. The CCT white light led strip can be bent at will, easy to install.
The DC24V voltage is efficient, stable, high lifespan and every 6LEDs can be cut, so you can cut different strip lengths according to the led strip lighting project and requirements. The CRI is 85, and the original color can be restored to a high degree.
12Volt CCT LED strips and 24V tunable white LED strip lights optional: 12V vs 24V LED strip lights (main difference in led strip lighting running length - led voltage drop, and led light strip cutting length).
This CCT tunable 12V/24V white led strip is outdoor waterproof optional for outdoor led lighting projects. - IP20 indoor led strip vs IP67 waterproof LED strip
IP67 outdoor waterproof led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strip lights and have requirements on the white light color temperature, please note when placing the order.
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

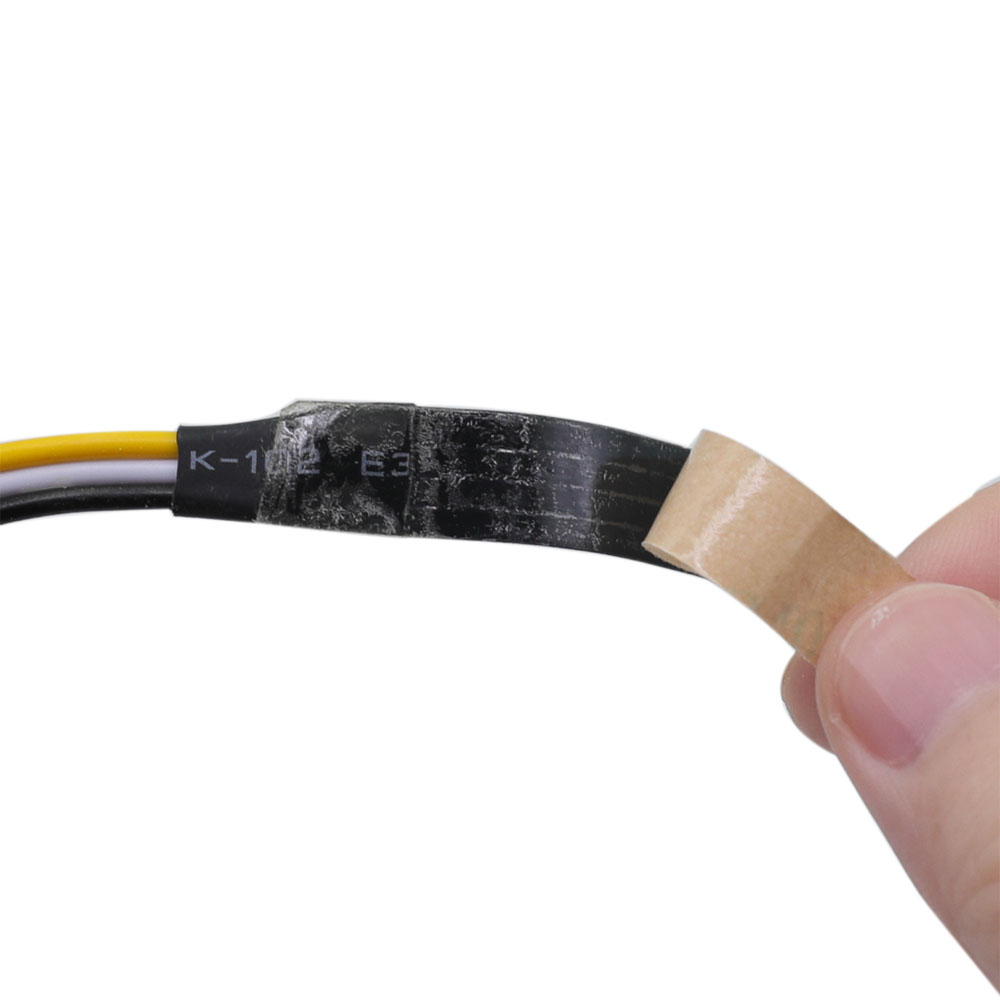

IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
►Before buying CCT tunable LED strip lights, the following LED strip knowledge you need to know:
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

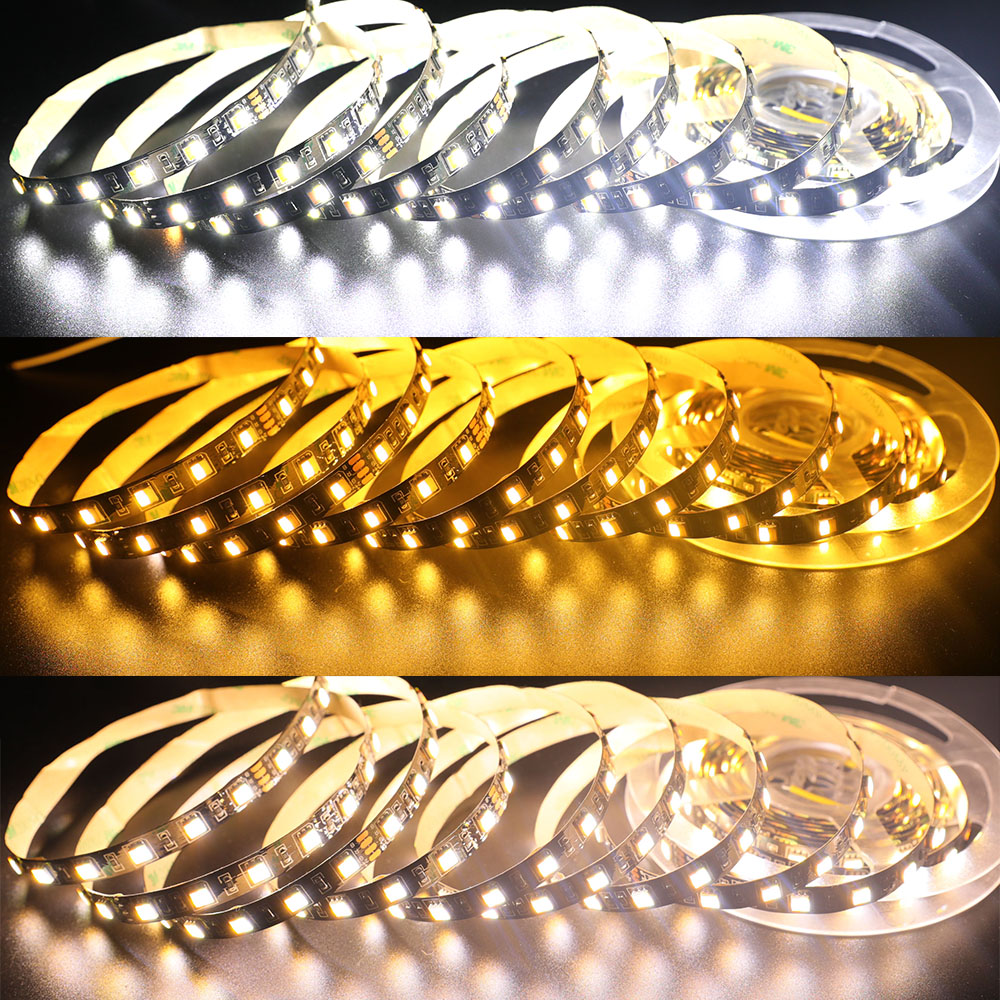

Light Color: Warm White+Daylight White

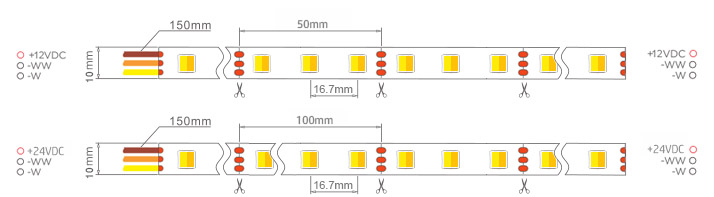

Dimension: 16.4ft/roll, every 3 PCS LED can be cut/12V,every 6 PCS LED can be cut/24V
LED Quantity: 60LEDs/M, 300LEDs/Roll
Warantty: 3 years

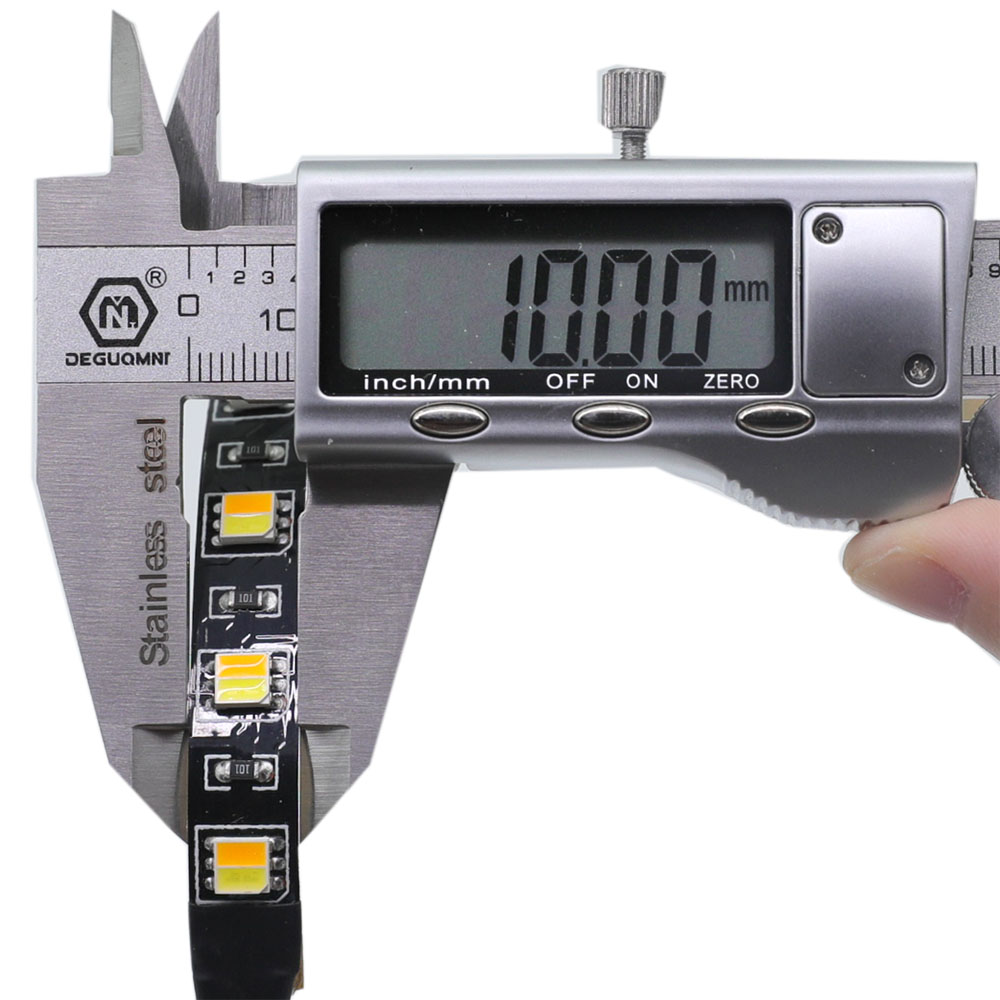

Board width: 10mm(0.47in)
Dimensions: L500cm(196.8 in ) x W1.0cm(0.47 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24V DC
Working Power: 4A 96W /16.4ft Max
Lamp Luminous Flux(lm): 18lm/LEDs 5400lm/16.4ft 329lm/ft 56.25lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(6000-6500k)
Beam angel: 120 degrees
Water Proof: IP20/IP67
CRI (Ra>): 85
The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 150Watt power supply),/(use a DC12V 150Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: firstname.lastname@example.org
This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:
►RF wireless LED controller controls multiple CCT color changing LED white light with CCT RF remote connection method:

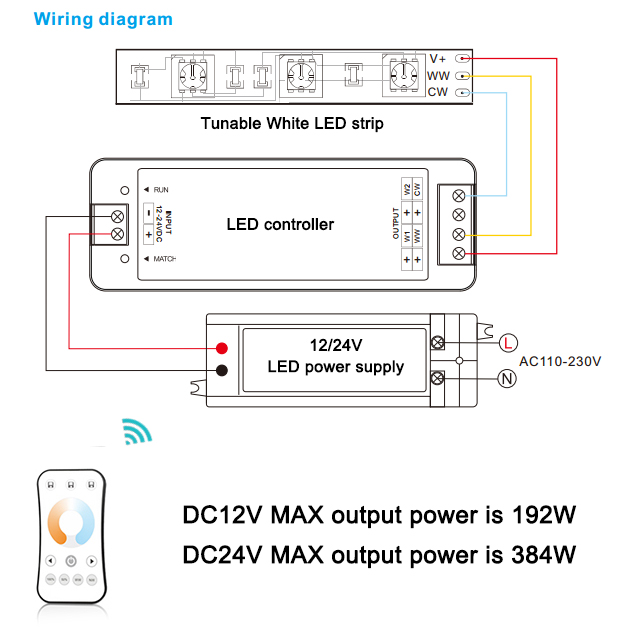

►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram

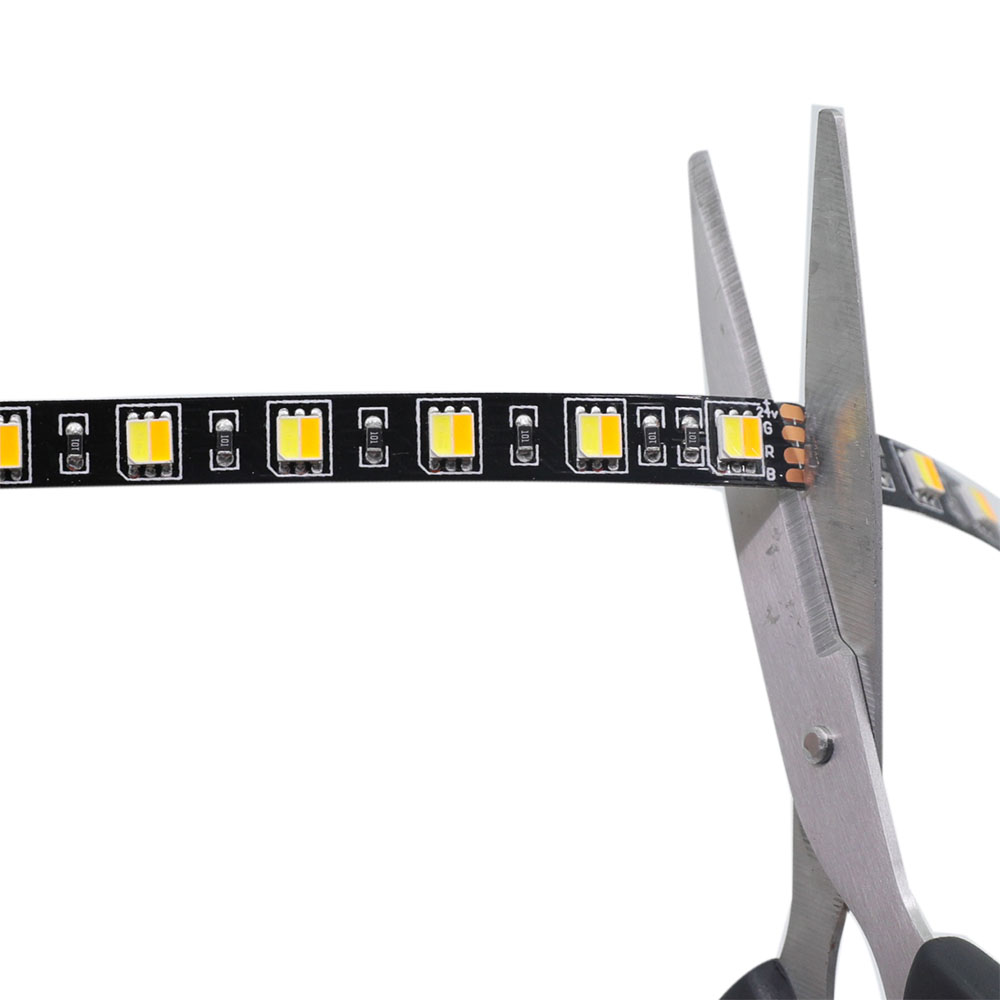

|You can cut the white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|

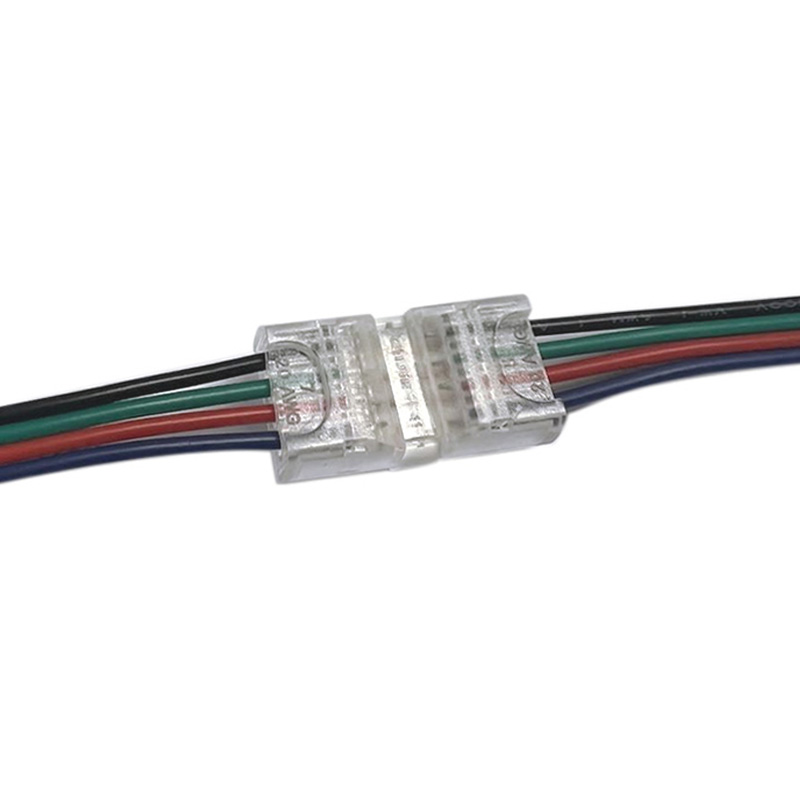

►Can you cut LED strip lights and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
