Special Price: $12.98

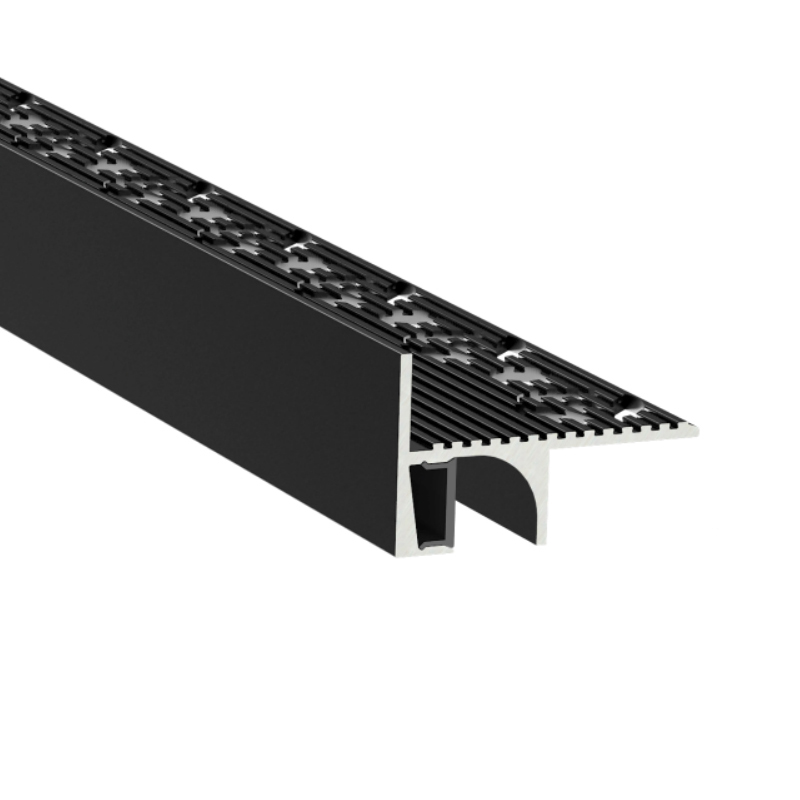

Check our aluminum LED stair profile specially designed to fit snugly onto wooden or tiled stair treads, directing the light both downward and inward, while eliminating glare. The advanced design of this stair nosing profile ensures that even on highly reflective tiles, no LED hotspots are visible, providing a beautiful lighting experience for your staircase. 4014B also offers side trimming action to decorate your wooden, tile, or concrete stair treads with silver trim. 4014 is hiden in the stair tread. The minimum bending circle diameter of this profile is 600 mm.
Note: QSG-4014 stair aluminum channel need to be customized, large quantity (400+) can be produced free of charge, less quantity need customization cost. Ship QSG-4014B, please note the product difference.
Note:
As the 2m aluminum stair profile is too long, the package size will exceed the DHL/UPS/TNT requirement (4 feet), so extra long transportation costs will be required if your order is less than 10 pieces.
If you need a full 4-meter stair nose profile, we recommend that you use multiple 1m/2m long channels splicing together.
Standards and Certifications
Product Specification
Product Type: | Stair Nosing LED Profile With Side Trim |
Material: | 6063-T5 Aluminum Alloy |
Channel Size: | W40.1mm(1.57")*H25mm(0.98") |
Inner Width: | 10.4mm(0.41") |
Color: | Anodic silver oxidation |
LED Diffuser: | Opal / semi-clear matte diffuser cover |
Length: | 1m(3.28ft) /2m(6.56ft) |
Accessory: | 1*extruded aluminum channel, 1*PC diffuser cover |
Apply to: | 8mm/10mm led strip lights |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
