DC12V 2835SMD 600LEDs Flexible CCT LED Tape Light - Color Temperature Pure White+Warm White

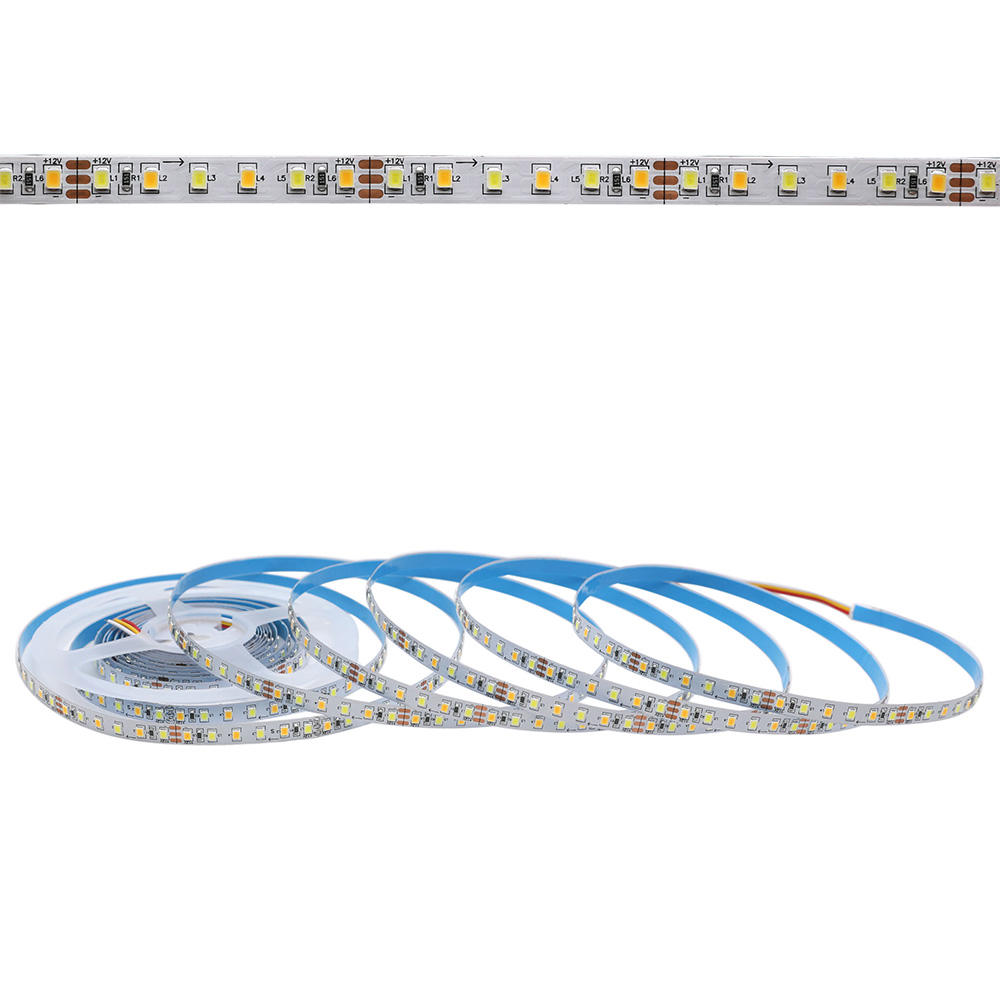

►2835SMD white LED: two 2835SMD white LEDs are a group, one is a warm white LED, one is a pure white LED. Super bright 2835SMD white flexible LED tape lights, Epistar chip, 600LEDs/roll, 16.4ft(5 meters)Per Reel By Sale.

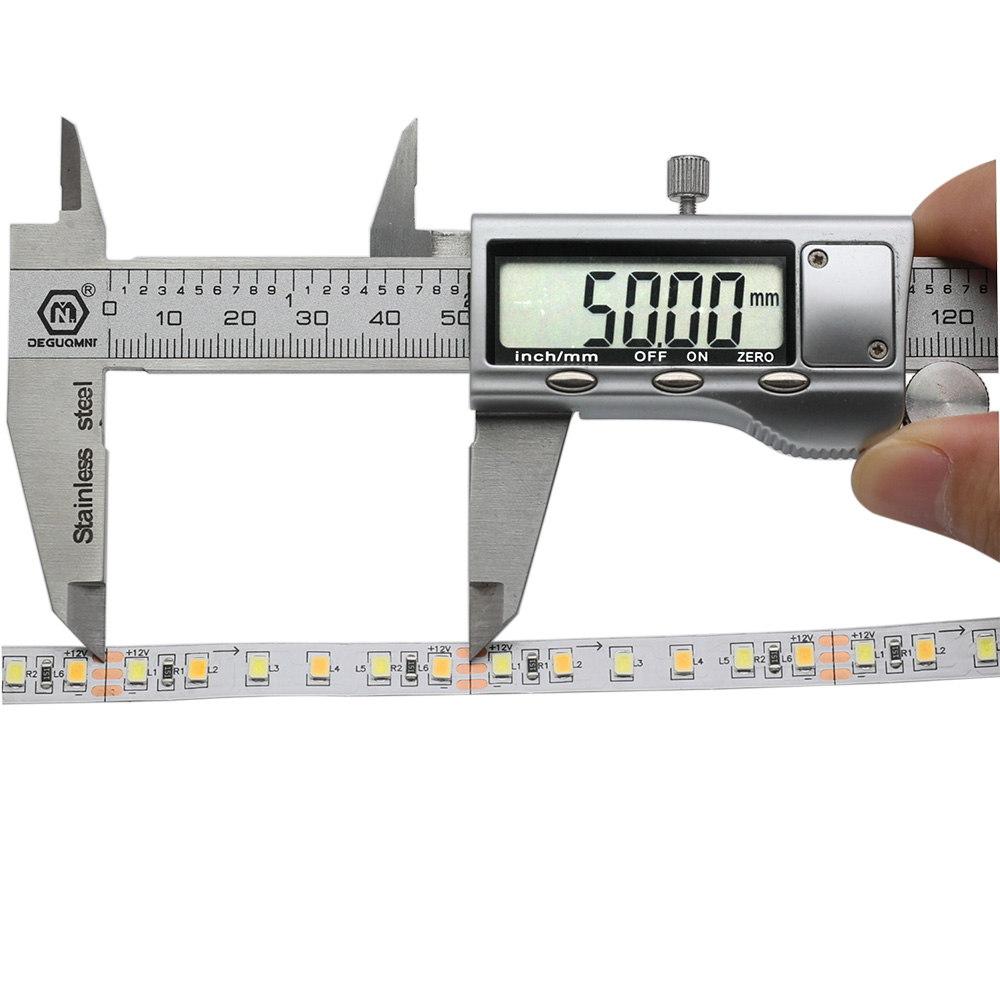

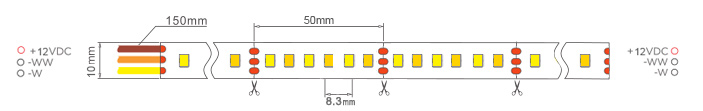

►12V CCT adjustable led strip lights: 12V DC operation. The minimum cutting length of this CCT tunable white led strip is 6 LED lights (3 groups of one warm white LED and one pure white LED), so you could cut a different length for your led strip lighting project and request.

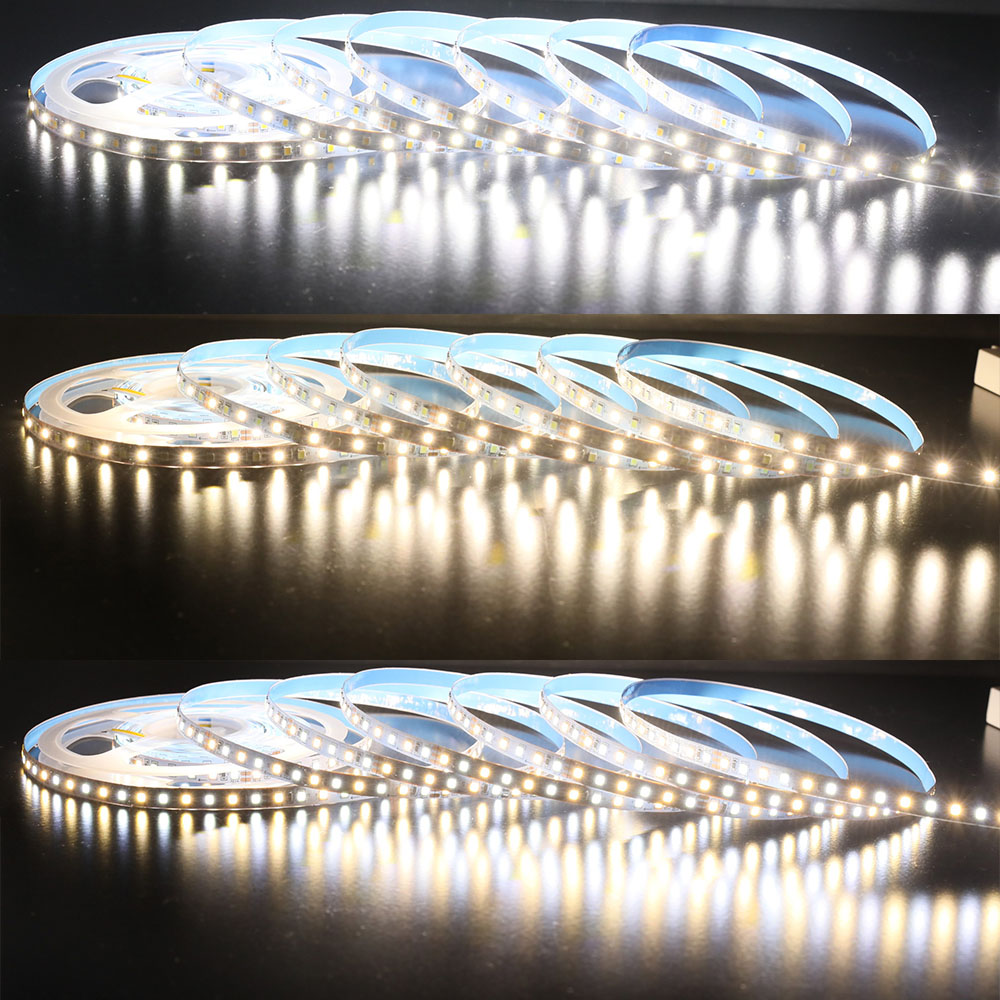

►CCT dimmanle white(tunable white light color temperature from warm white to cool white), can be individually light up warm white LED or daylight/pure white LED, work with the CCT LED controller, you can adjust the LED color and brightness of the dimmable white LED strip from 2800K to 6500K.
►Waterproof optional - IP20 vs IP67 waterproof LED strip: IP65, IP67, and IP68 Outdoor waterproof dimmable white led strip lights are available.
►High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.

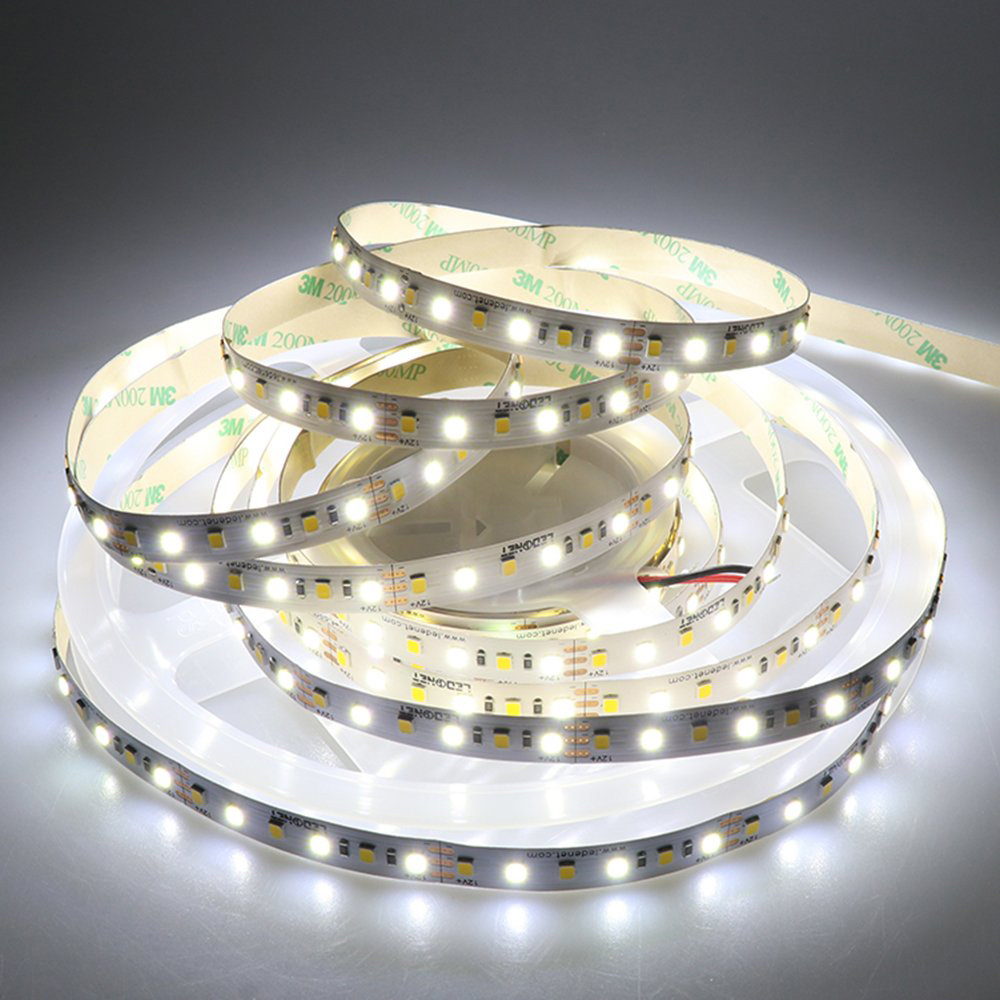

Our brightest super flexible LED white color light strips are soft and easy bent for installation. Available in 5 meters (197 in) flexible led strip lights with adhesive backing and can be stuck just about anywhere.
This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.
Standards and Certifications
LED Strip Type: SMD 2835
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 600 LEDs per 5meter (16.4 ft)
Warantty: 3 years

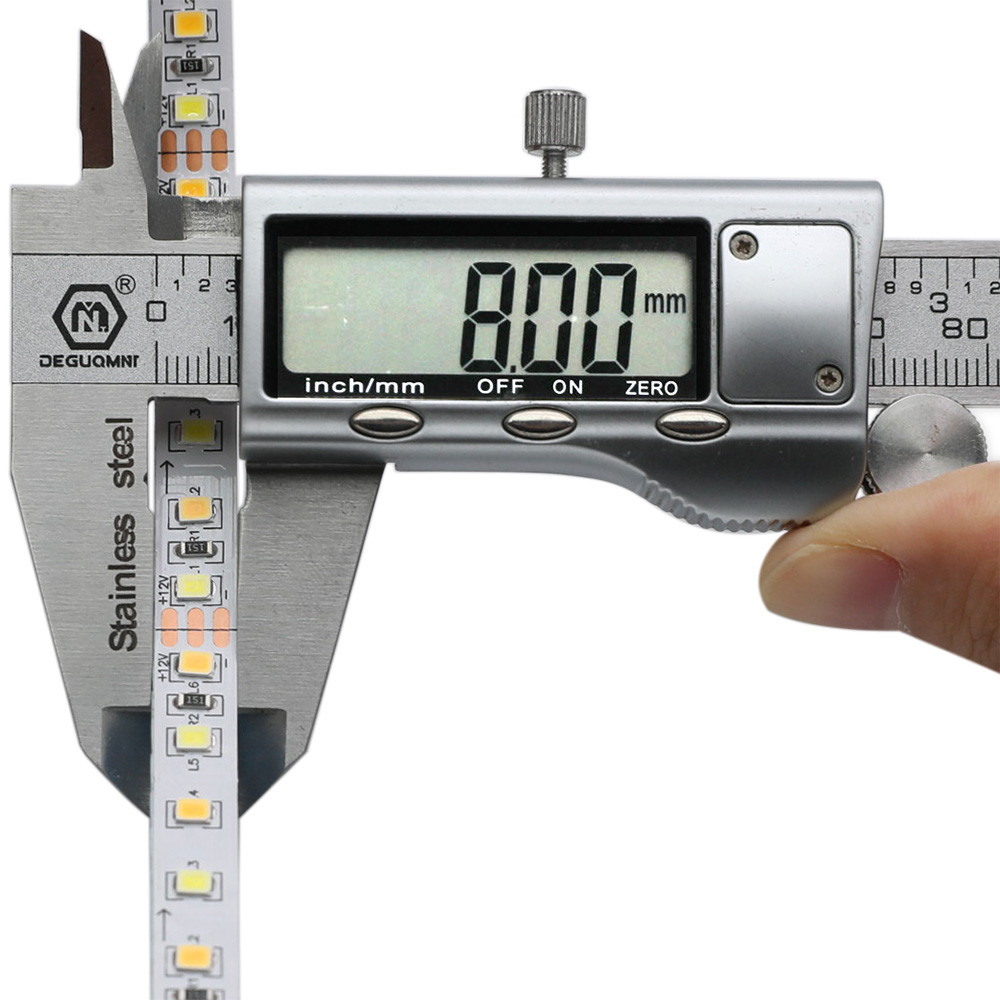

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12V DC
Working Power: 8A 96W /16.4ft Max
Lamp Luminous Flux(lm): 19~21lm/LEDs 12000Lumens/16.4ft, 732Lumens/Ft, 125Lumens/watt
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
The basics are all the similar. You will need a led strip light, a power supply(Please DC12V 150W power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com

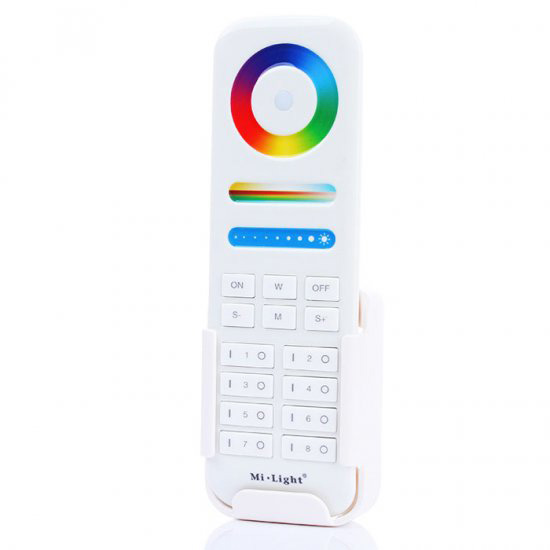

This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram

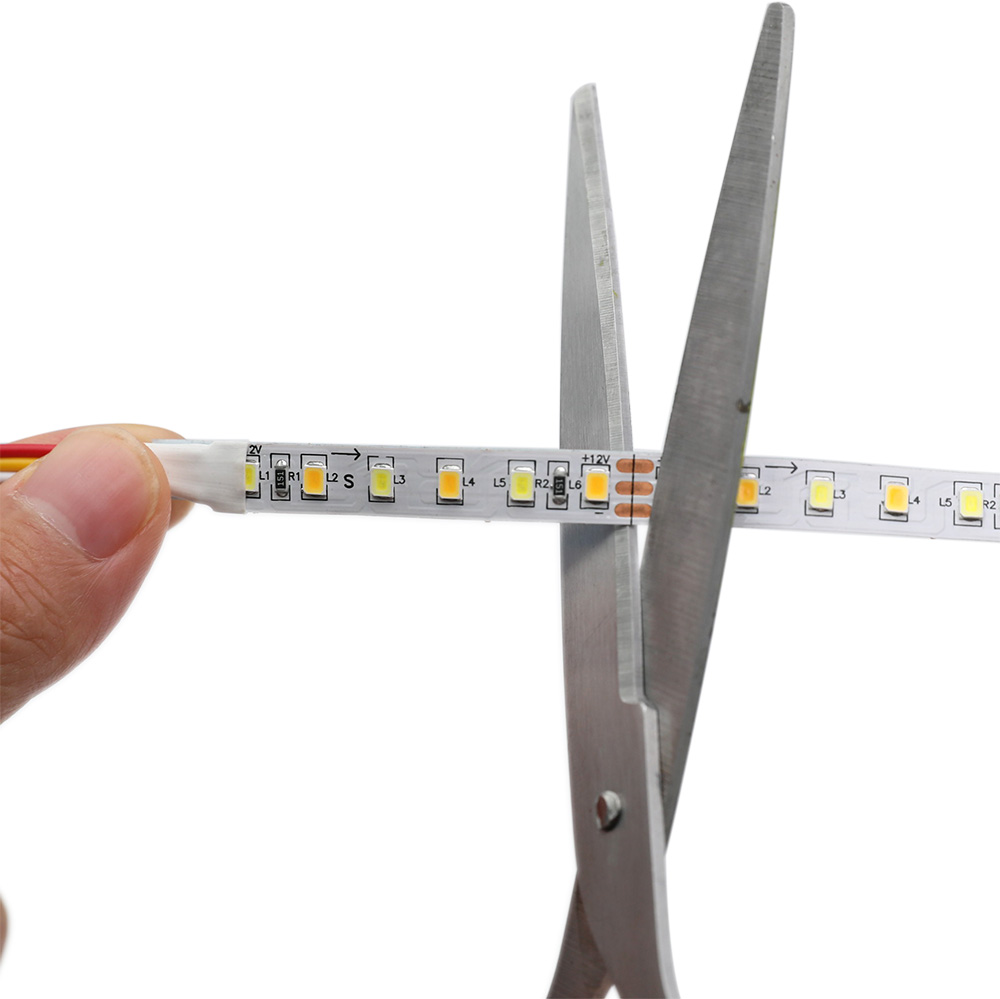

|You can cut the dimmable white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof dimmable white led strip lights type which will come with mounting brackets.|
►Can you cut LED strip lights and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
Trademark lighting Logo lighting
