Product Information

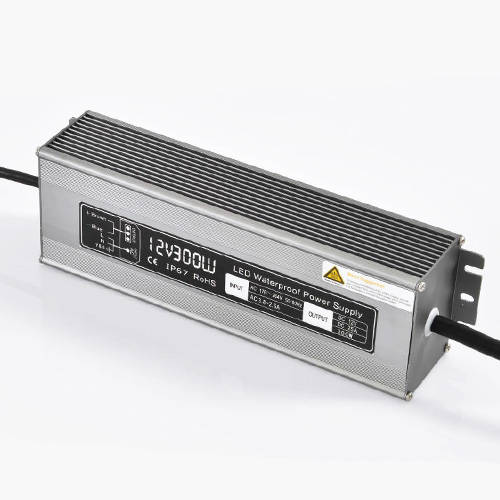

The PSWP-12V-300W (FS-0300-12PF) is a heavy-duty, IP67 waterproof ac dc switching power supply engineered to deliver a continuous 12V DC output up to 25A (300W total capacity). Designed specifically for large exterior linear installations, landscape lighting, and architectural signage, this led driver power supply converts AC mains power into stable, regulated DC voltage. Featuring a sealed aluminum heat-sink chassis, it delivers reliable thermal dissipation without internal cooling fans, preventing ingress from rain, snow, and dust. Supplying LED strip lights and accessories since 2015, SuperLightingLED provides this driver in 3 configurable input voltage choices: 110V±20% (standard for US and CA grids), 220V±20% (for EU, UK, and AU networks), and an auto-switching AC 110-220V wide-input version.

Key Features
Continuous 300W 25A Output
Delivers up to 25A at constant 12V DC, powering high-density linear loads and expansive outdoor lighting runs.
IP67 Weatherproof Seal
Fully potted internal circuitry and waterproof entry glands protect components during direct rainfall, snow, and temporary submersion.
Dual DC Output Channels
Includes 2 parallel red-and-black 16AWG output cables to divide the 25A load and simplify multiple parallel LED line feeds.
Silent Passive Cooling
The extruded aluminum chassis acts as an integrated heat sink, eliminating loud cooling fans and preventing mechanical failure.
Integrated Safety Protections
Built-in automatic recovery guards against short circuits, over-current, over-voltage, and internal thermal overheating.
Selectable Input Voltages
Available in 110V±20%, 220V±20%, or universal AC 110-220V configurations to suit North American and international grid standards.
Dual-Channel High-Current Output Architecture
- Carrying 25A over a single DC wire causes significant resistance heating and voltage loss; this driver integrates two parallel 1.5 mm² (16AWG) output channels to distribute current safely.
- Constant-voltage regulation maintains exact 12V DC output across load variations from 0% to 100%, preventing LED brightness fluctuations.
- Solid silicone potting compounds isolate all internal power MOSFETs, capacitors, and transformer coils from moisture, oxidation, and mechanical vibration.
- Heavy-gauge 1.0 mm² (17AWG) input line wiring handles transient surges and guarantees stable AC grid connection.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | PSWP-12V-300W (FS-0300-12PF) |
| Product Type | AC to DC Switching Power Supply |
| Output Voltage | 12V DC (Constant Voltage) |
| Rated Output Current | 25A |
| Rated Output Power | 300W |
| Selectable Input Voltages | 110V±20% (US/CA), 220V±20% (EU/UK/AU), AC 110-220V |
| Input Frequency | 50-60Hz |
| Ingress Protection Rating | IP67 (Waterproof, Outdoor Rated) |
| Output Channels | 2 Parallel DC Channels (Red +, Black -) |
| Overall Dimensions | 255mm × 75mm × 38mm (Body 233mm + 11mm + 11mm mounting tabs) |
| Enclosure Material | Extruded Aluminum Alloy |
| Cooling Method | Free Air Convection (Fanless) |
| Input Wire Gauge | 1.0 mm² (17AWG) |
| Output Wire Gauge | 1.5 mm² (16AWG) |
| Wire Lead Length | 195mm (7.68 inches) |
| Circuit Protection | Short Circuit, Overload, Over Voltage, Over Temperature |
| Operating Temperature Range | -25℃ to +60℃ |
Application Scenarios
How to Wire & Install This Power Supply
- 1. Verify Load and Voltage Compatibility: Confirm that your total connected LED load operates on 12V DC and does not exceed 240W continuous consumption (applying the recommended 80% safety margin for a 300W rated driver).
- 2. Disconnect Main AC Power: Shut off electrical breaker switches before stripping wires or making any physical electrical splices.
- 3. Wire the AC Input Leads: Connect the 1.0 mm² AC input cable to your incoming mains supply (Brown = Live/Hot, Blue = Neutral, Yellow/Green stripe = Ground/Earth) using IP67-rated waterproof junction boxes or gel-filled wire nuts.
- 4. Wire the DC 12V Output Leads: Connect the output channels to your LED strip runs. Connect the Red leads to DC Positive (+) and the Black leads to DC Negative (-). Split high-amperage runs across both output pairs to prevent overheating thin feed wires.
- 5. Mount the Unit: Secure the aluminum housing to a flat surface using screws through the mounting tabs (255mm total span). Leave at least 50mm of clear airspace around the aluminum body for natural convective heat dissipation.
- 6. Energize and Test: Restore mains power at the breaker panel and inspect the LED run for stable, flicker-free illumination across all zones.
- Always observe the 80% continuous load rule: do not load the 300W driver beyond 240W for permanent 24/7 installations.
- Ensure input voltage configuration matches your local electrical supply: select 110V±20% for US/CA or 220V±20% for EU/UK/AU before ordering.
- This unit is a constant voltage power supply; do not connect it directly to raw LEDs requiring an led power supply constant current source.
- Ensure all external wire splice joints are sealed inside waterproof IP68 junction enclosures or waterproof heat-shrink tubing.
- Maintain correct DC output polarity: reversing Red (+) and Black (-) connections can permanently damage connected LED drivers and controllers.
What's in the Box

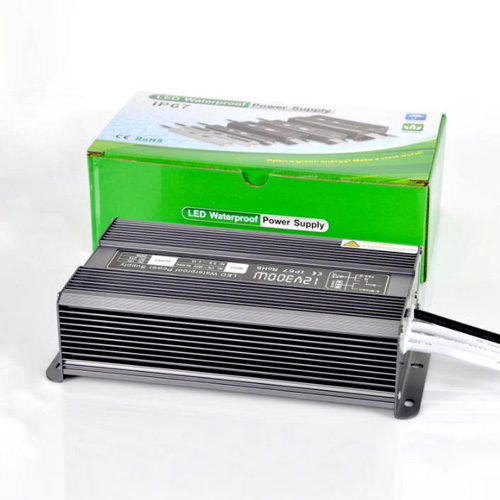

- ✓1 × PSWP-12V-300W 300W 25A DC12V IP67 Waterproof LED Switching Power Supply
Frequently Asked Questions
Q: how to connect led strip lights to power supply
A:Wire the AC input cable to your household mains through an IP-rated junction box, then connect the 12V DC red (+) wire to the positive strip terminal and the black (-) wire to the negative strip terminal.
Q: Why does this 300W 12V power supply have two sets of output wires?
A:Because 25A is a high current load for a single standard 16AWG wire, two parallel output cable pairs are provided to divide the amperage safely and make parallel LED strip wiring straightforward.
Q: Can I use this 12V driver to power 24V LED strip lights?
A:No, this driver outputs a fixed 12V DC constant voltage; connecting it to 24V LED strip lights will result in severe under-voltage and the strip will not illuminate properly.
Q: Is this power supply fully submersible underwater?
A:The IP67 rating allows temporary immersion in shallow water and complete protection against heavy downpours, but it is not rated for continuous long-term submersion in swimming pools or ponds.
Q: How many meters of LED strip can this 300W driver power?
A:It depends on the wattage rating of your LED strip: at an 80% safety margin (240W usable load), it can power 24 meters of 10W/m LED strip or 50 meters of 4.8W/m LED strip.
