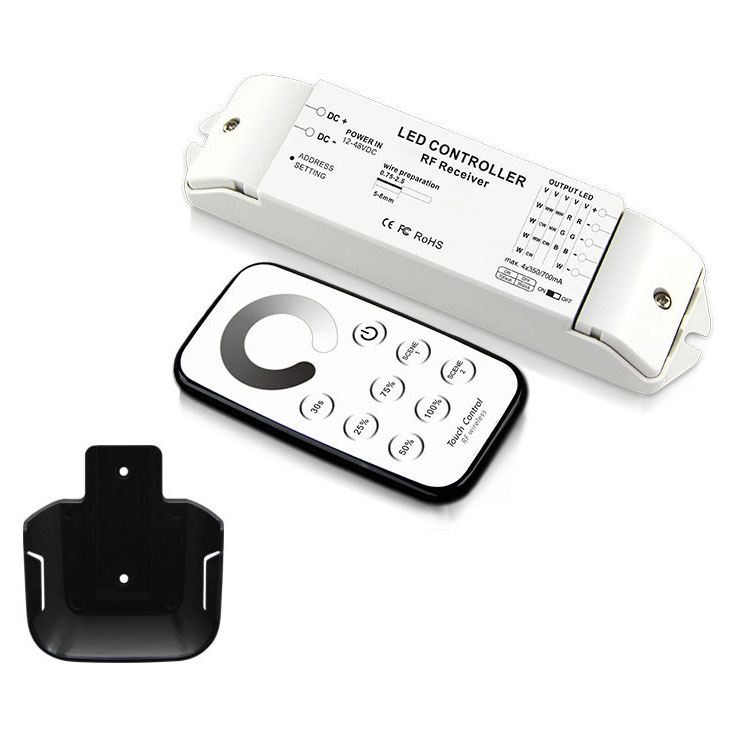

DC12V-DC48VLED Constant Current Dimmer T1+R4-CC

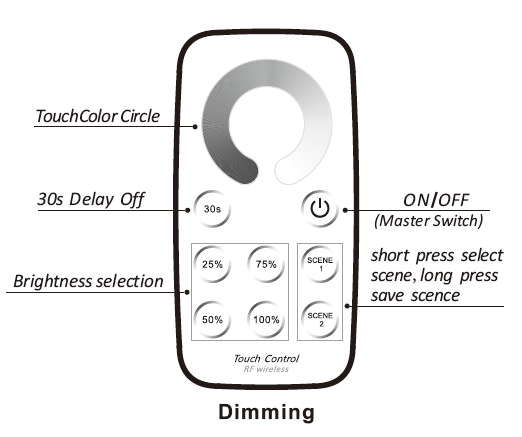

This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as dimming, color temperature, RGB etc; thus can satisfy the different demands of clients. T series has a simple fashion design, comfortable hand feeling, and user-friendly.
1. Automatically adapt to LED light which works from DC12V-48V.
2. The receiver can compatible with our 5 different functions remote control or 2.4G wireless controller to realize function such as dimming, RGB/RGBW, and color temperature control.
3.10 strobe & fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.
Standards and Certifications
Model: Wireless Remote（T1)
Working Voltage: 3V(CR2032)
Working Frequency: 433.92MHz
Remote Distance: 40m-50m
Working Temp: -20-55℃

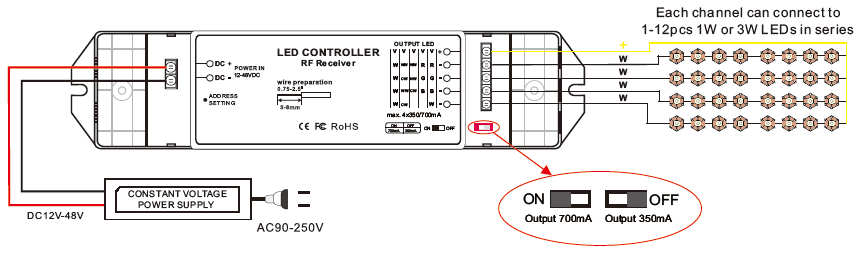

Working Voltage: DC12V-DC48V
Output Current: 350/700mA×4CH
Driving LEDs/ CH: 1~12pcs 1W(3W) LED
Working Temp: -30℃-55℃
Weight (G.W): 137g
The Learning ID Method of Remote Control:
The remote control has been matched to the receiver before leaving the factory, if deleted accidentally, you can learn ID as follow.
Learning ID: Press the ID learning button on the receiver until the running light is on, then press any key on the remote control, the running light flashes several times, activated.
Cancel ID: Press the ID learning button on the receiver for 5 seconds.
Notice: The remote control will enter dormant status without operation for 30 seconds, please press any key to reactive it.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.reduce the risk of component damage and fire caused by a short circuit, make sure correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller.
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
