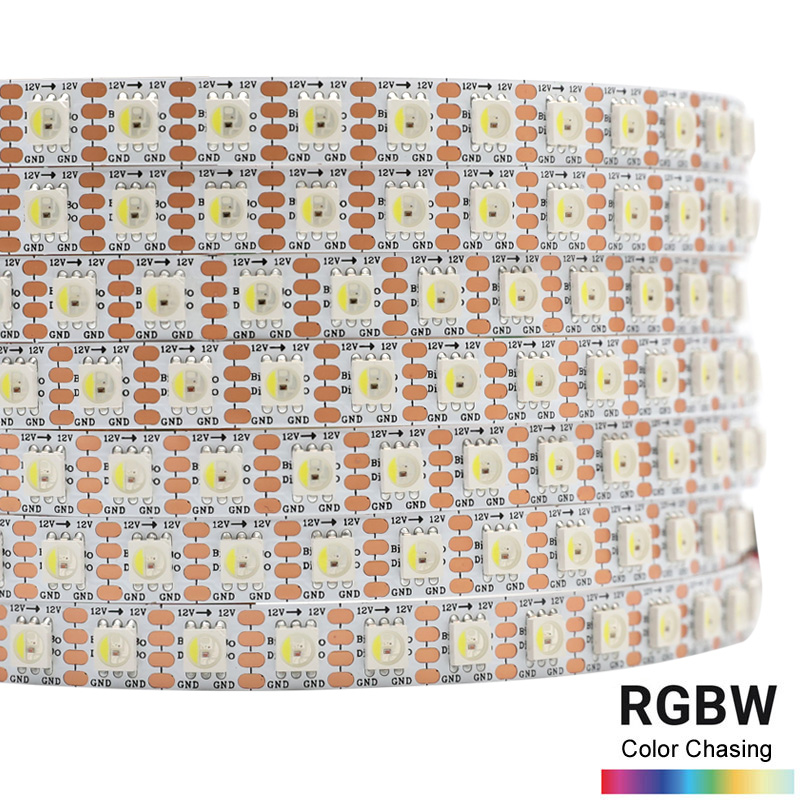

DC12V WS2815 720 LEDs Dual Signal Individually Addressable Waterproof Dream Color Strip Lights-5m/16.4ft per roll by sale

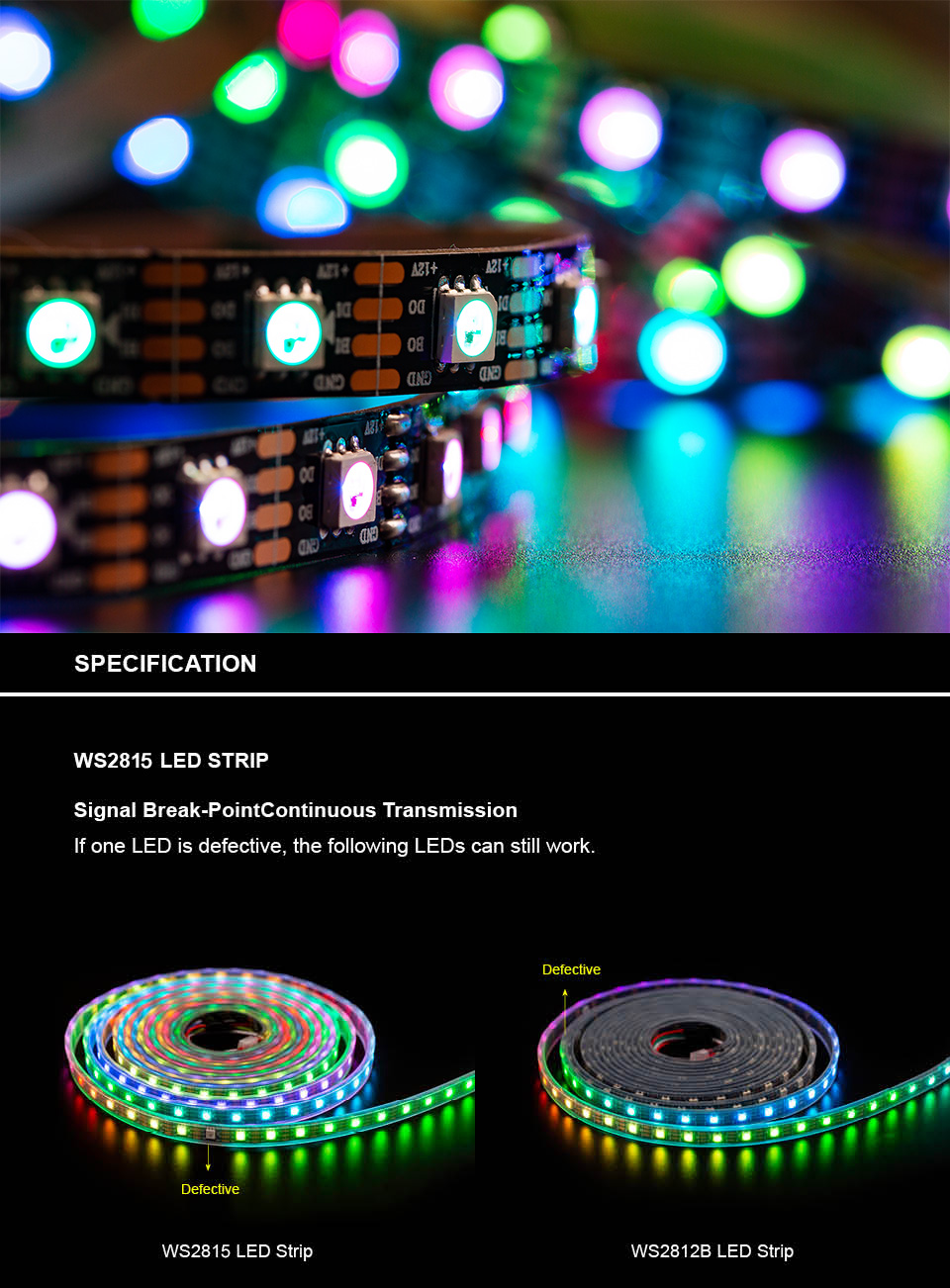

1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.

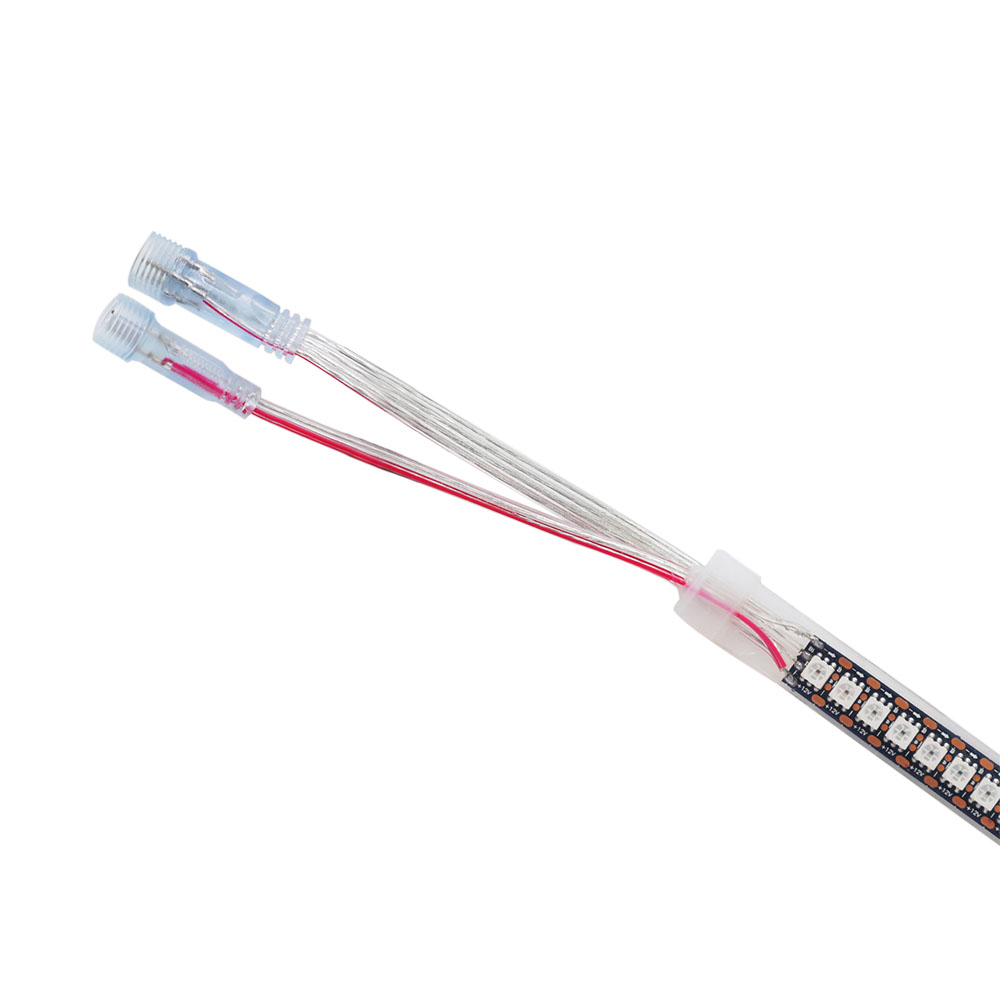

2. With 4-pins male connector and separated power/ground wire at both ends for easy interconnection and power connection.
3. Waterproof IP67: the ribbon light is covered with silicone protective sleeve, which can protect it well and makes it easy to clean.

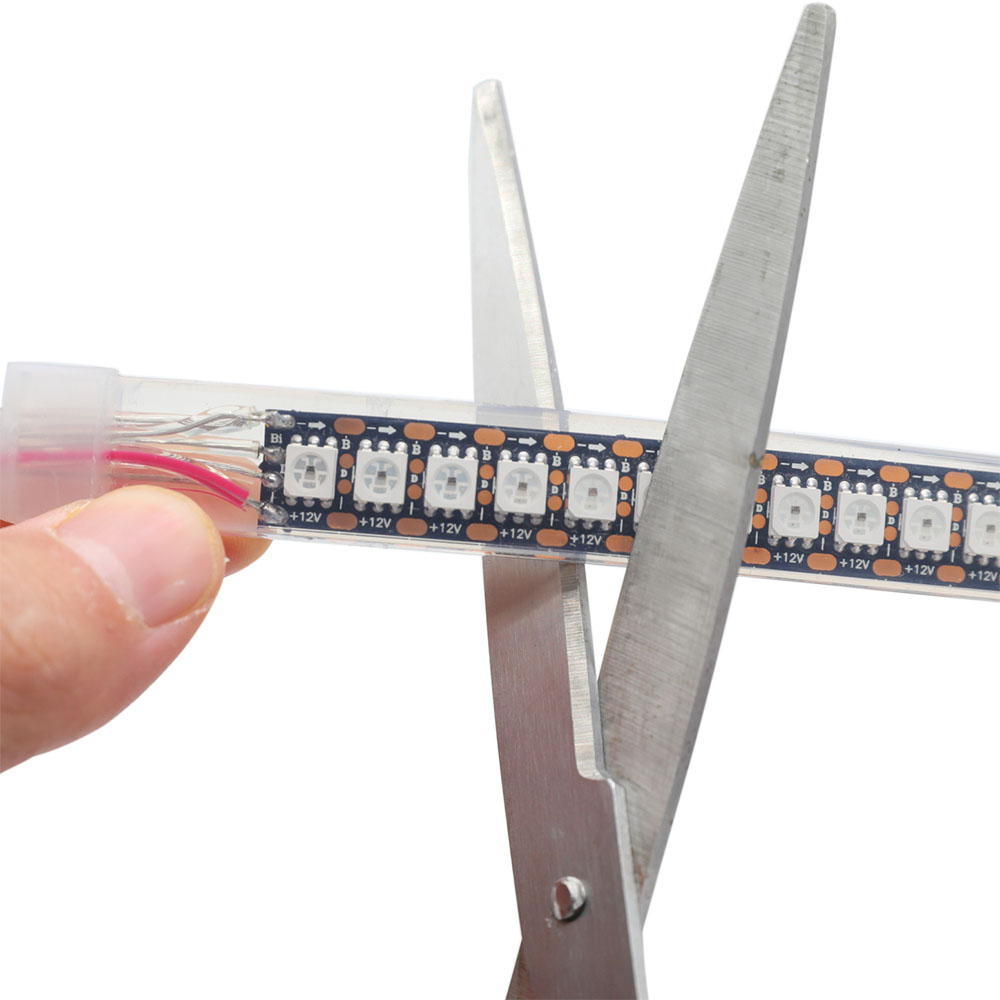

4. Individually addressable: Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors.
5. The digital LED WS2815 fully color integrates all electronic components into a single 5050 luminaire, without the need for any other peripheral electronic components to assist in forming a complete internal control pixel.in the meanwhile，the WS2815 LED strip reduces resistance caused by inverting the product during installation.
6. Wide compatibility. Works great with LED screnn, LED wall, advertising board, and widely apply for KTV, hotel, bars, clubs, wedding party lighting, etc.

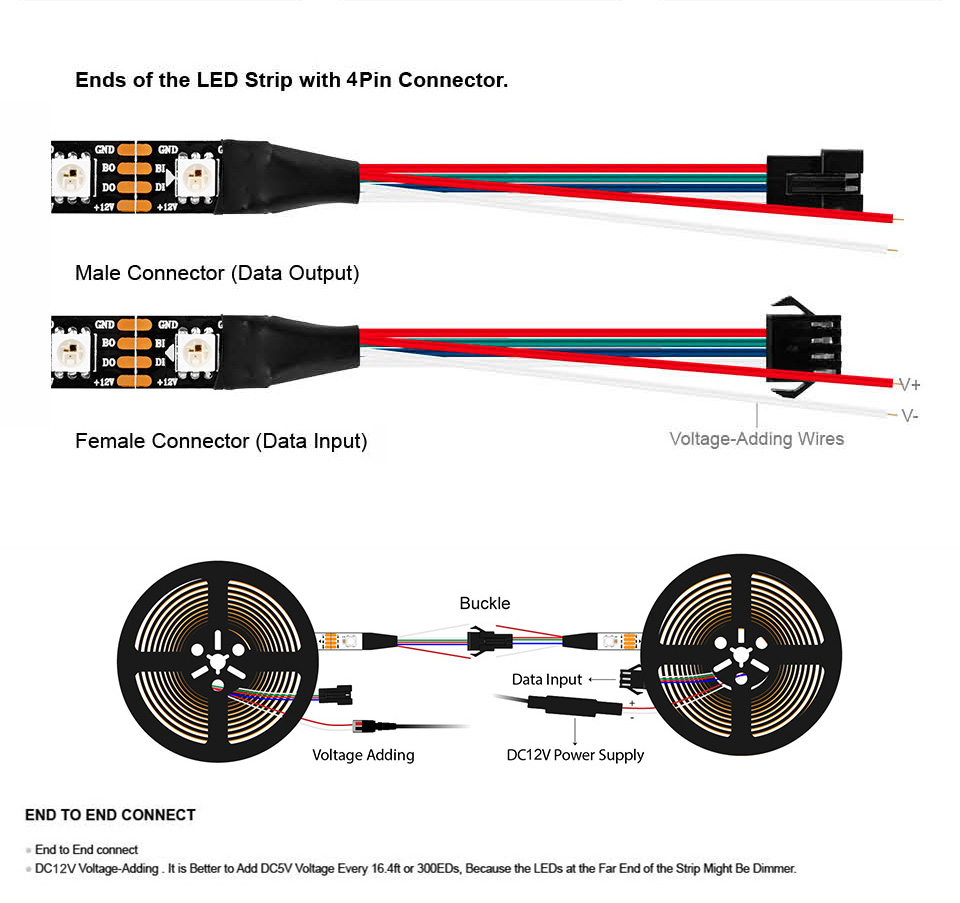

7. Easy installation: Self-adhesive tape on back FOR IP20/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at cutting line.There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire up for power.

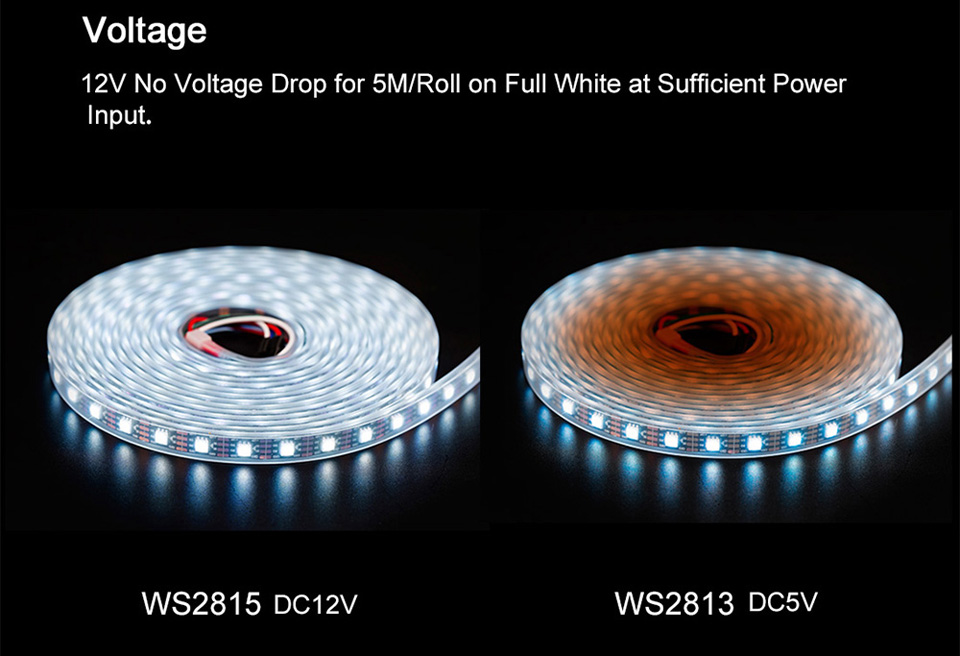

8.12V WS2815 LED Chip. WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.
Compatible with LED power supply adapter:
Standards and Certifications
LED Chip: WS2815 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, one LED can be cut
LED Quantity: 144 LEDs per 1meter (3.28 ft)
IC Quantity: 144 LEDs per 1meter (3.28 ft) (individual addressable)

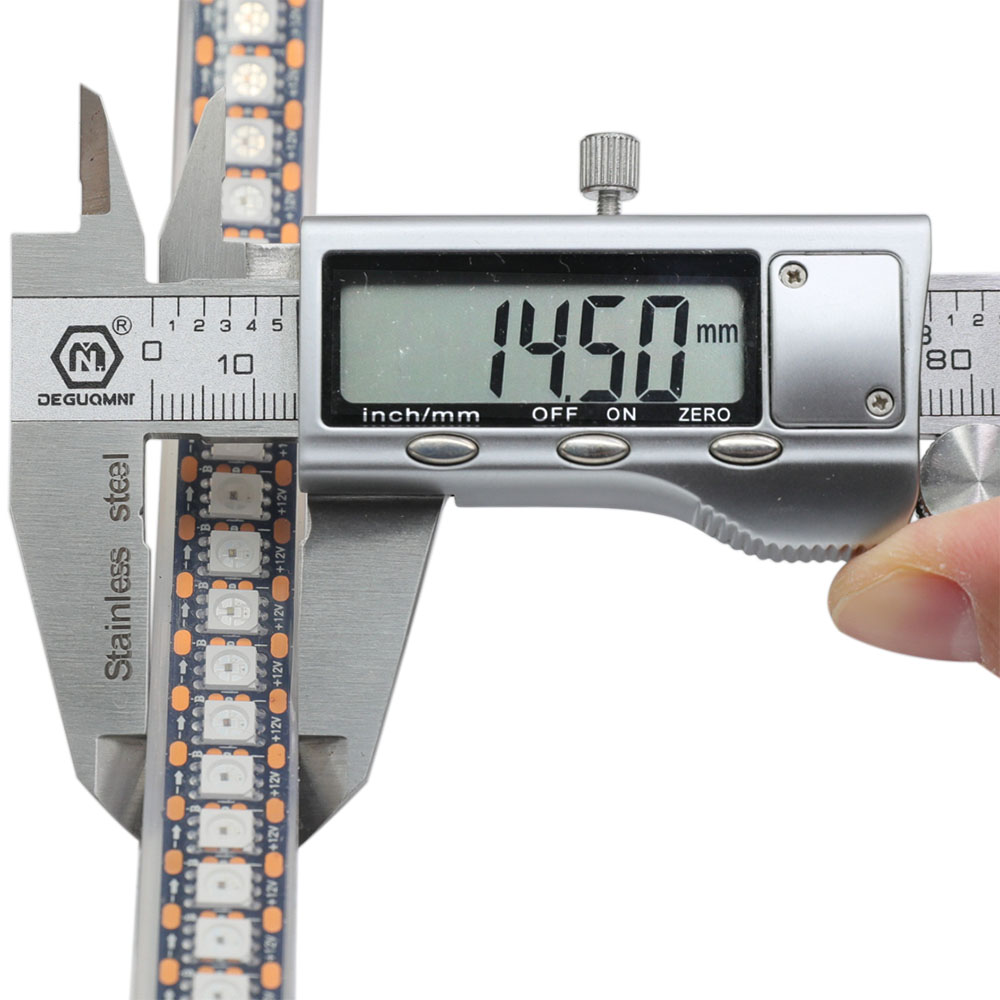

PCB Board: IP20/65: 12mm/ 4.72in IP67/68: 14.5mm/5.71in
PCB Color: Black/White
Warantty: 3 years
Length: L500cm(196.8 in )
Input Voltage(V): 12VDC
Working Power: 172.8W/16.4ft Max
Beam Pattern: 120 degree

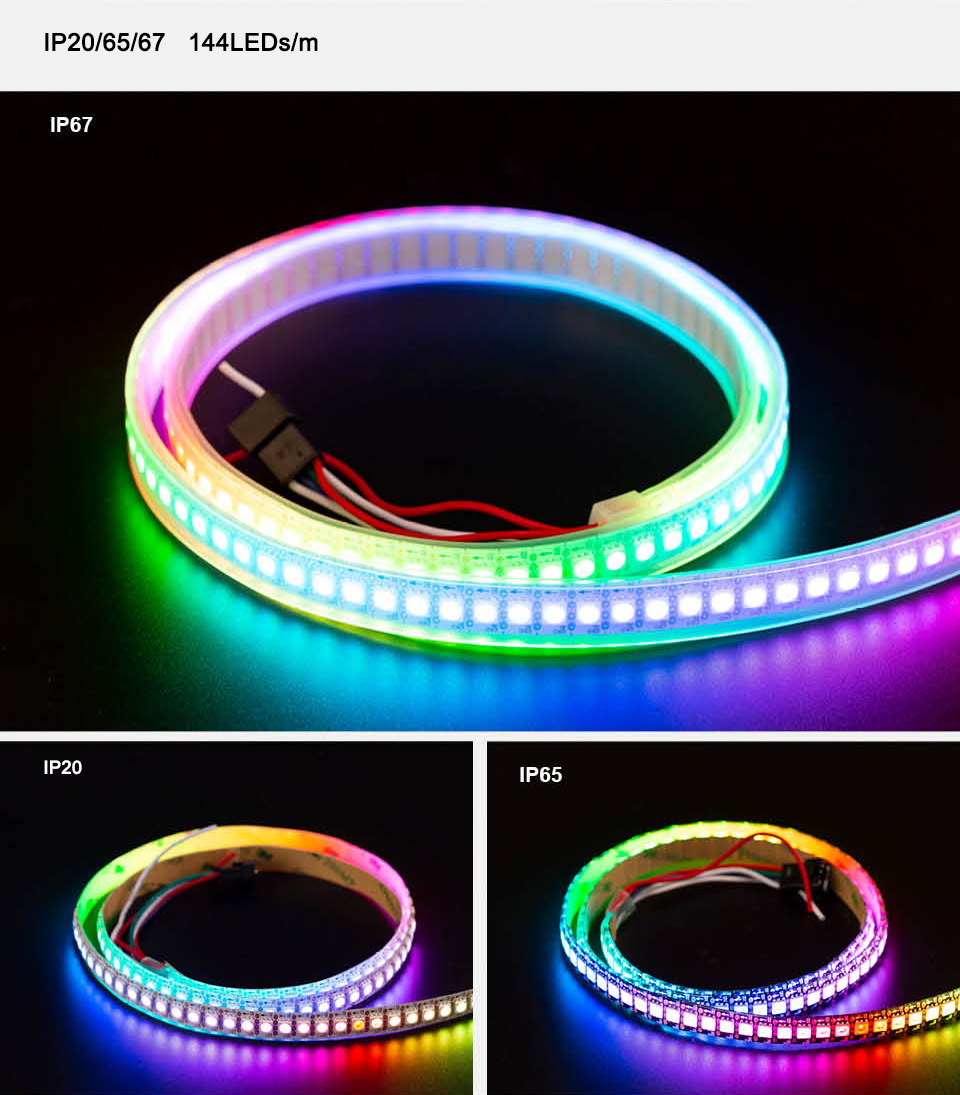

Water Proof: Waterproof IP20/IP65/IP67/IP68
1*5m/16.4ft WS2815 144LEDs/m led strip light

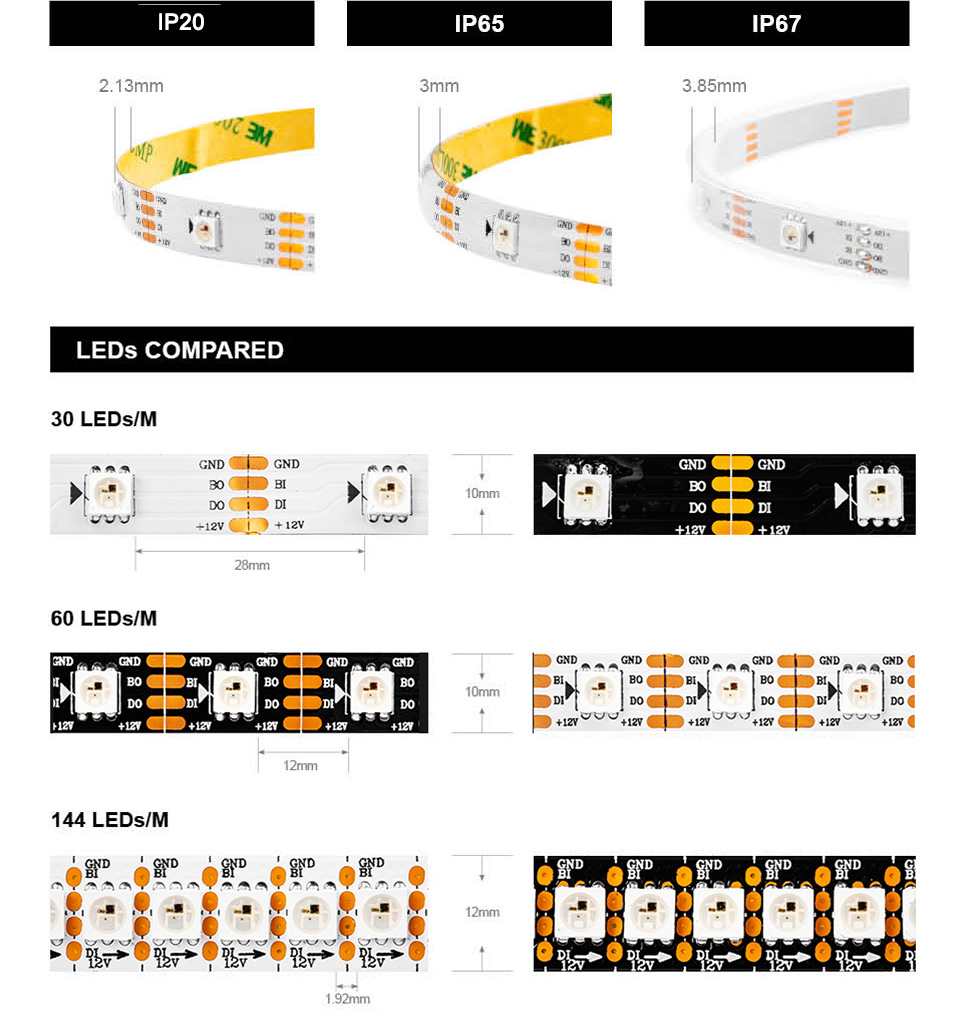

Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
|By : Lecour Pascal Date Added: 10/13/2021|
|Next to a normal 2811 strip these 2815 LEDs not only match but are bright and clear. The reason I bought these was to see the look of 144 LEDs per meter. I usually use 60 per meter and these look every bit as cool as I would expect. Power consumption on these is great considering and the customer service has been phenomenal.|
|By : Gee Elsis Date Added: 08/18/2021|
|I have had no issues with the WS2815 light strips. These come with a silicon rectangular tube to achieve the weather proofing. I mounted this within an aluminum housing using the stick on clips which worked very nicely as the weather proofing material (silicon) is very difficult to find an adhesive that will stick. These have worked fine with no issues, I chose these because they have dual data paths so are bit more fault tolerant than some others. These worked just fine at -13F with no issues.|
