DC5-24V SP63BE Bluetooth RF SPI RGB+1CH PWM WS2811 RGB+W LED Controller
DC5-24V SP63BE Bluetooth... $7.98
WS2811 DC12V Addressable... $34.98
DC5-24V SP63BE Bluetooth...
WS2811 DC12V Addressable...

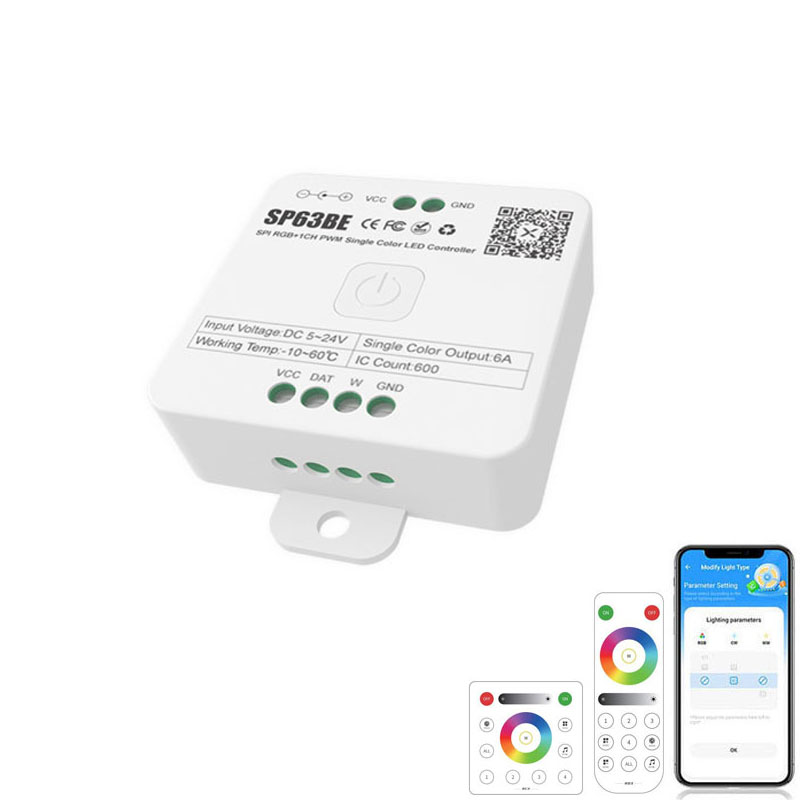

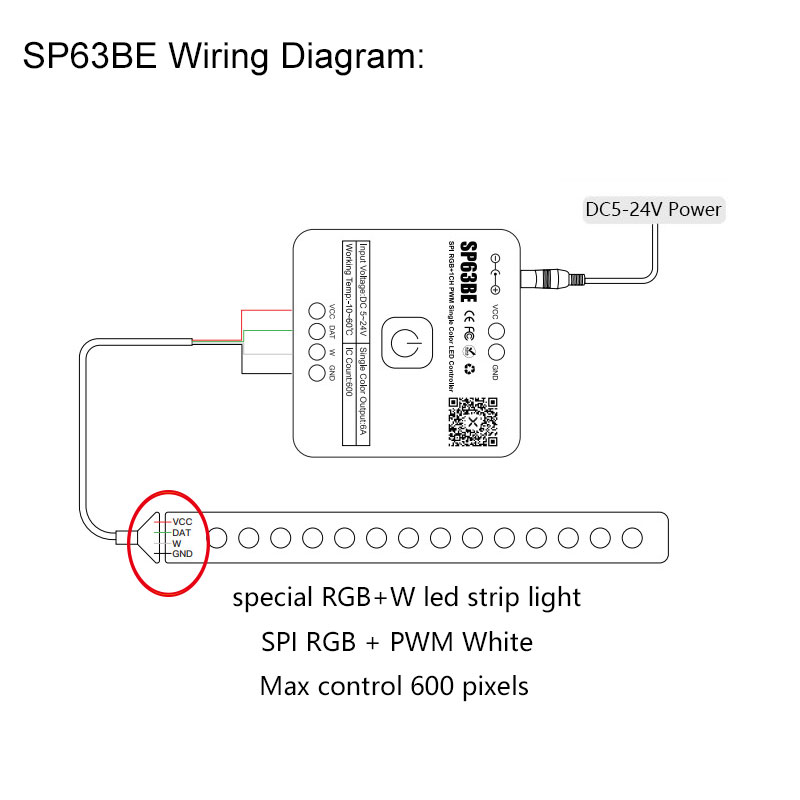

Check this mini controller for WS2811 RGB+White led strip light, output SPI/TTL signal for RGBIC LEDs and PWM signal for white LEDs, so that you can achieve beautiful lighting effects freely through your smartphone or RF remote. Max control 600 pixels.

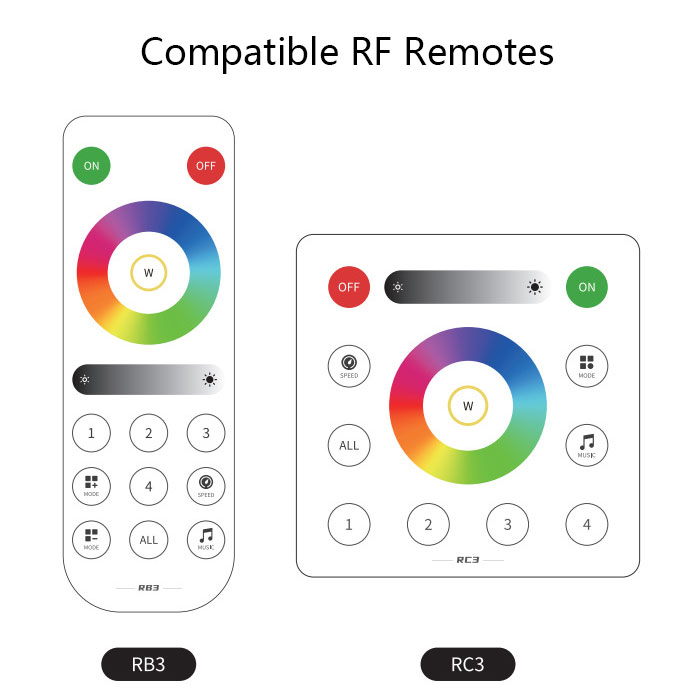

Search "BanlanX" in App Store or Google Play to find the APP, or scan the QR code to download and install. The compatible RF remote (RB3 and RC3) supports one-to-many control and many-to-one control, one RF remote can control multiple controllers, each controller can bind up to 5 remotes. Available with unified control and 4-zone control.
● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.
● Support cell phone microphone, player streaming, and on-board microphone for music capture.
● Support dynamic effect collection and collection list loop.
● Support custom effects.
● Support multiple on/off animation effects.
● Support calibration channel sequence and timing switch.
● Support OTA firmware upgrade.
RB3 & RC3 Remote Control Manual Download
Standards and Certifications
|Product Name:||SPI RGB+1CH PWM White LED Controller|
|Max Control Pixels:||600pcs|
|Control Method:||Mobile APP "BanlanX" + RF Remote (only support RB3 and RC3)|
|Mobile System:||Andriod 4.4/ iOS 10.0 or higher|
|Working Temperature:||-20℃ ~ 60℃|
