Product Information

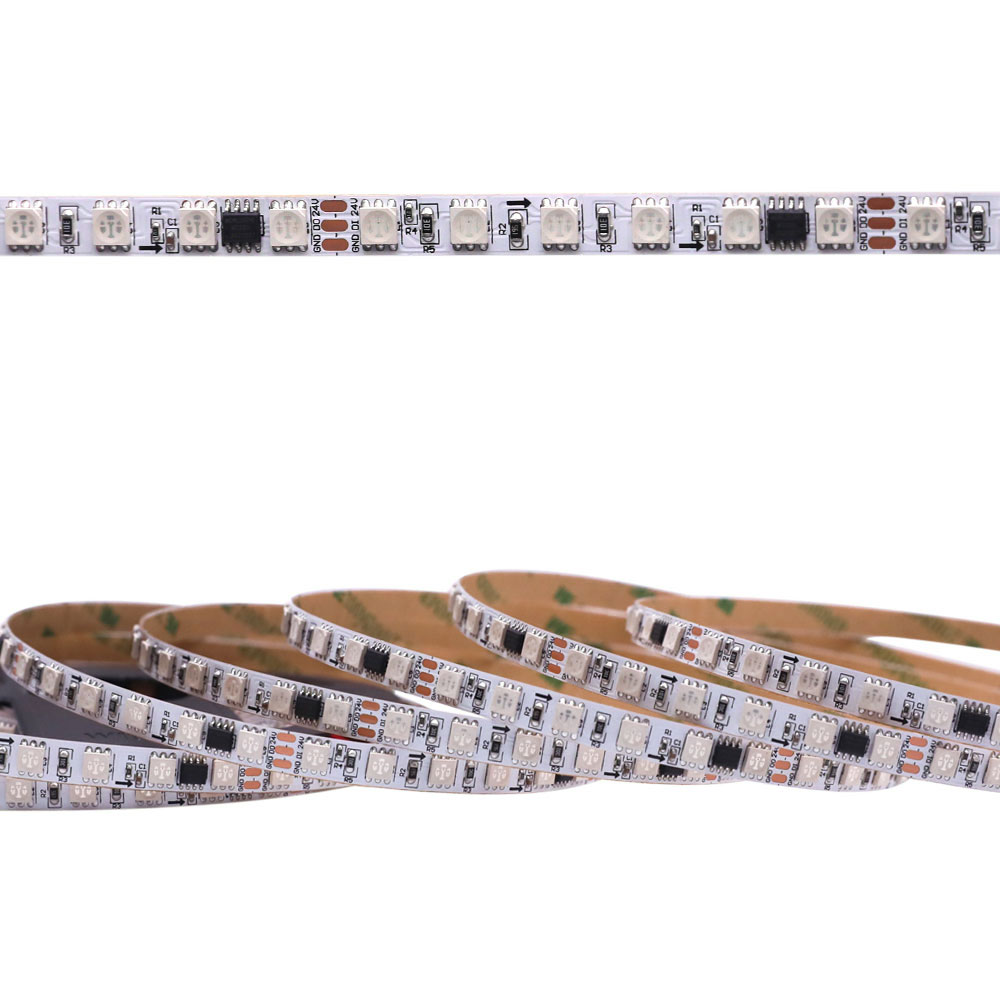

This WS2811 led strip with 84 LEDs per meter is brighter than that with 60 LEDs per meter. One end of the 5m/16.4ft addressable RGB led strip connected to the 24V power supply, there is no voltage drop, good color consistency.

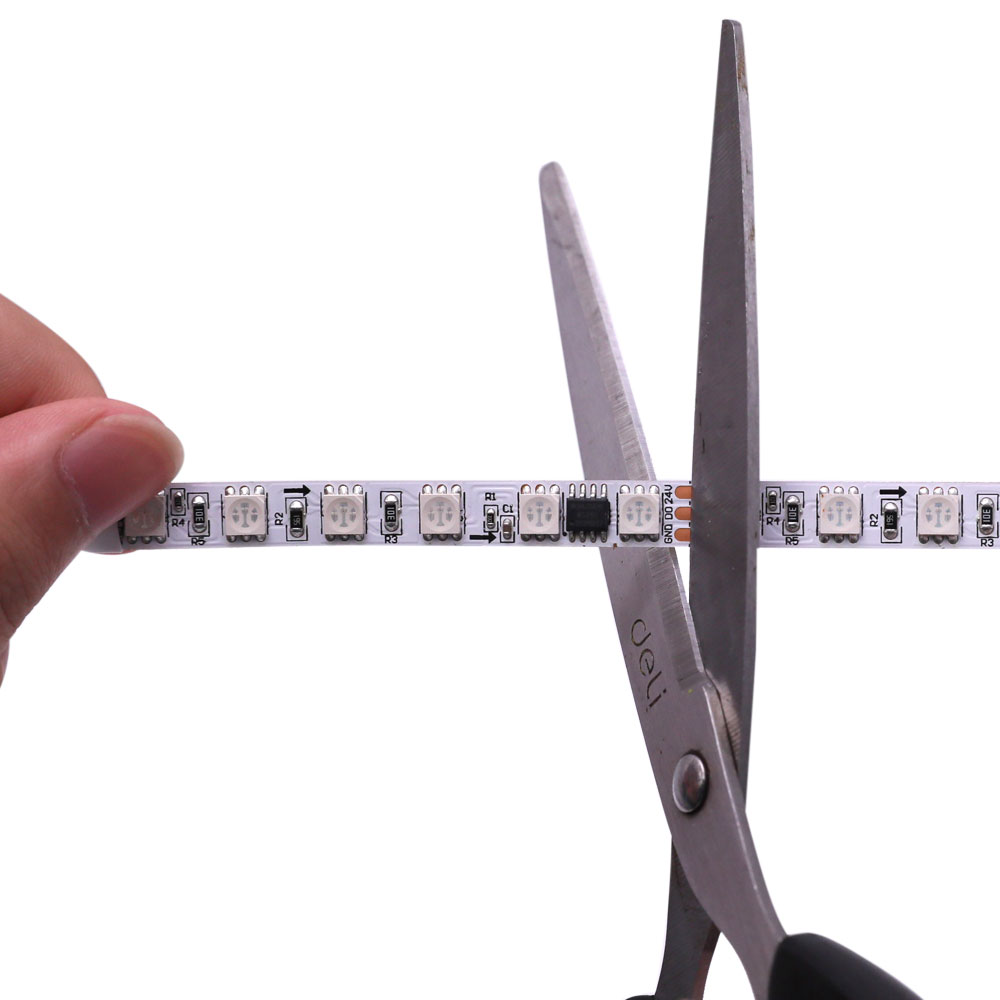

24 volt DC low voltage input, 71.4mm can be cut, 6 LED lights as a loop. Adapts 5050 SMD LEDs, high brightness, and low energy consumption.

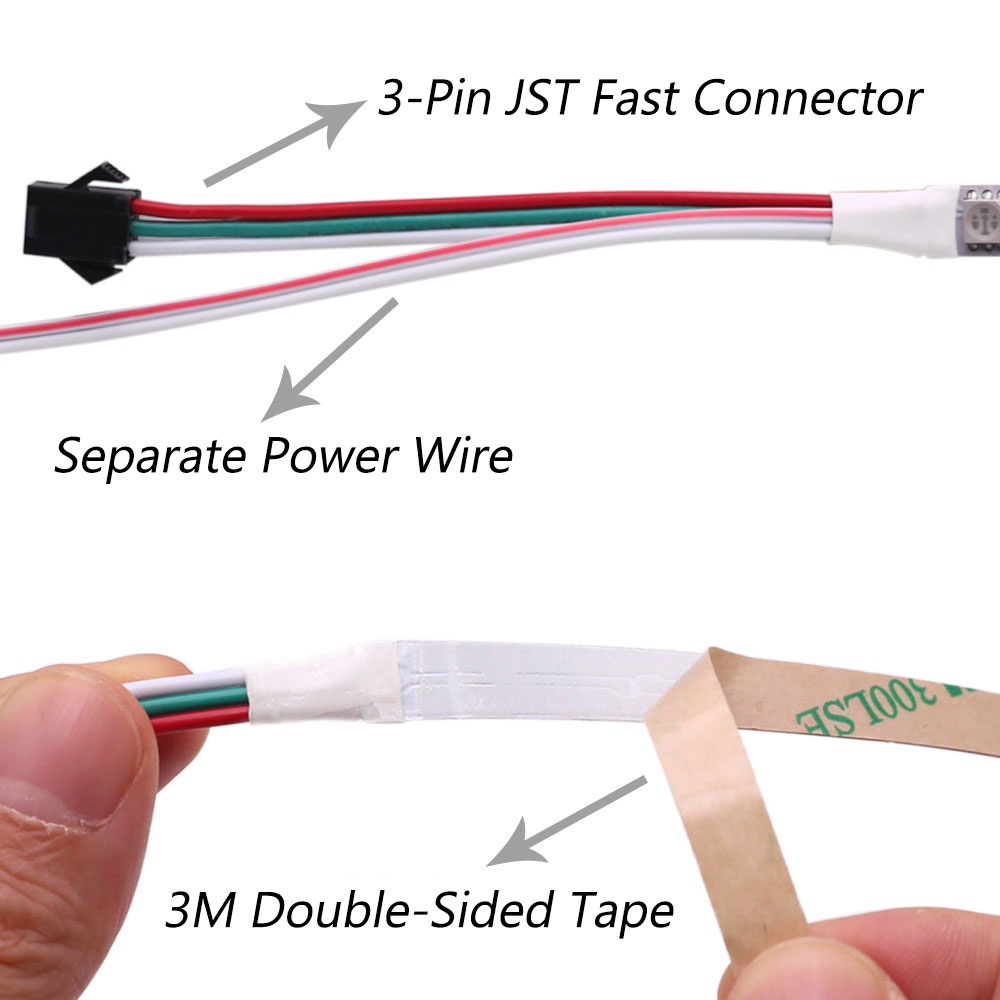

It comes with a 3-pin JST connector and a 2-pin power wire to connect, easy to use. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
Note: If you select the kit, we will send you a 24V 16.4ft WS2811 led strip + an SP107E Bluetooth controller + a 100W Meanwell switching power supply.
Display the color programs set by the SPI controller:
Program the led lights by yourself through an Artnet controller:
WS2811 Chips Specifications Download
Standards and Certifications
Product Specification
| Light Strip Type: | WS2811 Addressable RGB LED Strip Lights |
| LED Chip: | SMD5050 + WS2811 IC |
| Input Voltage: | DC24V |
| Power: | 15W/m, 75W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | RGB Dream Color |

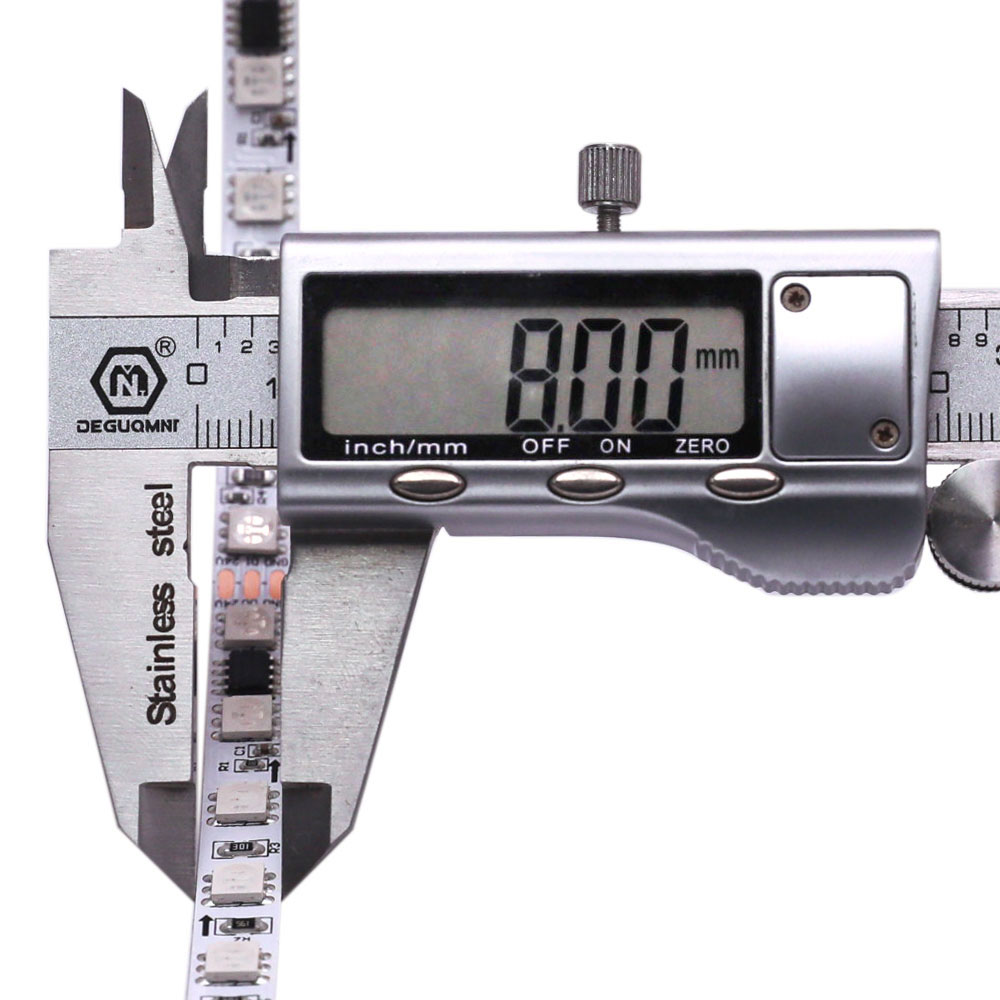

| PCB Width: | 8mm |
| LED Quantity: | 84 LEDs/m, 420 LEDs per roll |
| IC Quantity: | 14 ICs/m, 70 ICs per roll |
| Cut Unit: | 71.4mm - 6 LEDs can be cut |
| Waterproof Rating: | Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68 |
| Strip Length: | 5m/16.4ft |
| LED Chip Brand: | Epistar |
| Lifespan: | 30,000+hours |
| Beam Angle: | 120° |
| Lumen: | 22 lm/LED, 6600lm/16.4ft |
How To Wire WS2811 LED Strip?
Low-voltage addressable led strip requires a controller and DC power supply to function properly. The following is the WS2811 led strip wiring diagram:
Do you want to diffuse the LED diode lights?
LED silicone sleeves and LED aluminum channels are the best-known diffusers of led strip lights. You can add it to your strip light to get a uniform and dotless lighting effect. They can eliminate the led diodes.
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for DCFLS-24V-WS2811X420Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
