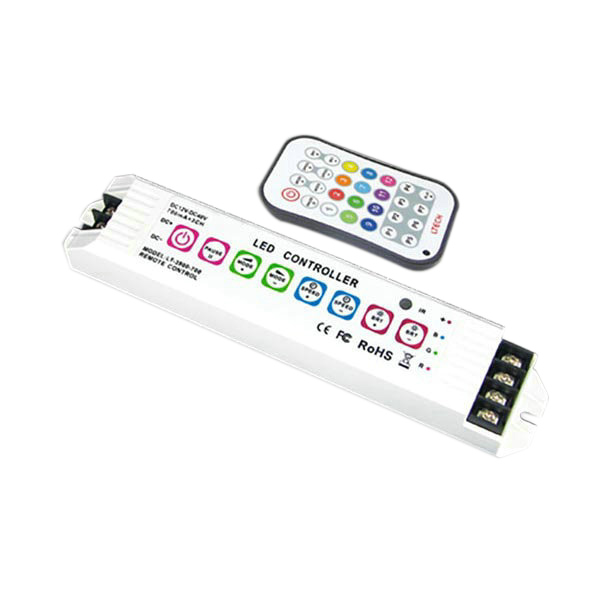

LT-3900-700, RGB LED Light Controller, High-end Multi-color Changing Controller for LED Light Bulbs
Platinum Series LED controller is a complete color change of the general RGB controller, using the most advanced PWM (pulse width modulation) current control technology. PC engineering plastic panel T-TOUCH / soft touch function buttons, beautiful appearance. Extensive full-color control RGB LED module, LED light bar, LED tape and all resistance limit flow of LED lighting products.
1, automatically adapt to LED lights, from dc5v-24v or dc12v-24v.
2, 4096 gray levels of RGB color gradually changed into, and even with smooth, no flicker.
3, 16 / 32 color such as smooth, color jumping, horse racing, strobe wonderful way, etc..
4, can be in a static single color, speed and brightness can be adjusted in the suspended state.
5, power repeater to expand the output power of infinite.
Input voltage: DC12V~DC48V
Output voltage: DC3V~DC42V
Max current load: CC 700mA/CH×3
Output power: 2.1W~29.4W ×3CH Max 88.2W
Control button: 8 Touch buttons
Function Mode: 32 modes
Remote control distance: IR distance: 10m
working temperature: -30℃~55℃
Package Size: L213×W61×H38(mm)
Weight (G.W): 320g
