Ltech LM-100-24-U1M2 UL-Listed 100W DC24V Dimmable DMX & RDM LED Driver
- $42.98 $20.9851% off
- $34.98 $25.9826% off
- $42.98 $20.9851% off
- $79.98 $74.986% off
- $16.99 $14.9912% off
Special Price: $46.98

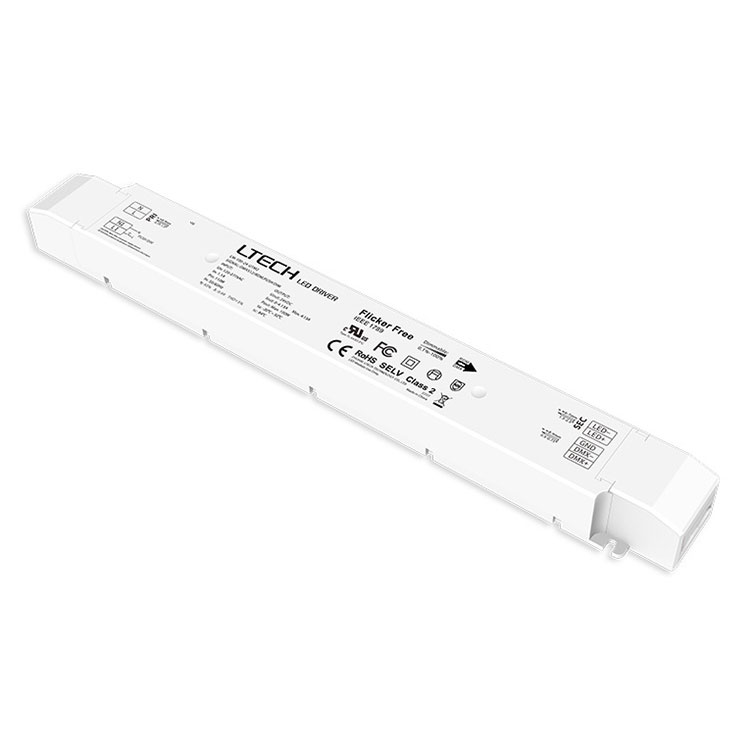

Ltech Intelligent Constant Voltage Dimmable DMX LED Driver LM-100-24-U1M2, UL-listed, support DMX512/RDM and PUSH DIM protocols, dimming range from 0~100%, down to 0.1%. High frequency exemption level. With soft-on and fade-in dimming function, enhancing your visual comfort. Support RDM remote device management protocol. 120V-277VAC input, 24VDC output. Max. output 4.17A. 5-year warranty (Rubycon capacitor).
Small size and light weight. The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.

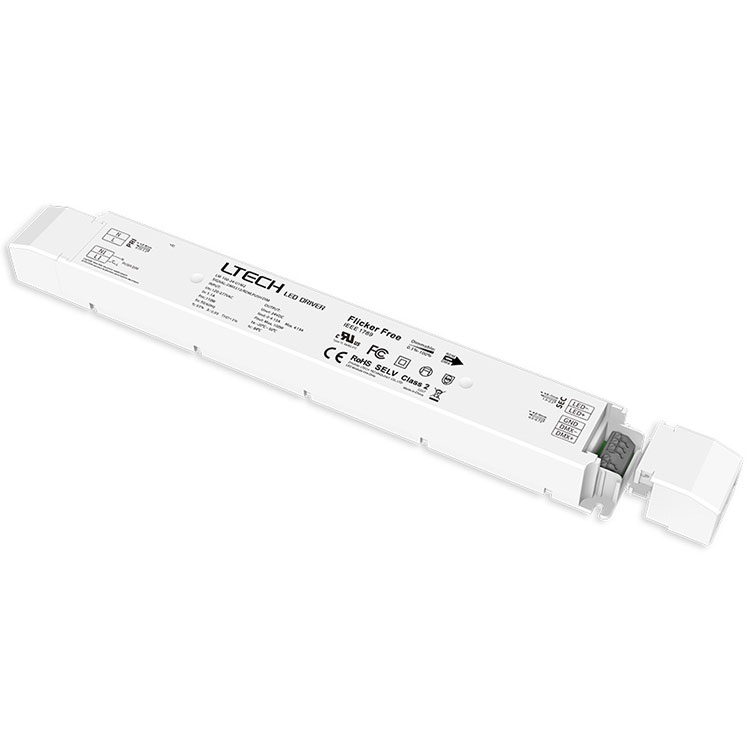

The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the power life.
Overheat, over-voltage, overload, short circuit protection and automatic recovery.
Suitable for indoor light applications of Ⅰ/Ⅱ/Ⅲ type.
Up to 50,000-hour life time.
Standards and Certifications
|L-tech LM-100-24-U1M2 DMX&RDM LED Driver|
|Output Voltage Range:||
|Output Power Range:||
0~100%, down to 0.1%
|Overload Power Limitation:||
|Ripple & Noise:||
Switch ripple≤150mV, noise≤500mV

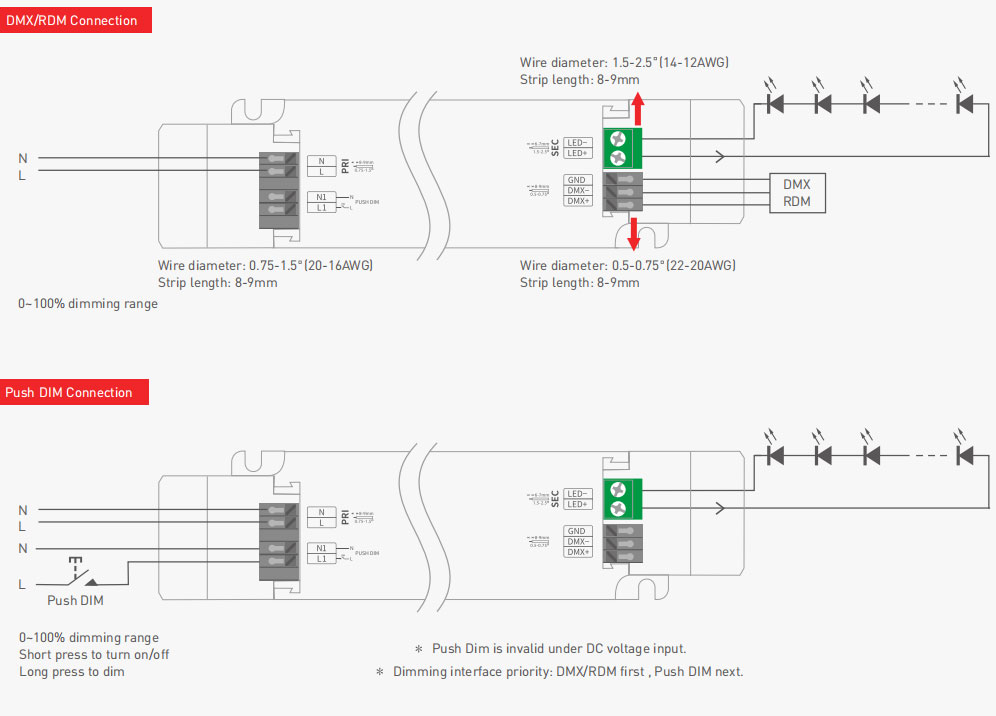

DMX/RDM, Push DIM
Max. 1A/120Vac, 0.55A/230Vac, 0.45A/277Vac
Standby Power Loss:
ta: -20~50°C tc: 85°C
