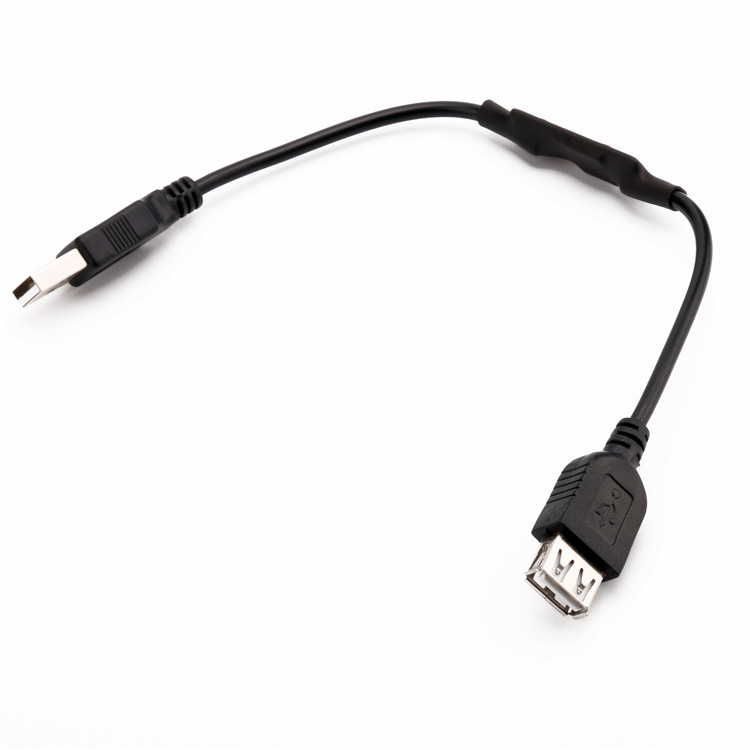

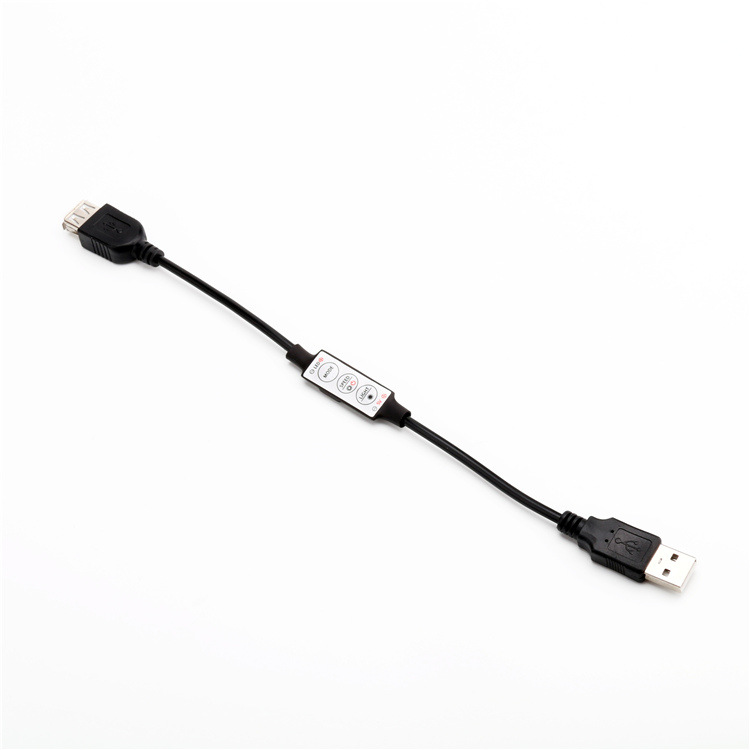

DC5V Mini Single Color LED Strip Light Controller With 3-Button Dimmer Input And Output USB Connector
The dimmer adopts three-key dimming with 7-level dynamic mode; 10-level speed regulation; 10-level brightness adjustment. The dynamic model can only adjust the speed but not the brightness. In the dynamic mode, press the button to switch to the static model. The input and output are all MINI single color controllers with a USB interface.
Standards and Certifications
Connector type: USB
Key quantity: 3
Power Dissipation: <0.5W
Work Temperature: -20~+60degree
Application: Can be used for SMD 5630 5050 3528 3014 2835 Led strip light
1 * 5V Mini 3Keys USB Single Color LED Controller
