SK6805-2427 RGB Digital Intelligent Addressable LED Chip, DIY LED Chip, 500PCS By Sale

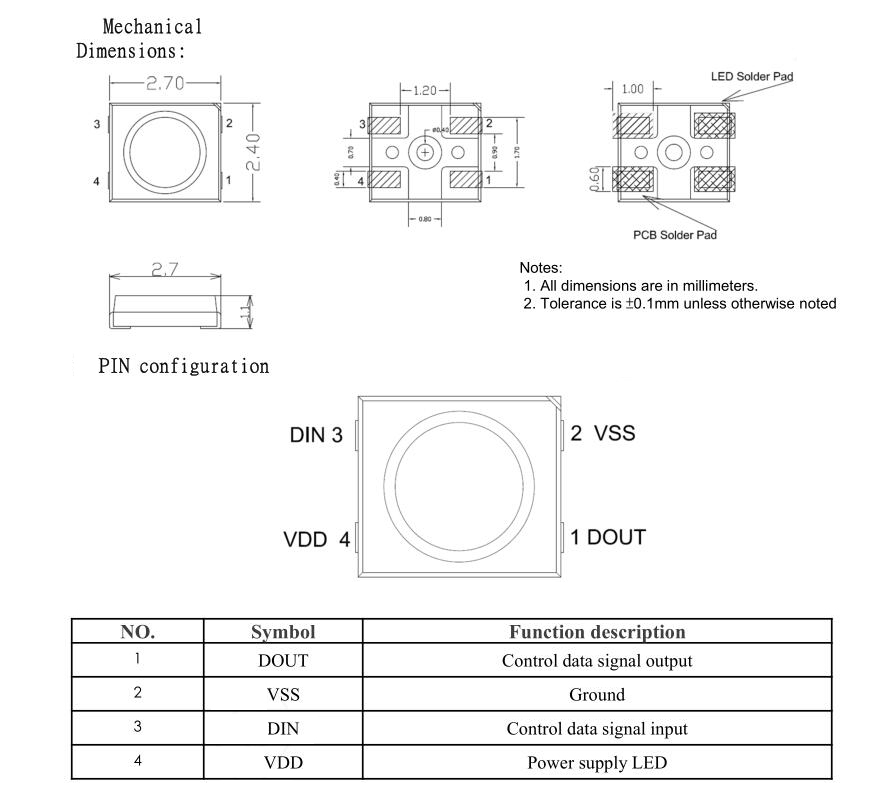

SK6805 2427 is one of the smallest digital rgb led chip for the moment,with the small size 2.4*2.7*1.1mm, it can be use to developed P3 HD led display,also can be the super narrow pcb strip lights with 3mm width pcb,also can be high density as high as 250 led/m led strips.With the milky gel inside the led,which is good for our eyes ,and can be friendly use for the children`s toys.The SK6805-2427 can be greatly increase the application of digital led lights. Each lighting elements is a pixel,and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology,which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit,a built-in constant current circuit,and a high precision RC oscillator.
SK6805 2427,the data protocol being used is unipolar NRZ communication mode.The 24-bit data is transmitted from the controller to DIN of the first element,and if it is accepted it is extracted pixel to pixel.After an internal data latch,the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels.The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmissions only limited by signal transmission speed.
The LED has a low driving voltage(which allows for environmental protection and energy saving),high brightness,scattering,good consistency,low power,and long life. The control circuit is integrated in the LED above.
Top SMD internal integrated high quality external control line serial cascade constant current lc; control circuit and the RGB chip in SMD LED components, to form a complete control of pixel, color-mixing uniformity and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
The built-in power-on reset and reset circuit, the power does not work; grey level adjusting circuit (256 level grayscale adjustable);
Red drive special treatment, color balance;
Line data transmission;
Plastic forward strengthening technology, the transmission distance between two points over 10M; Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec.
Standards and Certifications
LED Chip Type: SK6805-2427
Emitting Color: Addressable Full Color RGB
Working Current: B: 460-475nm, R: 620-630nm, G: 520-535 nm
Working Voltage: DC 5V
Beam Angle: 120degrees
Waterproof Rating: non-waterproof
1* 500pcs SK6805-2427 LED Chip
