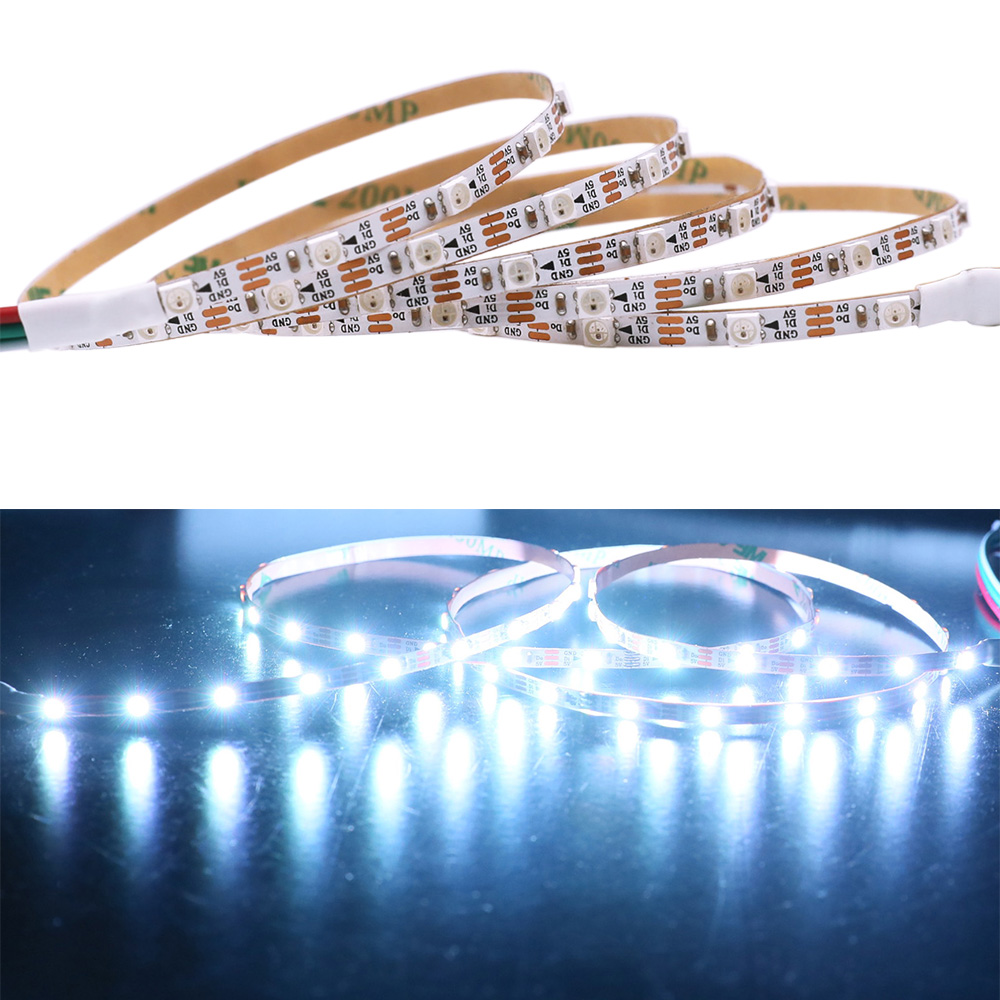

SK6812 RGB 3535SMD 60LEDS/M DC5V 4MM-Wide Digital Intelligent Addressable LED Strip Lights - 3.28-6.56ft optional
There is an Addressable RGB LED strip, 4mm wide for 60LEDs/meter, DC5V input, and you can control each 3535SMD RGB LED individually. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
The RGB LEDs are controlled by shift-registers that are chained up down the SK6812 strip so you can shorten or lengthen the strip. Only 1 digital output pin is required to send data down. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.

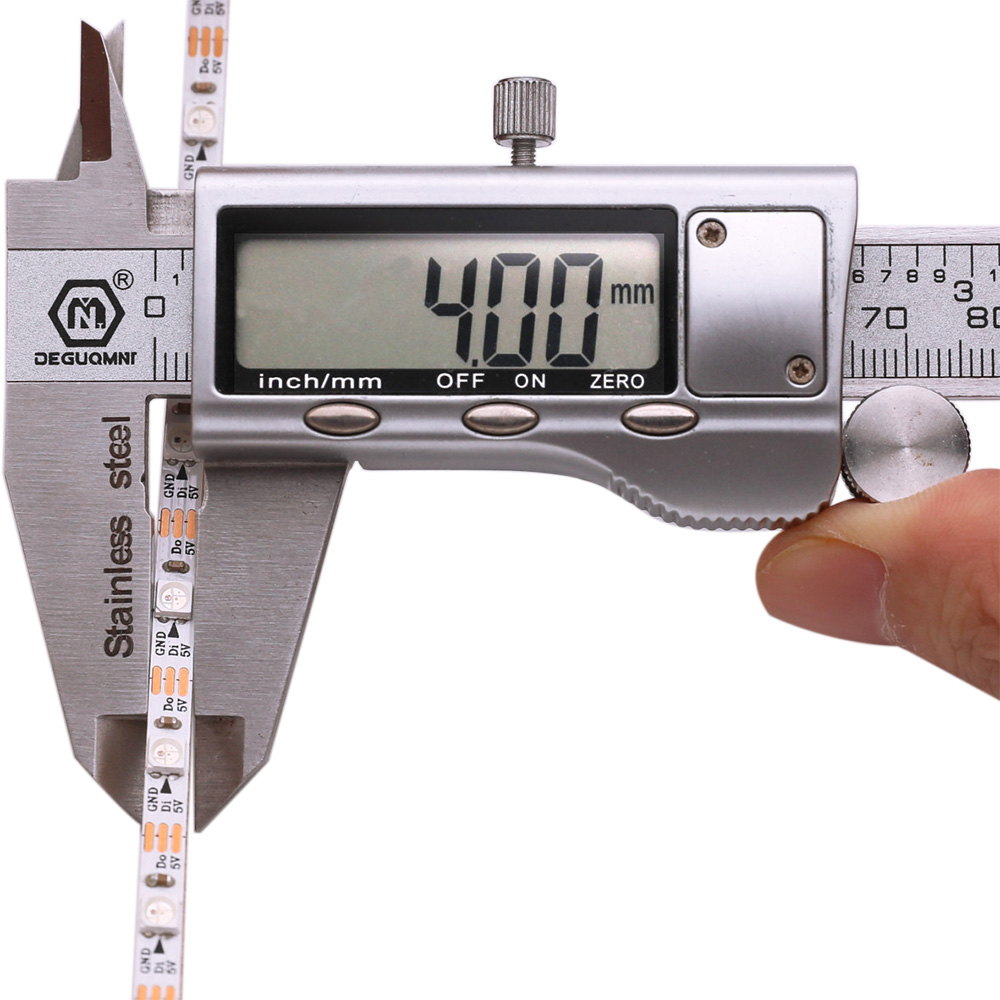

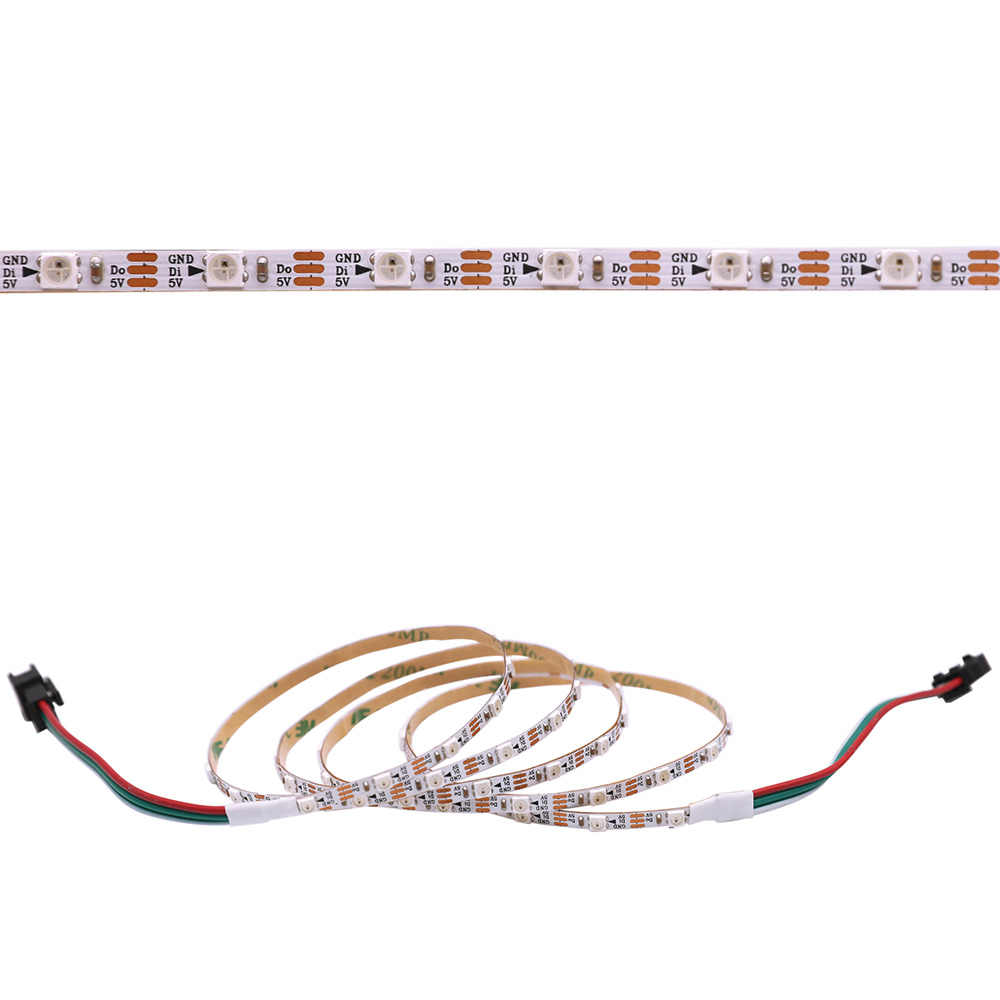

This 4mm narrow led strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go. You can also connect multiple SK6812 led strips together to make them longer. To power this 5V led strip, you need a 5V power supply.
You can use any processor speed or type to control these SK6812 light strips, any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors.
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive);
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
How to connect and control
Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip.
The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B. Click here to know more about SK6812 VS WS2812B.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications
|LED Strip Type:||SMD3535|
|LED Chip:||SK6812IC (1 IC drives 1 led chip)|
|Length:||1m/roll, each LED can be cut|

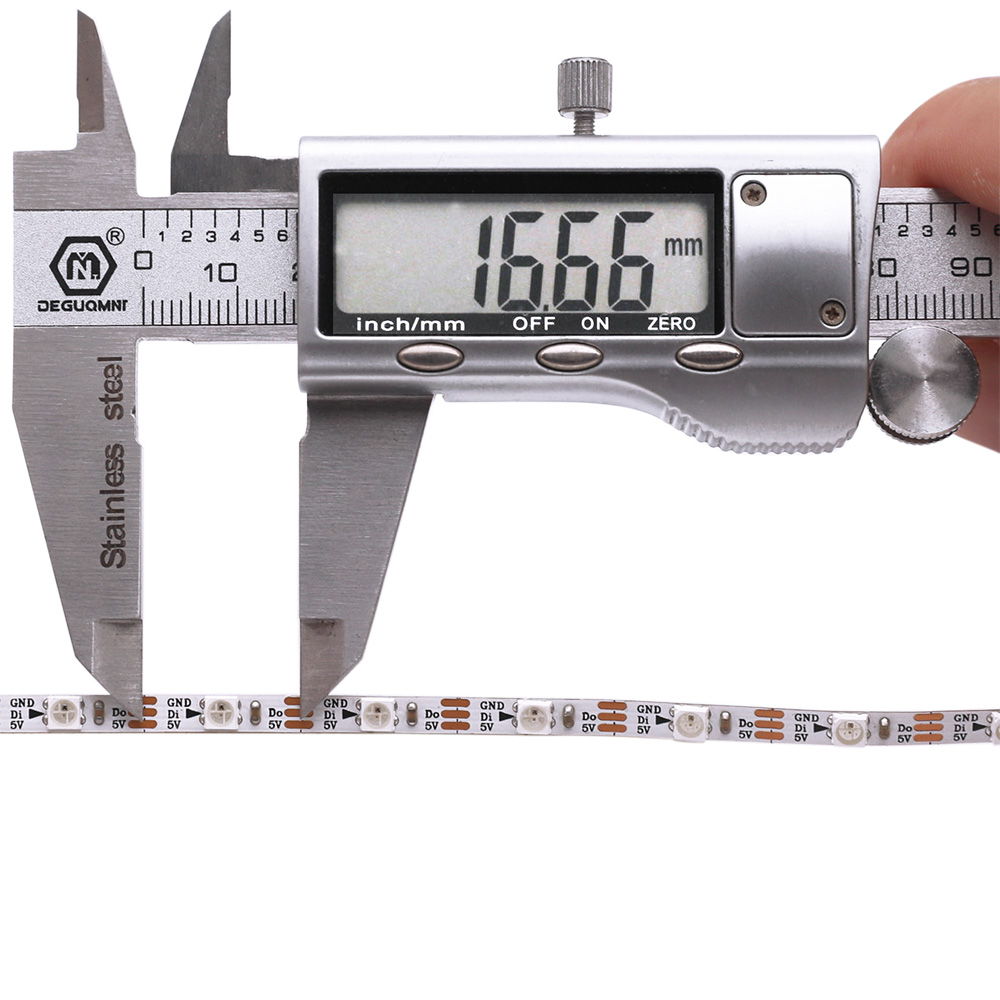

|LED Quantity:||60leds/Meter, 60 pixel /Meter|

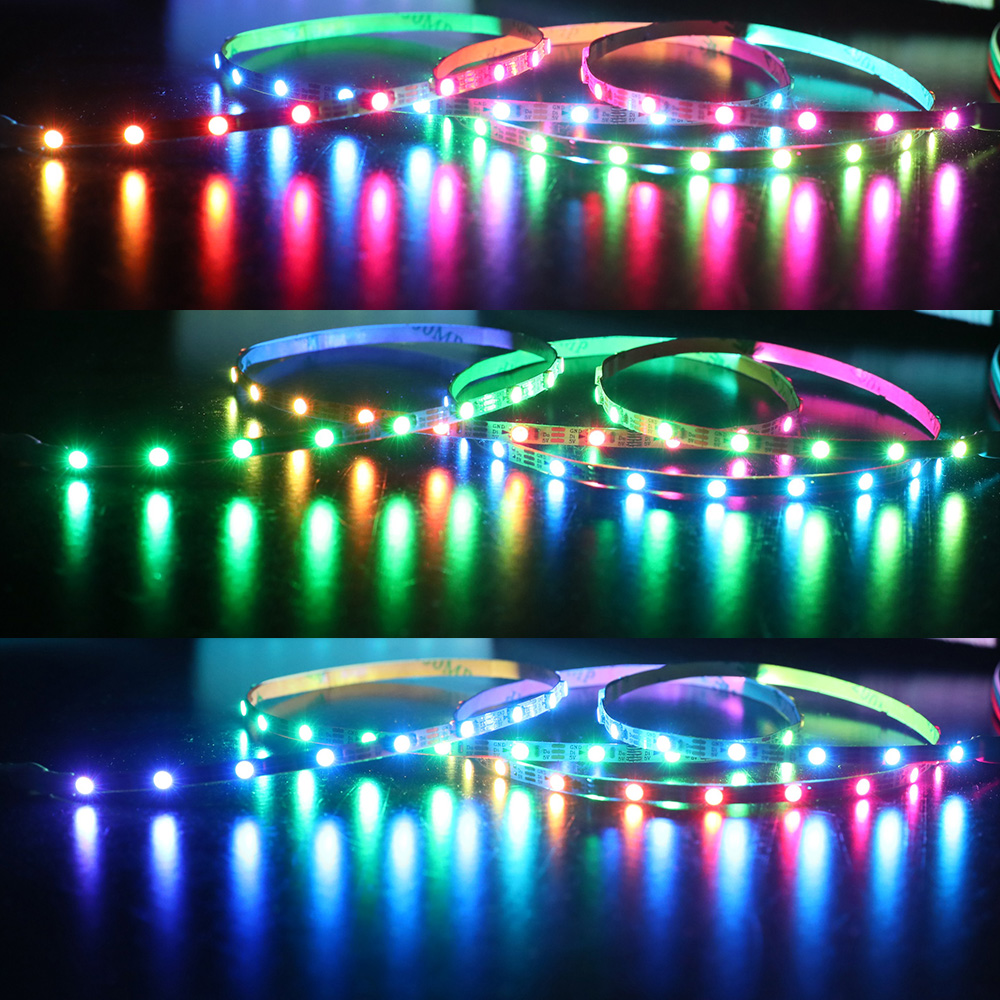

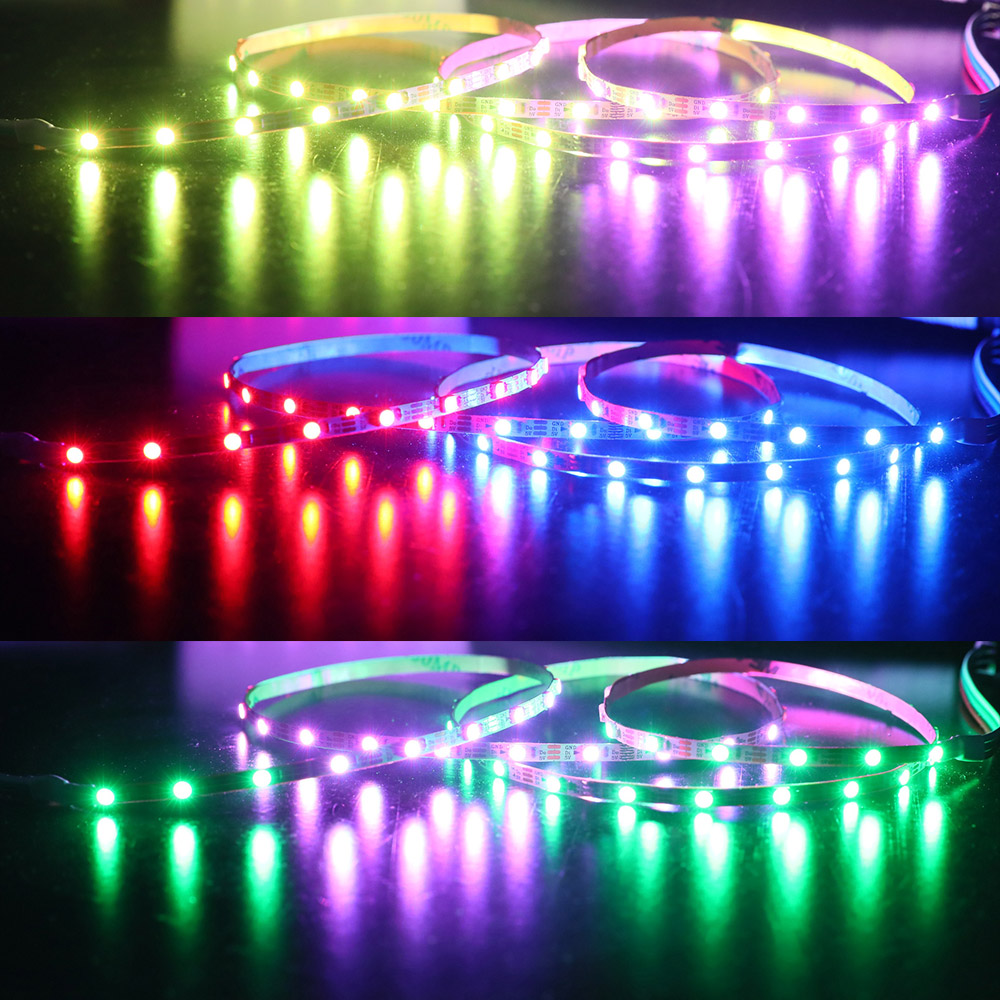

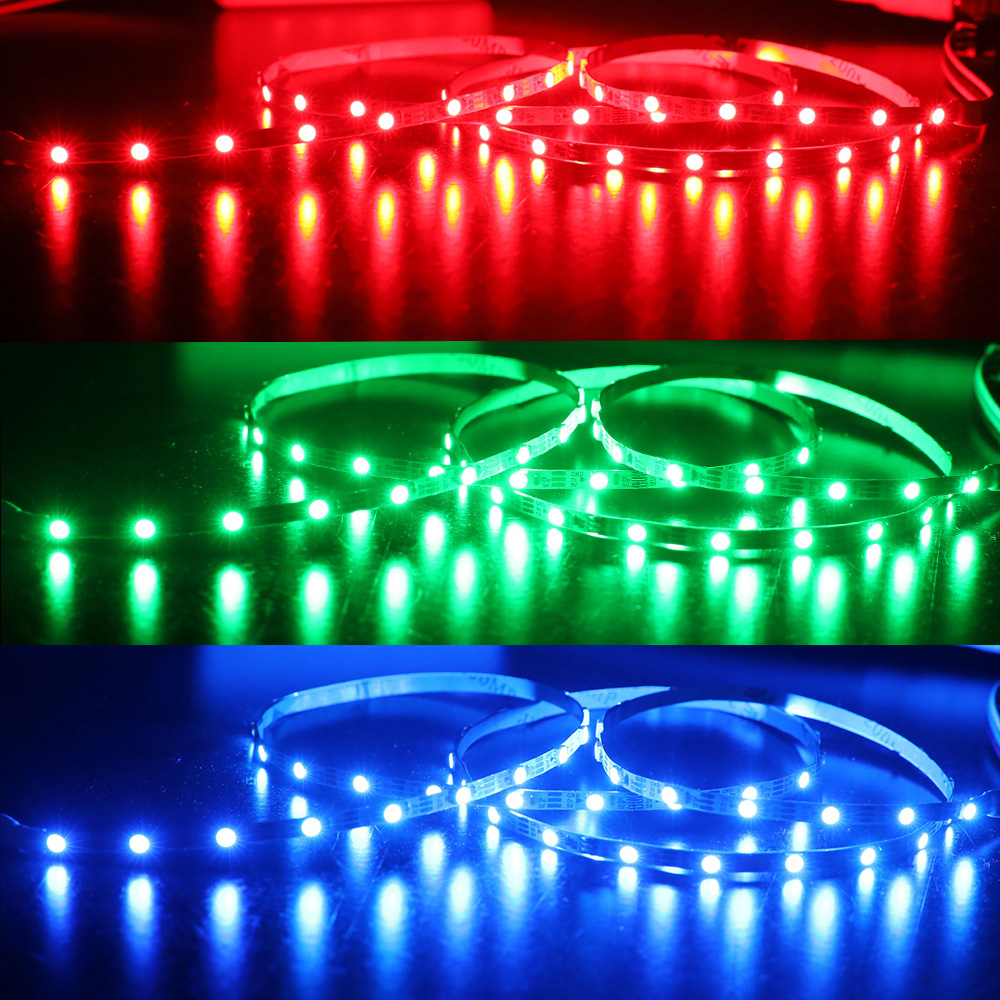

|LED Color:||Full color RGB, dream color changing|
|FPC Color:||WHITE/BLANK Available|
|Dimensions:||L100cm(39.37 in ) x W0.4cm(0.16 in ) x H0.25cm(0.1 in )|
|Grey Scale:||256, 8-bits/color;total 24bit for RGB color|
|Beam Pattern:||120 degrees|
|Waterproof Rating:||Non-waterproof IP20 (Bare strip for indoor), IP67 waterproof (Sealed in silicone tube, for outdoor)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

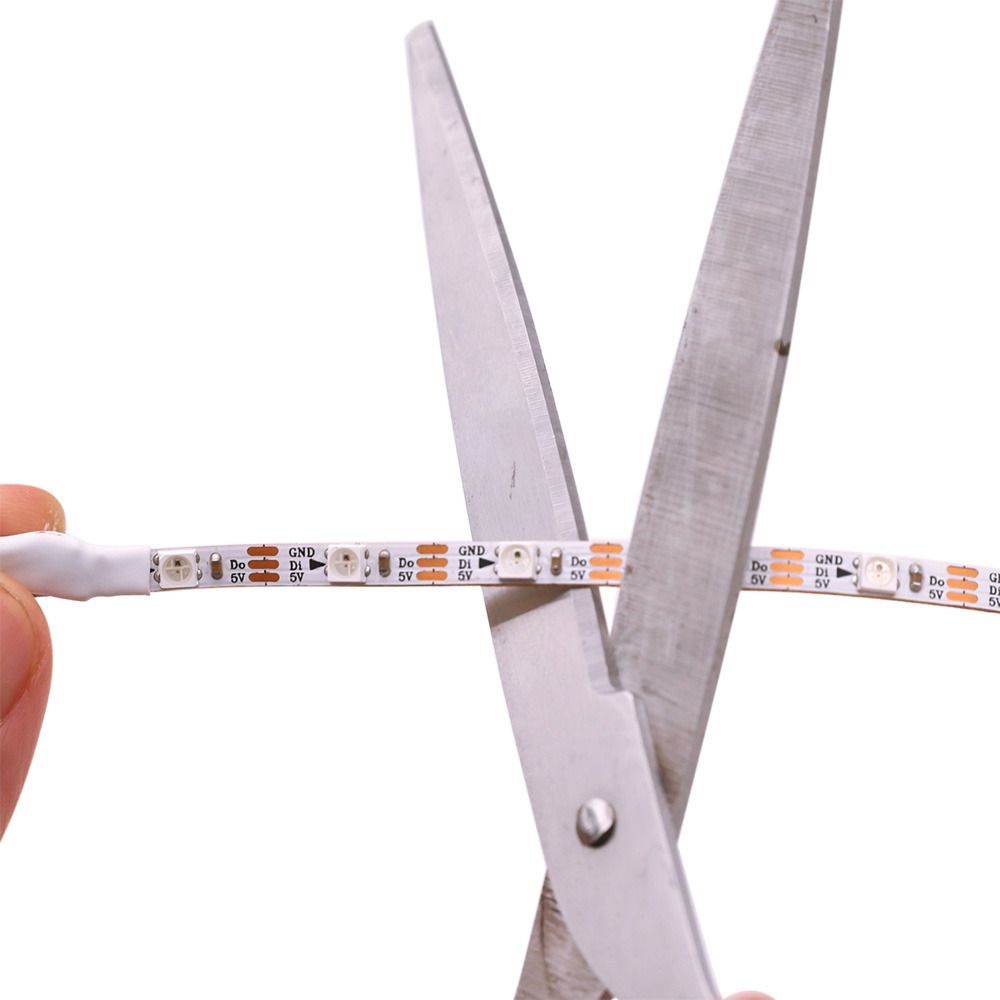

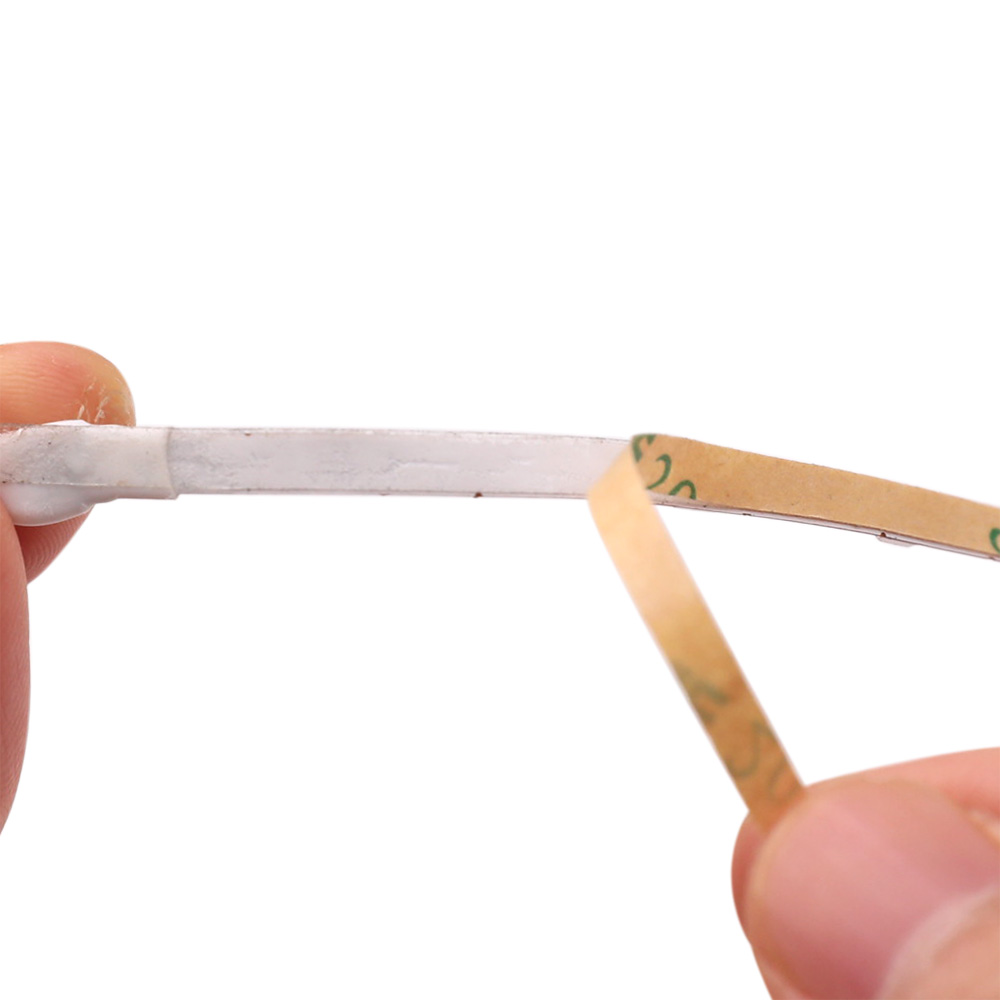

|You can cut the strip every few inches, allowing you to freely design your project without worrying about space requirements to many different surfaces.||The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights easily.||IP67 waterproof strip type is fixed by mounting brackets.|
Note: The BLACK ARROWS on the SK6812 addressable led strip tell the transmitting direction of the signal. When running more than one roll, it should be run strictly follow the Arrow point direction. If connected oppositely, the SK6812 light strip will not work.
Applications - How To Wire Addressable LED Strip Lights?
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
