SK6812 RGBW/WWA 72LEDS/M DC5V 10MM-Wide Digital Intelligent Addressable LED Strip Lights - 5m/16.4ft per roll
Related Products
SK6812 RGBW/WWA 72LEDS/M...
$79.98DC5-24V SP107E Wireless...
$16.98Mean Well LRS-200-5 DC5V...
$49.00 $39.9818% off3-Pin CCT Color...
$0.59DC5-24V SP108E WiFi LED...
$21.99LC-2000B SPI LED WIFI...
$80.00 $44.9844% off-
Special Price: $79.98
There are 72 Addressable RGBW/WWA LEDs per meter, and 10mm wide for the 72LEDs/meter, DC5V input, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
Only 1 digital output pin is required to send data down.
The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.

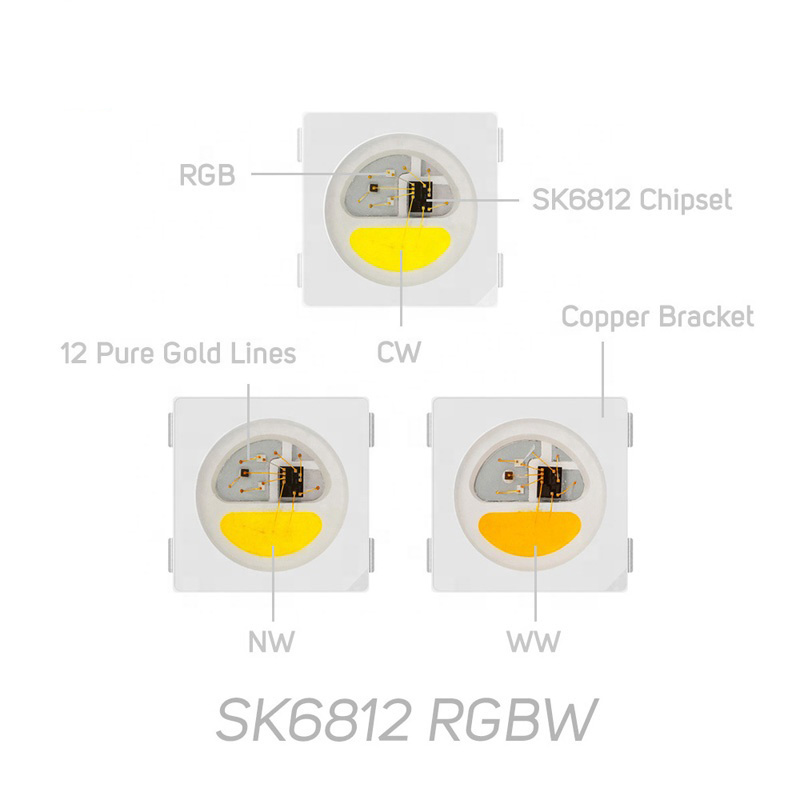

The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.
SK6812 Chips Specifications Download
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Specifications
How to connect and control
Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

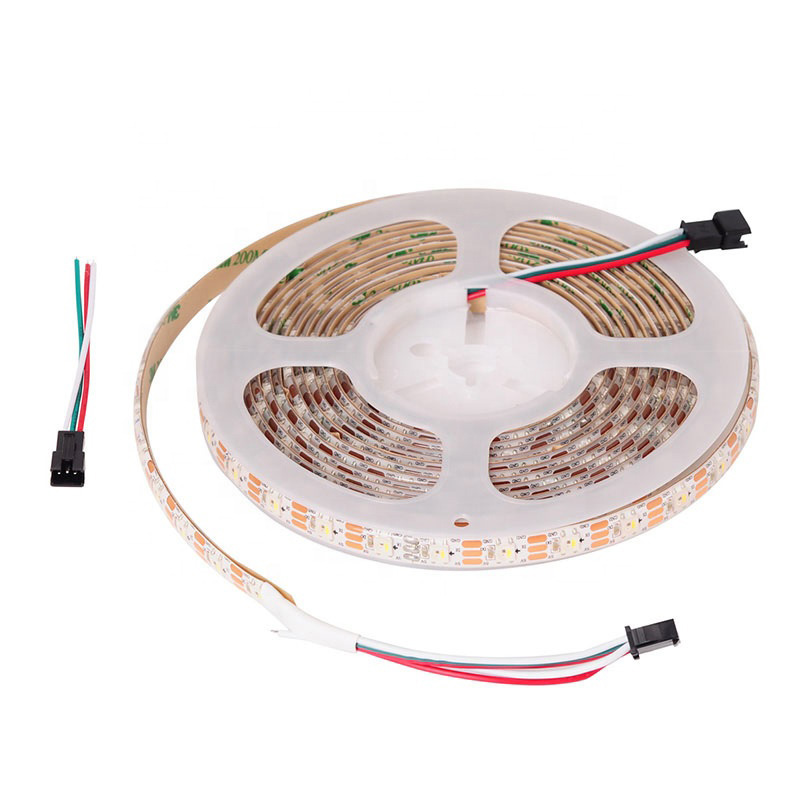

This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 5V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

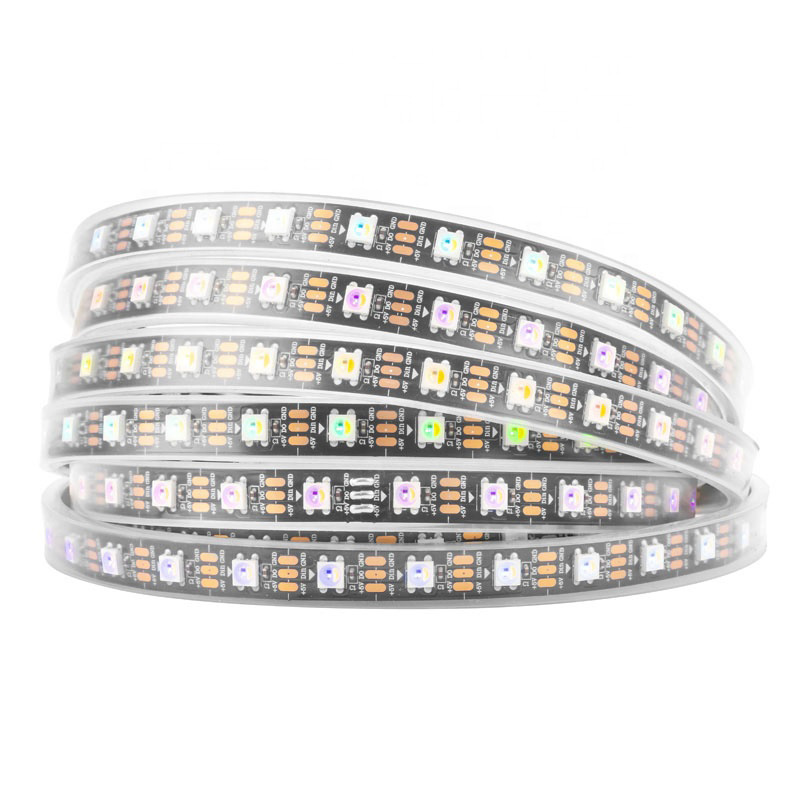

IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
Note

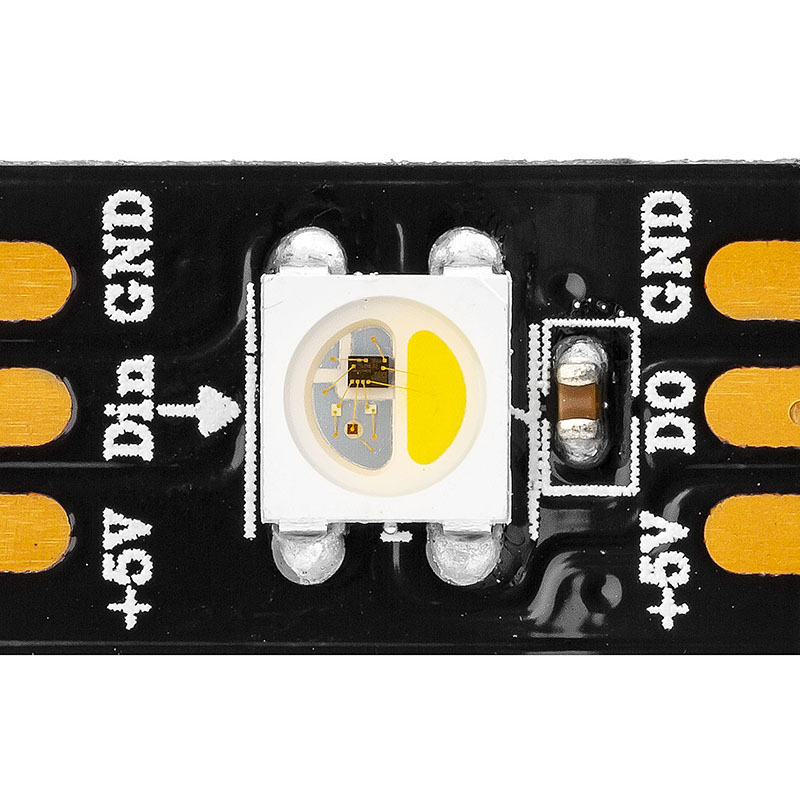

The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.
LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.
Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.
Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.
ISO9001 / 2 management model: to ensure that each product 100% qualified factory.
Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
