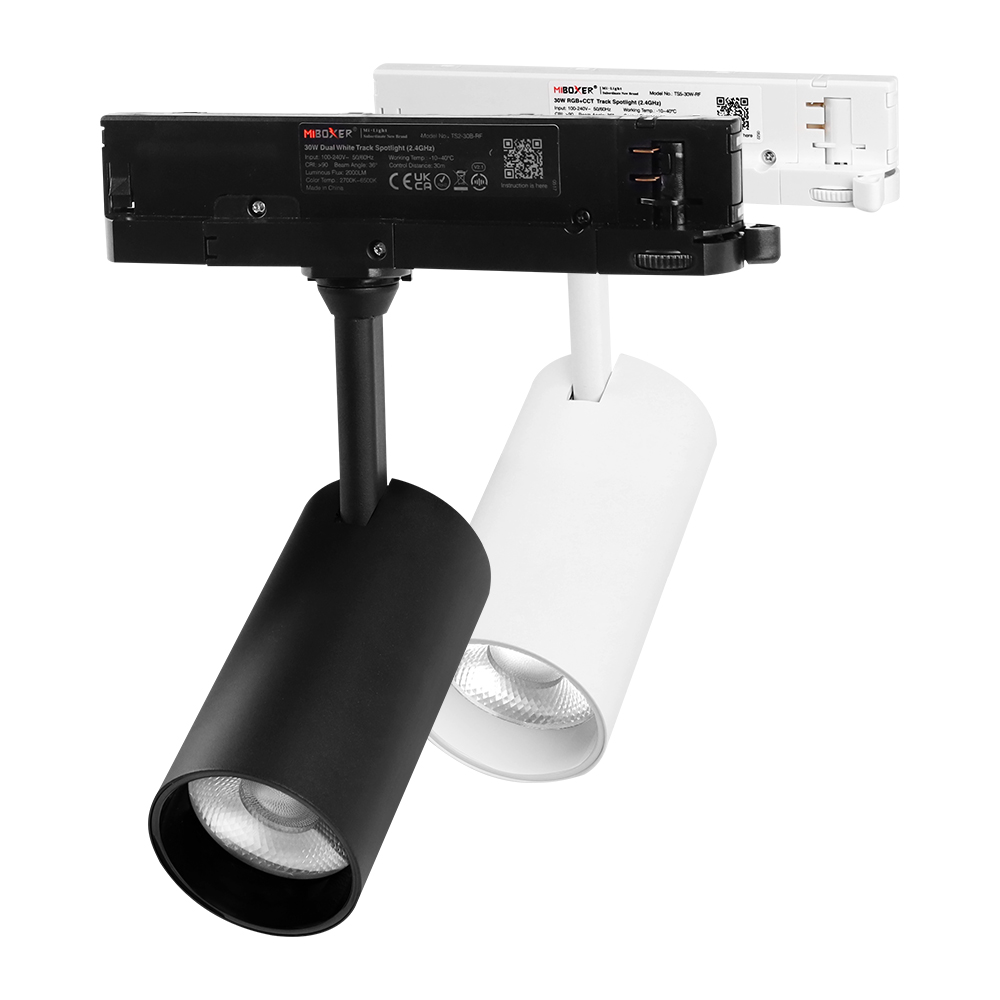

TS5-30B-ZR 30W RGB+CCT LED Track Spotlight - Tuya Zigbee 3.0 + 2.4G - White/Black optional

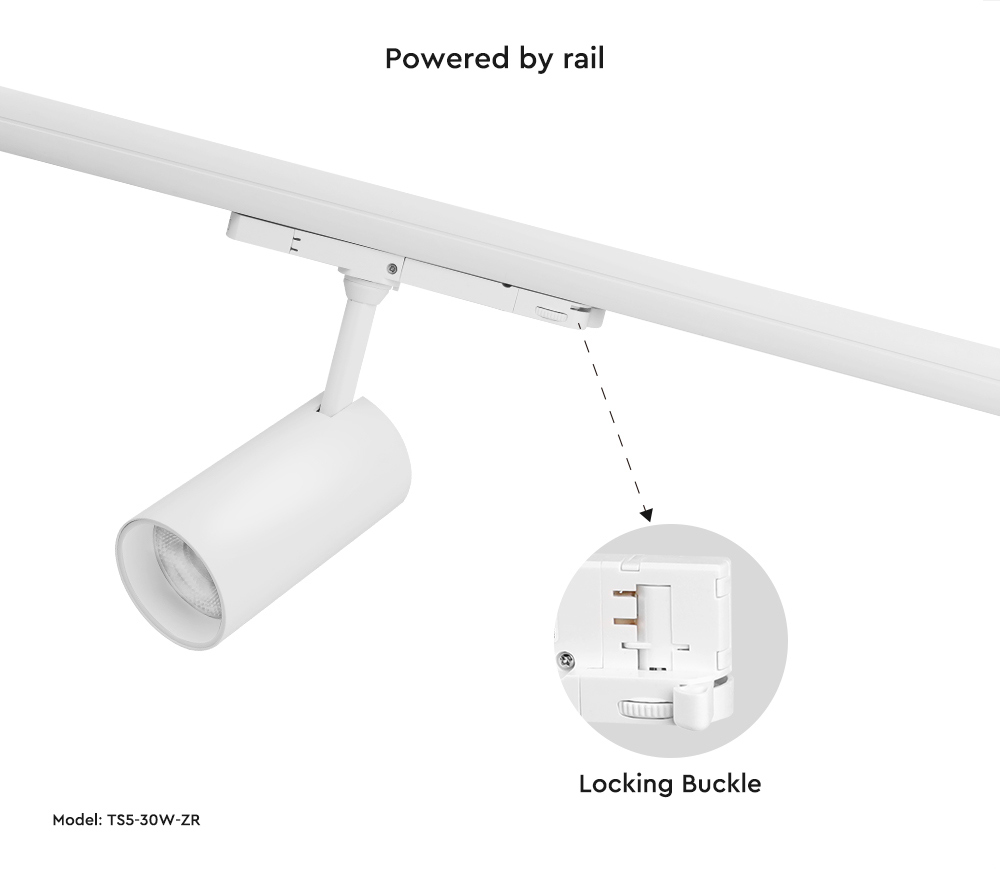

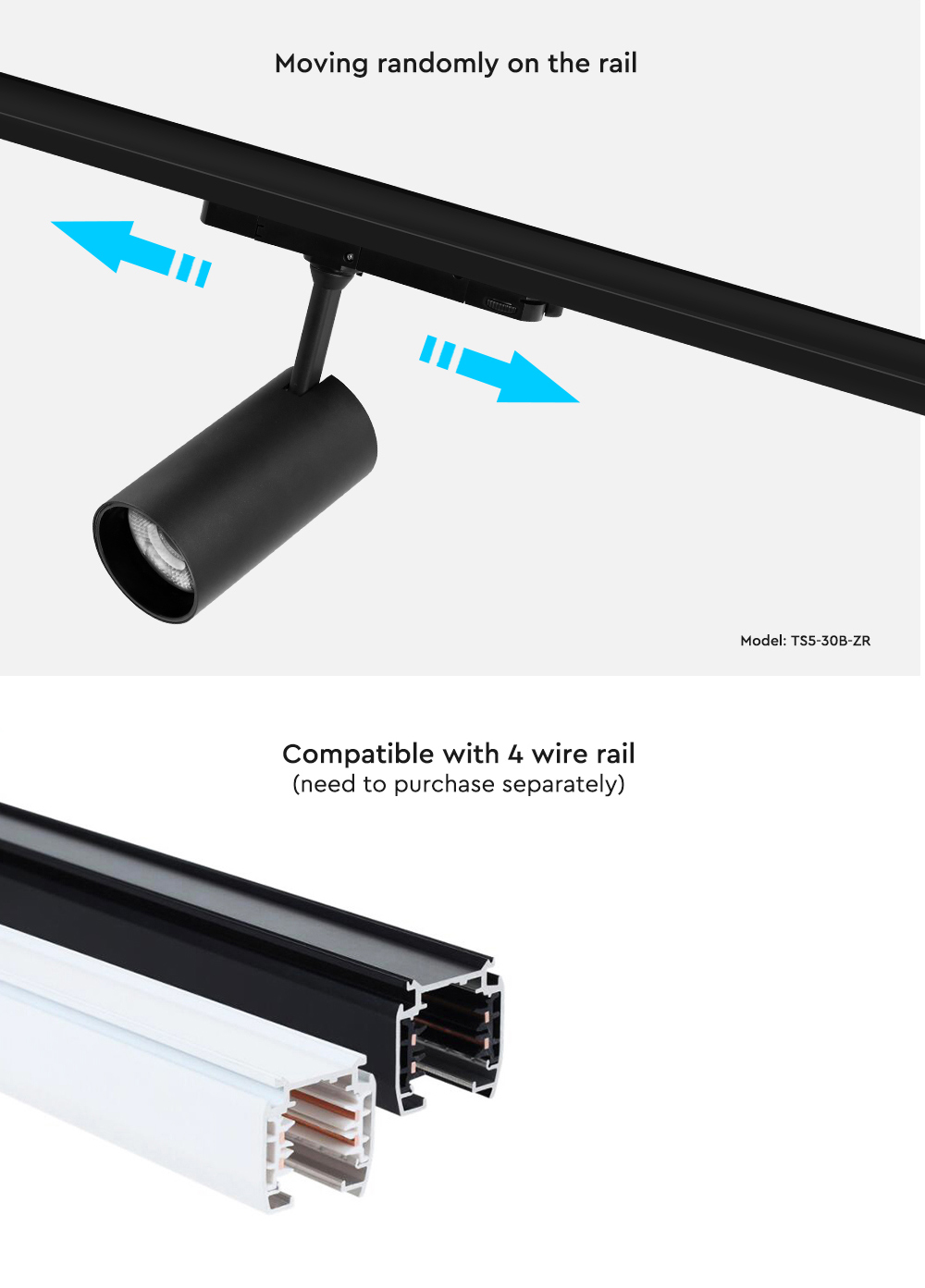

• Powered by rail

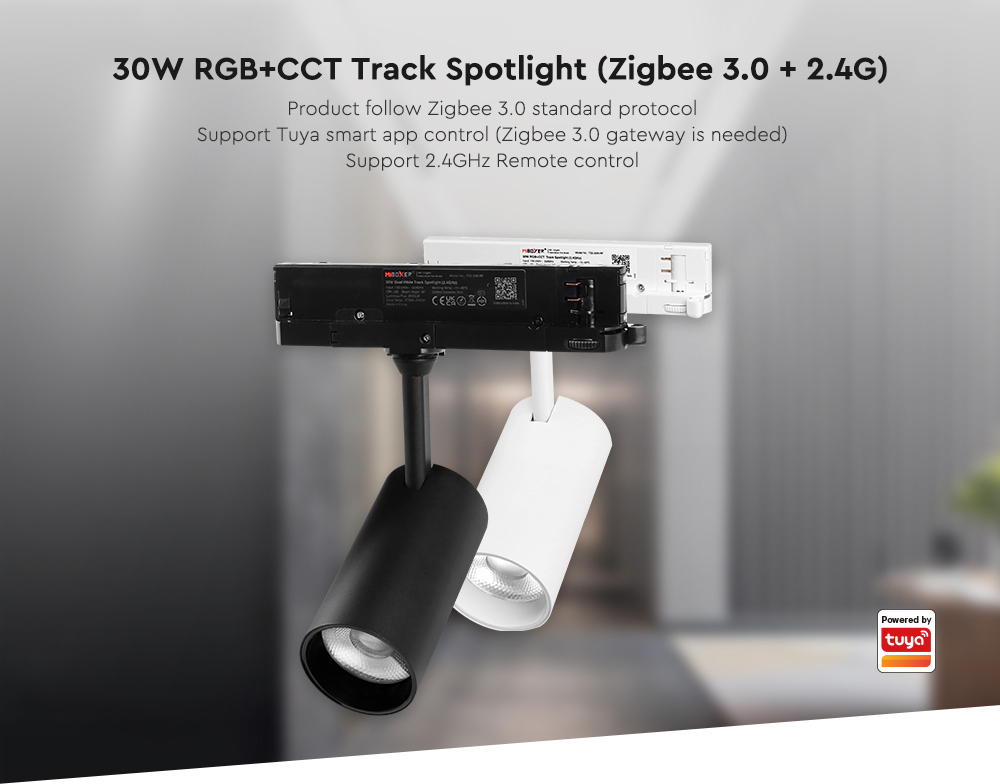

• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)

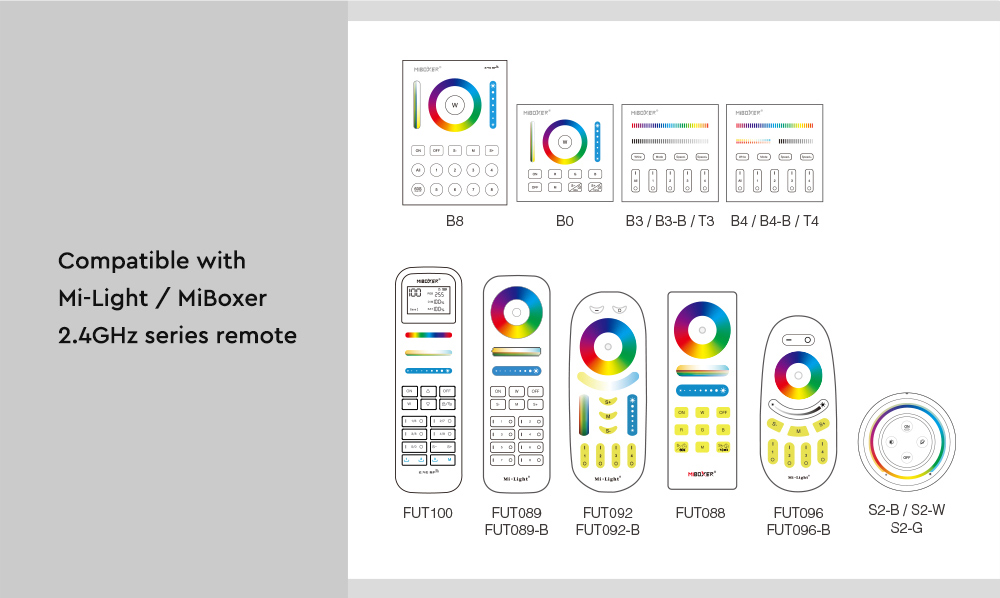

• Compatible with Mi-Light / MiBoxer 2.4GHz series remote

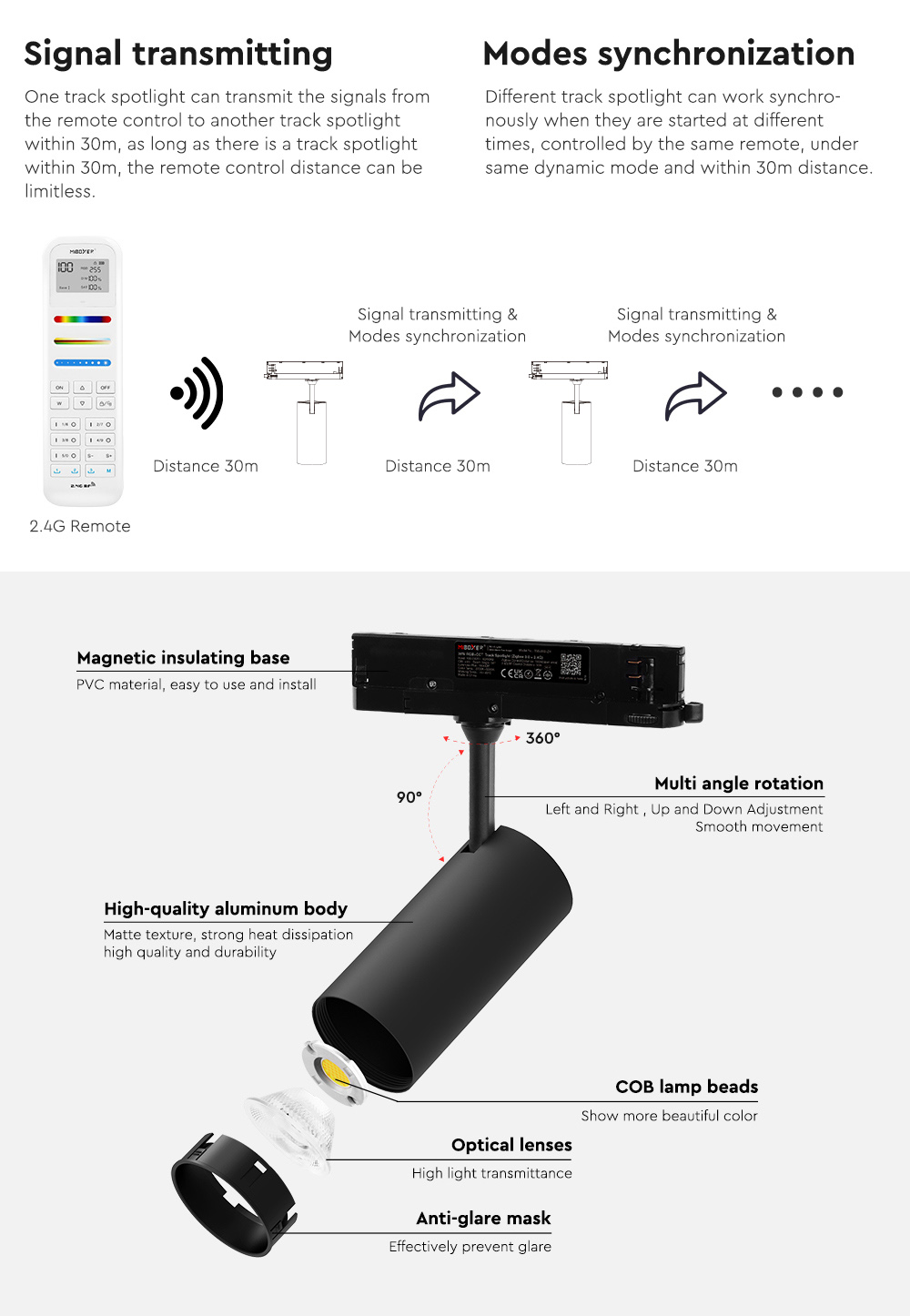

• 2.4G RF Remote Control Distance: 30m

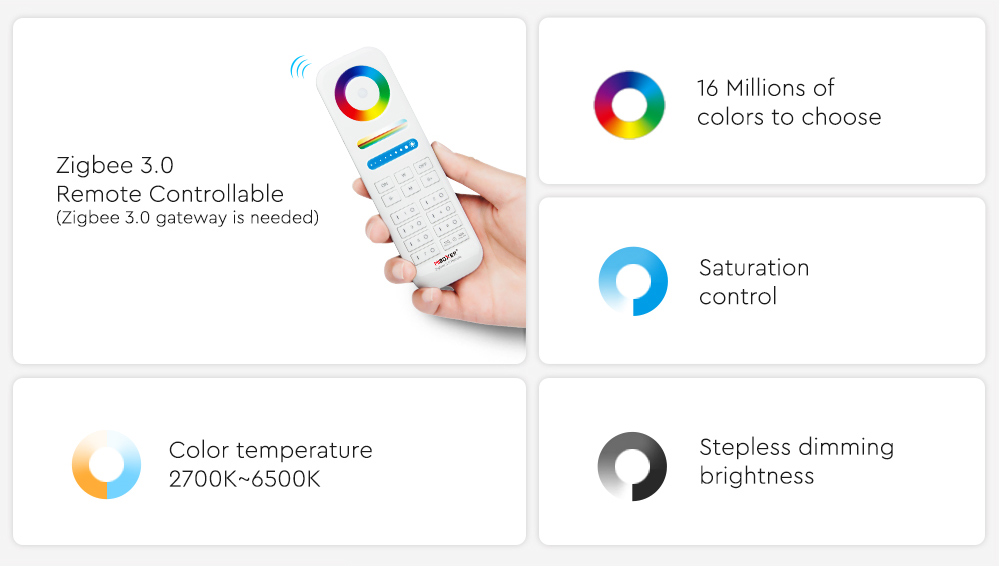

• 16 Millions of colors to choose
• Color temperature and brightness adjustable
Product Name: 30W RGB+CCT Track Spotlight (Zigbee 3.0 + 2.4G)

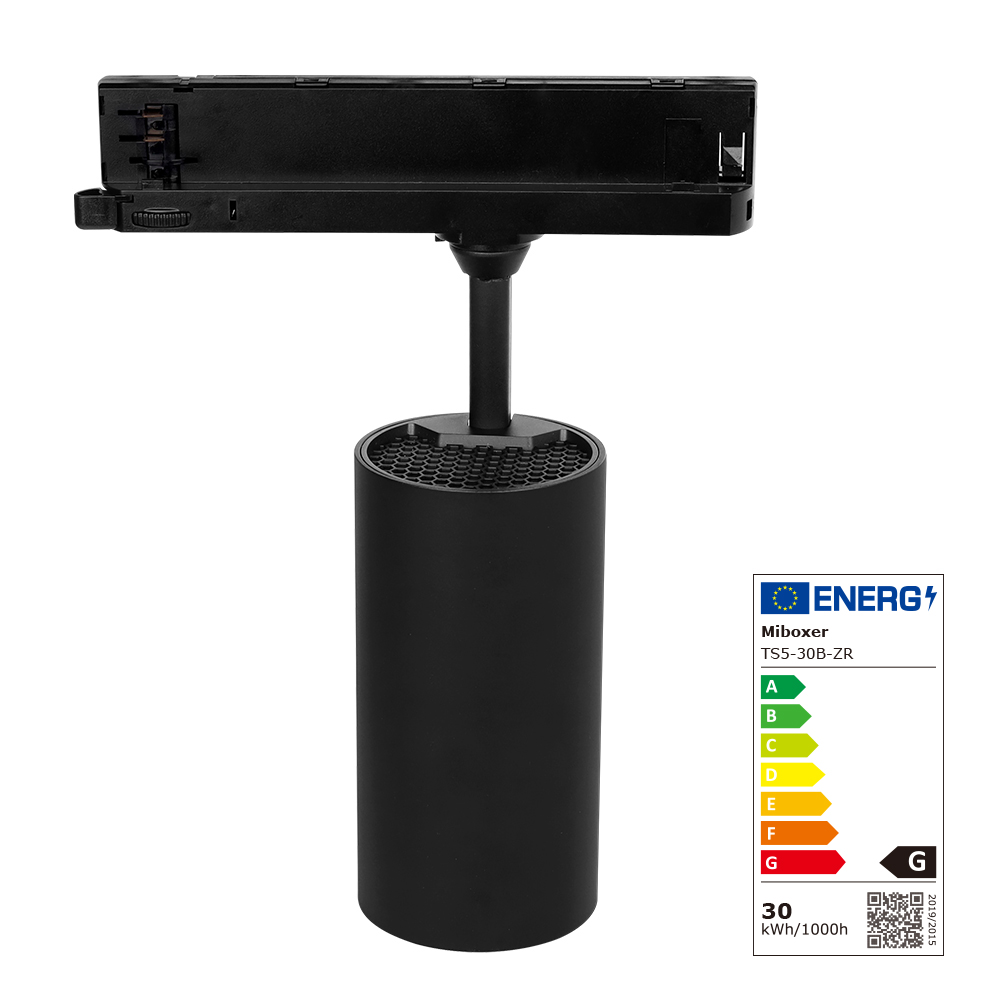

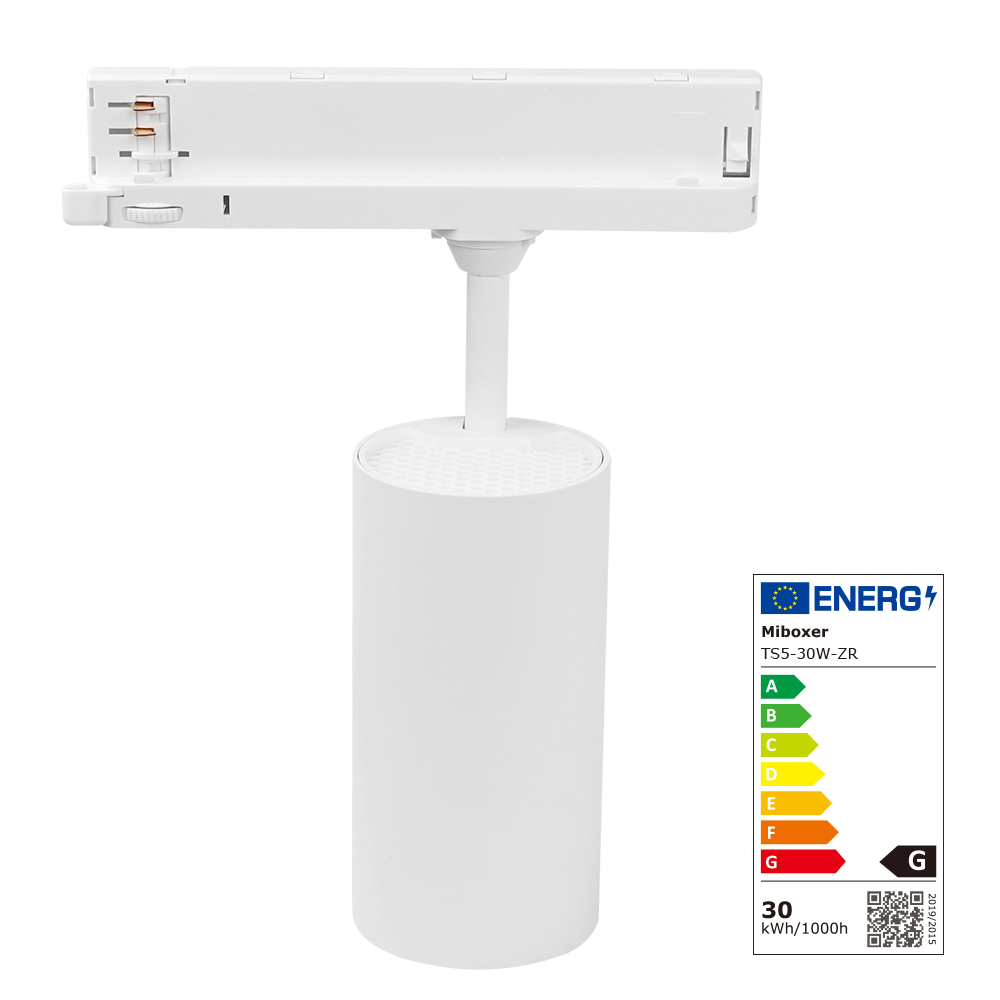

Model No.: TS5-30B-ZR (Black) / TS5-30W-ZR (White)
Voltage: 100-240V~ 50/60Hz
Working Temperature: -10~40°C
Color Temperature: 2700K~6500K
Luminous Flux: 1800LM
Luminous Efficiency: 63LM/W
Beam Angle: 36°
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
2.4G RF Remote Control Distance: 30m
