Product Information
Custom-designed LED for those seeking ultimate brightness and flexible color temperature adjustment
Among our wide range of adjustable white lighting strips, the CCT-2835-3R-1800W14 Model stands out with its super high-density LED arrangement and narrower PCB width, offering a lighting solution meticulously crafted for users with the highest brightness requirements and a desire for versatile color temperature adjustment.

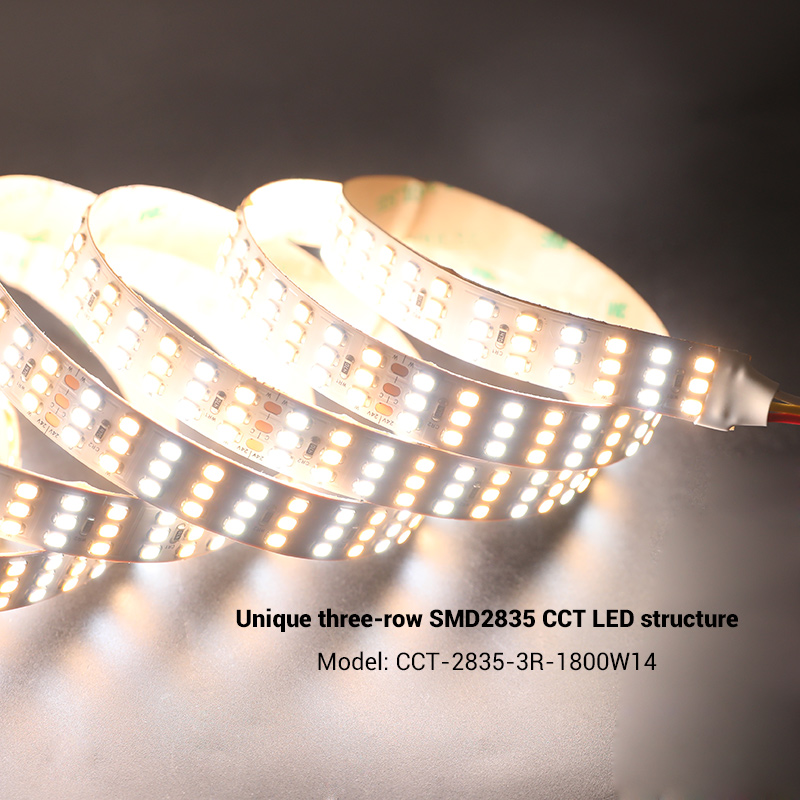

Unique three-row SMD2835 LED structure
The synergistic operation of the three rows of LEDs significantly enhances both light intensity and coverage, delivering outstanding visual effects whether used for commercial space lighting or accent lighting in residential environments.

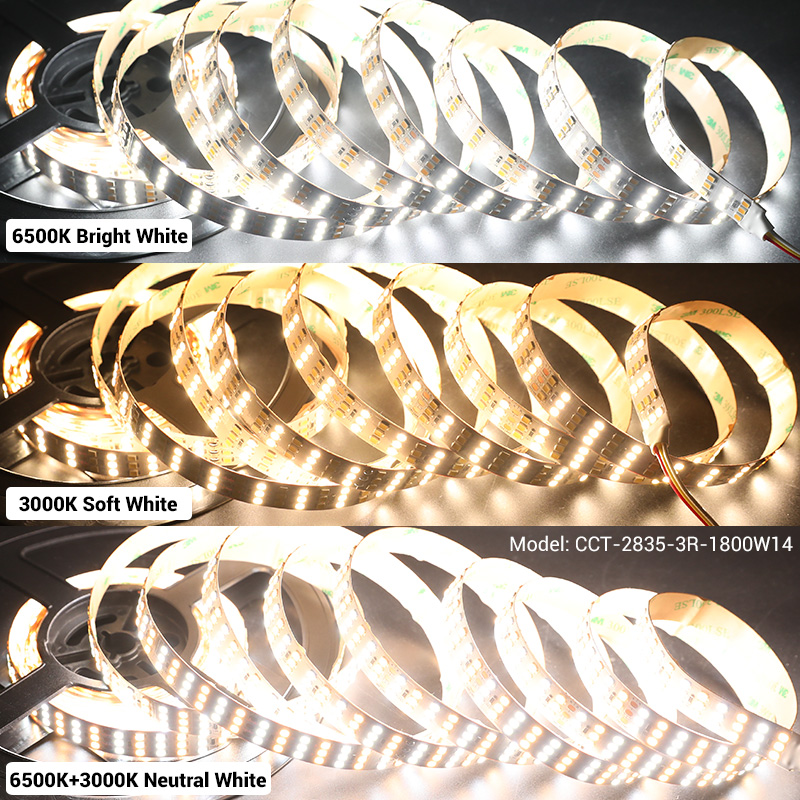

Innovative CCT lighting structure design
Its CCT (Correlated Color Temperature) LED structure features an alternating arrangement of warm white light (3000K) and cool white light (6500K). With simple adjustments via V2-B dual white led controller in the kit, you can freely switch between 3000K and 6500K to meet your needs for different color temperatures, ensuring your home environment, workplace, or commercial space achieves optimal visual effects under various conditions and uses.
24V Safe Voltage, Worry-Free Use
To ensure the normal operation of the 24V tunable white light strip, you need to use an AC-to-DC 24V power supply such as the LRS-350-24 Model in the kit. This Meanwell led driver converts standard AC power into the appropriate 24V DC voltage for the light tape, ensuring stable operation at a safe voltage level. Additionally, this triple CCT led strip supports dimming functionality, allowing you to easily adjust the brightness using a dimmer switch (V2-B Model), from soft low light to bright high light, according to your preferences. You can also pair an RF CCT remote for the V2-B controller.
14mm width for flexible installation
Features adhesive backing for easy installation. Whether in indoor environments with an IP20 non-waterproof rating or outdoor environments with different waterproof ratings such as IP67 or IP68, simply peel off the adhesive backing to securely install the light strip in the desired location.
Product Specification
| LED Strip Type: | Ultra Bright Triple LED Tunable White Light Strip |
| CRI: | Ra>80, Ra>90 |
| Input Voltage: | DC24V |
| Power: | 18+18W/m 180W/5m-roll max |
| CCT Structure: | Separate warm white + cool white |
| LED Chip: | SMD2835 |
| LED Color: | 3000K-6500K color temp |

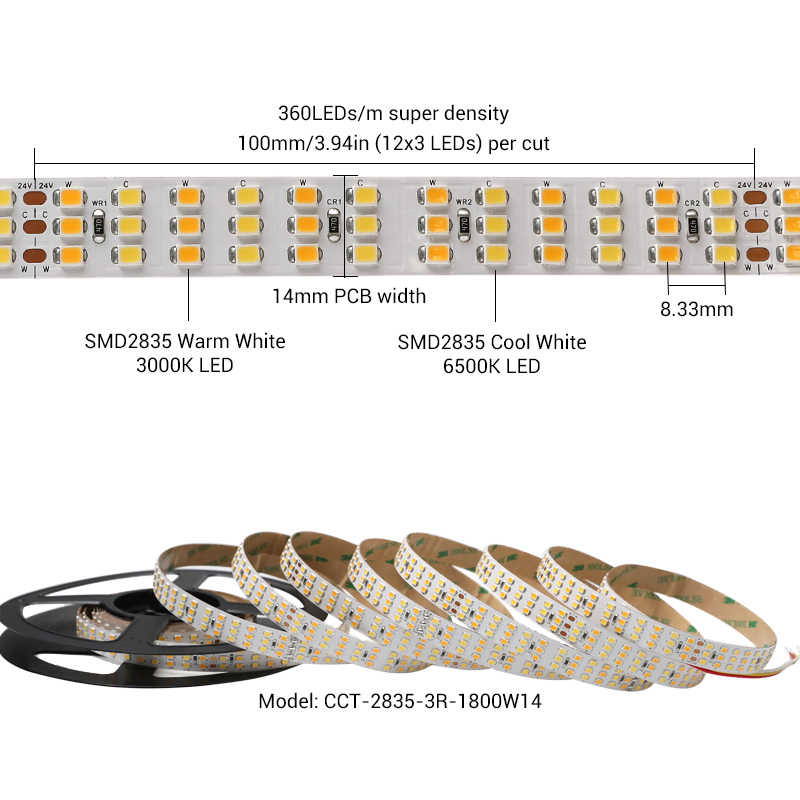

| Dimension: | W14mm-IP20, 17mm-IP67/IP68, H2mm |
| LED Quantity: | 360 LEDs/m, 1800 LEDs/16.4ft |
| Lumen: | 1440lm/m 80lm/w @3000K; 1404lm/m 78lm/w @6500K |
|
Cuttable:
|
100mm/3.94", 12x3 LEDs
|
| Beam Angle: | 120° |
| Lifespan: | 50,000 hours + |
| Working Temperature: | -25℃ ~ +60℃ |
Product Package:
1* 5m reel 24V tunable white led strip comes with 3-pin power wires at both sides
1* V2-B rotary knob tunable white RF led controller (optional)
1* LRS-350-24 24V 350W led power supply (optional)
