Special Price: $2.99
Side emitting silicone led strip profile for 5mm thin led strip lighting, the structure of silicone led diffuser is mainly divided into shading surface and diffusing surface. The light refracted from the LED light source is conducted through the silicone channel to produce a more artistic and practical lighting effect than the bare led light strip. It is widely used in decor lighting and neon sign lighting.
Model: | FLNLT-T0412 |
Tube Material: | Food-grade Silicone |
Lighting Direction: | Side emitting |

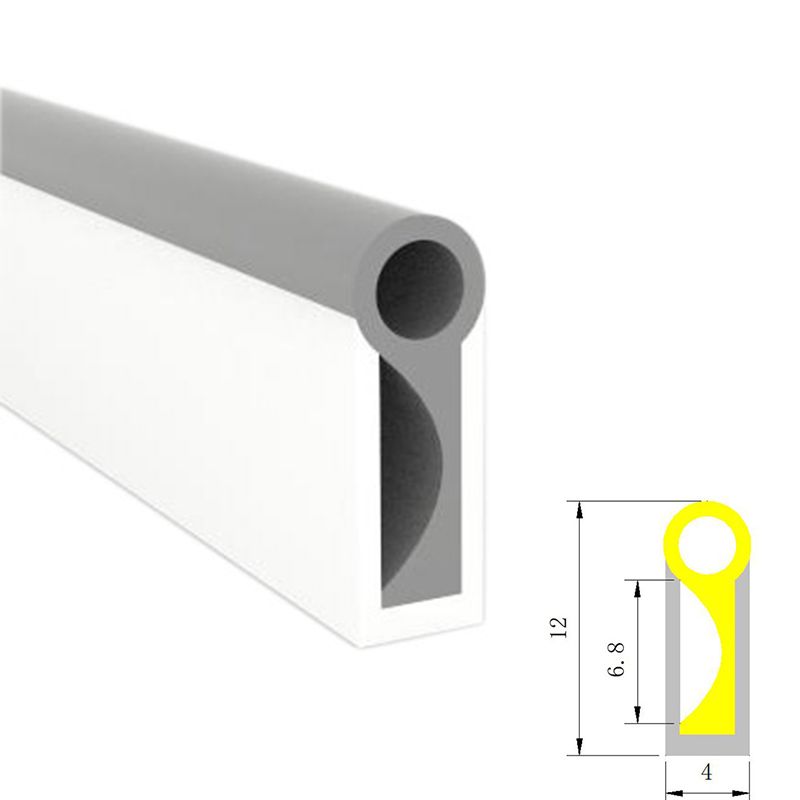

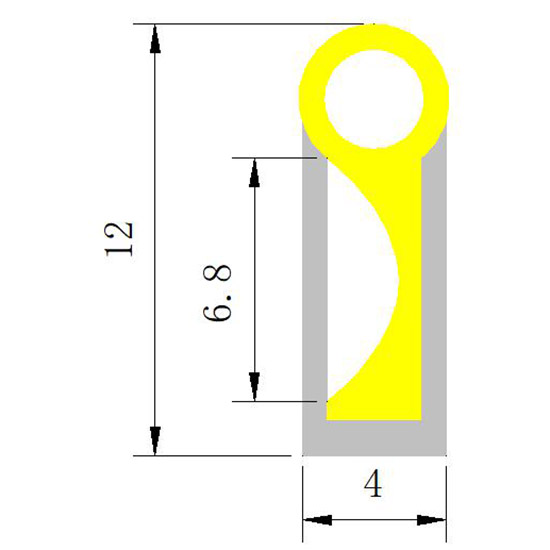

Tube Size: | 4mm/0.2" X 12mm/0.5" |
Inner Width: | 6.8mm/0.3" |
Suitable LED Strip Width: | 5mm/0.2" |
Available LED Strip Type: | Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip with 5mm PCB width |
Features: | Soft, Flexible, Waterproof |
Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
Beam Angle: | 120° |
Accessories: | End Caps (come with), Mounting Clips (Please choose in the "Kit" option) |
Waterproof Rating: | IP67 |
UV Resistant: | Yes |
Working Temperature: | -50°C to 200°C |
Knowledge Source: |
Note:
The product does not include led light strips.
If you buy our LED strip lights at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.
If you insist on completing the production by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Diffuser Tube?
We are not responsible for any damage caused by your own operation!
Flex LED Silicone Tube Installation:
There are three installation methods for the silicone led profile:

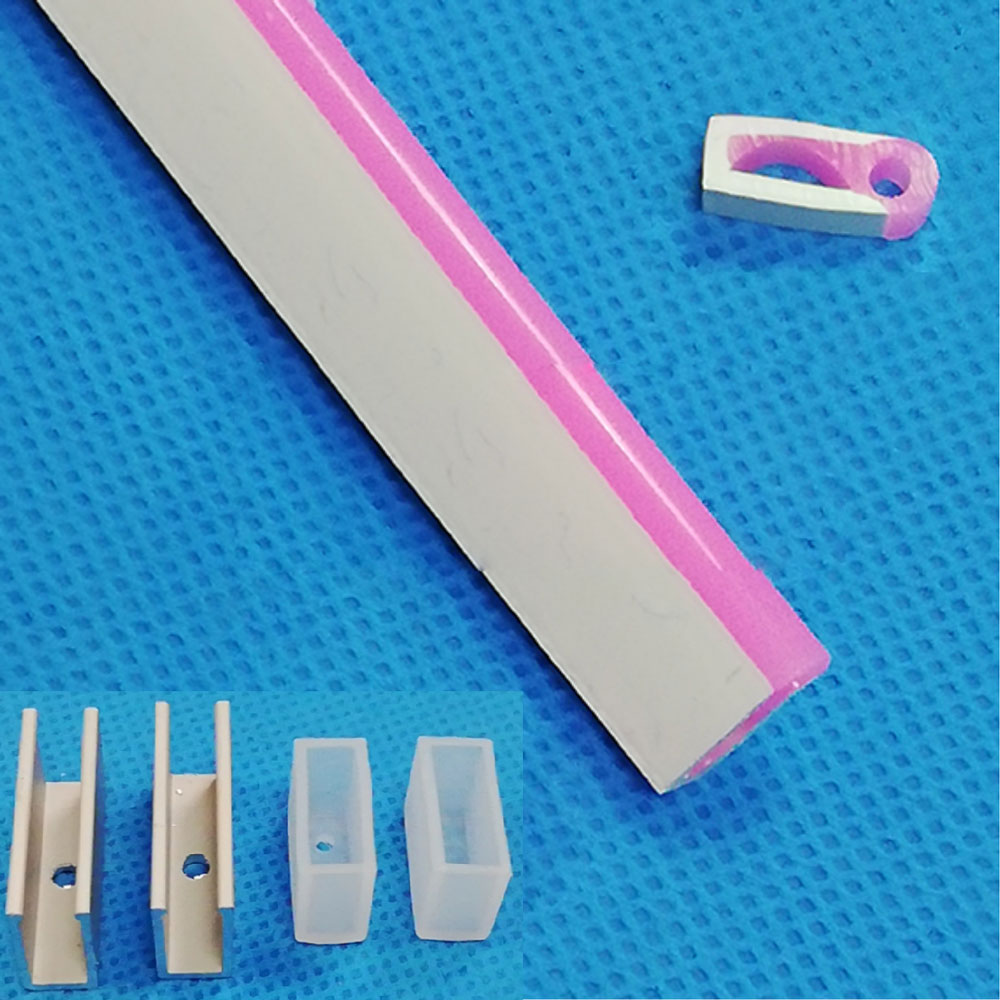

One is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the soft silicone tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
Using Application:
The Flexible Silicone LED Channel is availlable in All LED Strip Lights with Single color/CCT/RGB/RGBW/RGBCCT/Addressable Dream Color, which has wide applicability.
It can be applied to the following scenes:

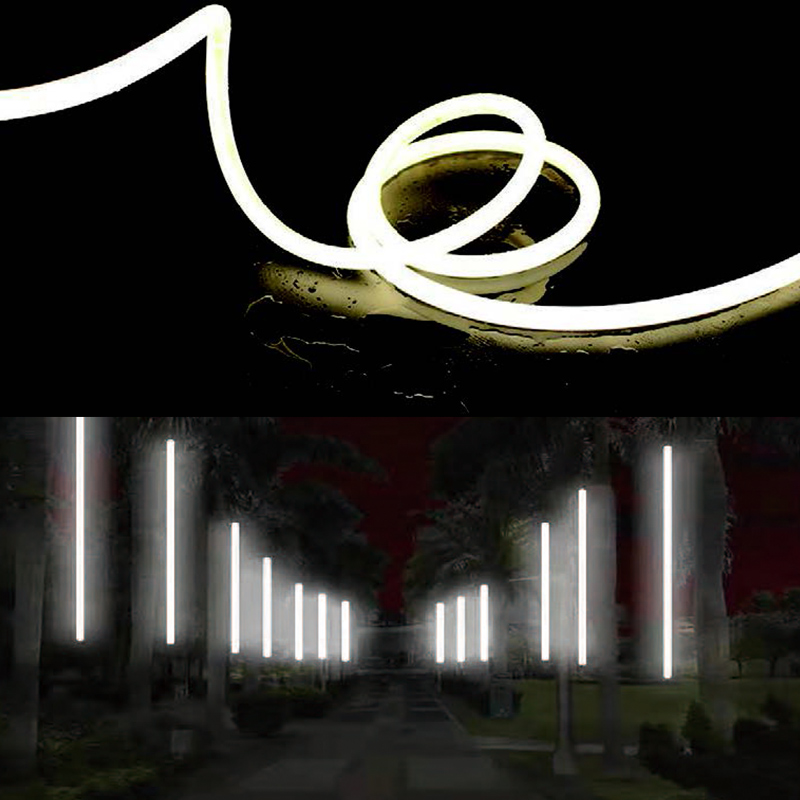

1. Neon signs, Advertising, Signboard, Festival atmosphere decoration project
2. Home decor, Wall decor, Hotel lighting project

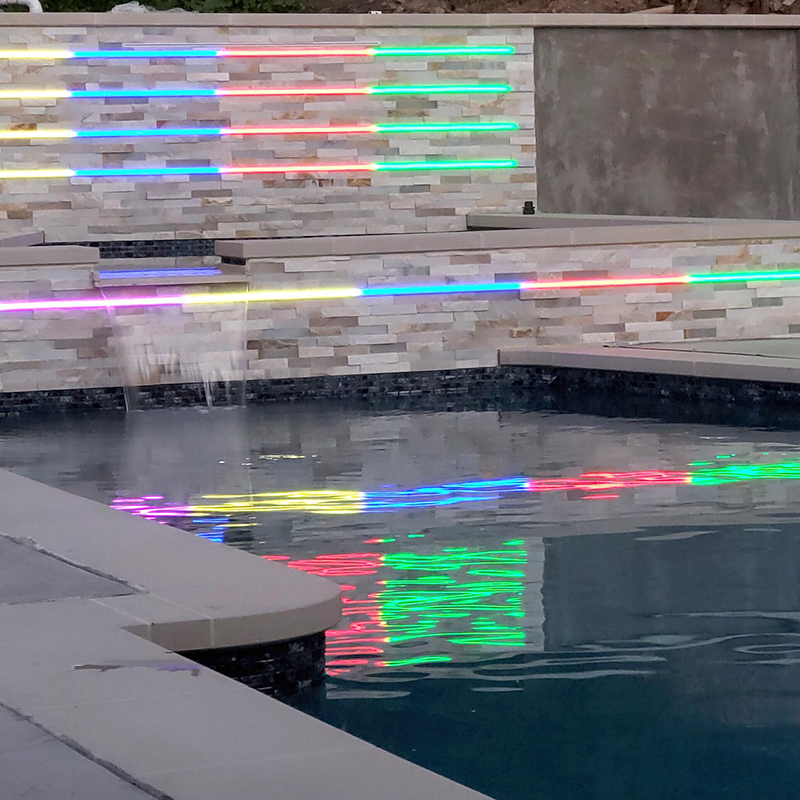

3. Outdoor decorations: Building outline lighting, Bridge lighting project, Cultural tourism town lighting project, City park lighting project, Airport lighting project, etc.
