365nm High Power LED UV Panel Light For Curing Resin And Glue
Related Products
365nm High Power LED UV...
$426.00 $400.006% offUltra Slim 60W 850nm Near...
$129.98365nm UV-A Black Light...
$17.99AC85-265V 15/20W 395nm UV...
$28.98Waterproof Small High...
$70.98395nm 365nm UV Lights...
$28.98 $16.9841% off270nm/275nm/280nm...
$32.98-
Special Price: $426.00 $400.006% off

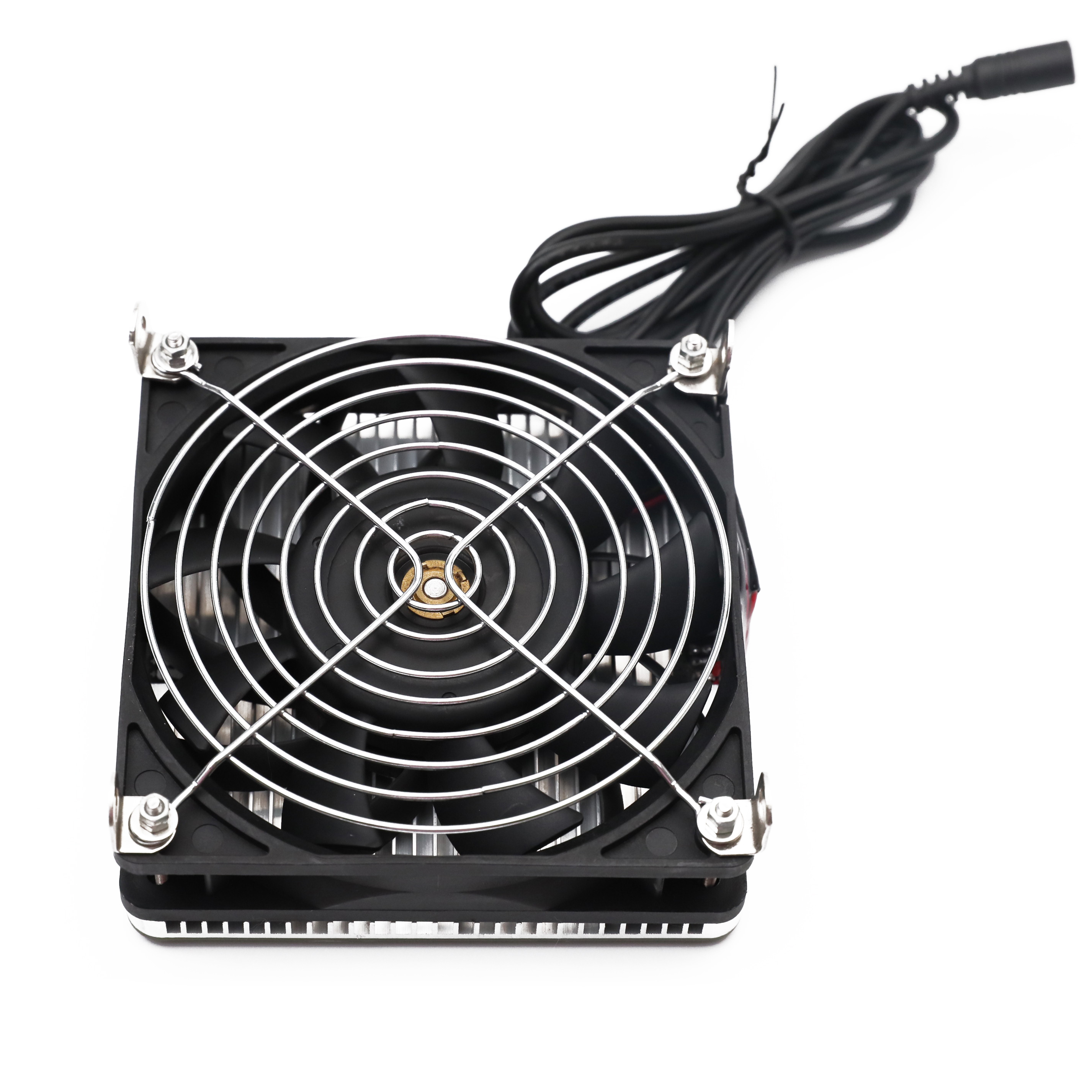

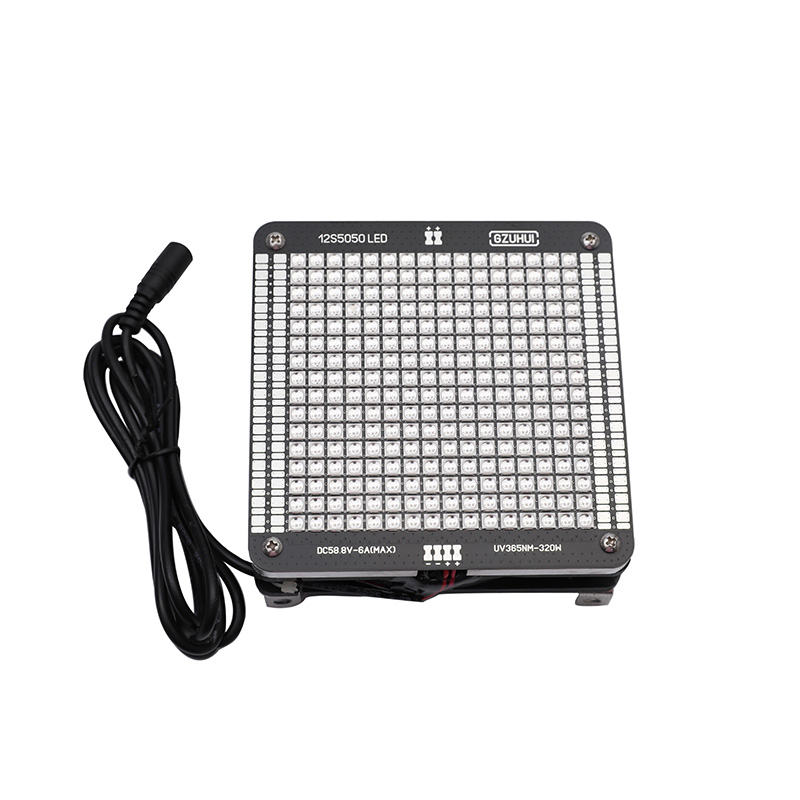

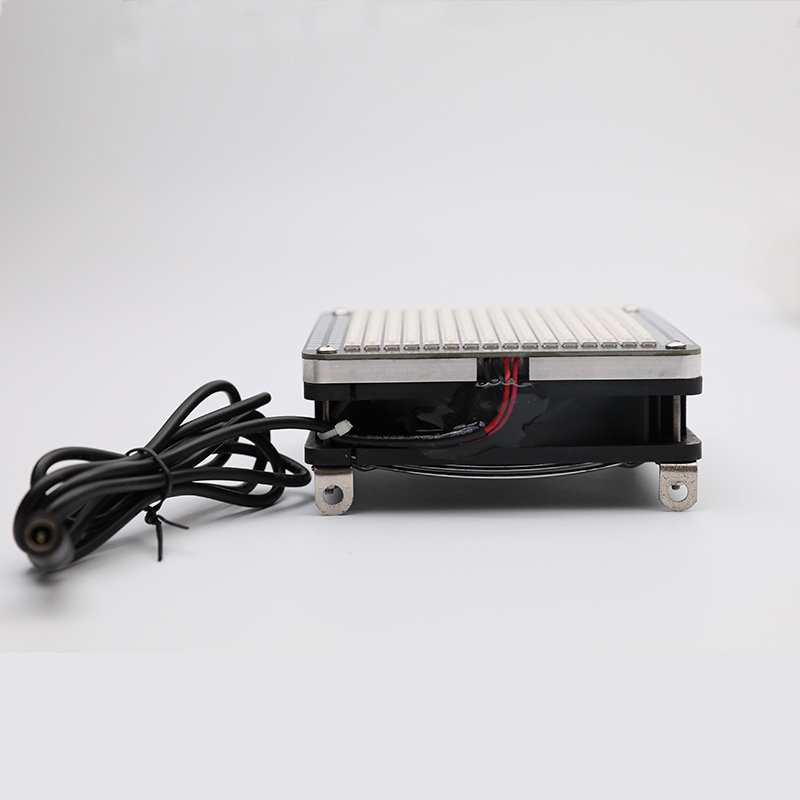

This high power UV-A LED square panel light with 365nm light source is configured with aluminium alloy heat sink, back copper layer and cooling fan inside, which helps dissipate heat better than other ultraviolet light panel. Featuring small size for handheld operation, our 256W high power LED panel has 365nm black light luminous uniformity and allows you to process glue UV curing easily and quickly. No need to preheat, this UV curing light doesn’t produce ozone and is harmless to the human body, usually used for fluorescence response detection, glue and resin curing, UV printing, UV curing machine and medical inspection field. It can be also applied to blacklight party if you like. This low voltage 365nm panel is not waterproof, if you need to put it outdoors, you can add a waterproof shell outside.
Product Specifications
Product Type: | 365nm UV-A LED Square Panel Light |
Input Voltage: | DC58.8V |
Power: | 5A 256W Max |
UV Wavelength: | 365nm (peak wavelength 365nm, half-wave width 15nm) |
LED Quantity: | 256 LEDs (16*16 array) |
Dimensions: | L120mm*W120mm*H52mm(4.7in*4.7in*2in) |
Current: | 5A |
Luminous brightness: | Single LED 1W power consumption/ 0.54mw light power per led |
Weight: | 1.5kg |
SMD: | 5050 |
Applications: | Fluorescence response, Glue/resin curing, UV printing, Medical inspection, Insect Attracting |
Warraty: | 1 year |
Operating Temperature: | 85°C Max |
FAQ
1. Is there a higher or lower wattage version?
This size is available in 256W version (256 lights) and 320W version (320 lights), 128W version (128 lights)
2. Can the bottom 4-bolt bracket be removed?
The bottom bolts can be removed for any kind of DIY installation, provided that the light plate is tightly attached to the aluminum heat sink and the cooling fan effectively blows away the aluminum heat sink.
3. Can I control the power of the UV panel?
The fixed output power can be adjusted downward in the original configuration of the power adapter (the original power adapter has potentiometers to adjust the output current and output voltage, professionals need to follow the guidelines to adjust the fixed drive power under the voltage and current monitoring calibration), or by replacing the power adapter to adjust the output power.
By controlling the power adapter to adjust the maximum output current, the 256W UV light panel can be driven at any power value within 256W.
Adjust the maximum output voltage and adjust the maximum output current to implement the control of output power.
4. What is the power per day and night?
Subject to actual driving, continuous driving power ≤ lamp board power * driving time (H).
5. What is the overall intensity of the UV panel?
256W version: 365nm light power ≥ 128000mW
320W version: 365nm optical power ≥ 160,000mW
Parameters under full power drive.
Light Intensity Test Data For 120*120 Size
1. Power Driver Parameters: 54.4V-54.8V (5A)
2. Operating Temperature: 50-55°C (Heatsink Temperature)
3. Light Intensity Reference Point: Center of the Lamp Group
4. Maximum Light Intensity: 670 mW/cm², measured at a distance of 1 cm from the lamp board surface.
610 mW/cm² (0 cm)
670 mW/cm² (1 cm)
640 mW/cm² (2 cm)
546 mW/cm² (4 cm)
348 mW/cm² (8 cm)
270 mW/cm² (10 cm)
160 mW/cm² (15 cm)
102 mW/cm² (20 cm)
72 mW/cm² (25 cm)
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
