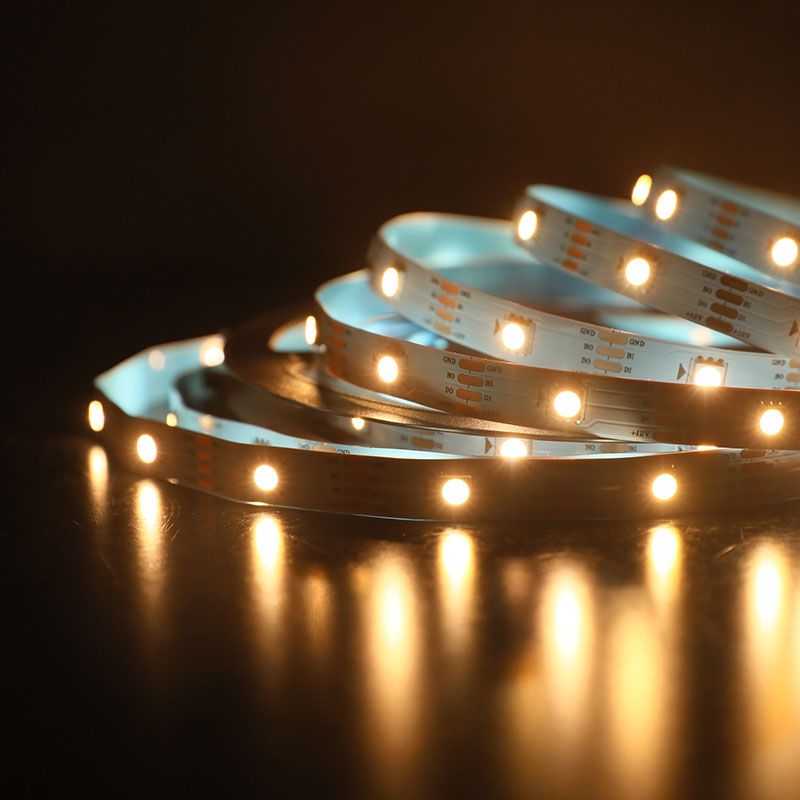

WS2815 Dual Data Wire 6000K 3000K Individually Addressable White LED Strip 16.4FT 30LEDs/m
A new type of WS2815 individually addressable led strip lights, it adapts SMD5050 white color lights, available in 6000K daylight and 3000K warm white color temperatures. Each LED diode is a pixel, which can have its own brightness, with 256 levels display.
The circuit board is designed with one data wire and one backup data wire. Signal breakpoint continuous transmission. If one LED is damaged, the following LEDs will still work.
There are 4-pin JST SM connectors and 2-pin separated power wires on both ends of the 10mm wide strip, which make it conveniently connected to each other and wired for power supply.
This 5m addressable cool white or warm white led strip is no voltage drop when power at one end, good color consistency. Additional purchase of our aluminum channel for linear aesthetic lighting.
Note: this 12V WS2815 white led strip lights are for common projects, please look for our engineering versions for your large commercial lighting.
Standards and Certifications
|LED Strip Type:||Individually Addressable White LED Strip Lights|
|LED Chip:||WS2815 Breakpoint Resume + SMD5050|
|Power:||7.2W/m max, 36W/roll|
|LED Color Temperature:||Addressable 6000K Daylight White / 3000K Warm White|

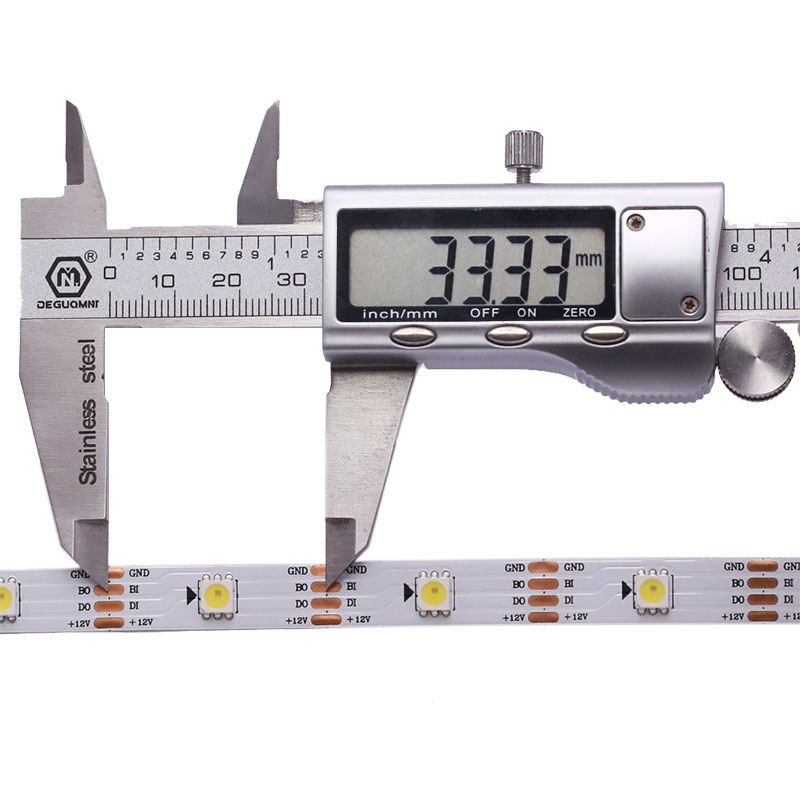

|LED Quantity:||30 LEDs/m, 150LEDs per roll|
|IC Quantity:||30 IC/meter (1 IC drives 1 led chip)|

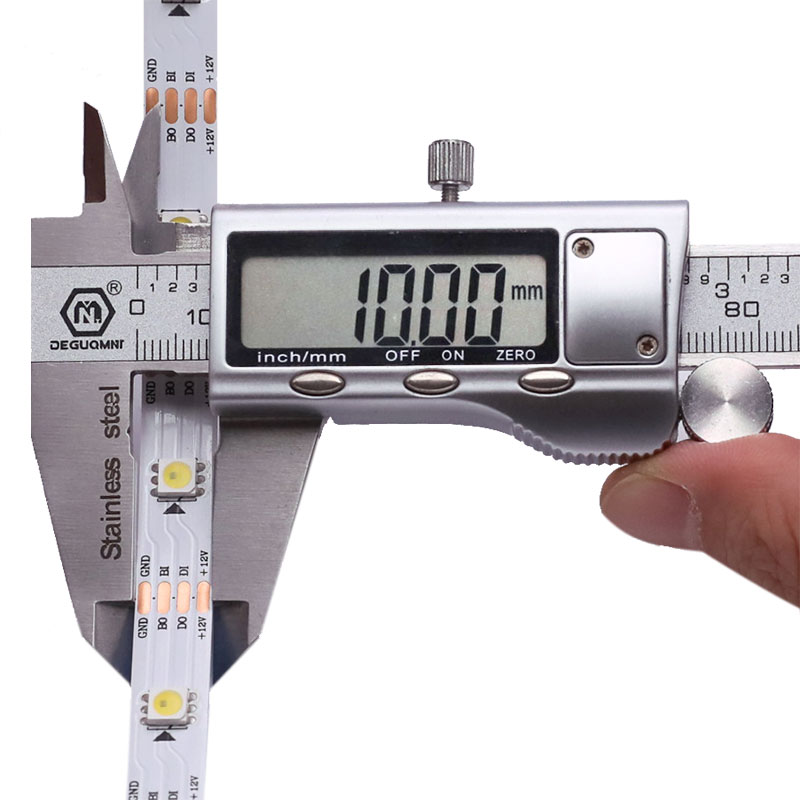

|Dimensions:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
|Lumen:||20-22 lm/LED, 3300lm Max /16.4ft|
|Color Rendering Index:||Ra＞85|
WS2815 Technical Features
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
