Product Information

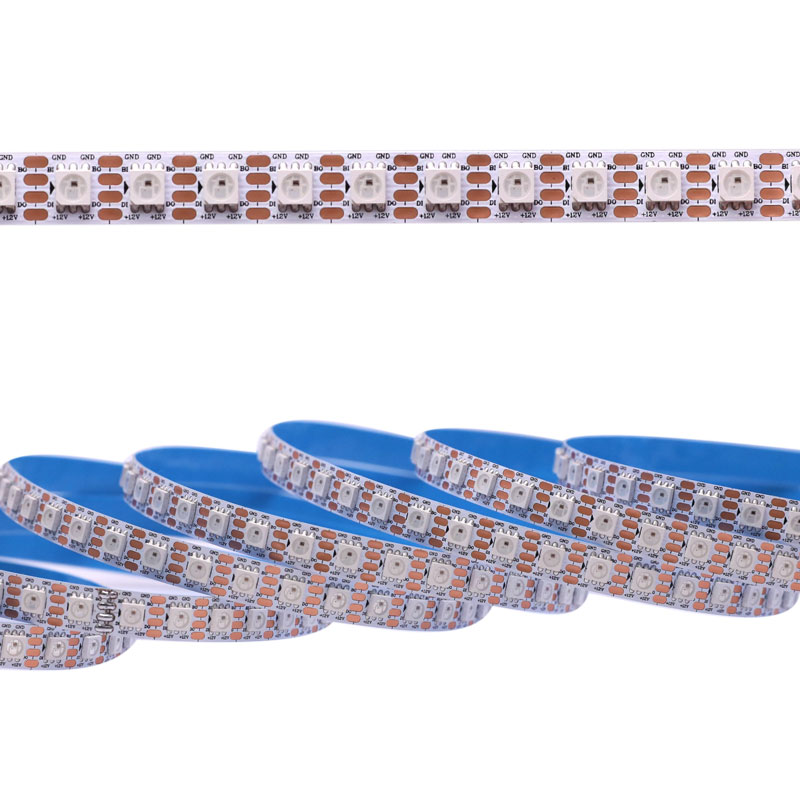

A more suitable RGB pixel light strip than WS2812B for home, retail, and entertainment projects. Power the 5m addressable RGB strip at one end, and open the total channels to display white color, there is no voltage drop. Good color consistency.
-

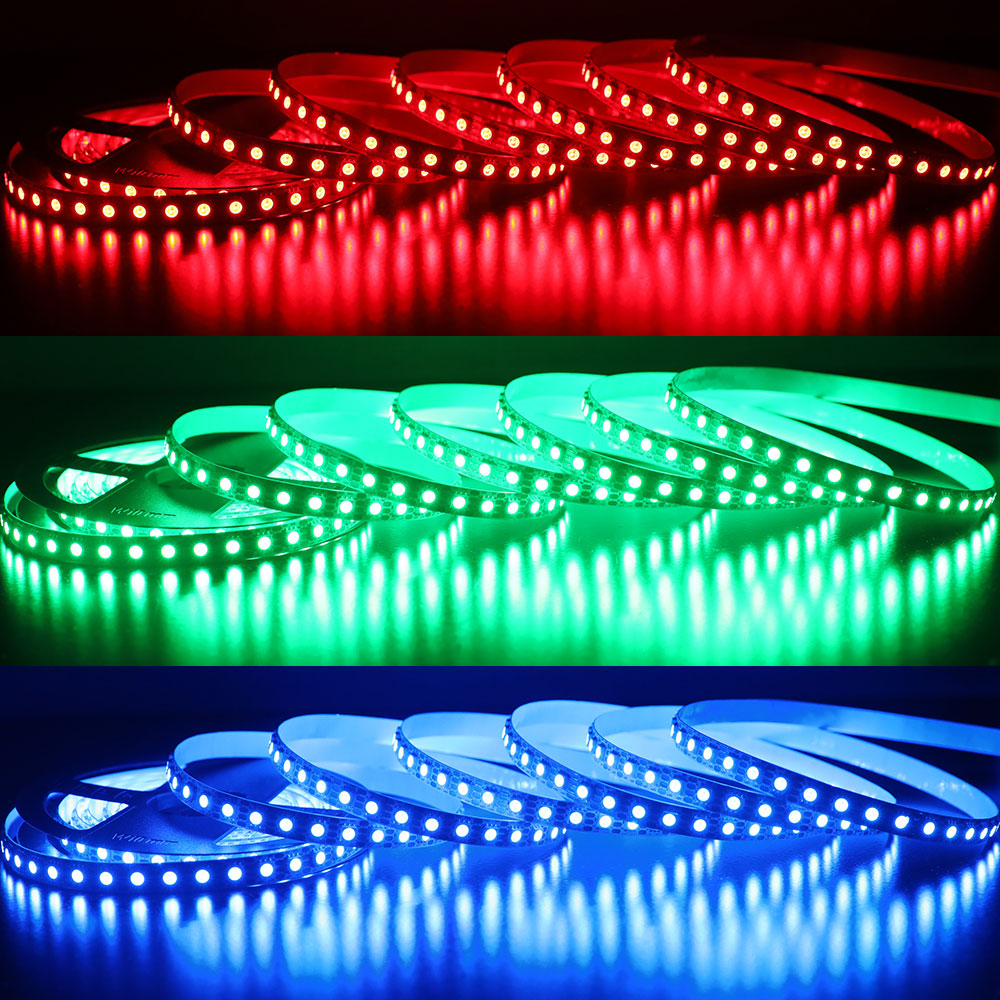

Individually addressable. Every LED can be its own color and birghtness, with 256 brightness displays and 24-bit color displays. Line Sequence RGB.
-
Dual signal control, the digital signal continues to transmit at the breakpoint without affecting the work of the LED diodes behind.
-

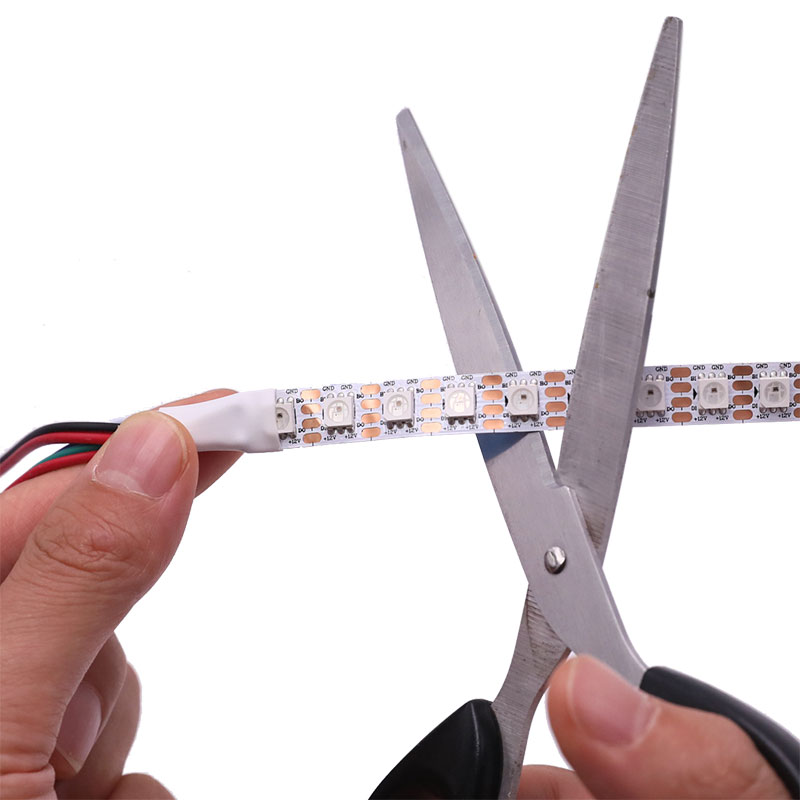

Strip can be cut between each LED to create custom lengths.
-
Both ends wired with 4Pin JST male/female connector and 2-pin power/ground wires, to connect multiple strips together and increased power injection for long runs. The 5m strip powered from one end is no voltage drop.
-
The strip is powered by a 12V power supply and is controlled by a SPI controller.
-

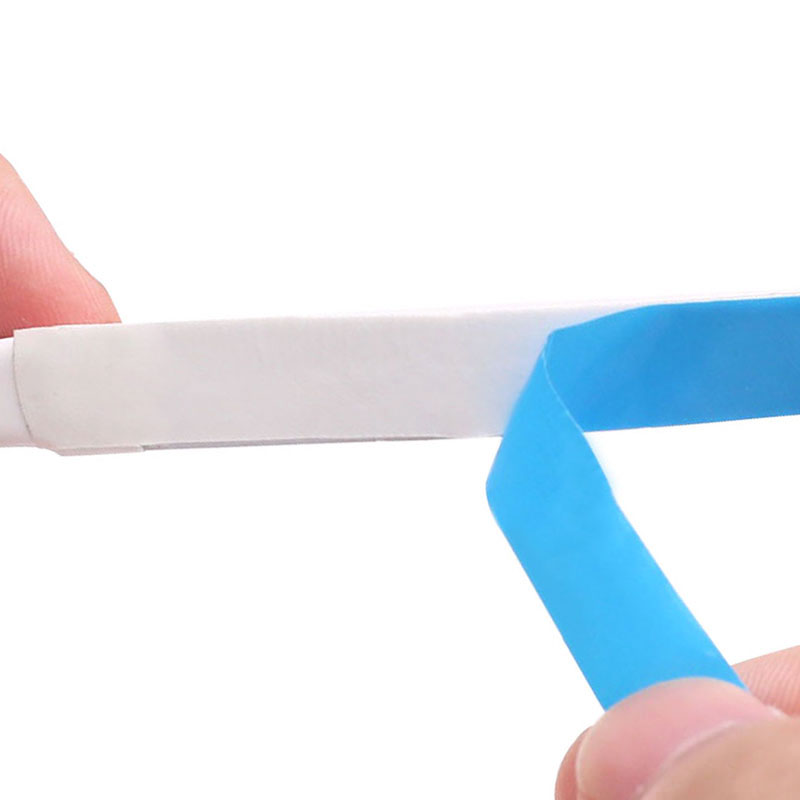

Adhesive tape on the back.
Note: this 12V WS2815 RGB led strip lights are for common projects, please look for our engineering versions for your large commercial lighting.
WS2815 IC Chips Specifications Download
Standards and Certifications
Product Specifications
| LED Strip Type: | Individually Addressable RGB LED Strip Lights |
| LED Chip: | WS2815 Breakpoint Resume + SMD5050 |
| Input Voltage: | DC12V |
| Power: | 18W/m max, 90W/roll |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | Addressable RGB |

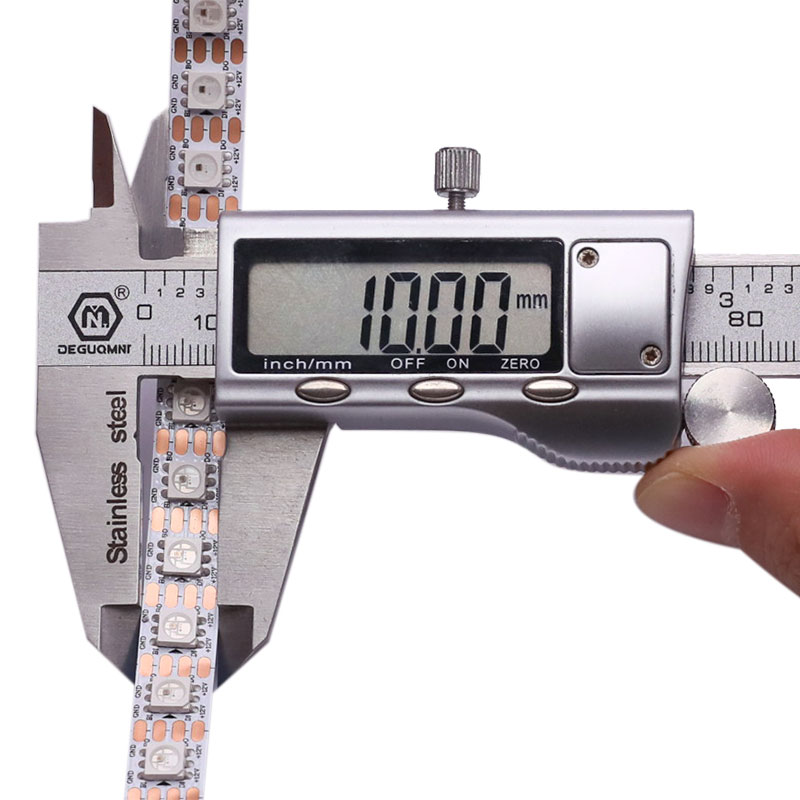

| PCB Width: | 10mm/0.4" |
| LED Quantity: | 96 LEDs/m, 480LEDs per roll |
| IC Quantity: | 96 IC/meter (1 IC drives 1 led chip) |
| Dimensions: | L500cm(196.8 in) x W1.0cm(0.39 in) x H0.25cm(0.10 in) |
| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68 |
| Lumen: | 20-22 lm/LED, 10560lm Max /16.4ft |

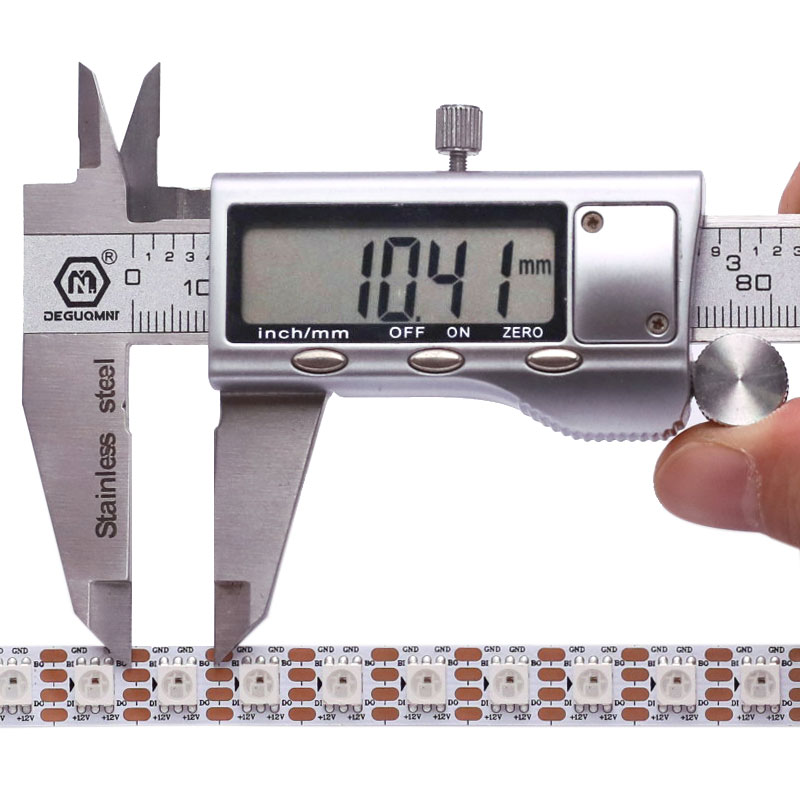

| Cuttable: | 1-LED, 10.41mm/0.41" |
| Color Rendering Index: | Ra>85 |
| Beam Angle: | 120° |
| Lifespan: | ≥50000hrs |
WS2815 Technical Features

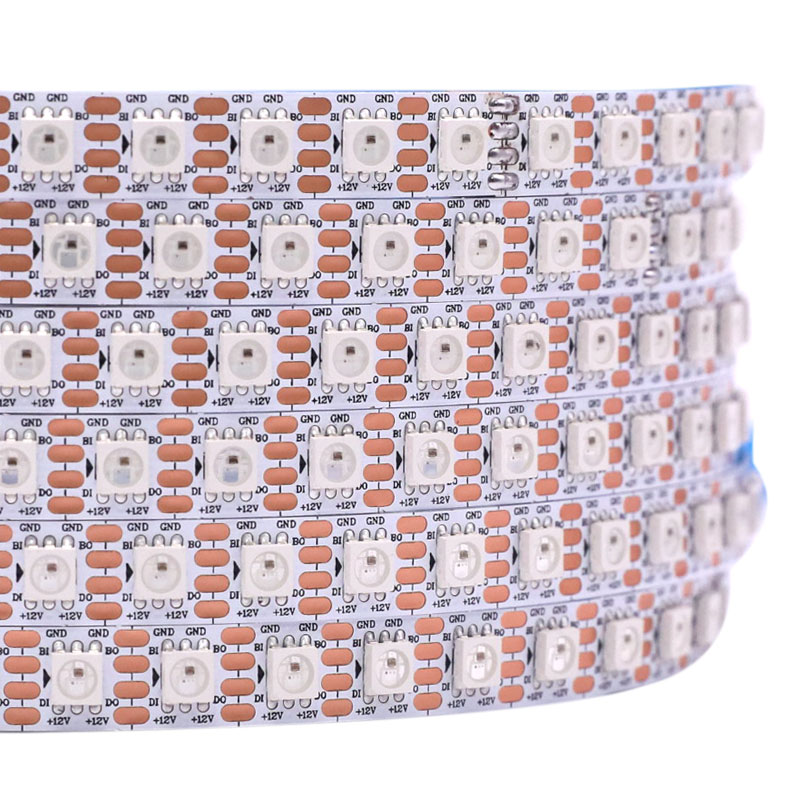

The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
WS2815 Wiring
