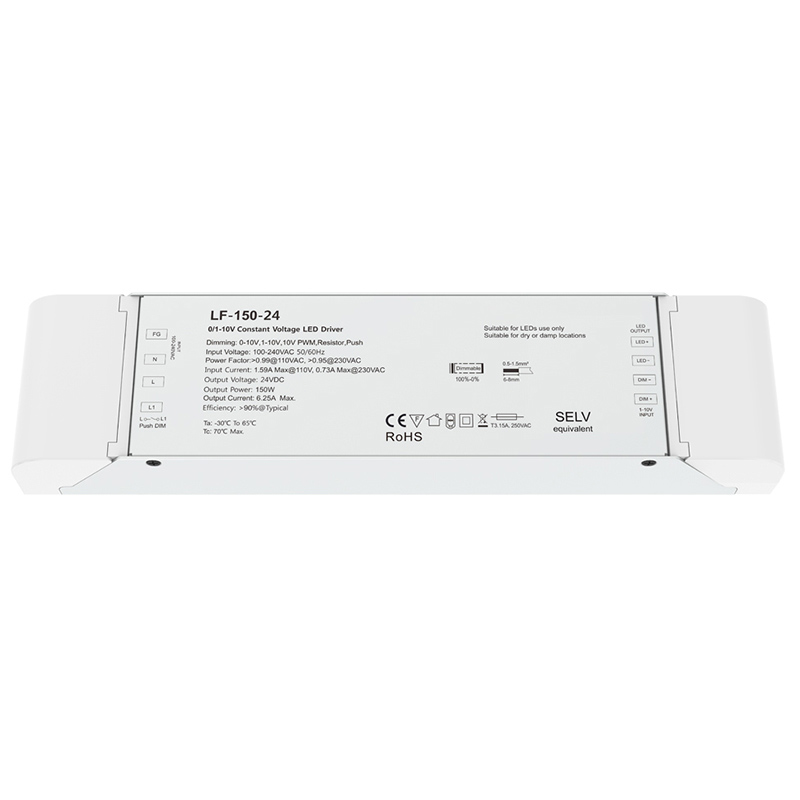

LF-150-24 150W DC24V 0/1-10V Dimmable LED Driver

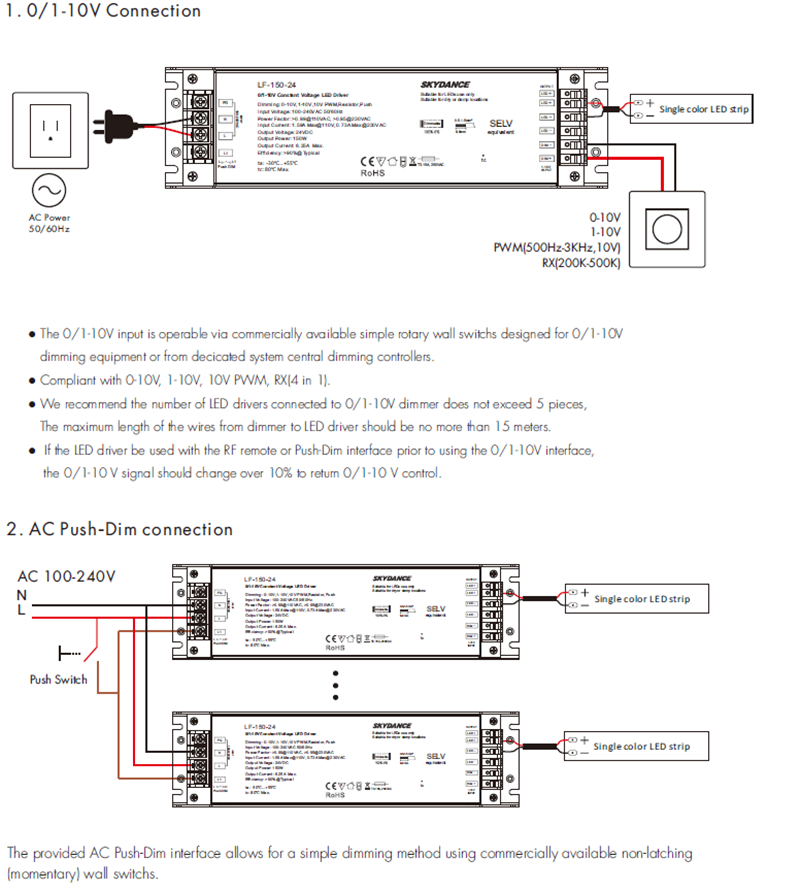

● Dimming interface: 0-10V, 1-10V, 10V PWM, Resistor, AC Push-Dim
● Universal AC input / Full range
● 1 channel constant voltage output, Max. total output power 150W
● Built-in active PFC function: 0.95 Typ
● Synchronize on multiple number of LED drivers
● Over-heat / Over-load / Short circuit protection, recover automatically
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
Output Voltage: 24VDC
Output Current: Max. 6.25A
Output Power: Max. 150W
Dimming Range: 0～100％
Ripple & Noise: <=150mV/230VAC
PWM Frequency: 500Hz
Rise Time: 500ms/115VAC, 424ms/230VAC
Hold Time: 3.6ms/115VAC, 4.5ms/230VAC
Input Voltage Range: 100VAC～240VAC
Frequency Range: 50/60Hz
Alternating Current: 1.59A/110VAC, 0.73A/230VAC
Power Factor: >0.99/110VAC, >0.95/230VAC
Inrush Current: Cold start 27.5A at 230VAC
Leakage Current: ＜5mA
No Load Power: 2W/115VAC, 2W/230VAC
Over Load Power: Shut down the output when current load >= 120％～150％, auto recovers.
Short Circuit: Shut down automatically if short circuit occurs, auto recovers.
Over Temperature:Intelligently adjust or turn off the output current if the PCB temp > 100℃, auto recovers.
Woking Temperature: -30℃～50℃
T-case Max: 70℃
Working Humidity: 20％～90％RH, non-condensing
Storage Temperature/Humidity: -40℃～80℃, 10％～95％RH
Temperature Coefficient: ±0.03％/℃ (0-50％)
Vibration Resistance: 10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min
Waterproof Rating: IP20
Security Specifications: IEC/EN61347-1, IEC/EN61347-2-13
Withstand Voltage: I/P-O/P: 3750VAC
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70％RH
EMC Emission: EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity: EN61000-4-22.214.171.124.6.8.11, EN61547
Certications: CE, EMC
