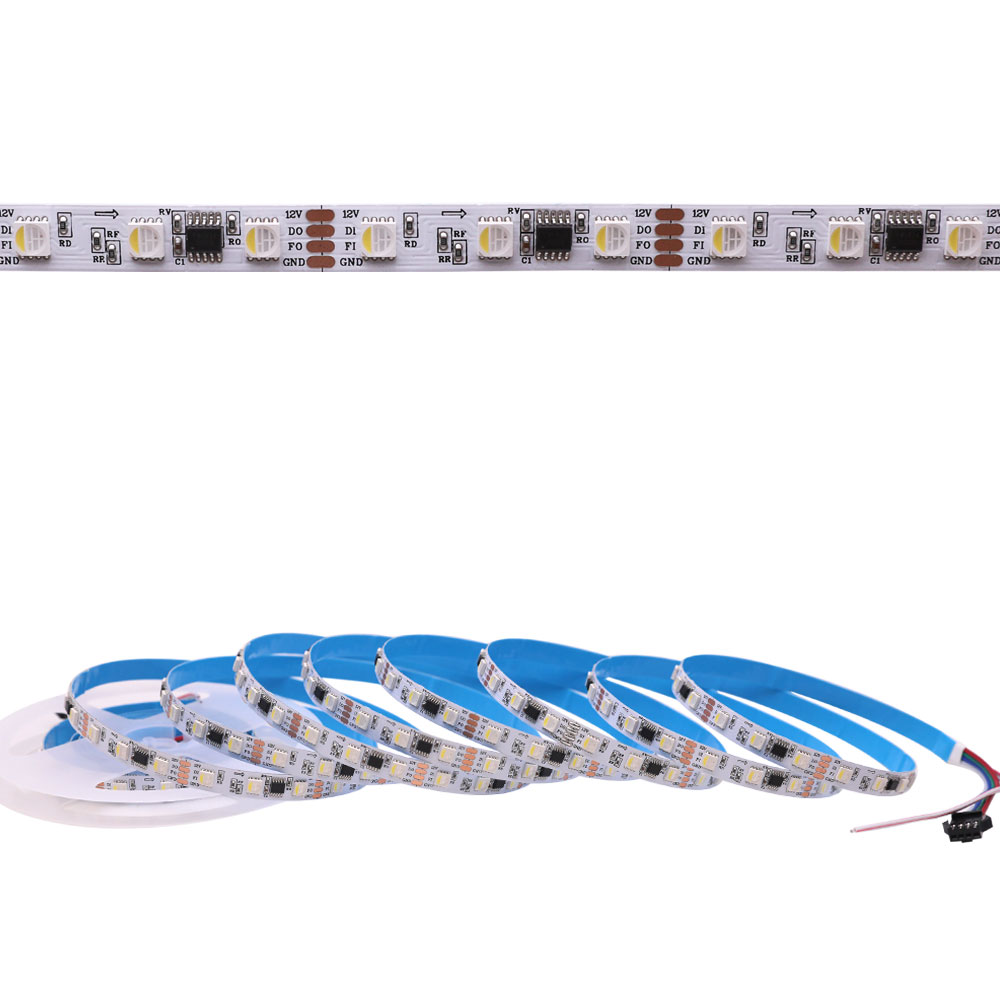

12V SK6812 Digital RGBW LED Strip Light Breakpoint Resume Addressable

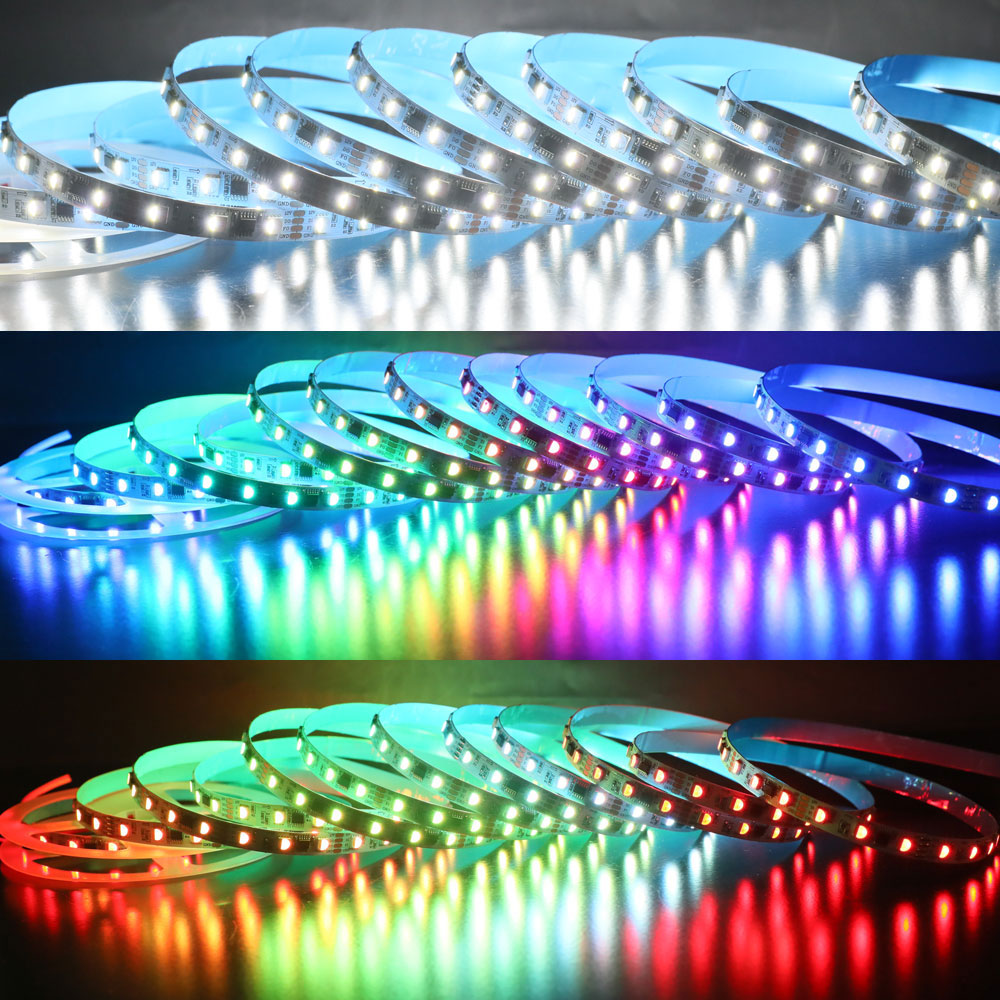

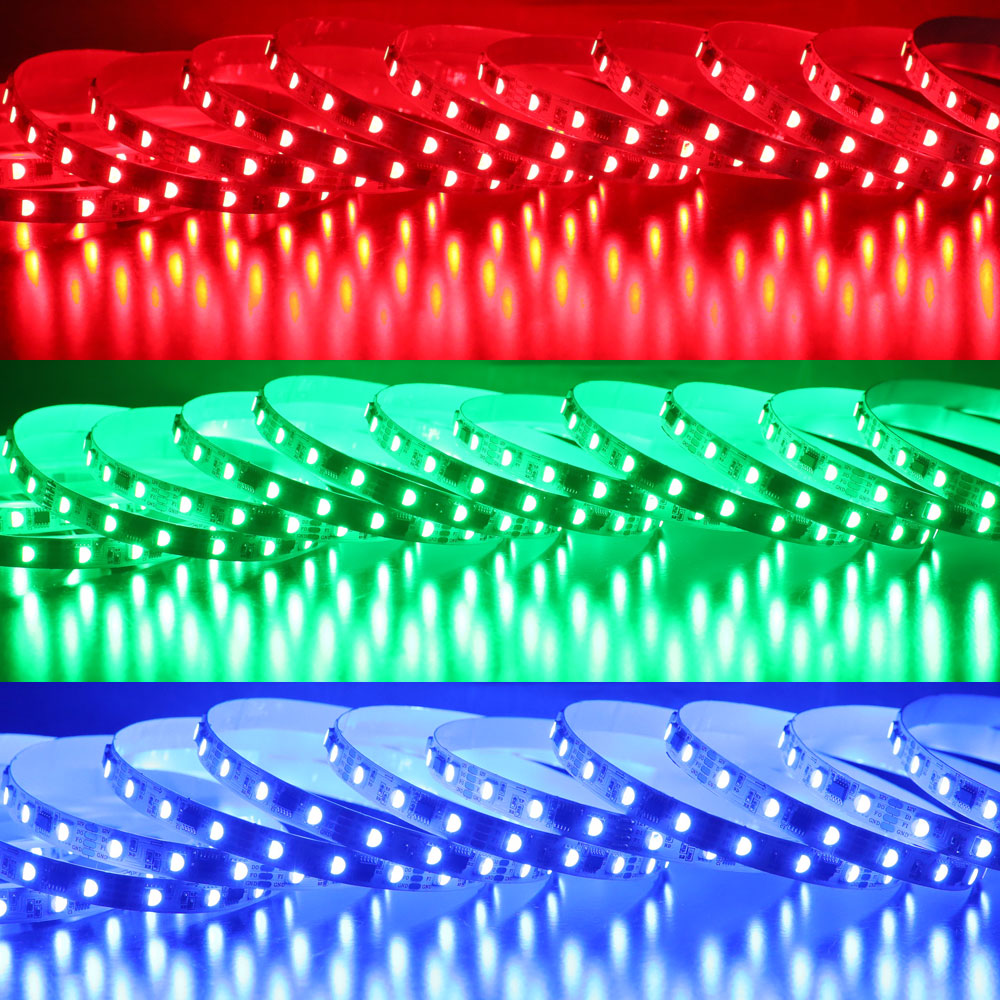

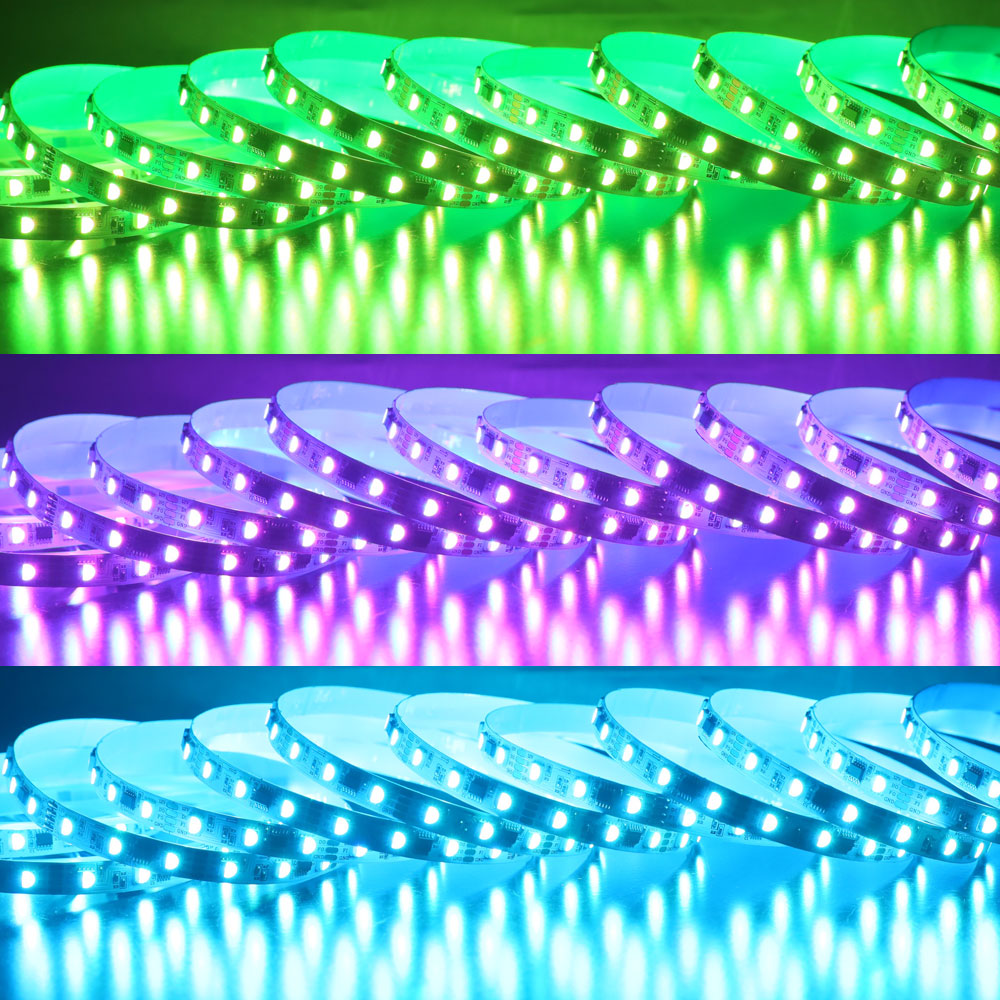

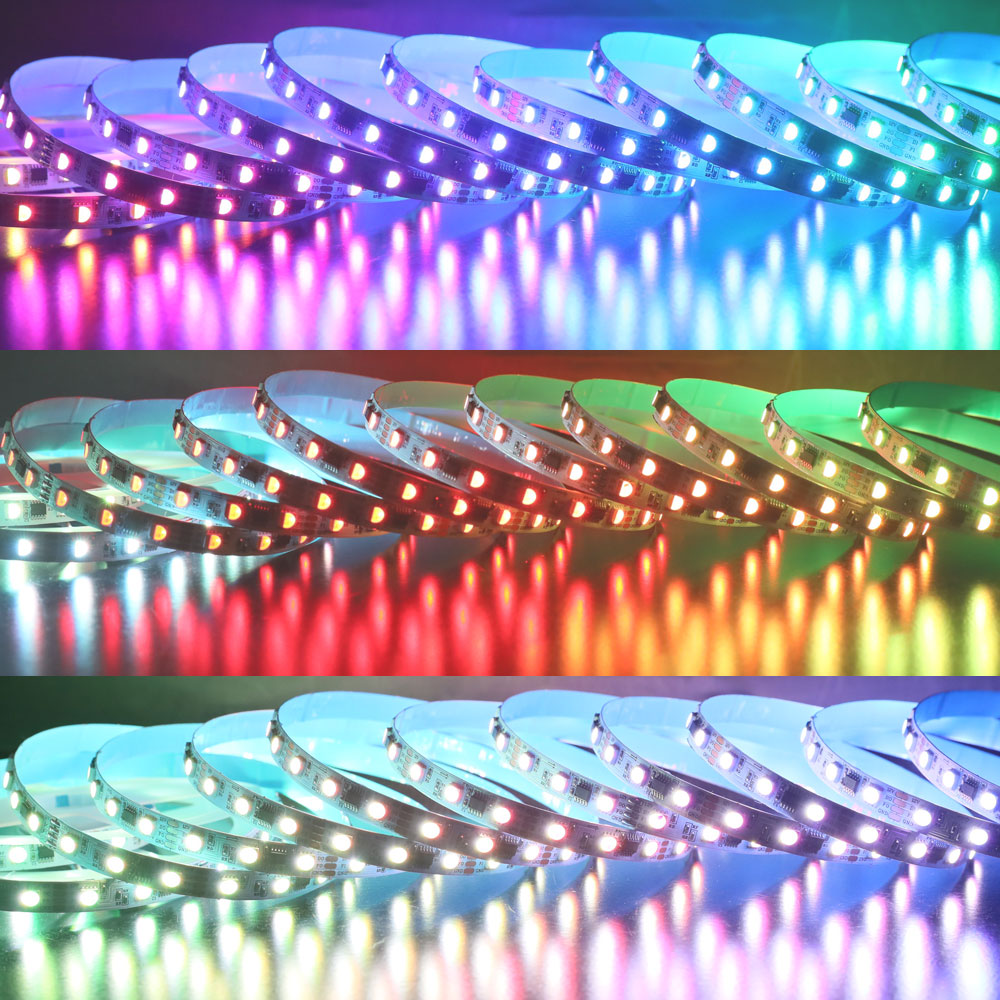

The FW1834 RGBW pixel LED strip (similar to SK6812 RGBW IC) is addressable, which can display various lighting effects via the SPI controller. 7 single colors (red, green, blue, yellow, pueple, ice blue, and white) and multiple dynamic modes are available. Suitable for adding atmosphere to your home, bedroom, ceiling, bar, KTV, party, etc.
It adapts 5050 4in1 RGBW LEDs, every 3 lights placed an IC, each IC area can be set to a different color. 60 LED lights per meter (DC12V - 20 ICs per meter, DC24V - 10 ICs per meter), uniform light brightness.
Breakpoint resume series addressable led strip, if one LED is damaged, the other LEDs still work. 12V/24V low voltage drive, need to configure a 12V/24V LED controller and power supply to use.
There is a strong 3M tape backing on the strip light, which can be ripped off and stuck to any surfaces. Each end of the strip comes with a 4-pin JST signal connector and a 2-pin power wire, easy to connect and inject power.

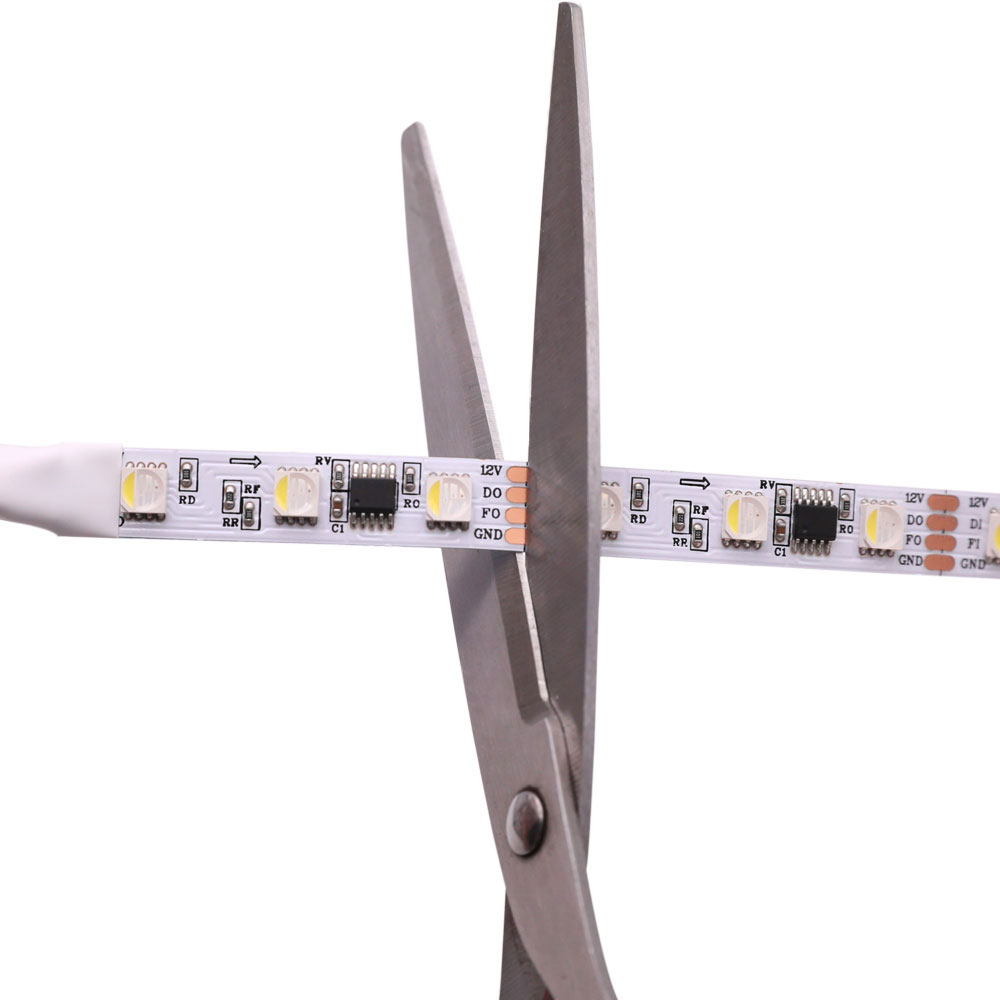

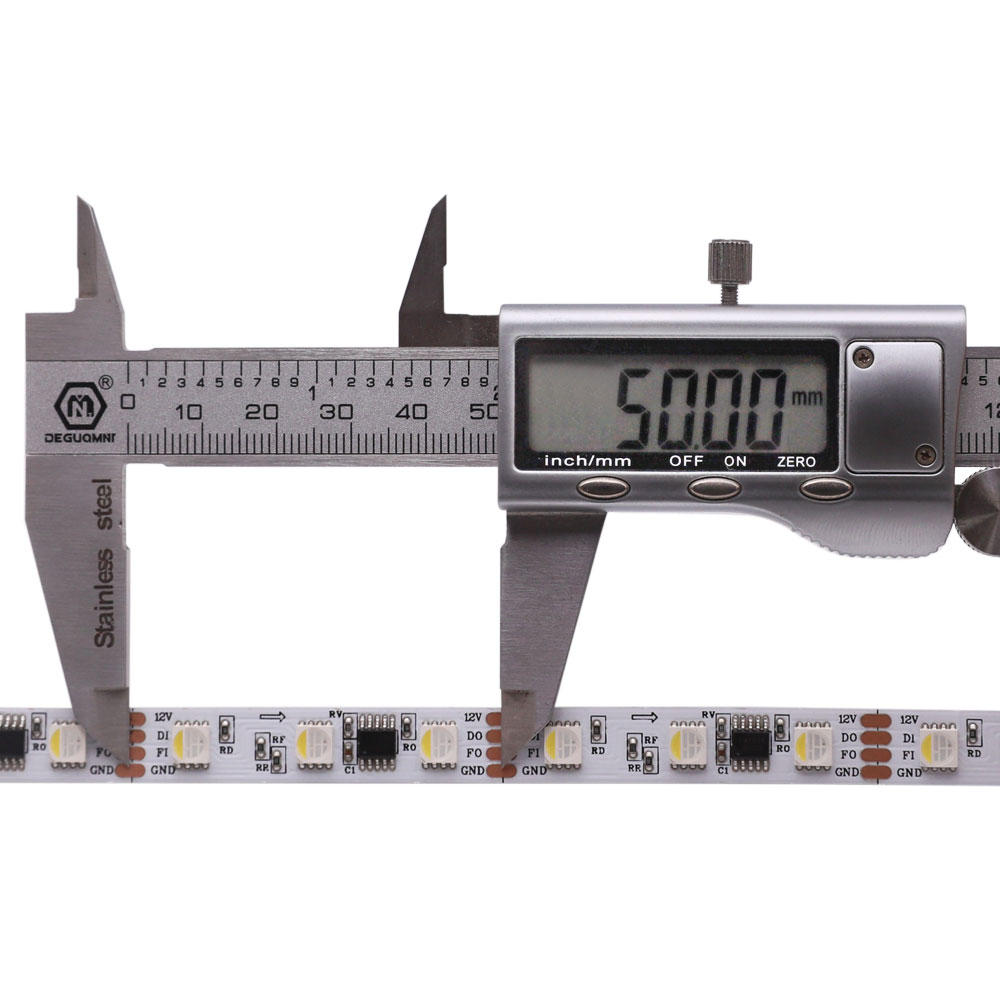

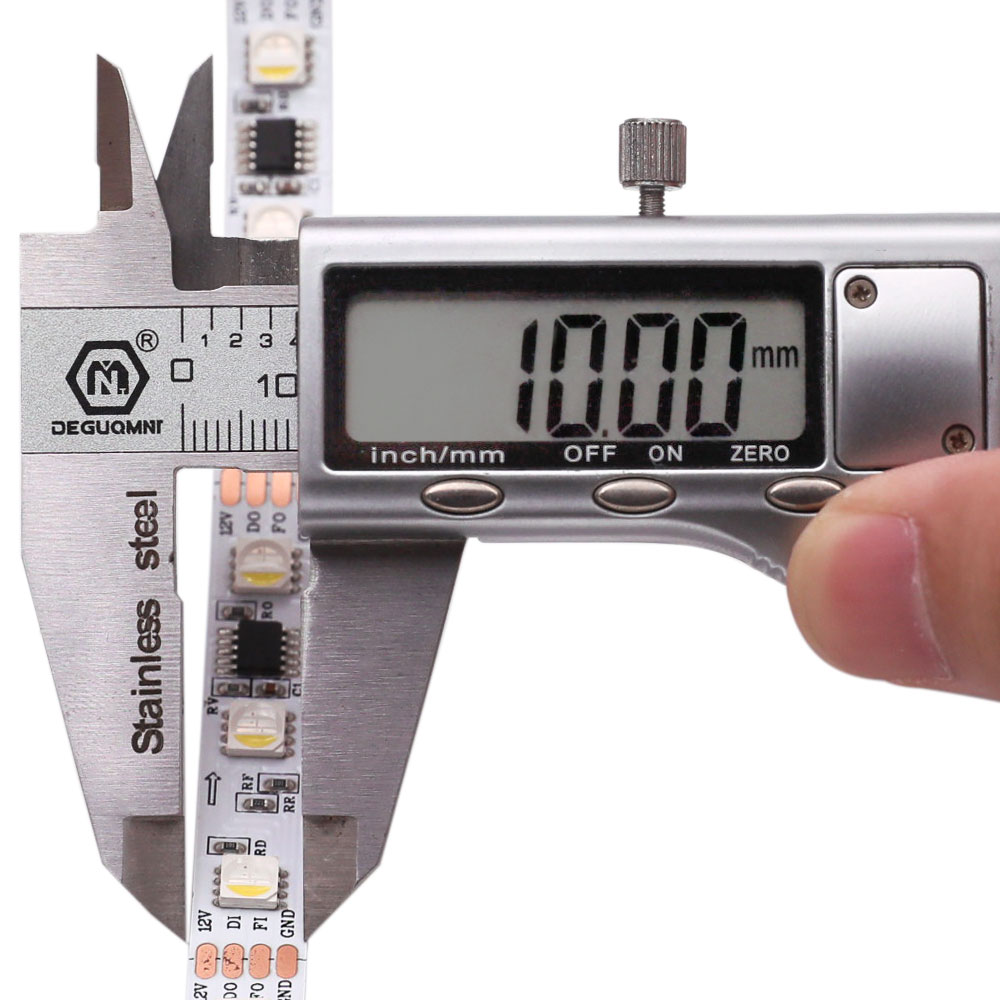

Three (DC12V) / six (DC24V) 5050 LEDs form a loop, 50mm (DC12V) / 100mm (DC24V) cut length, which can be arbitrarily cut without damaging the usage. The flexible cutting makes the led strip light installation easier.

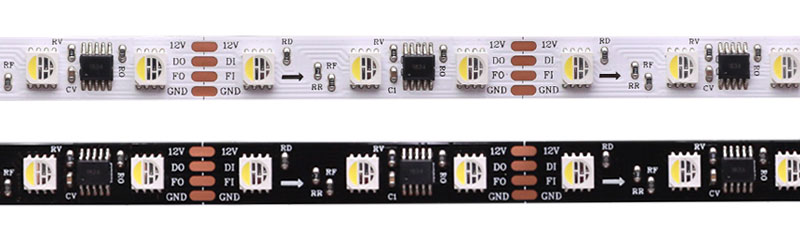

White PCB VS Black PCB:
Standards and Certifications
|LED Strip Type:||FW1834 4in1 RGB+W Addressable LED Strip|
|LED Chip:||FW1834 Breakpoint Resume|
|Input Voltage:||DC12V / DC24V|
|LED Color Temperature:||Addressable RGB + 6000K Daylight White / 4000K Natural White / 3000K Warm White|
|LED Quantity:||60 LEDs/m, 300 LEDs 16.4ft|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
4-Pin Breakpoint Resume Addressable LED Light Strip Wiring Diagram:
Available LED Fixture:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type. Aluminum LED channel are available with multiple types to create your linear lighting. And they all evenly diffuse LED lighting.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
