24V TM1834 (SK6812) 84 LED/m High Density RGBW Dual Data Led Strip

Name: 24V TM1834 (SK6812) 84 LED/m High Density RGBW Dual Data Led Strip
Brand: SuperLightingLED
SKU: TM1834-RGBW-24V84W10
Price: 42.98 CAD
Availability: InStock

Model: TM1834-RGBW-24V84W10 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$60.70

Qty Discounts Off Price
1-4 Can.$60.70	5-19 Can.$59.48	20-49 Can.$58.27	50+ Can.$56.45
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select Light Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

In types of addressable rgbw led strip, dual-signal RGBW IC has more stable signal transmission performance than single-signal, when one signal line is interrupted the other backup signal will automatically continue to work, which greatly enhances the reliability of the system in large-scale light strip pixel matrix projects.

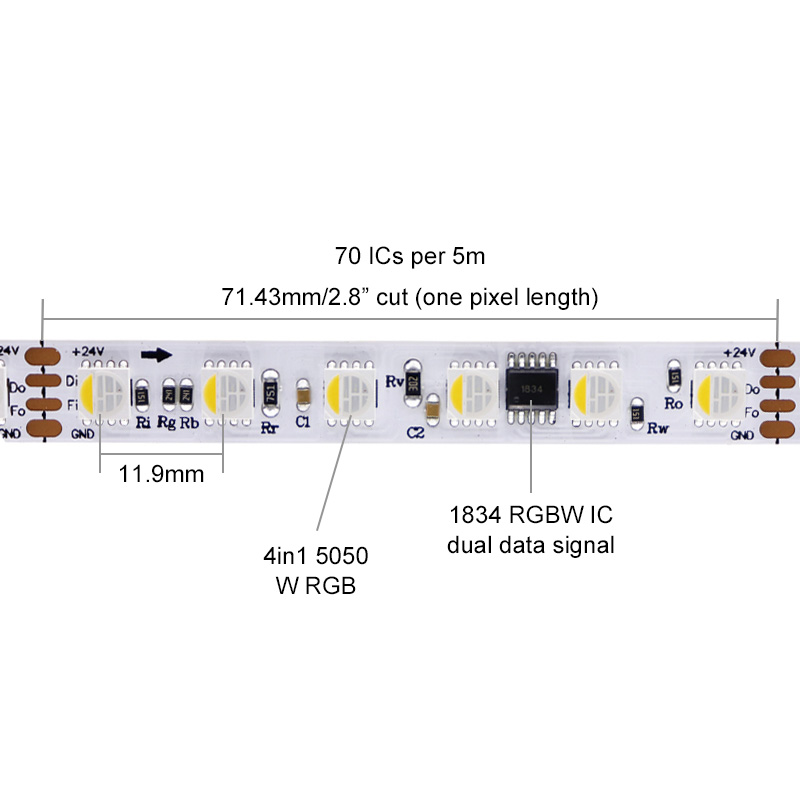

Currently, among all our dual-data addressable rgbw led strip lights, this TM1834 rgbw 24V led strip addressable is widely compatible with major SPI signaling control systems. Compare to WS2815 RGBW, TM1834 as an external IC, every 6 LEDs (71.43mm/2.8") on the led strip tape as a control unit under 24V operating voltage, total 70 IC chips per roll. And it carries a high density light arrangement of 84 LEDs/m with a low consumption of 15W/m, which is very energy efficient to use.

This TM1834 RGBW IC chip is compatible with more controller models than the double data WS2814 RGBW, eliminating the need to struggle to find a compatible RGBW addressable controller. The X7 controller and LRS-100-24 power supply included in the kit allow you to change color and intelligently control these RGBW lights via the Tuya APP.

Product Specifications

LED Strip Type:	Dual Data RGBW LED Addressable Strip
LED Chip:	FW1834 (SK6812)
Input Voltage:	DC24V
Power:	15W/m, 4.57W/ft, 75W/16.4ft
LED Quantity:	84 LEDs/m, 420 per reel
IC Pixel:	14/m, 70/reel

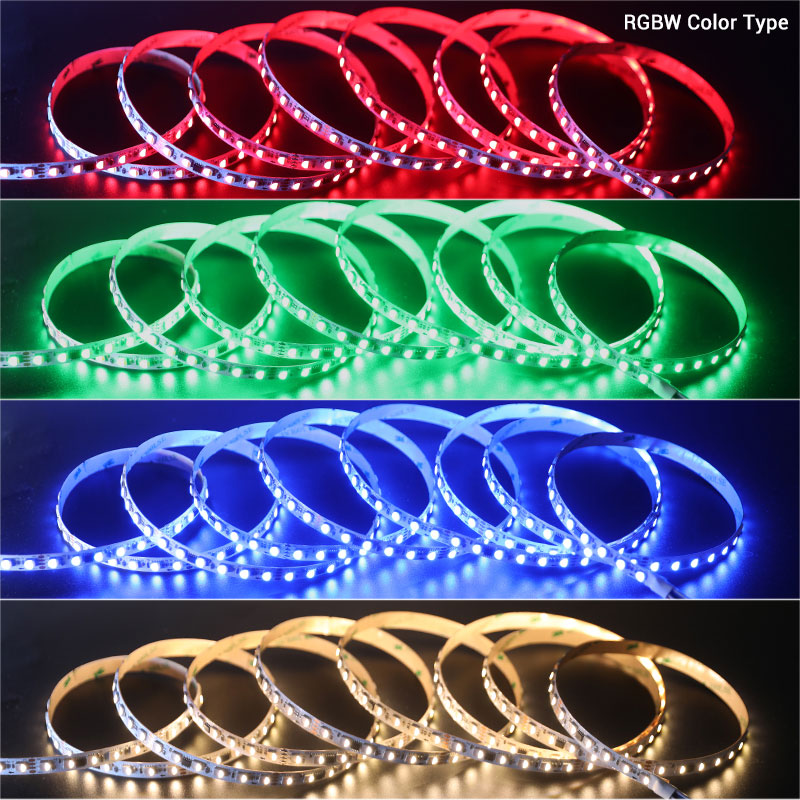

LED Color:	RGB + 6000K Daylight White / 4000K Natural White / 3000K Warm White

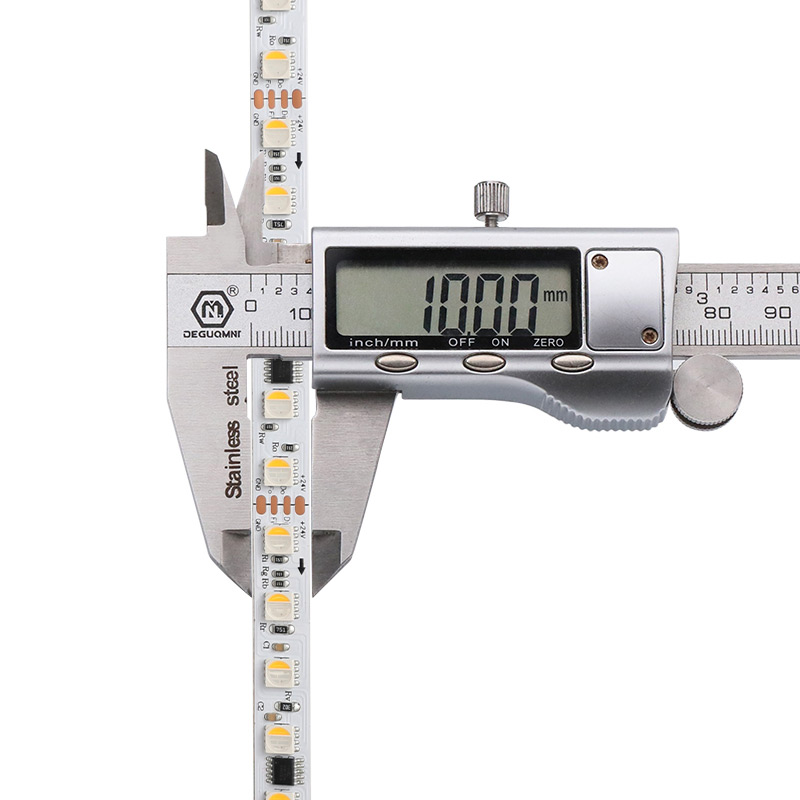

PCB Width:	10mm/0.39in for IP20/65, 12mm/0.47in for IP67/68
Cut Length:	6-LED, 71.43mm/2.8in
Waterproof Rating:	Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68
Length:	5m/16.4ft
Outlet Cable:	4-pin JST male and female conenctors
Working Temperature:	-20℃ ~ +45℃
Beam Angle:	120°

4-Pin Breakpoint Resume Addressable LED Light Strip Wiring Diagram:

how to connect ws2813 ws2815 led strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for TM1834-RGBW-24V84W10

PDFTM1834-RGBW-24V84W10 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
