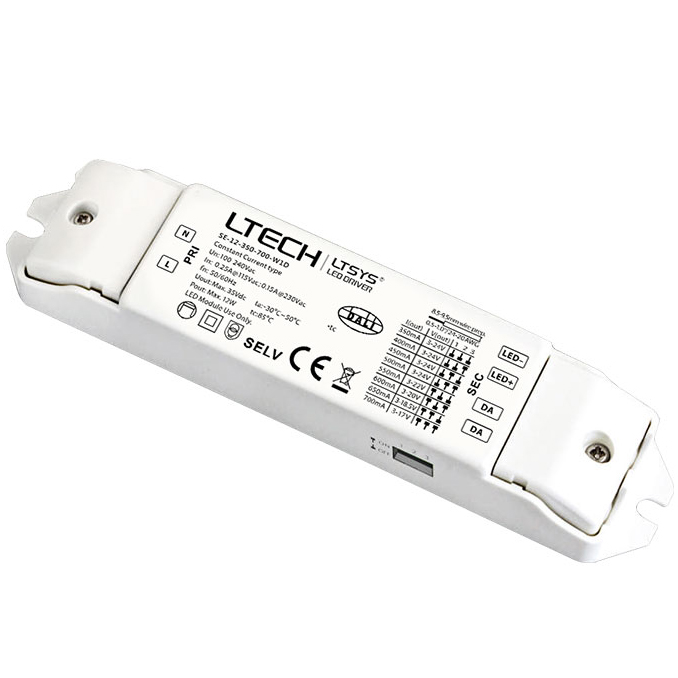

12W 350-700mA(100-240Vac) 4 in 1 LED Intelligent Driver SE-12-350-700-W1D
LED Intelligent Driver
Dimming interface: DALI.
T-PWM digital dimming, present a perfect visual experience.
Dimming range: 0~100%, LED start at 0.01% possible.
DALI dimming curve: liner curve or logarithmic curve.
Flicker-free (IEEE 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power
Over-heat / Over voltage / Over load / Short circuit protection,
Class 2 power supply. Full protective plastic housing.
DALI bus standard: IEC62386-101,102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
