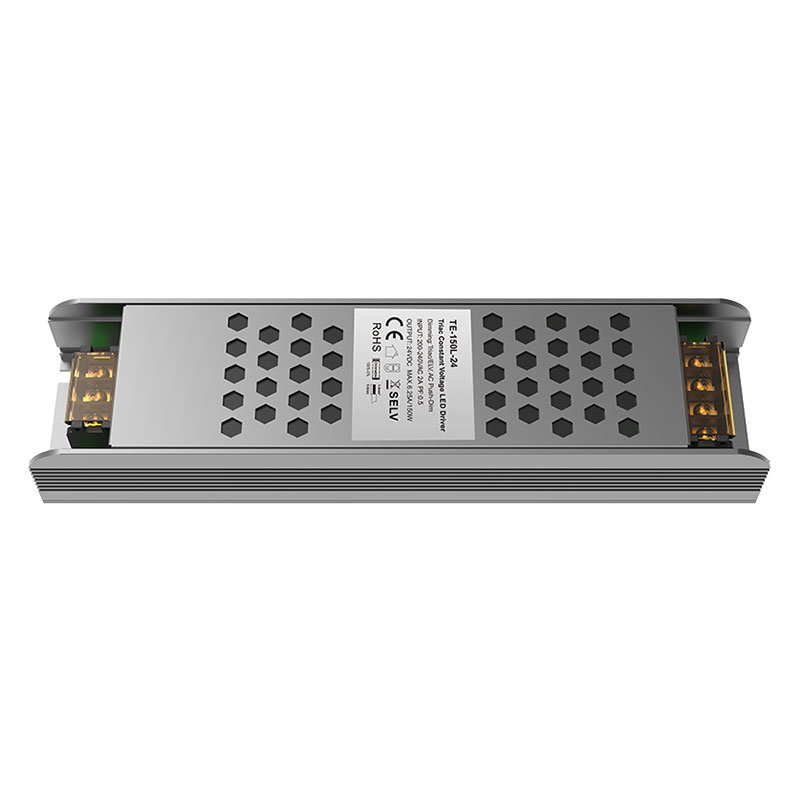

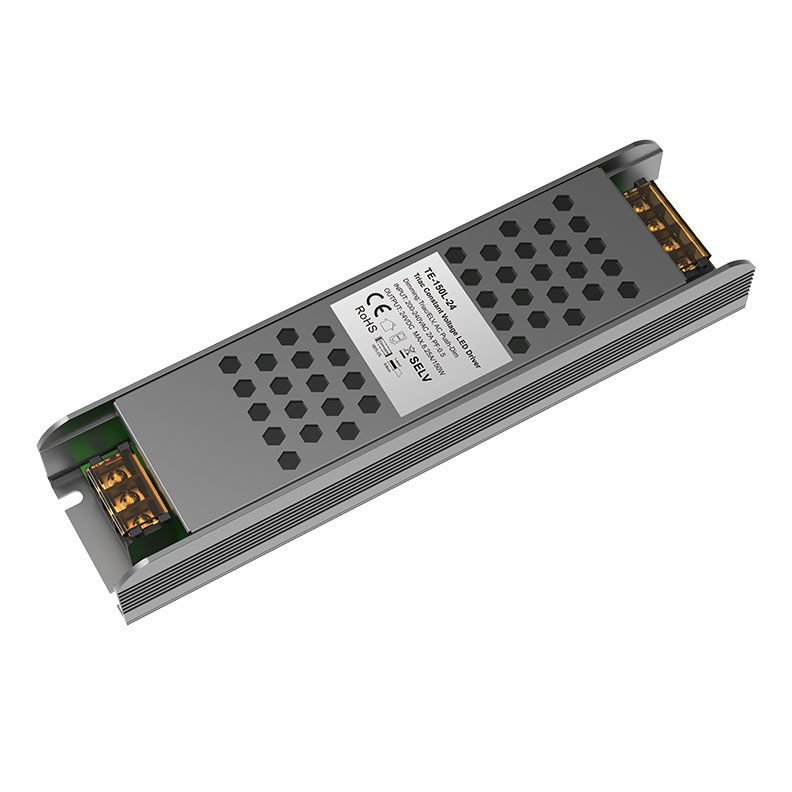

150W AC220V-DC24V Constant Voltage Dimmable Triac LED Driver TE-150L-24

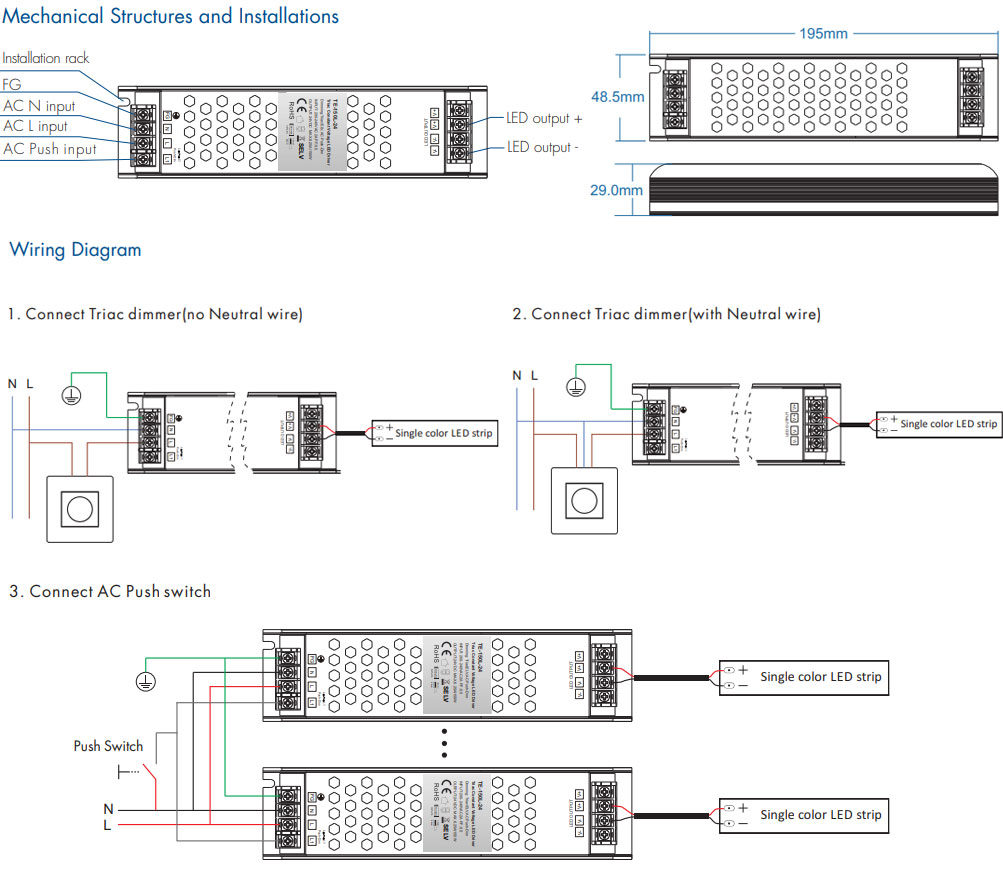

150W Triac Constant Voltage LED Driver For 24 Volt White LED Strip Lights, connect to AC Triac dimmer or push switch.
● Dimming interface: Triac/ELV, AC Push-Dim
● Apply to leading edge/trailing edge Triac dimmers and dimming system
● PWM digital dimming, no alter LED color rending index
● 1 channel constant voltage output, Max. total output power 150W
● Over-load / Short circuit protection, recover automatically
● Suitable for indoor LED lighting application
● 3 Year, 30,000hr warranty
Standards and Certifications
|Output Voltage:||24VDC (±0.5V)|
|Output Power:||0～150W 150W Max|
|Working Humidity:||20％～90％RH, non-condensing|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
