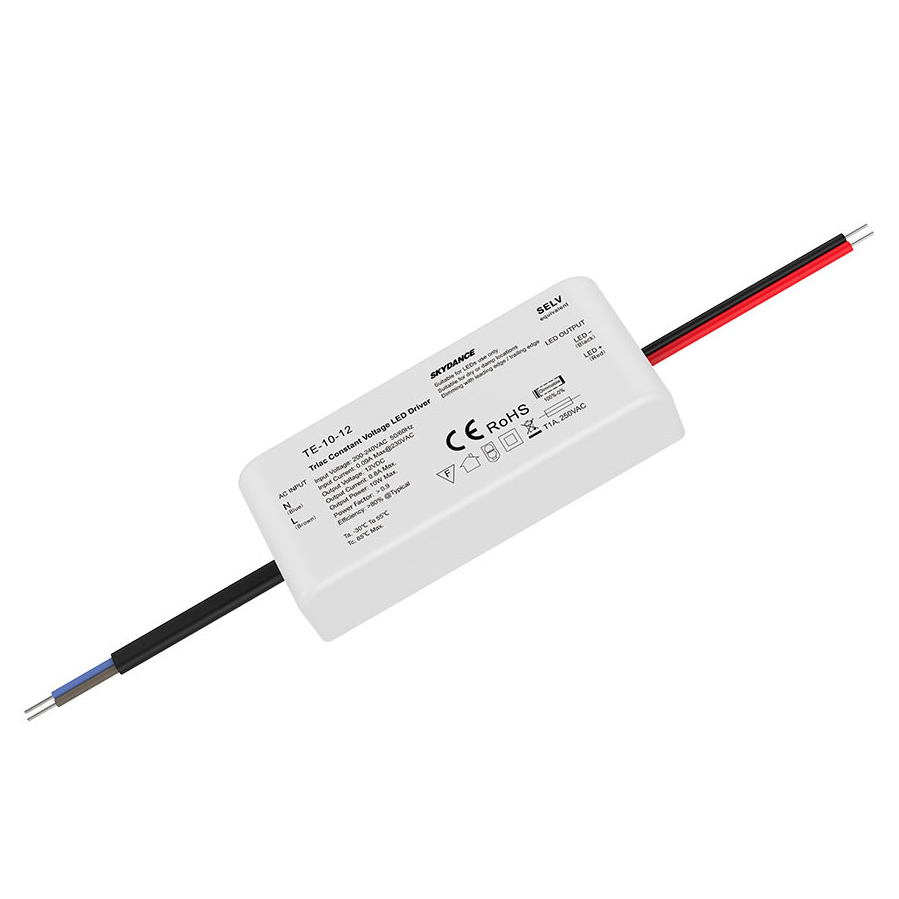

220V Input Voltage 12V 10W Triac Dimmable LED Driver TE-10-12
● Apply to leading edge/trailing edge Triac dimmers and dimming system
● Special use for MR16 lamp
● PWM digital dimming, no alter LED color rending index
● 1 channel constant voltage output, Max. total output power 10W
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warrant
Standards and Certifications
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.
