15W 100-700mA（100-240Vac）DALI-15-100-700-F1P1 LED Intelligent Driver
LED Intelligent Driver

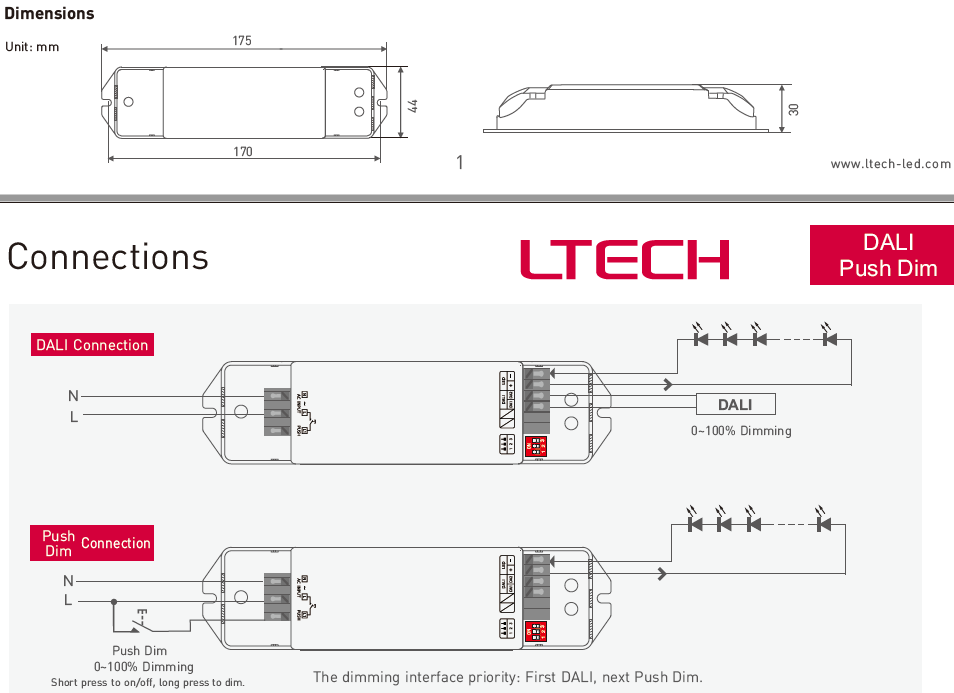

Dimming interface: DALI, Push Dim.
PWM digital dimming, no alter LED color rendering index.
Standard DALI logarithmic dimming curve.
Dimming range: 0~100%, LED start at 0.1% possible.
Multiple current, wide voltage, compatible with a variety of LED lights.
Short circuit / Over-heat / Over load protection.
Class 2 power supply. Full protective plastic housing.
DALI bus standard: IEC62386-101, 102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
Dimming Interface: DALI (IEC62386), Push Dim
Input Voltage Range: 100-240Vac ±10%
Input Current: 115Vac≤0.18A, 230Vac≤0.10A
Power Factor: PF>0.95/115Vac , PF>0.9/230Vac, at full load
THD: <15% at 115Vac, <20% at 230Vac (full load)
Inrush Current(typ.): Cold start 20A@230Vac
Control Surge Capability: L-N: 1kV
Leakage Current: <0.5mA/230Vac
Operating Voltage: 10~54Vdc
Output Power Range: 1W~15W
Current Accuracy: ±5%
Non-load Output Voltage: 58Vdc
Dimming Range: 0~100%, LED start at 0.1% possible.
PWM Frequency: ≤4KHz
Working Temperature.: TC: 90°C ta: -20°C ~ 50°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -40 ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min./1cycle, period
for 72min. each along X, Y, Z axes
