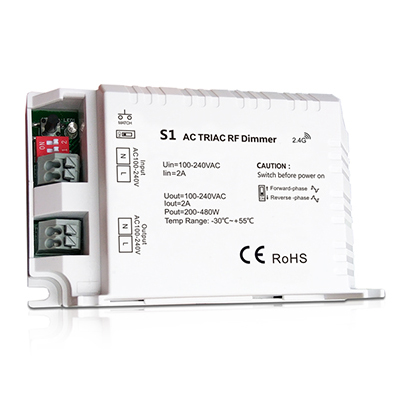

The S1 is an AC phase-cut dimmer with RF control function, designed with 100-240VAC wide input and output, 1 channel 2A output, both triac dimmable and mosfet dimmable. The RF triac dimmer can be compatible with a variety of single color RF series remote controls. While working with a WiFi-Relay controller, the dimmer can be WiFi controlled via APP installed on IOS or Android system.
AC phase-cut RF dimmer with push-dim function, 1 channel 2A output.
To dim and switch single color dimmable LED lamps or drivers, traditional incandescent and halogen lights.
Smooth dimming and switch without any flickering.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
Leading edge dimming or trailing edge dimming set by dip switch.
Great compatibility with a variety of dimming RF remote.
Work with WiFi-relay controller after install APP on IOS and Android system.
Standards and Certifications
