IR RF Remote Control High Power AC High Voltage CCT LED Light Dimmer

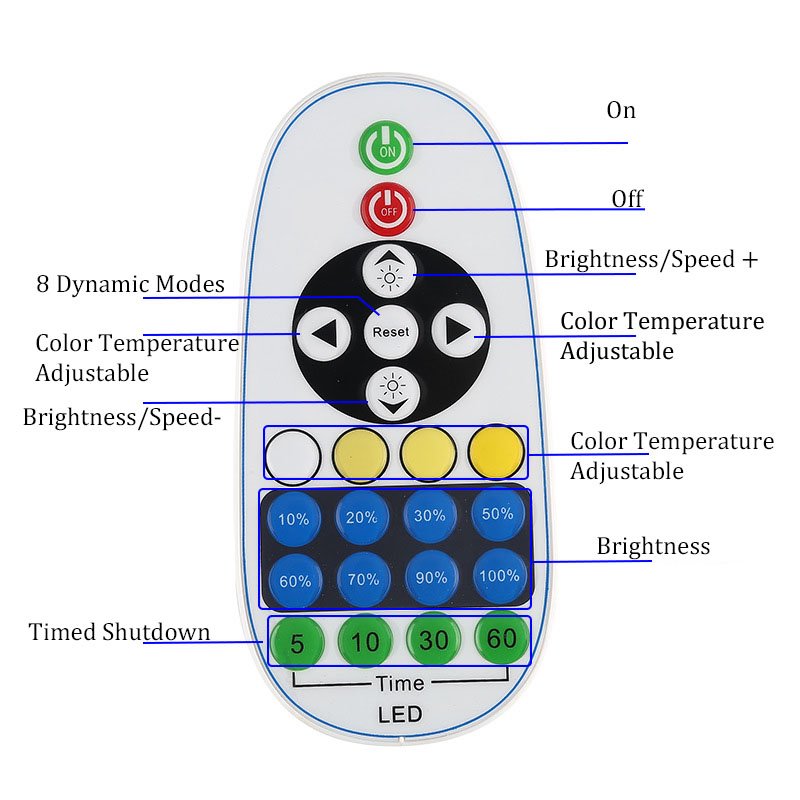

This LED controller product is used to control high-voltage CCT dimmable LED light strips. It adopts infrared or RF remote control to remotely adjust the LED color temperature from 3000K warm white to 6500K daylight, and dim the light brightness from the darkest to the brightest. This LED dimming controller has switch power-off function and memory function, and can be set to delay shutdown (5~60min).
Standards and Certifications
Working Temperature: -20℃-60℃
Working voltage: AC110V/ 220V
Output channel: 2CH / CCT
Product power: Max 1000W
Remote control distance: 10 meters
Current: Max 8A
Instructions for Use:
1. Insert the light strip plug into the AC plug power cable. The positive and negative poles should be correspond. Pay attention to check whether there is a short circuit at the pin position. If there is a short circuit, please deal with it and then turn on the power, otherwise the LED dimmer and the strip light will be damaged.
2. Turn on the power, and then the LED lights can be controlled using the configured handheld remote.
3. When installing the controller, install the receiver in a position free of obstacles to avoid remote control failure.

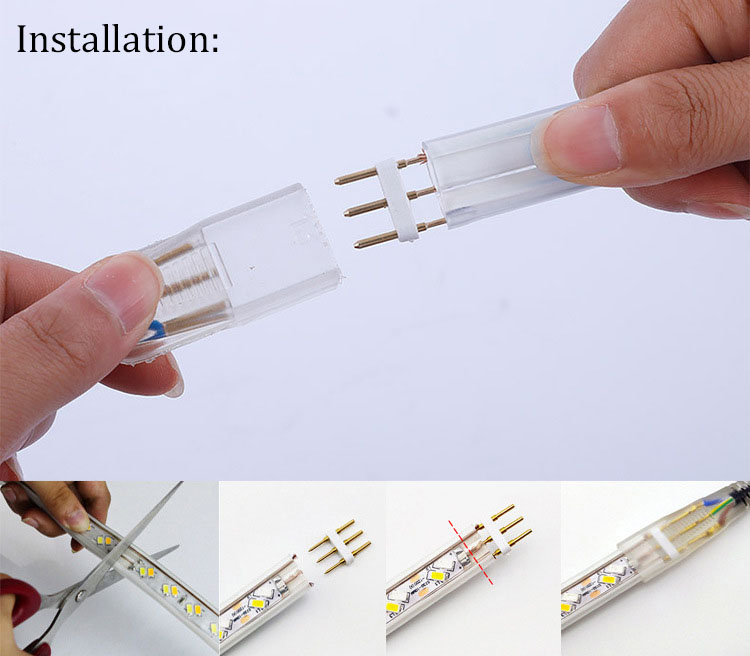

1) Each meter has a cutting part, cut the strip according to your required length.
2) Align the pin with the power line of the light strip and insert it.
3) The pin tip should not exceed the red line in the figure below to avoid short circuit.
4) Connect the plugs well, align the positive and negative poles, and do not connect them in reverse.
