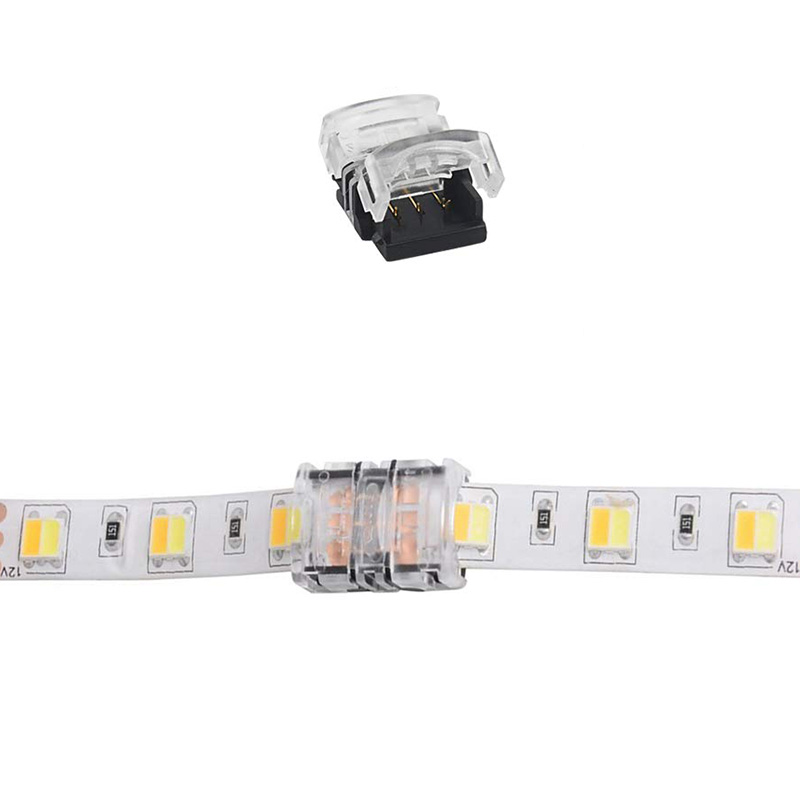

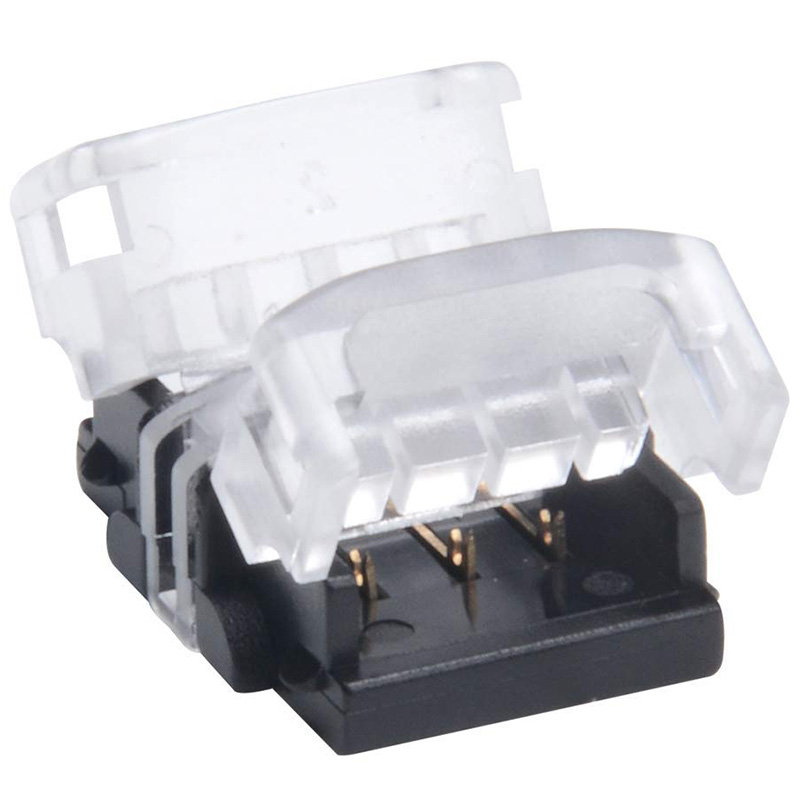

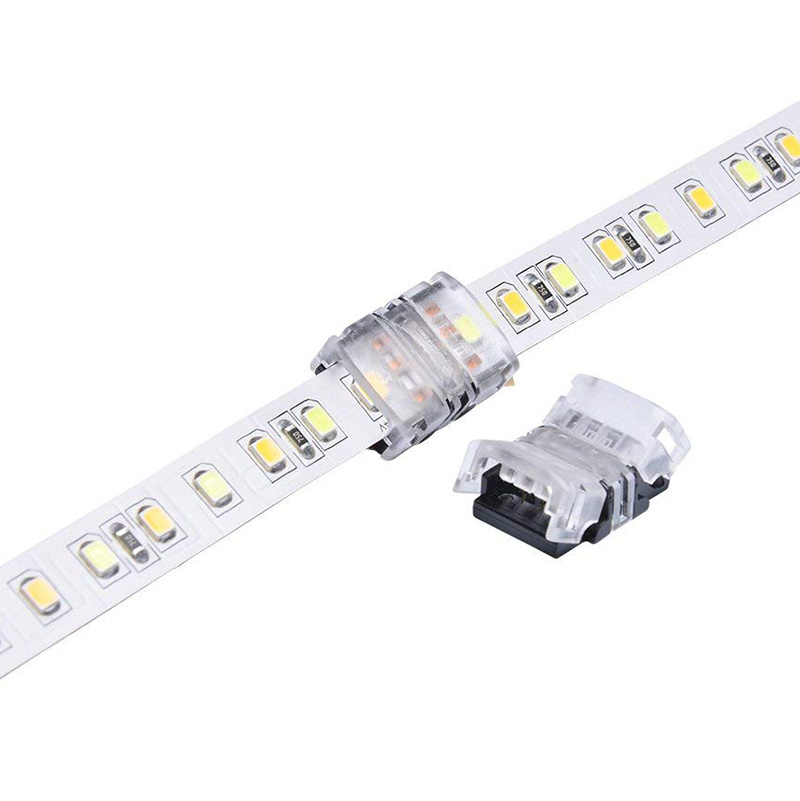

LED Strip Connector 3 Pin 10mm Board to Board, Gapless Connector for Dual Color and Digital Pixel Strip Light

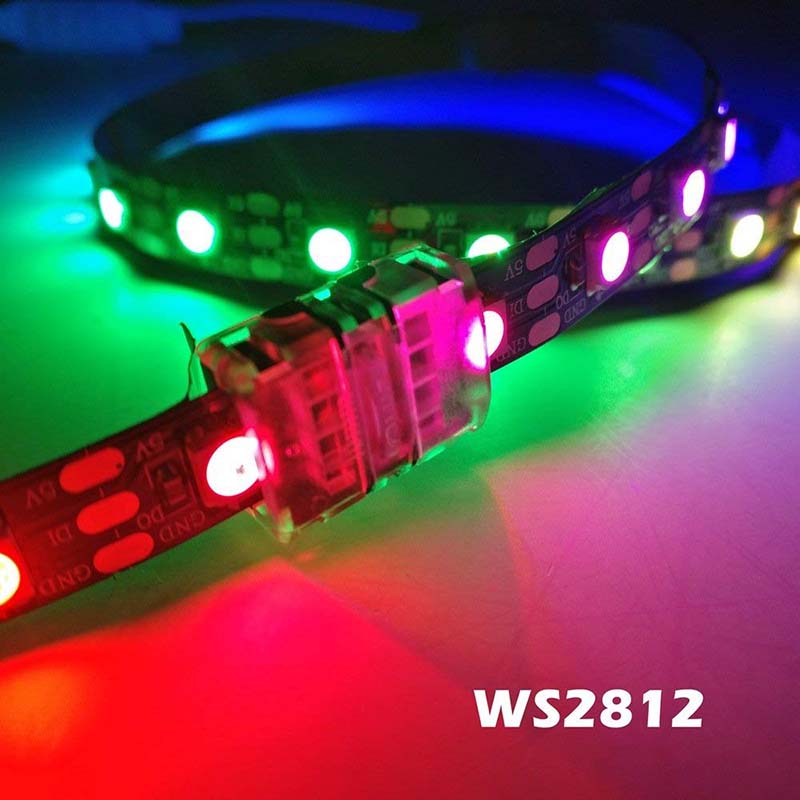

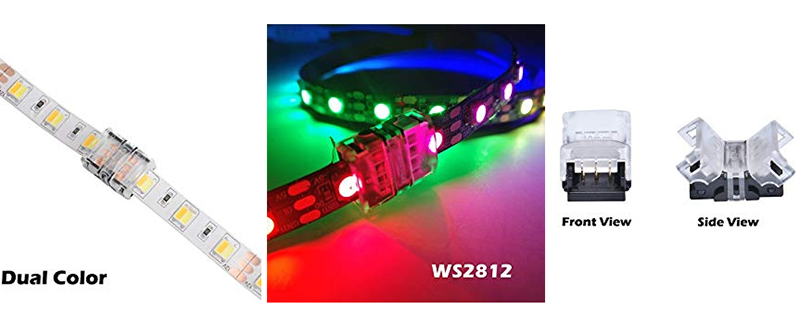

Applicable to both normal dual color and digital flex strip light which have 3 solder pad on 10mm FPCB
Easy to connect LED pixel strip to strip, just need a pliers, no need too many tools, no need to welding.
Good for high-density light LED strip, don't mask the light of first LED.
The pin pierce strip light through from the back and get contacted inside FPCB thickness gaining reliable fixing to strip light, never worry strip to slide out or flicker
Support big current, Up to 5A current supported with help of copper pin
Width of Applicable LED Strip Light:10mm
Min.LED Strip Thickness: >0.2mm
Workable Wire Cross-Sectional: 0.34~0.78 mm2
Working Voltage: DC 3V-24V

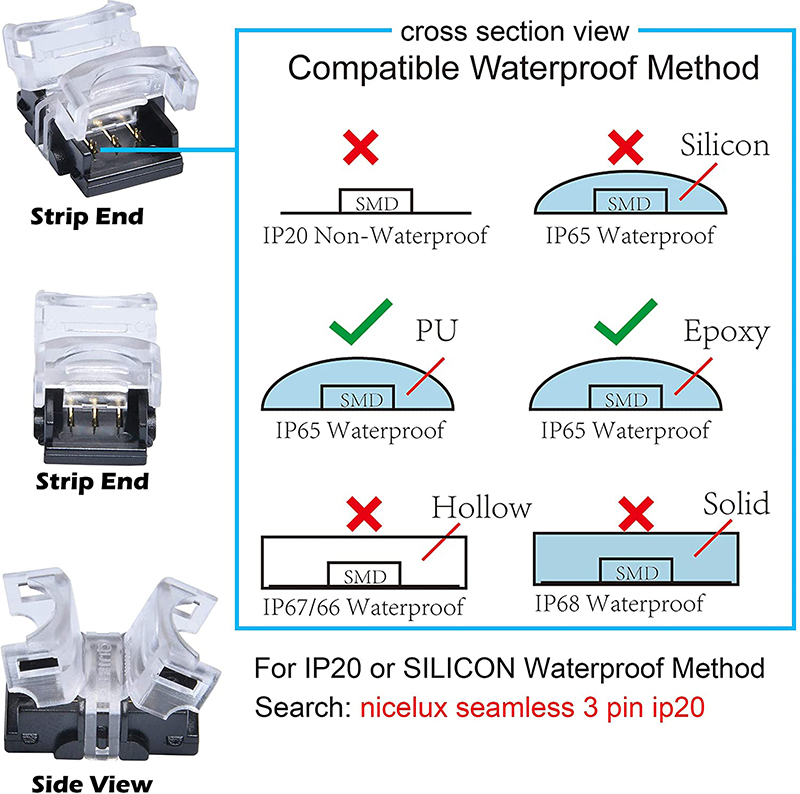

Way of Contact to Strip Light: Insulation-piercing contact
Flame Retardant Level: UL94v-0

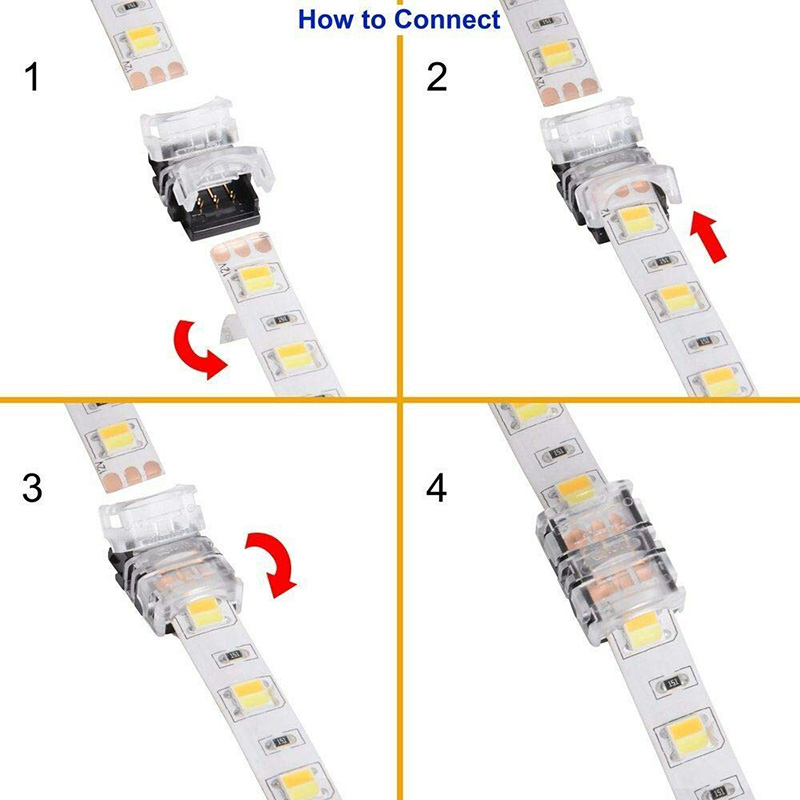

How do you use this connector?
