LED Connector 5 Pin for 12mm RGBW Waterproof LED Strip Lights to 1.64ft Wire Quick Connection, 22 AWG Wire No Stripping

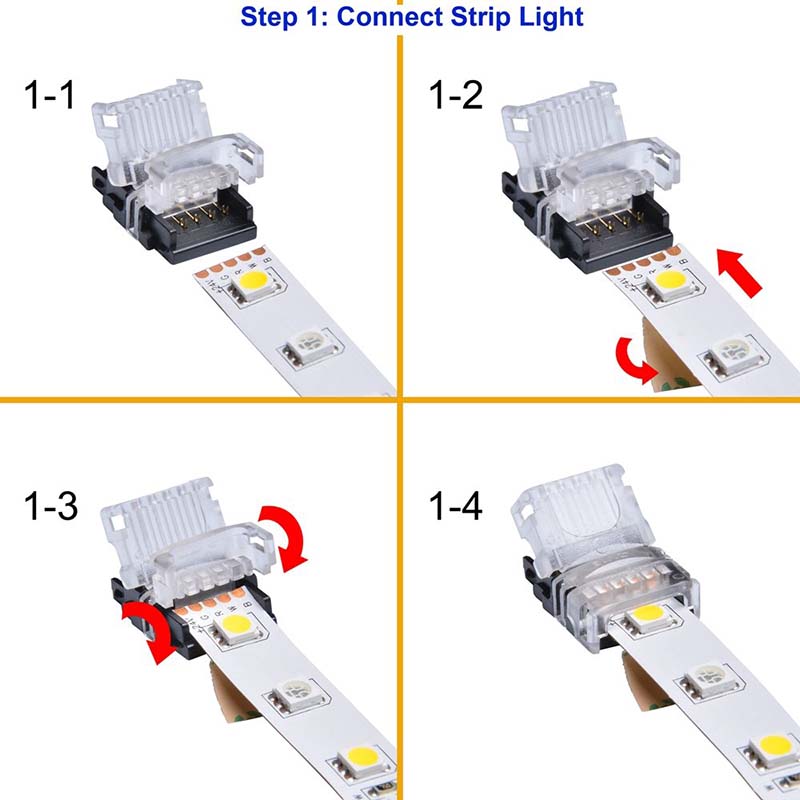

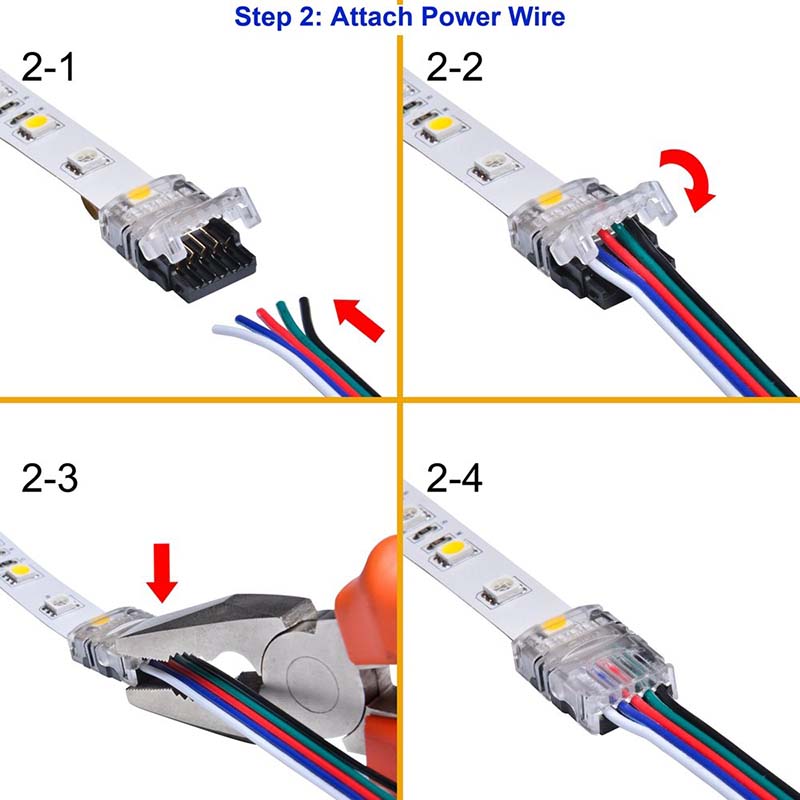

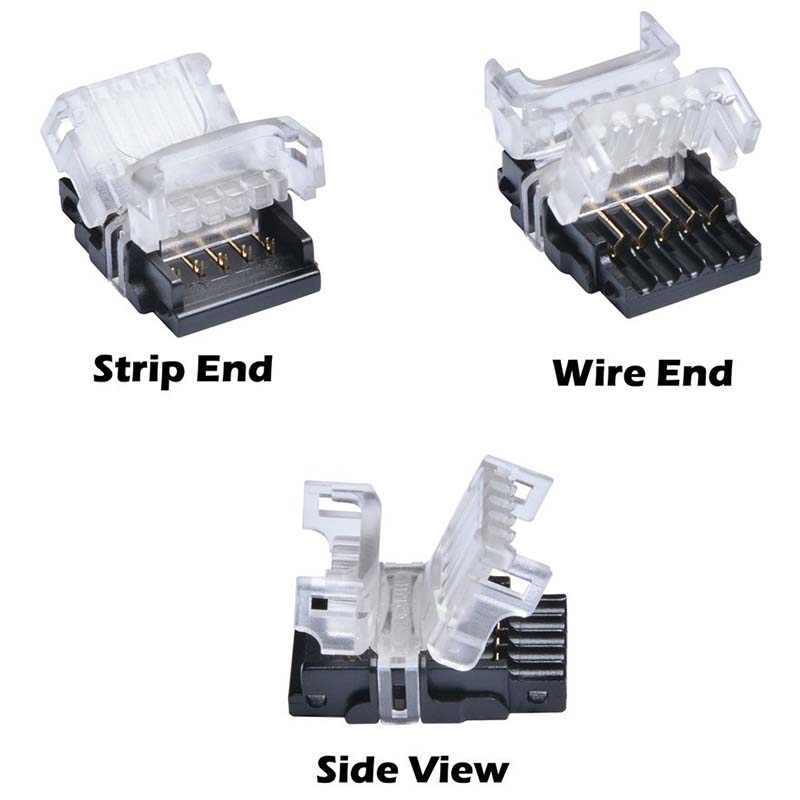

1. One end for RGBW extension wire and another end for RGBW strip light. Connect to wire without stripping insulation (insulation-piercing-contact)
2. DIY RGBW connector wire with the length you want, no more worry distance from strip light to Controller or power supply
3. As much as 10A ( R, G, B, W 4 channel ) supported, allowing you to connect longer LED strip by one connector
4. Strip light end can work with 12mm wide SMD5050 RGBW (4 in 1) / RGB+White strip light (Below 60LEDs/Meter), wire end can work with 5 conductor wire ranging 22~20AWG/0.34~0.54 mm²
5. Clear cap design will allow light to go through, will not leave the dark area at your lighting space
Size: 1 of 12 mm Connectors + 1.64ft Feet 2C Wire
Color: Black-Red-Blue-Green for Single Color WATERPROOF IP65 or Non-waterproof IP20
Style: Strip to wire
Power Source: DC
Voltage: 5-24 volts
Type of Bulb: LED
Special Features: Max Current 10A,Max Voltage 24V
Usage: RGBW LED Strip Light
Included Components: 1 pcs connectors, 1.64ft wire
