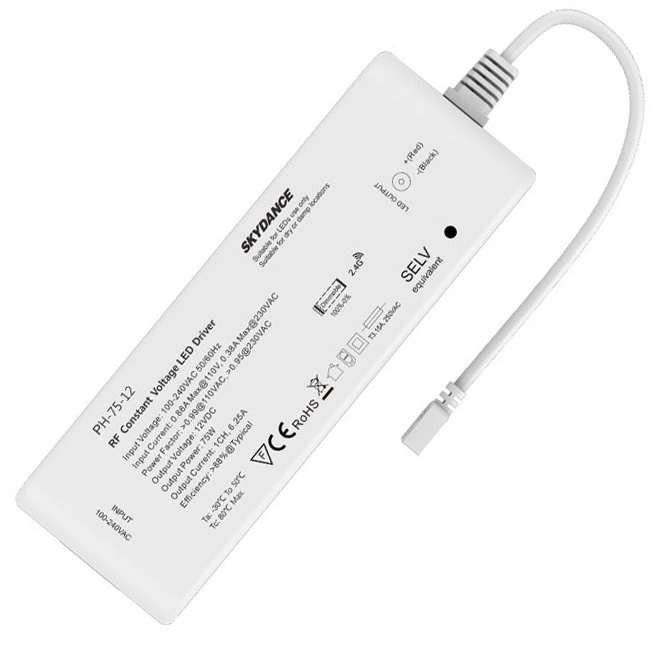

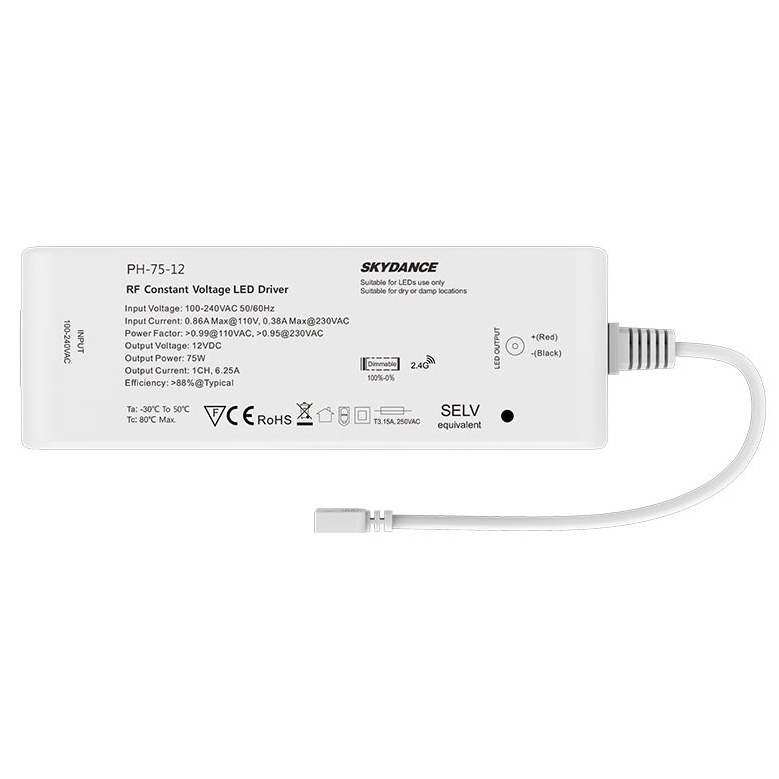

75W 12V RF Dimmable LED Driver PH-75-12

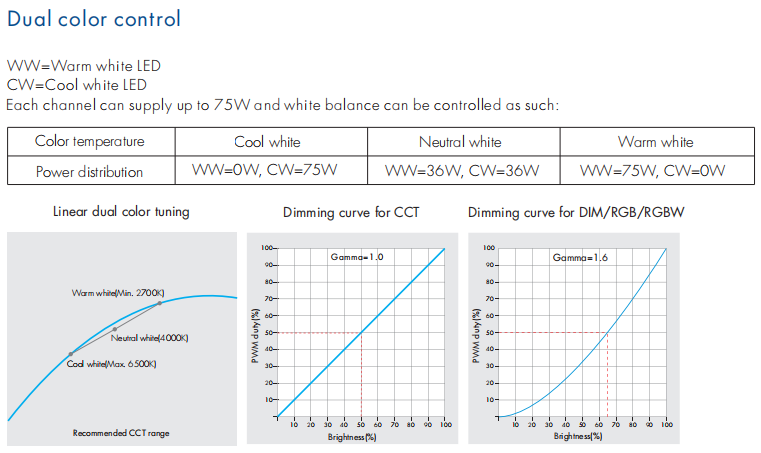

● Dimmable LED driver with RF control, apply to a single color, dual color, or RGB/RGBW LED constant voltage strips

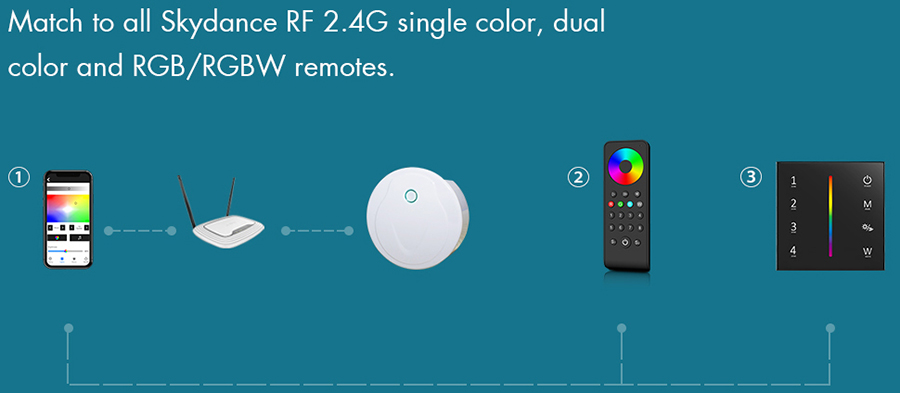

● Match with RF 2.4G single color, dual color, and RGB/RGBW remote.
One RF LED driver accepts up to 10 remote controls
● Universal AC input / Full range

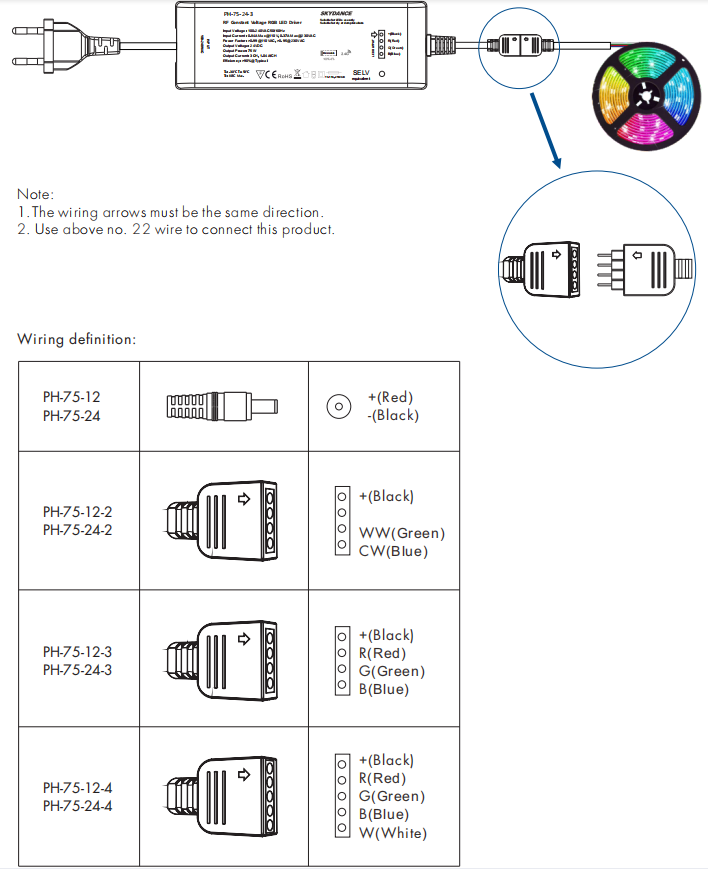

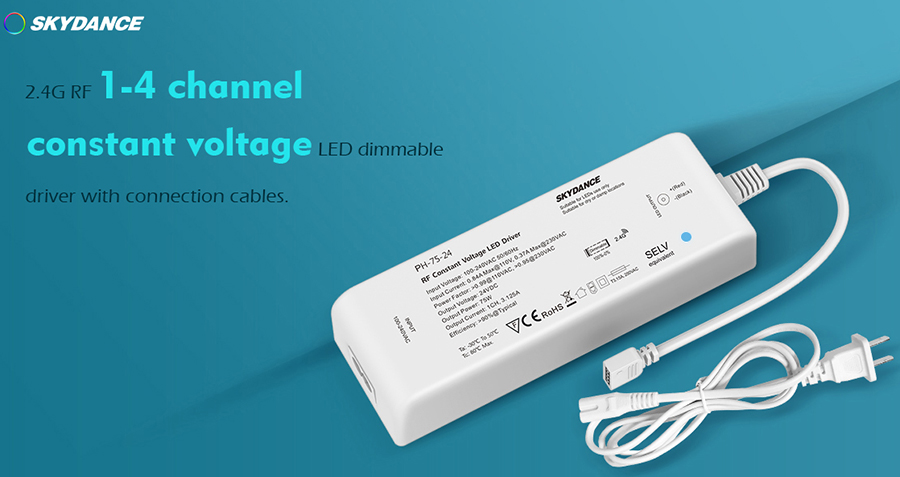

● 1/2/3/4 channel constant voltage output, Max. total output power 75W
● Built-in active PFC function: 0.95 Typ

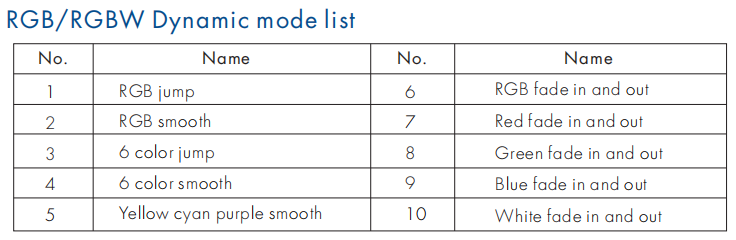

● When using with RGB/RGBW light, built-in 10 dynamic modes, include jump or gradual change style

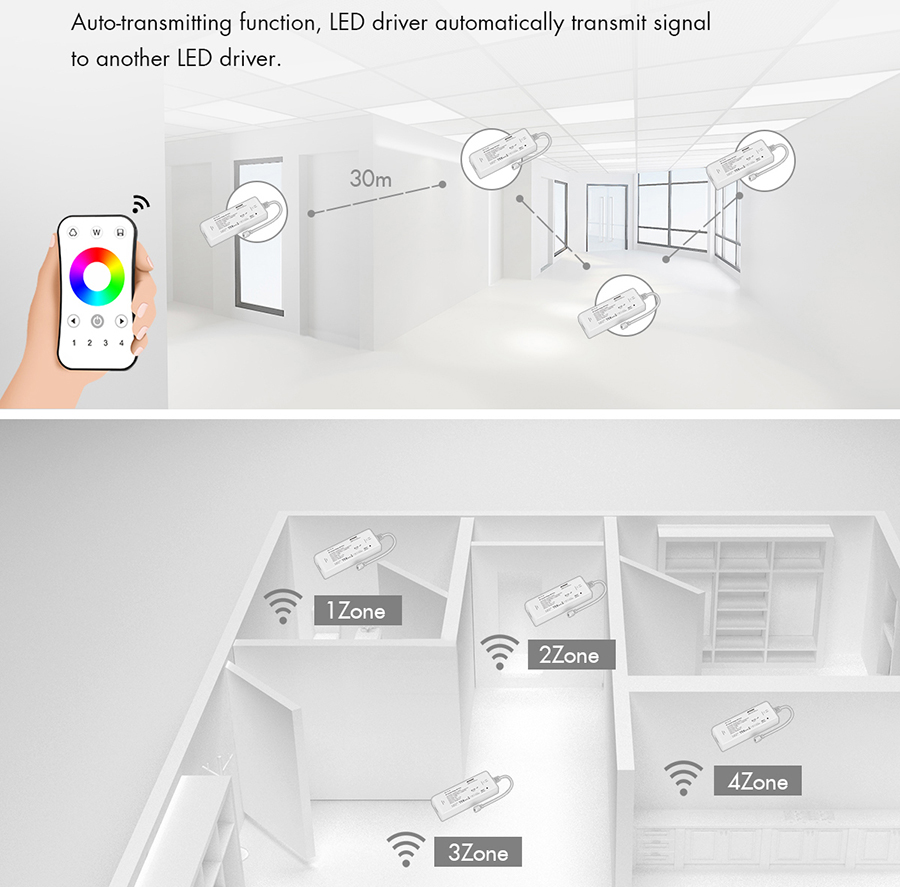

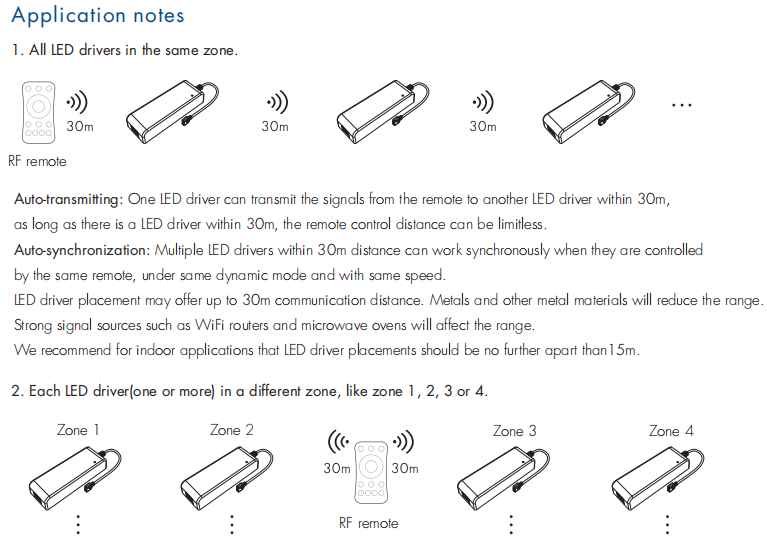

● Auto-transmitting function: LED driver automatically transmit a signal to another LED driver with a 30m control distance

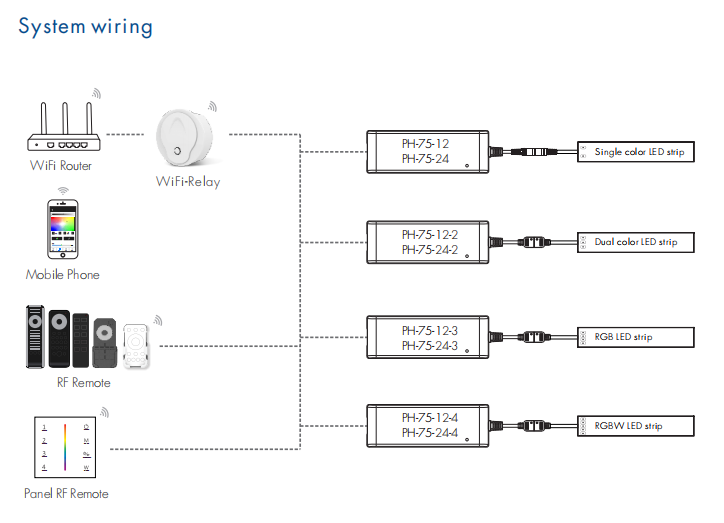

● Synchronize on multiple LED drivers
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.

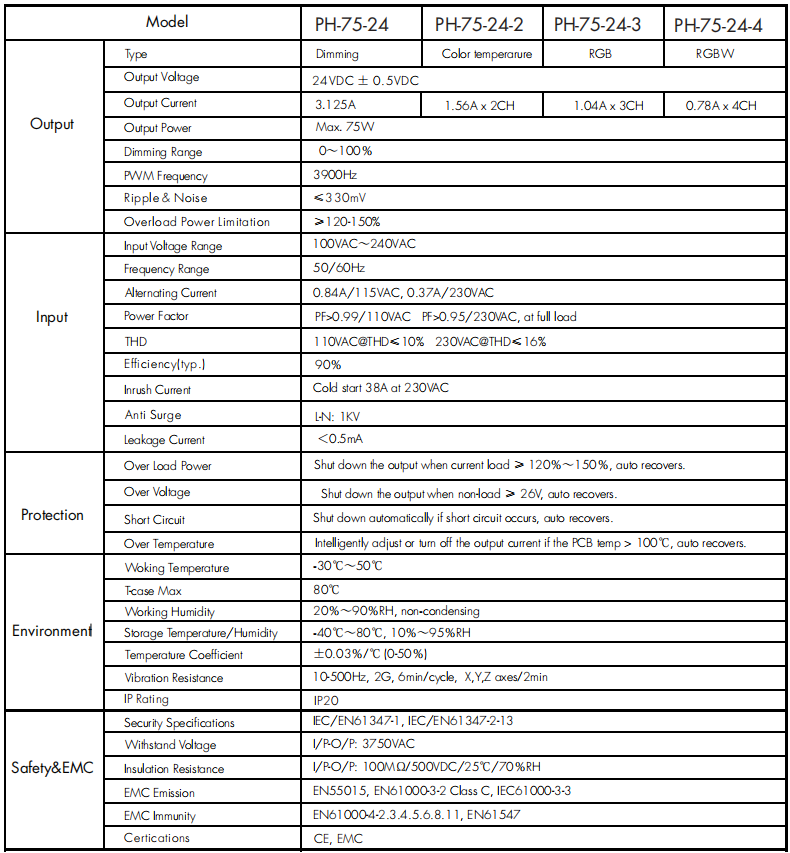

Storage Temperature:-40℃~80℃, 10%~95%RH
Temperature Coefficient: ±0.03%/℃（0-50%）
Standards and Certifications
Match Remote Control
Use power restart to match the LED driver and RF remote, The LED driver of different light types matches the RF remote of the corresponding light type.
Switch off the power, then switch on power again, immediately short press on/off key (single-zone remote) or zone key (multiple zones remote) 3 times on the remote. The light blinks 3 times means the match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
