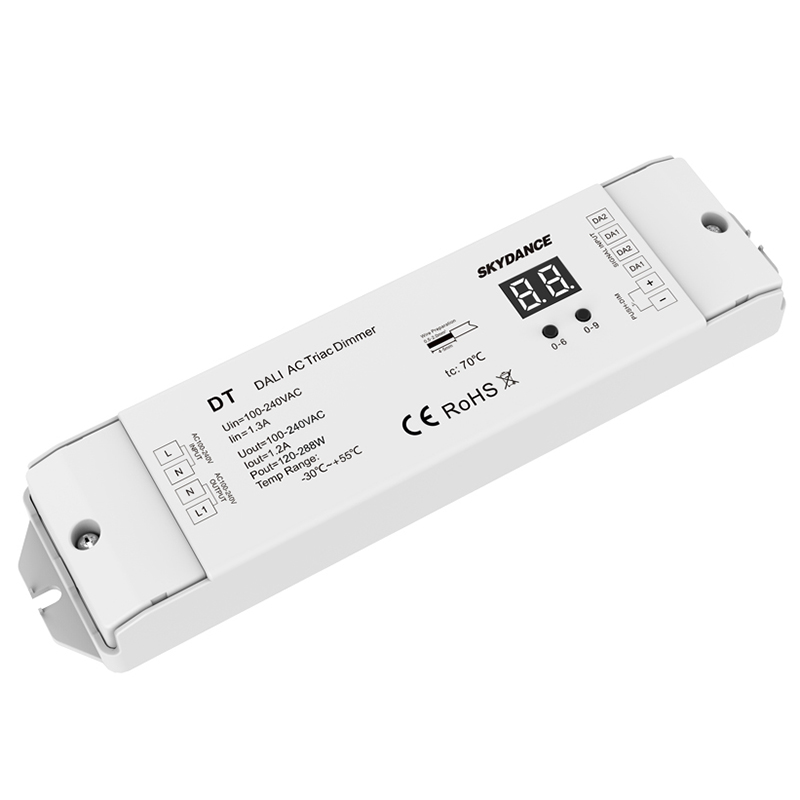

AC Triac DALI Dimmer DT
AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown in the digital display or automatically assigned by DALI master.
● Reverse-phase dimming or forward-phase dimming selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● To dim and switch single color dimmable LED lamps, traditional incandescent, and halogen lights
Input voltage: AC100-240V
Output voltage: AC100-240V
Output current: Max 1.2A
Output power: 120-288W
