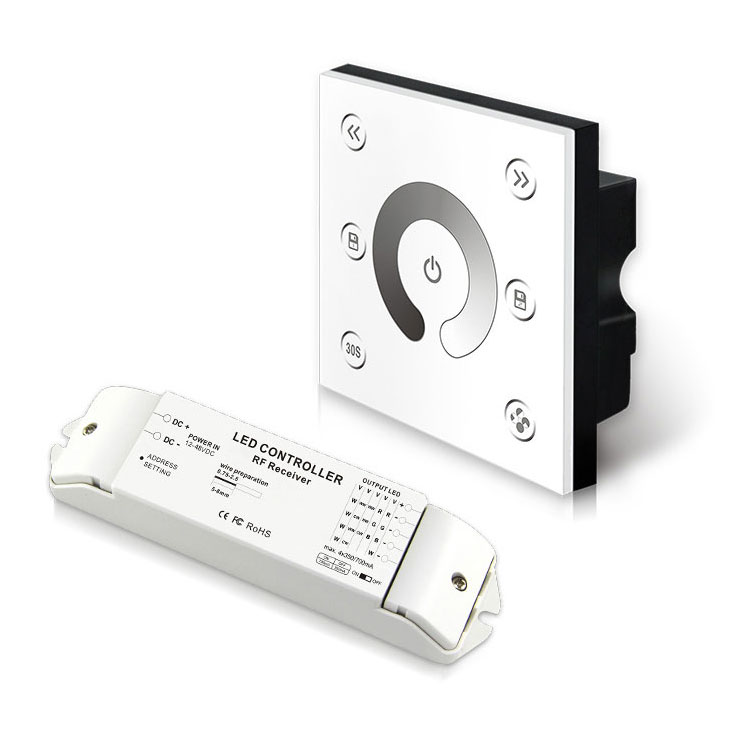

AC85V-265V DMX512+2.4G Wireless Single-Zone CC Dim Panel P1X+R4-CC-2.4G
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X and P8X are multi-zone control panels, can control Max. 4 zones, PX series could satisfy the controlling demand for all kinds of LED lighting products.

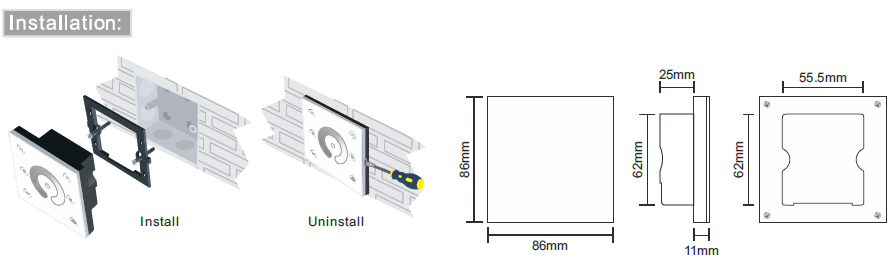

1、Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.
2、Workable for dimming, color temperature, RGB and RGBW control.

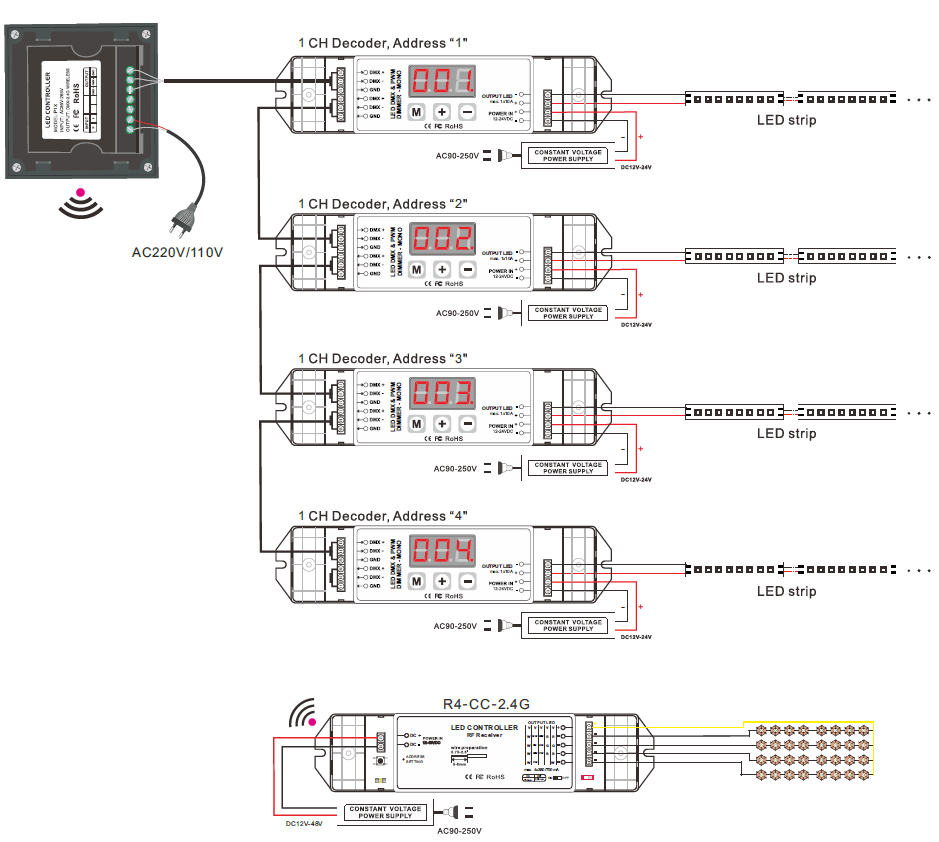

3、It can control DMX512 LED lights, and communicate with 2.4G RF radio technology.
4、RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, the led lamp is more rich and vivid without flash.
Standards and Certifications
Model: P1X Dim Panel
Input Voltage: AC85V-265V
Output Signal: DMX512+2.4G WIRELESS
DMX512 Socket: Wiring Terminal
Dimming Range: 5%-100%
Working Temperature: -20°C~55°C
Working Voltage: DC12V-DC48V
Output Current: 350/700mA×4CH
Driving LEDs/ CH: 1~12pcs 1W(3W) LED
Working Temp: -30℃-55℃
Weight (G.W): 137g
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
7.Product has been updated.
