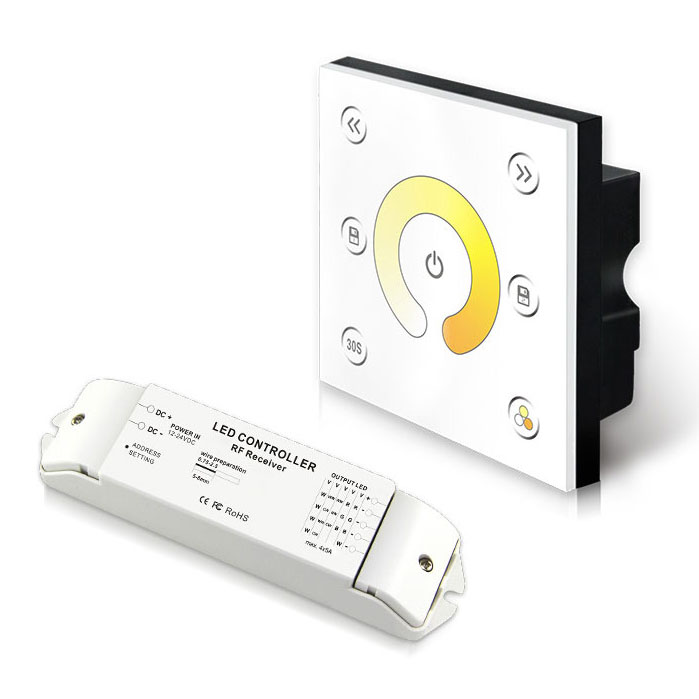

DMX512+2.4GWireless Single-Zone CV CCT Panel P2X+R4-2.4G
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones, PX series could satisfy the controlling demand for all kinds of LED lighting products.

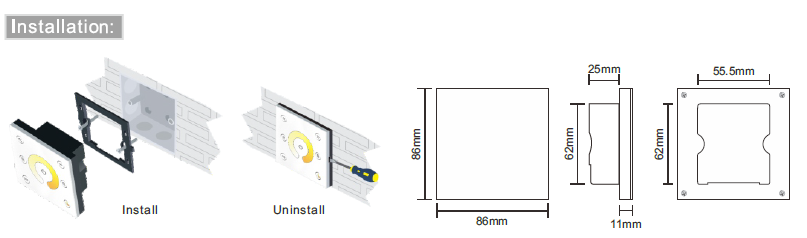

1、Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.
2、Workable for dimming, color temperature, RGB and RGBW control.

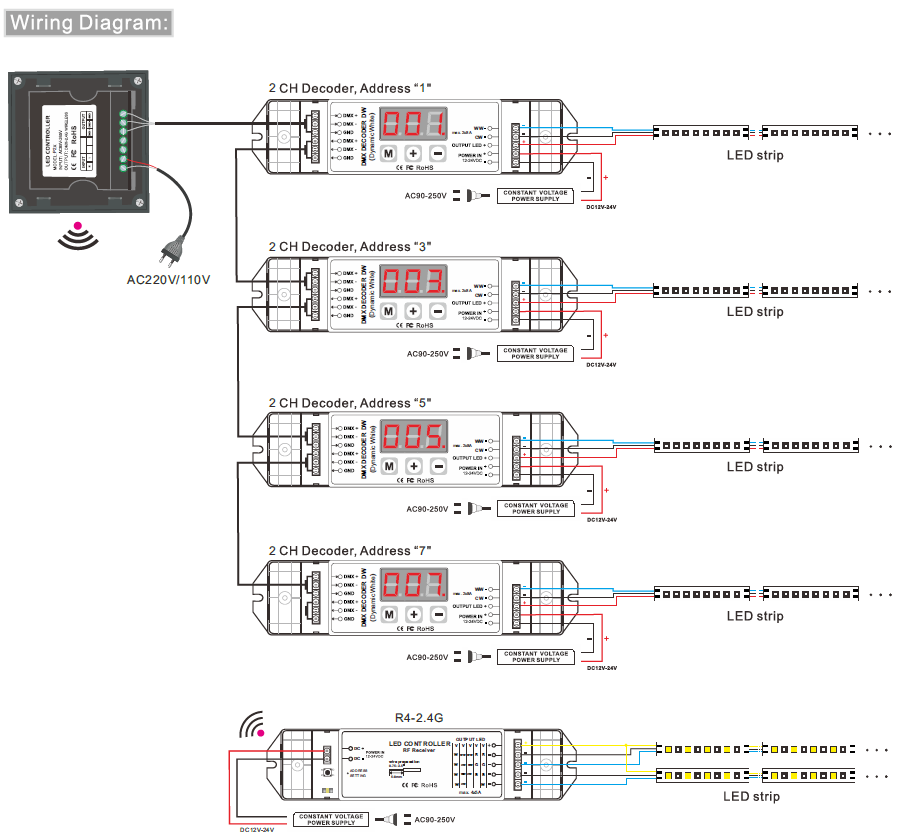

3、It can control DMX512 LED lights, and communicate with 2.4G RF radio technology.
4、RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, the led lamp is more rich and vivid without flash.
Standards and Certifications
Model: P2X CCT Panel
Input Voltage: AC85V-265V
Output Signal: DMX512+2.4G WIRELESS
DMX512 Socket: Wiring Terminal
Working Temperature: -20°C~55°C
Input Voltage: DC12V-DC24V
Max current load: Max 5A×4CH
Max output power: 240W(12V)480W(24V)
Working Temp: -30℃-55℃
Weight (G.W): 115g
