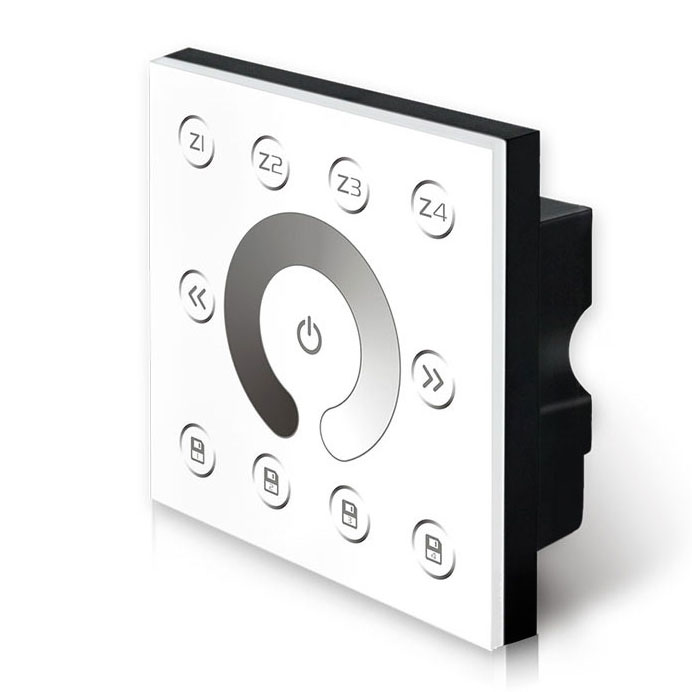

AC85V-265V Multi-Zone Dim Panel P5
P series touch panel controller, This P series touch panel controller is consist of Multi-zone series and Single zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. P5, P6, P7 and P8 are DMX512 control panels, used for DMX512 lamps; P series could satisfy the controlling demand for all kinds of LED lighting products.

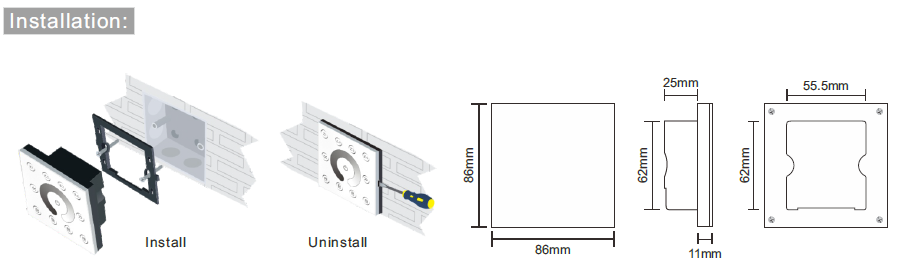

1、Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.

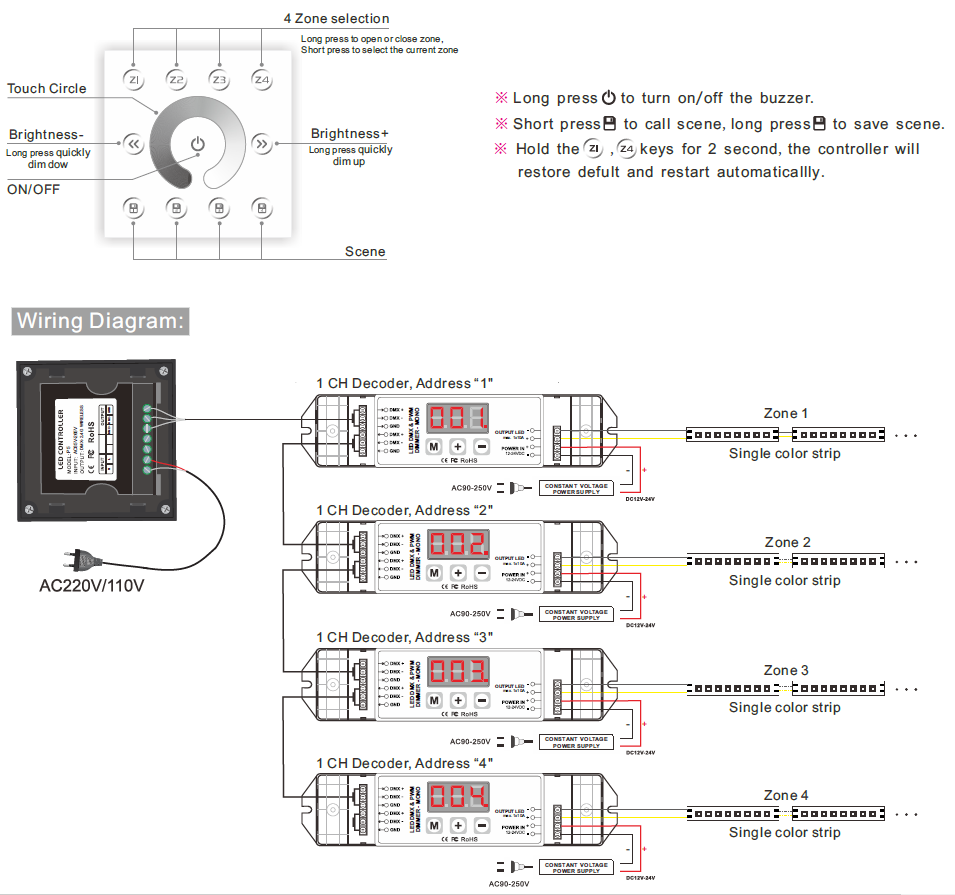

2、Output DMX512 signal(only P5, P6, P7, P8) to control the DMX equipment.
3、Support 4 zones(only P5, P6, P7, P8), can meet the requirements for a different zone with different control.
4、RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, the led lamp is more rich and vivid without flash.
Standards and Certifications
Model: P5 Dim Panel
Input Voltage: AC85V-265V
Output Signal: DMX512 4 Channel
Dimming Range: 5%-100%
Working Temperature: -20°C~55°C
