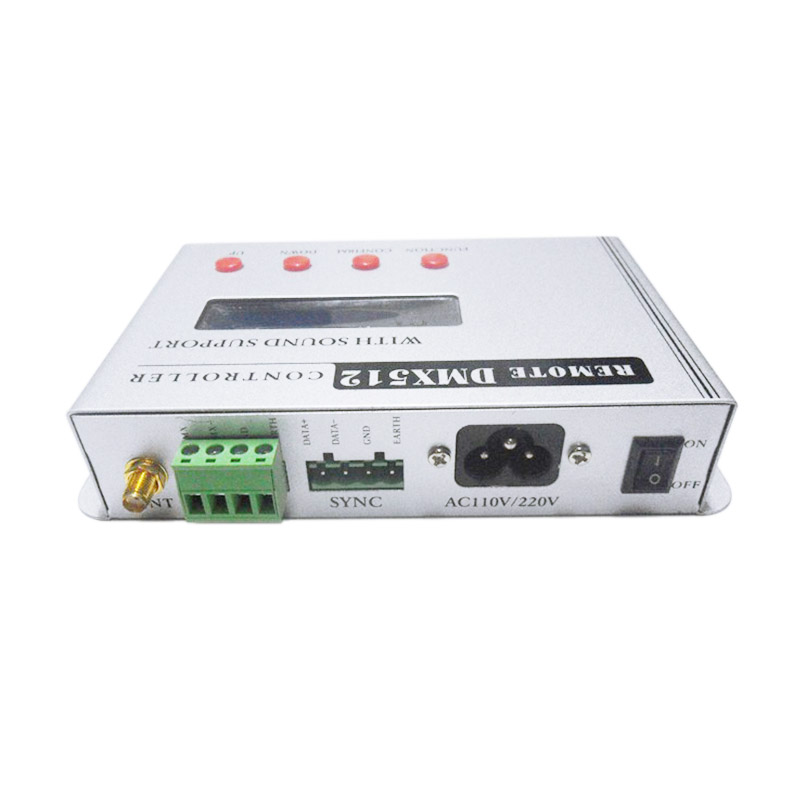

100-240VAC DMX512 RGB led decoder controller for LED wall washer, led underwater light and led flood light

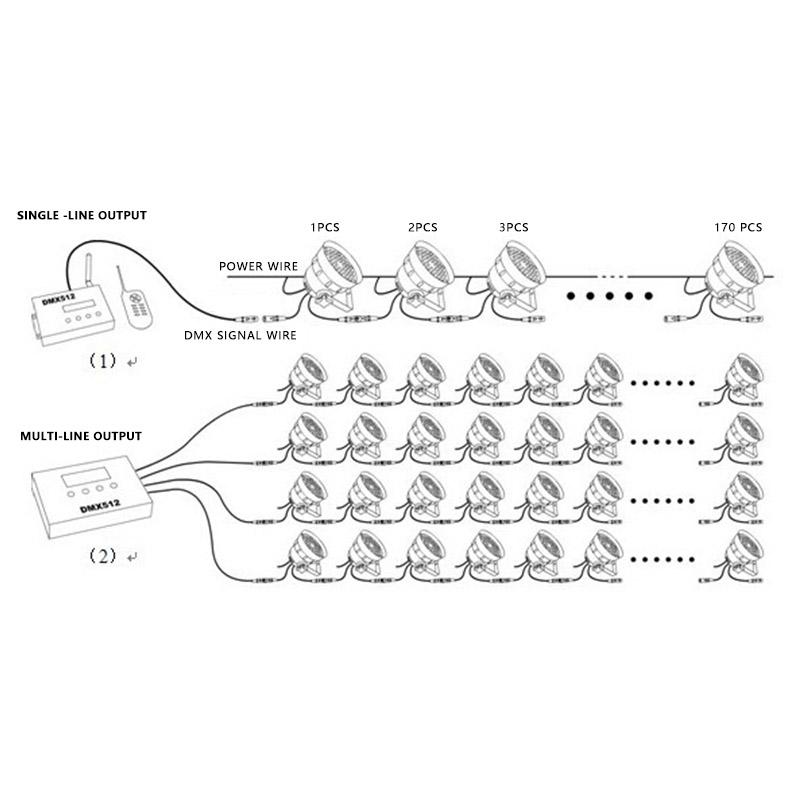

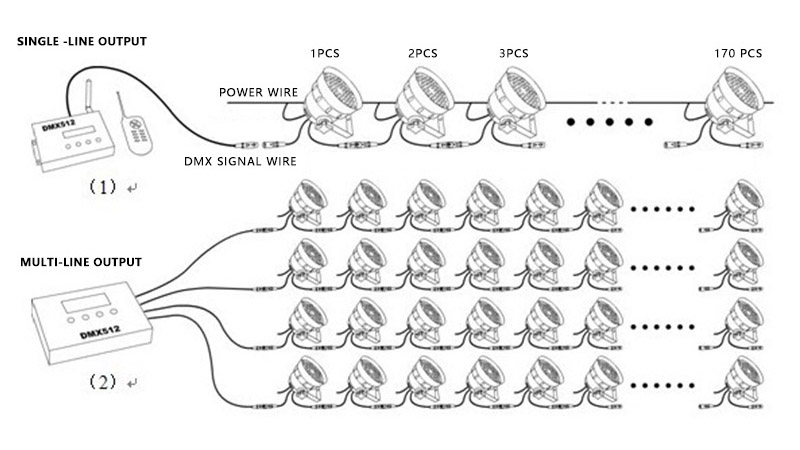

This is a universal 100-240VAC RGB DMX512 led controller for LED wall washer ,led underwater light, led flood light etc. Each controller can connect up to 170 lights, For every lights need to supply power seperately. If you have any connection questions or demands, please feel free to contact us.
Input Voltage/Frequency: 100-240V AC/47-63HZ
Input Power: <5W
Input Port Type: ADAPTER Dual in flat sheet, input power cord adopt splice forms
Signal Type Remark1: AT-DMX
Output Voltage: 0-5V DC
Output Drive Ability Remark2: 32PCS/300m
Output Port Type: RJ-12/6PIN
Input two lines reverse connection: Allowed
Output line short circuit: Not allowed
Output line open: Allowed
Over heat: No over heat protection
working temperature & humidity: -20-50/20-95RH
Storage temperature & humidity: -20-80/20-95RH
Waterproof, Dustproof: IP30
Safety Standard Remark3: Mains power and output isolation 1500V
Control mode: Remote Control(not include battery)
Environment protection Certification: CE,RoHS
1.The output signal is conform the DMX512/1990 standard.
2.Standard DMX output, can realize the signal control of 170 full color points.
3.Internal fixed more than 64 lighting effect modes.
4.Internal defined combined Modes can combine and execute fixed Modes.
5.Internal defined step-by-step list definition modes.
6.Internal defined 2 sound control modes.
7.Independently select the speed for every change mode.
8.LCD display screen, all operating prompt is displayed on the LCD.
9.With 4 operation buttons, simple operation.
10.The remote Controller can realize long distance remote control and change the operation.
11.The DMX address is with edit function,easy to change the address.
1 pcs wireless DMX512 Controller
1 pcs remote control
