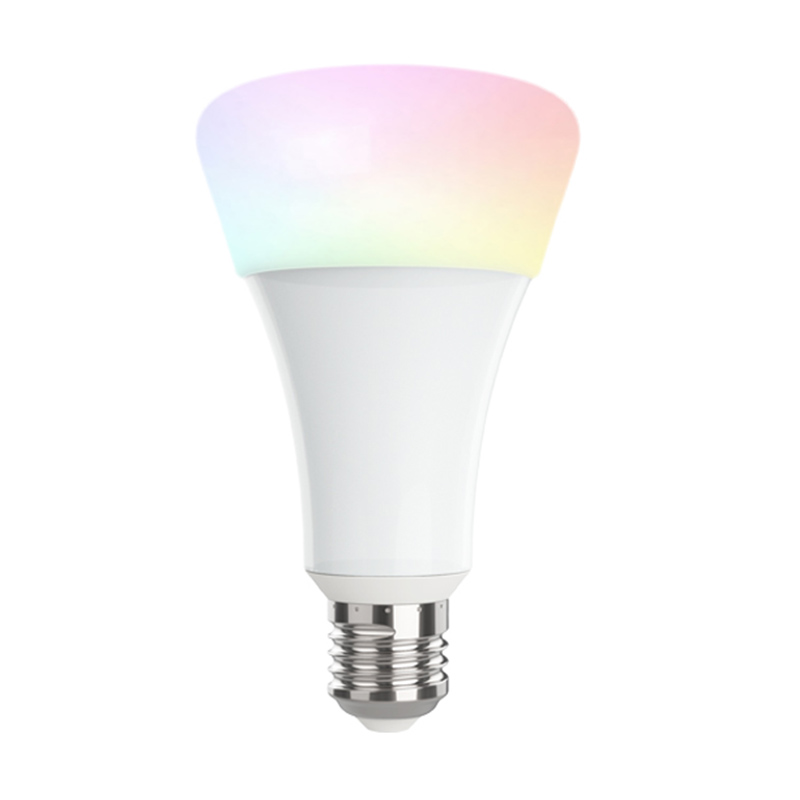

AC86-265V 12W RGB+ Color Temperature LED Bulb TK03
Match with Skydance’s 2.4G RGB+CCT remote control, One bulb accepts up to 10 remote control.
Match with WiFi-relay device for smart phone control.
16 million colors and 10 dynamic modes, adjustable color temperature and saturation.
Auto-transmitting function: bulb automatically transmits the signal to another bulb with 30m control distance.
Synchronize on the multiple numbers of bulbs.
Use SAMSUNG LED.
50,000 hours lifespan
Standards and Certifications
Voltage: AC86V-265V 50/60Hz
Color Temperature: 2700-6500K
Luminous Efficiency: 90LM/W
Luminous Flux(lm): 1100LM
Beam Angle: 220°
Material: Aluminum + PC cover
Input signal: RF 2.4GHz
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
1. Make sure the voltage is between AC86-265V.
2. When installing the light, please switch off the power to make sure safety.
3. The working power is high voltage alternating current, so it must be far away from people and must with ground connection.
4. Avoid using under high temperature or moisture
