Product Information
Create stunning, uninterrupted lines of light with the AM-MR-20F15C Flush-Mounted LED Magnetic Rail. This 2-meter (6.56ft) track is engineered for recessed installation, allowing it to sit perfectly flush with drywall ceilings and walls for a clean, trimless architectural finish. Constructed from high-grade aluminum with a sleek black coating, this magnetic rail serves as the robust foundation for a versatile and modern magnetic track lighting system. Its generous length is ideal for larger spaces, providing a seamless canvas for you to design custom lighting layouts by simply snapping in compatible magnetic LED light modules. This component is the starting point for building sophisticated and adaptable lighting schemes in any contemporary interior.
Key Features

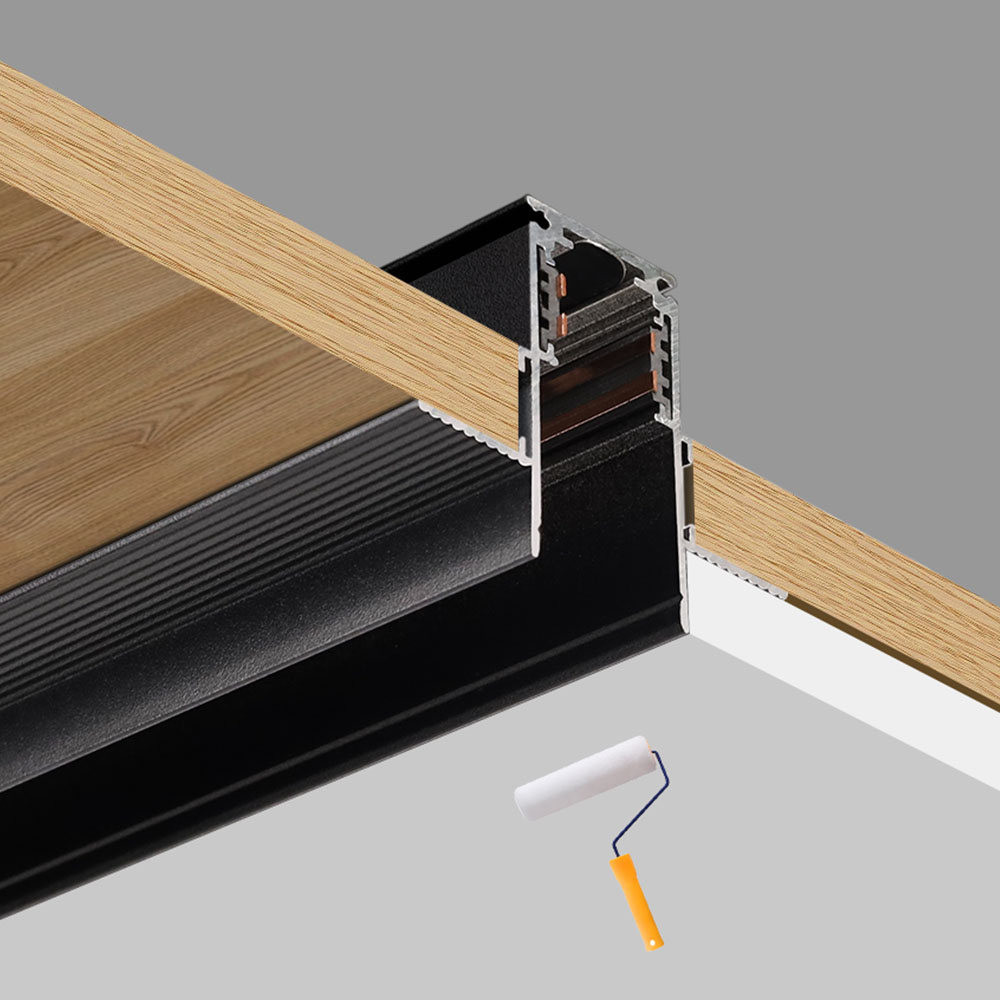

Seamless Recessed Installation
Designed to be plastered into drywall, creating a clean, trimless look that integrates perfectly with your ceiling or wall.
Durable Aluminum Construction
Provides a strong, rigid structure that prevents warping and ensures excellent heat dissipation for compatible LED fixtures.
Generous 2-Meter Length
Ideal for creating long, continuous lines of light in hallways, large rooms, and commercial spaces without multiple joints.
Fully Modular System
Expand your design with optional L, T, and X connectors to build custom configurations tailored to your specific layout.
Sleek Black Finish
Features a modern black finish and includes a matching black diffuser cover to maintain a clean aesthetic in unused sections.
Technical Highlights

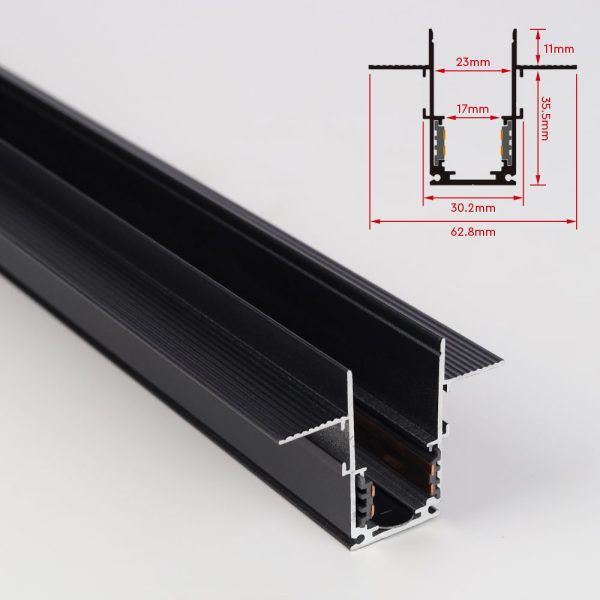

- Engineered for precise recessed mounting, requiring a groove width of 31.5-52mm and a depth greater than 43.2mm.
- Serves as the core component for the Mi-light / Miboxer series of magnetic track lights and accessories.
- Low-voltage conductive copper strips are safely embedded within the rail, powering fixtures magnetically.
Product Specifications
| Parameter | Details |
|---|---|
| Model | AM-MR-20F15C |
| Product Type | Flush-Mounted Magnetic Rail |
| Length | 2 meters / 6.56 feet |
| Material | Aluminum Alloy |
| Finish | Black |
| Mounting Style | Recessed / Flush-Mount |
| Required Groove Width | 31.5mm - 52mm |
| Required Groove Depth | >43.2mm |
| Included Cover | Black Diffuser Cover |
Application Scenarios
How to Install This Aluminum Profile
- Measure and mark the desired location on the drywall ceiling or wall.
- Cut a groove according to the required dimensions (31.5-52mm width, >43.2mm depth).
- If cutting the rail, use a fine-toothed saw suitable for aluminum and deburr the edges for a clean finish.
- Insert the magnetic rail into the groove. Secure it in place according to standard construction practices for recessed profiles.
- If connecting multiple sections, use the appropriate optional connectors (Splice, L, T, X) to join the rails and ensure electrical continuity.
- Plaster and finish the drywall up to the edges of the rail for a seamless, trimless appearance.
- Connect the system to the appropriate low-voltage power source (sold separately).
- Snap your compatible magnetic LED light fixtures into the desired positions along the track.
- This product is a rail/channel only. Magnetic light fixtures and power supplies are sold separately.
- Ensure all power is disconnected before installation or modification.
- Cutting aluminum profiles can create sharp edges. Always wear appropriate safety gear, including gloves and eye protection.
- This rail is designed for low-voltage magnetic track lighting systems. Do not connect it directly to mains power.
What's in the Box

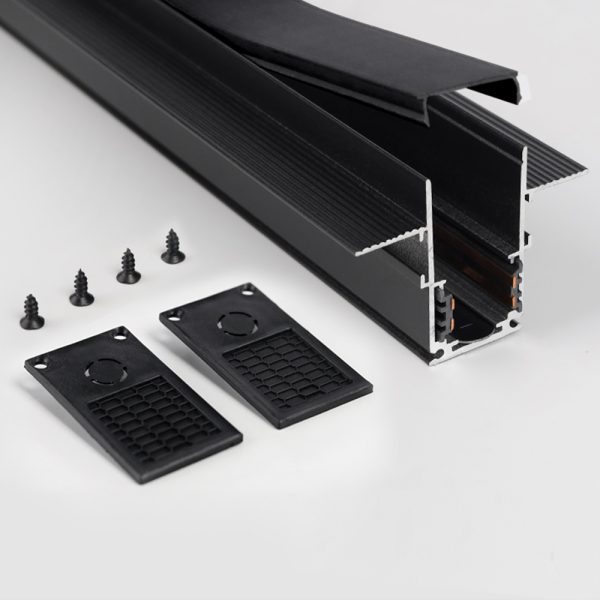

- ✓1 x 2m (6.56ft) Flush-Mounted Aluminum Magnetic Rail (AM-MR-20F15C)
- ✓1 x Black PC Diffuser Cover

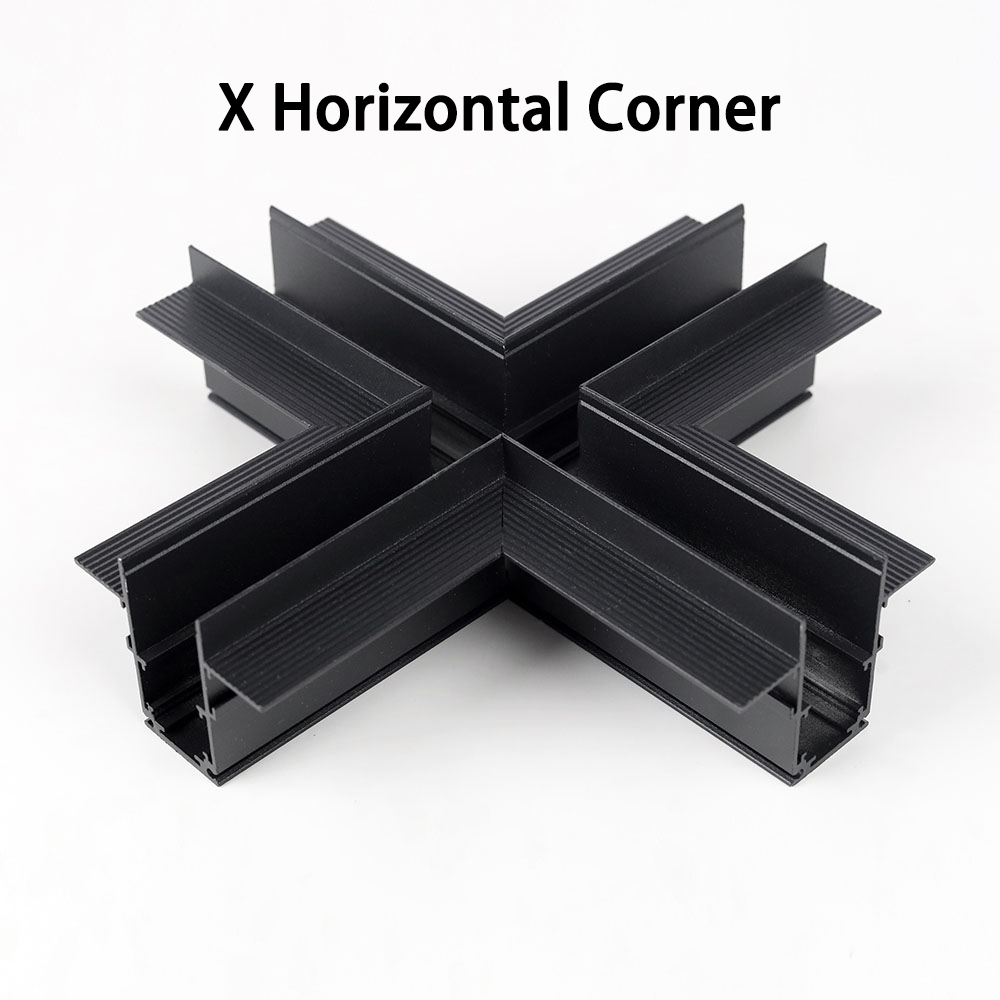

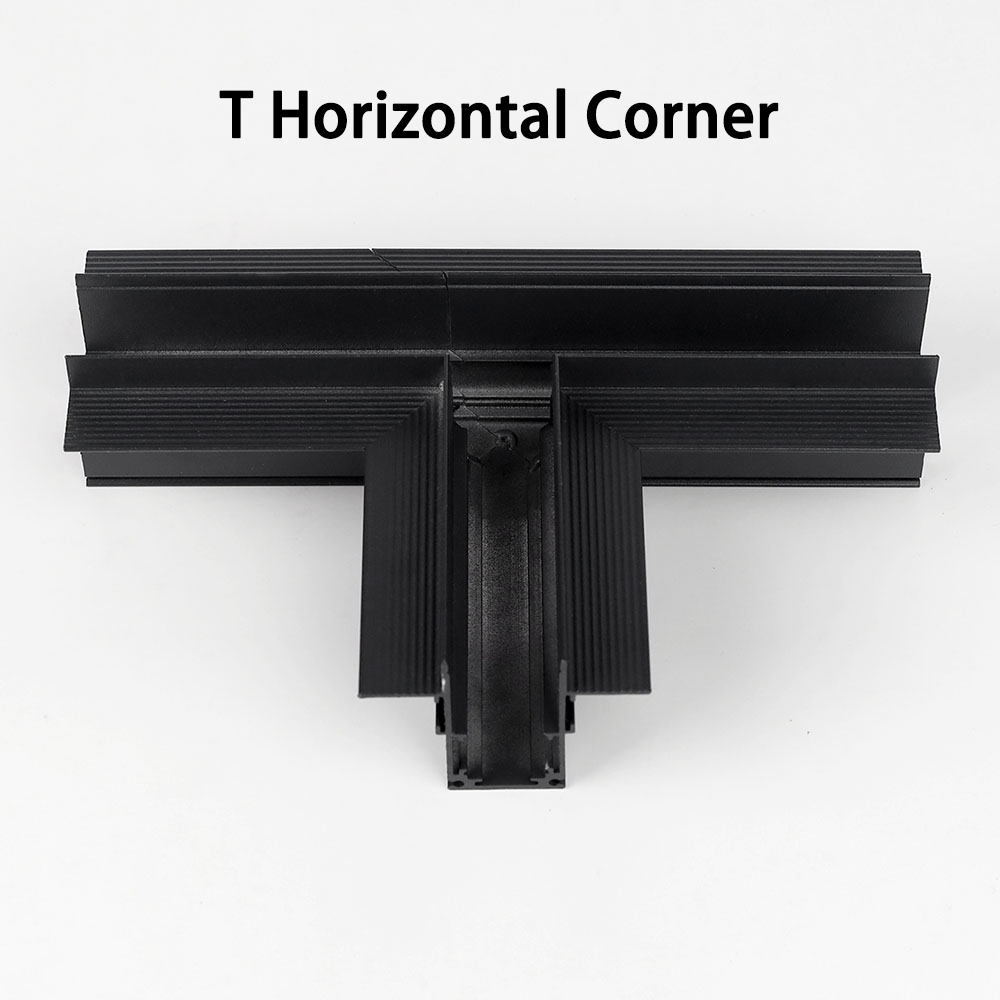

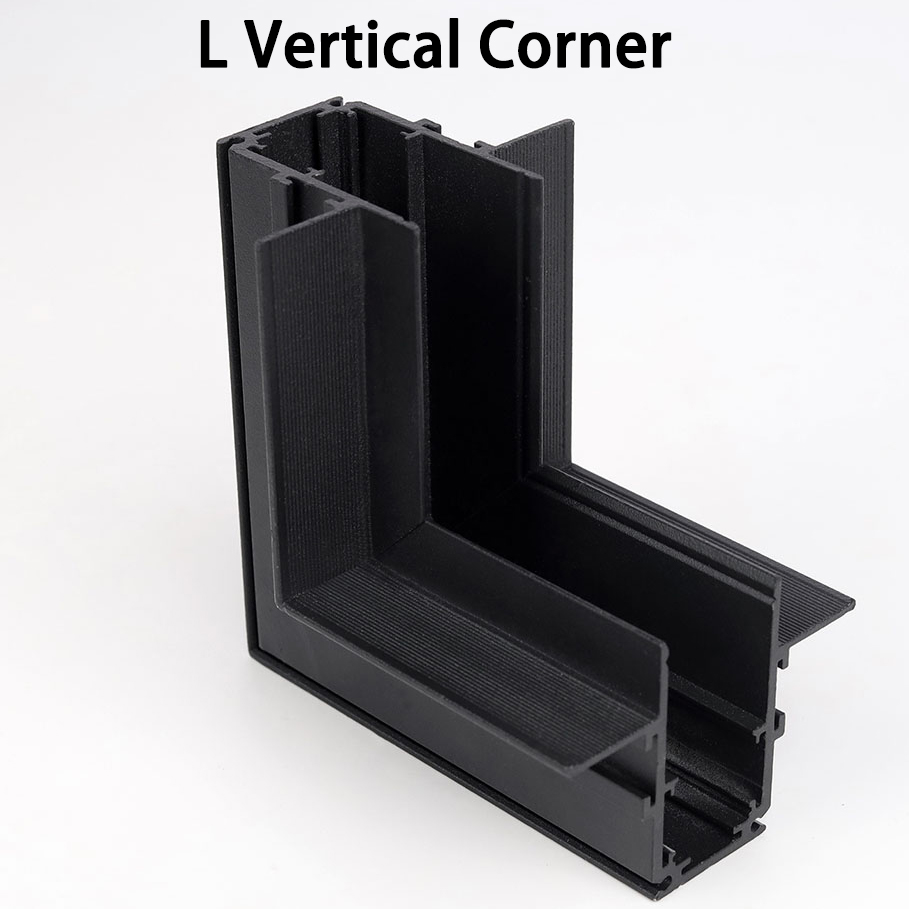

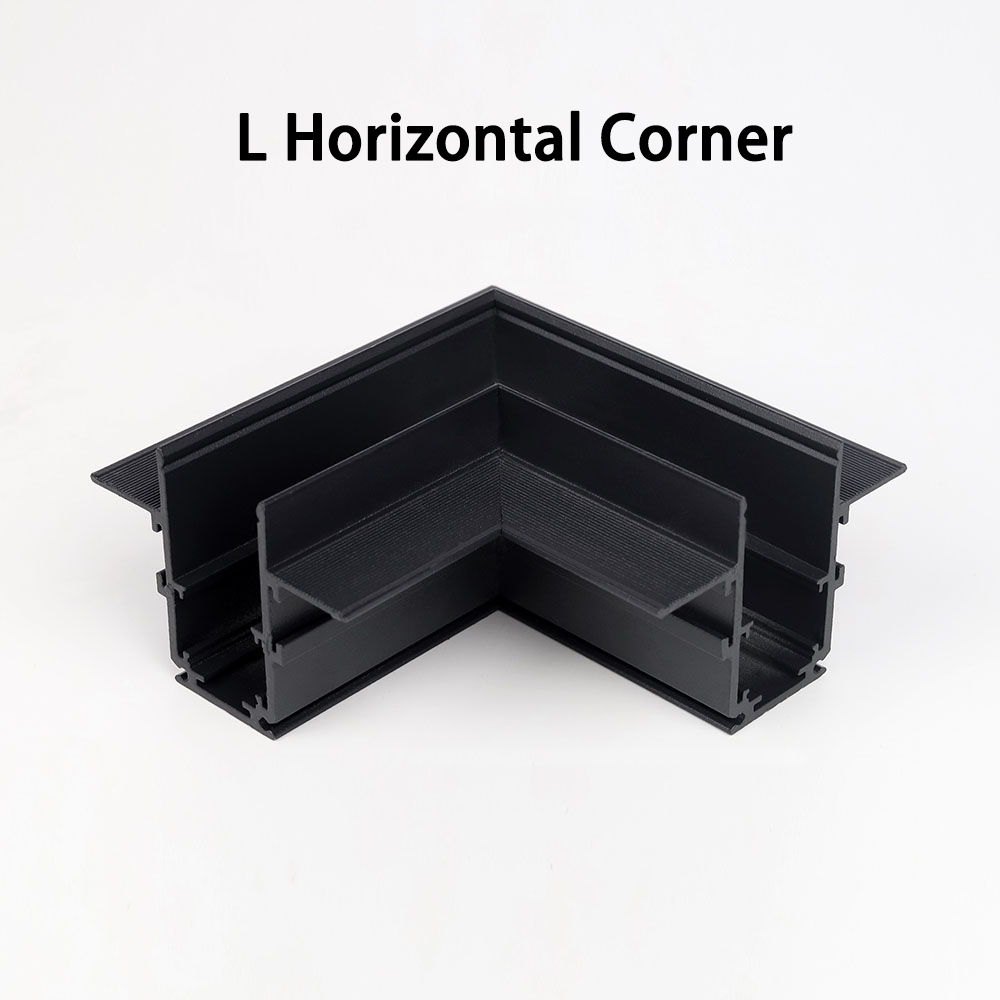

- ✓Optional Connectors (if bundle is selected): Your choice of T Horizontal Corner, X Horizontal Corner, L Vertical Corner, L Horizontal Corner, or Straight Splices. *Note: Only one connector type is included per kit selection.*
Frequently Asked Questions
Q: What kind of lights work with this magnetic rail?
A:This rail is designed for the Mi-light / Miboxer series of low-voltage magnetic track lights, including spotlights, linear bars, and pendants.
Q: Is this a surface-mounted or recessed track?
A:This is a recessed, flush-mounted track designed to be installed into drywall for a seamless, built-in appearance. We also offer surface-mounted versions for installations on existing surfaces.
Q: Can I cut this rail to a shorter length?
A:Yes, the aluminum rail can be cut to a custom length using a saw with a blade suitable for non-ferrous metals. Ensure cuts are clean and straight for proper connector alignment.
Q: How do I connect two rails together to make a longer run?

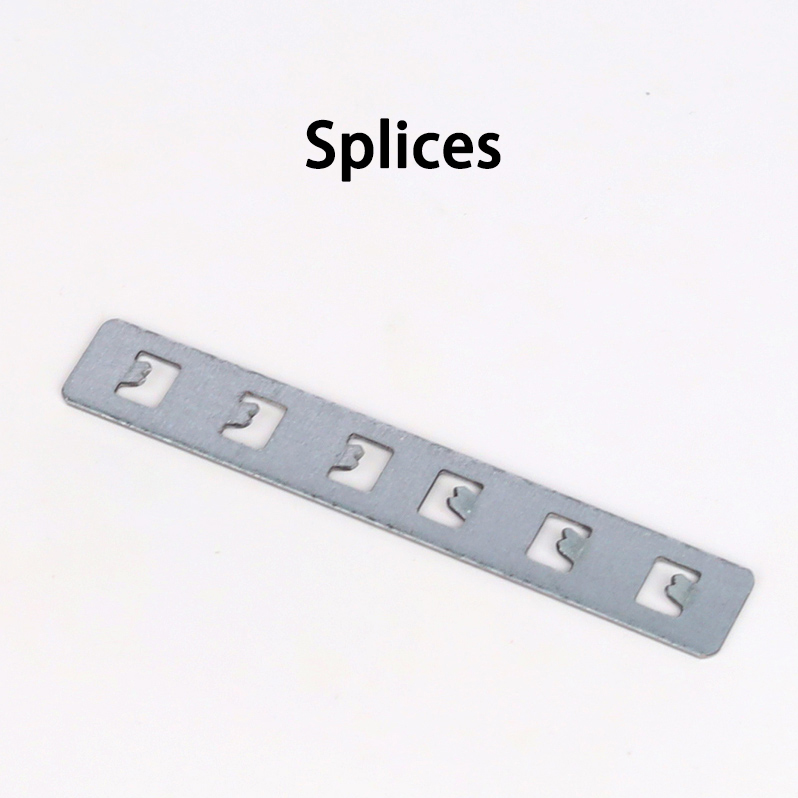

A:You can use the optional 'Splices' kit to connect two rails end-to-end for a straight, longer run. For corners and intersections, use the L, T, or X corner connectors.
Q: What is the included black diffuser cover for?
A:The cover is used to fill any empty sections of the rail where no light fixture is installed, maintaining a clean and continuous black line for a finished look.
Q: Does this rail include the power supply or end caps?
A:No, this is the rail track only. The power supply, power feeds, end caps, and magnetic light fixtures must be purchased separately to complete your system.
Q: What is the main difference between this and the AM-MR-20S15C model?
A:This model (AM-MR-20F15C) is for flush-mounted/recessed installation inside a ceiling or wall. The 'S' model is for surface mounting directly onto the face of the ceiling or wall.
