Black PCB SK6812 Dual Data Signal 60LEDs/m Pixel RGB+W LED Strip 16.4ft

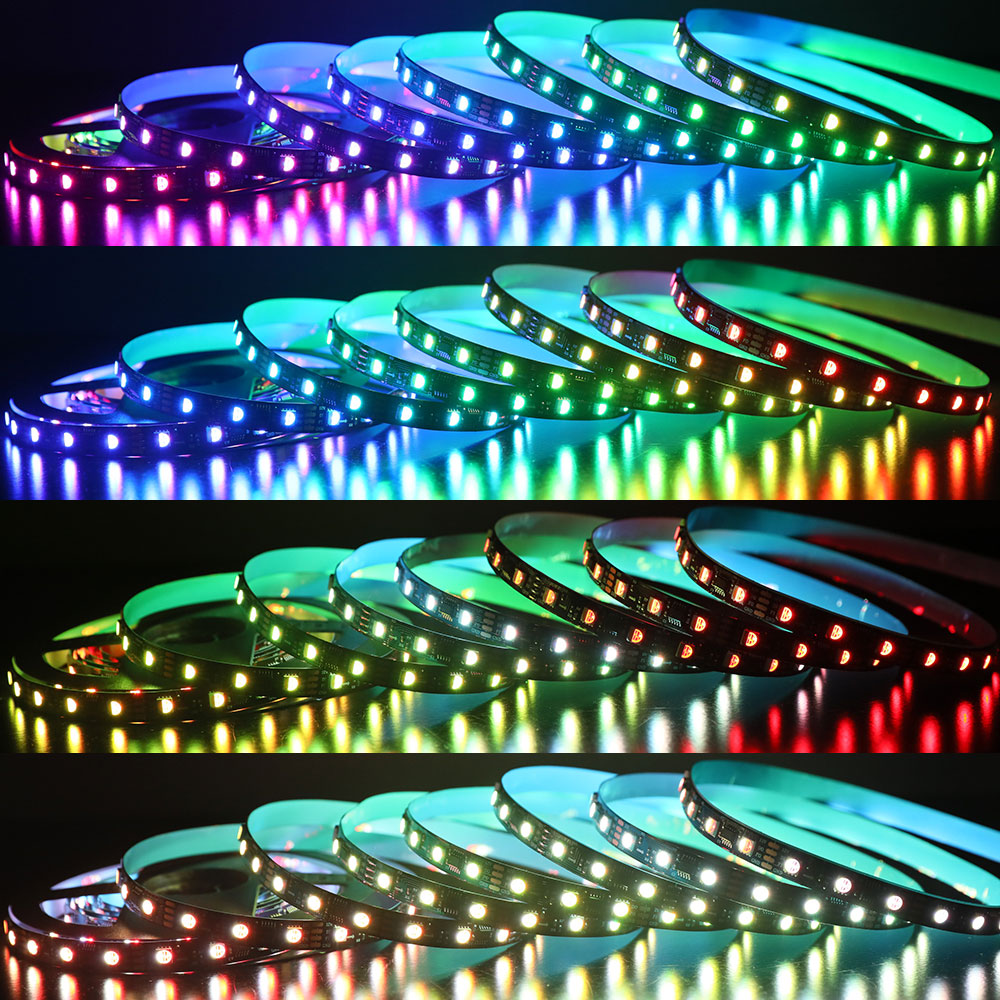

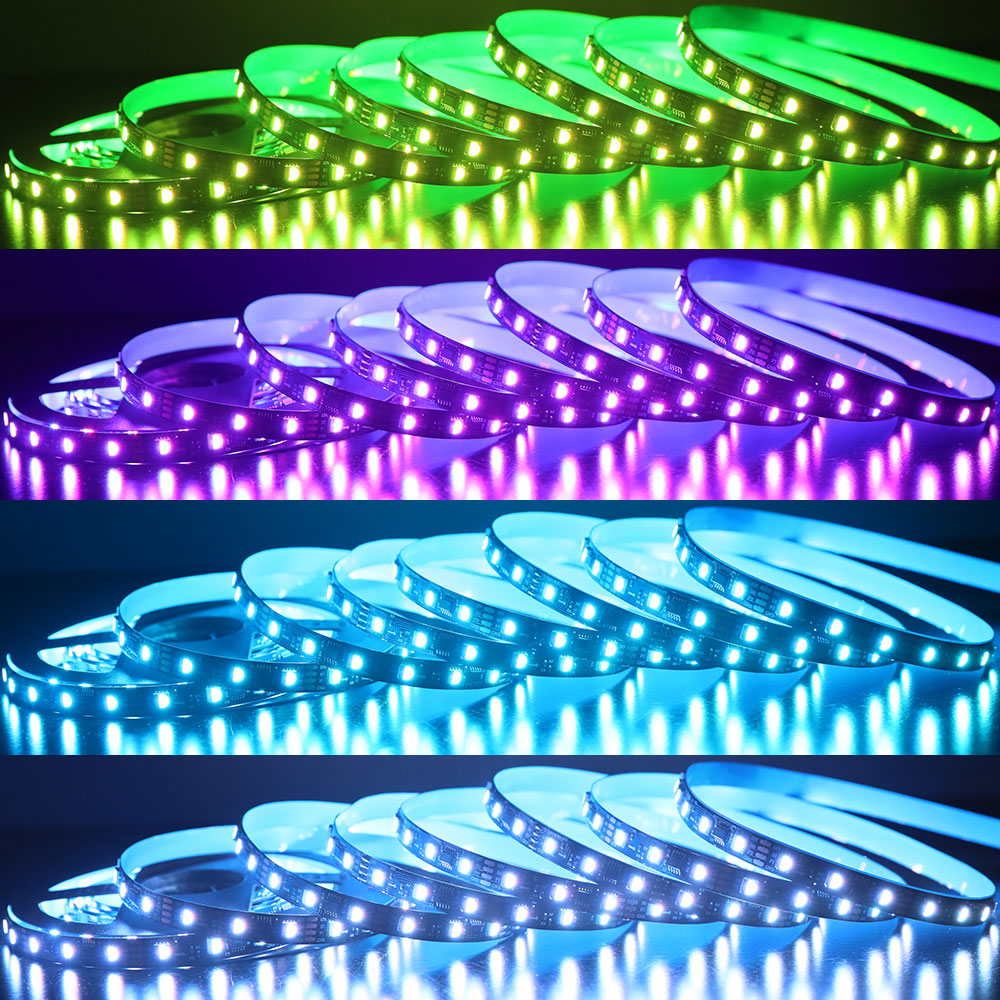

Breakpoint resume version of SK6812 RGBW led strip, with 60 SMD5050 4in1 lights per meter, three diodes as a loop, one SK6812 RGBW IC controls three LEDs at a time. Every IC area with 256 brightness displays and 24-bit color displays.

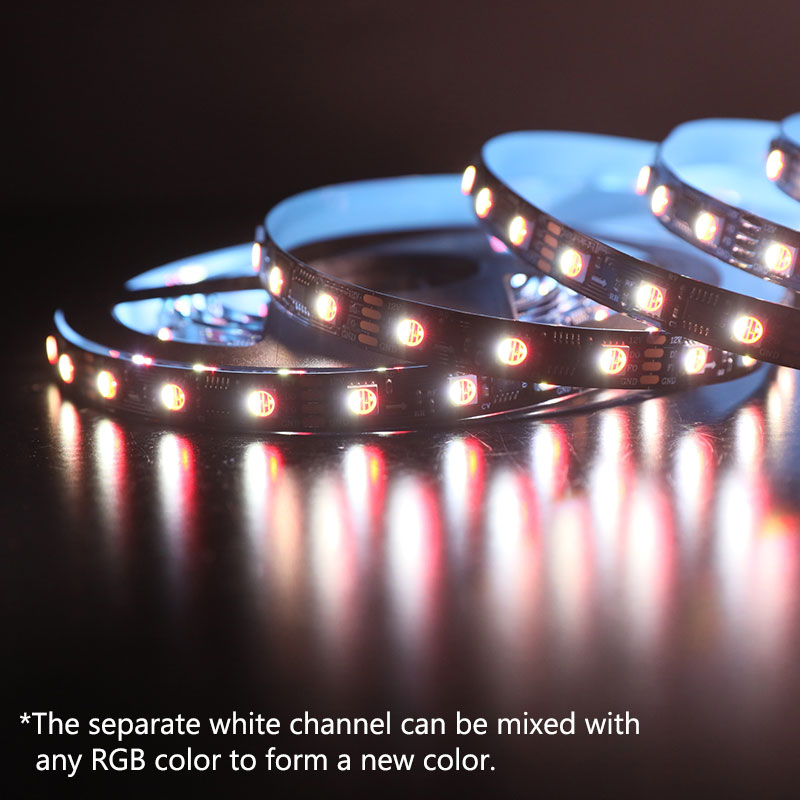

Addressable RGBW led strip allows for more color possibilities. The separate white light channel can be mixed with any RGB color to create new colors, bringing unlimited colorful lighting to your home or party.

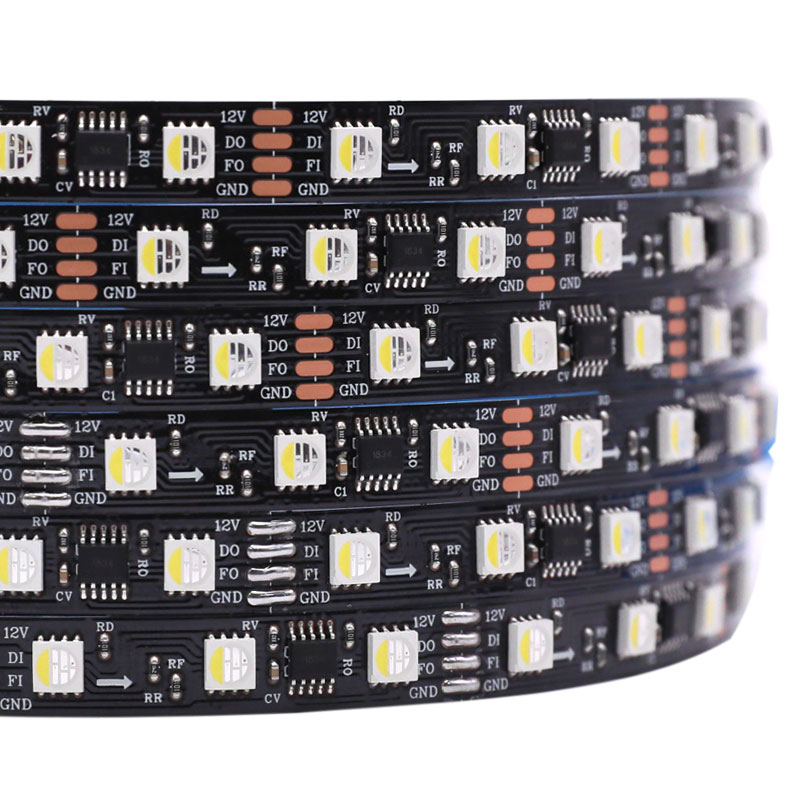

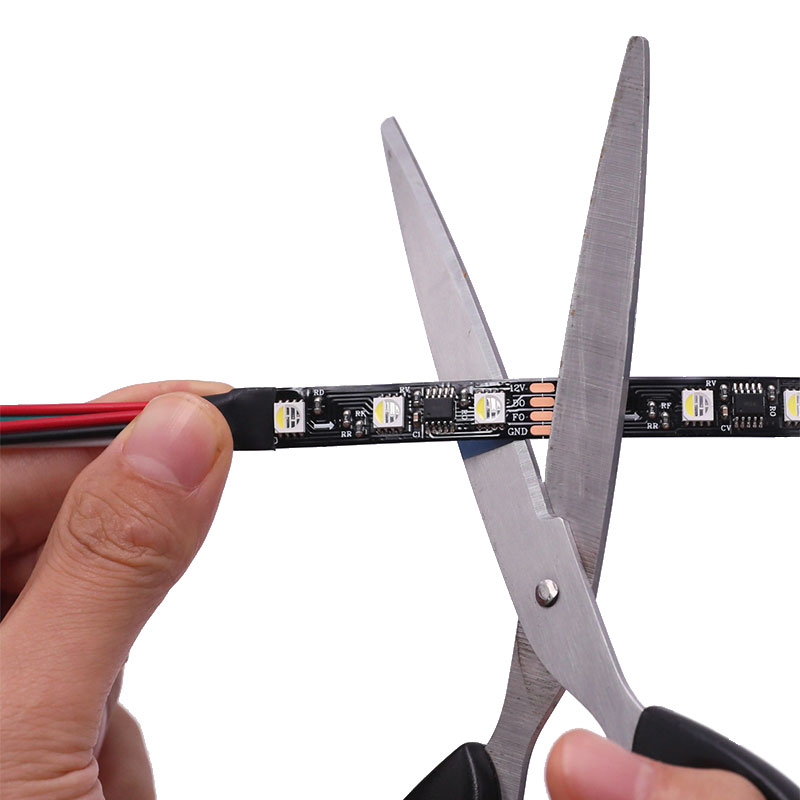

If one LED is damaged, the other LEDs still work. It's a big difference between dual signal SK6812 and single signal SK6812 led strip.

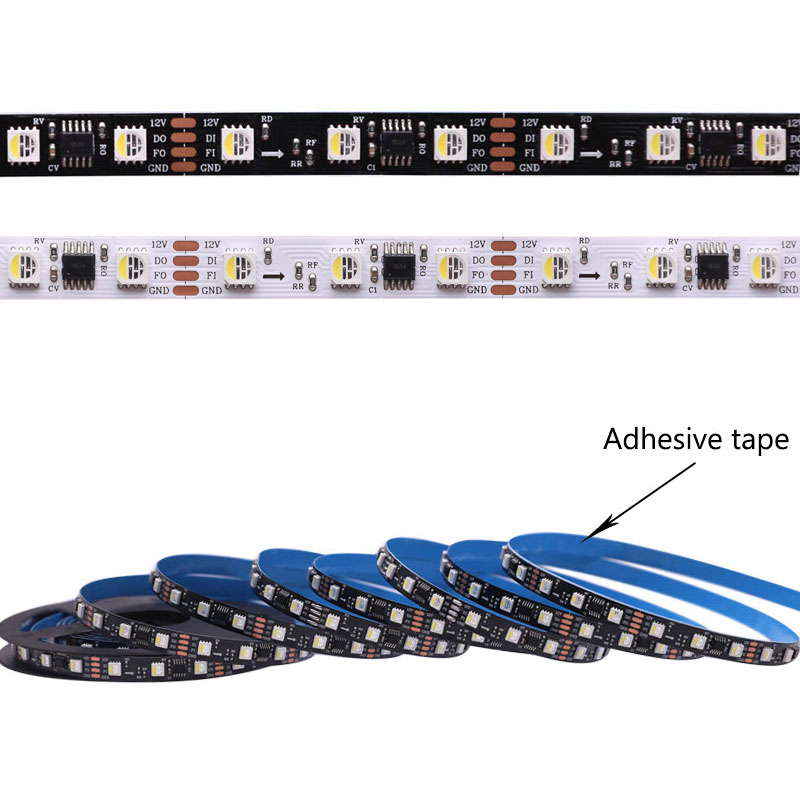

There is a strong adhesive tape on the back, which can be ripped off and stuck to any surfaces. Each end of the strip comes with a 4-pin JST connector and a 2-pin power/ground wire, easy to connect each other and inject power to avoid voltage drop.

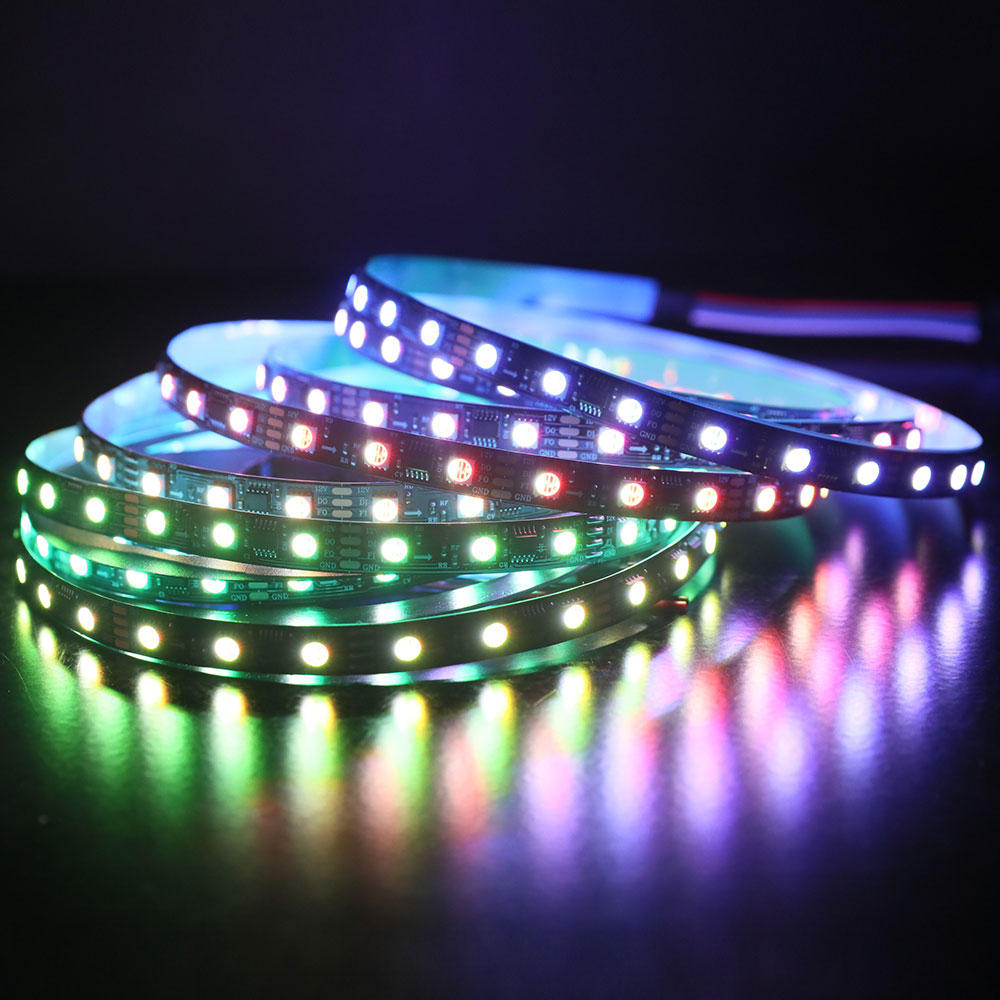

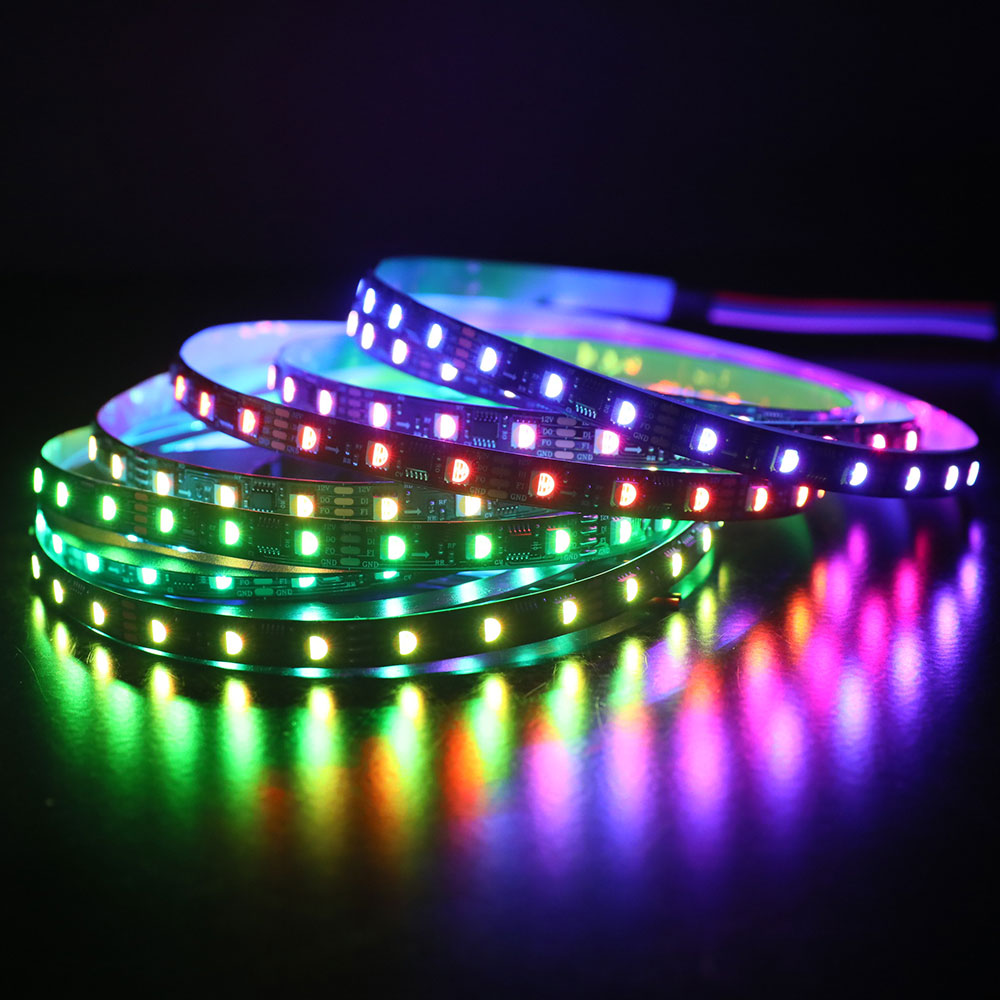

Lighting effects of this black PCB led strip looks at the same with the white PCB, the PCB color doesn't seem to affect the LED brightness and color.
Standards and Certifications
|LED Strip Type:||Addressable RGBW LED Strip|
|LED Chip:||FW1834 Breakpoint Resume (SK6812)|
|LED Color Temperature:||Addressable RGB + 6000K Daylight White / 4000K Natural White / 3000K Warm White|

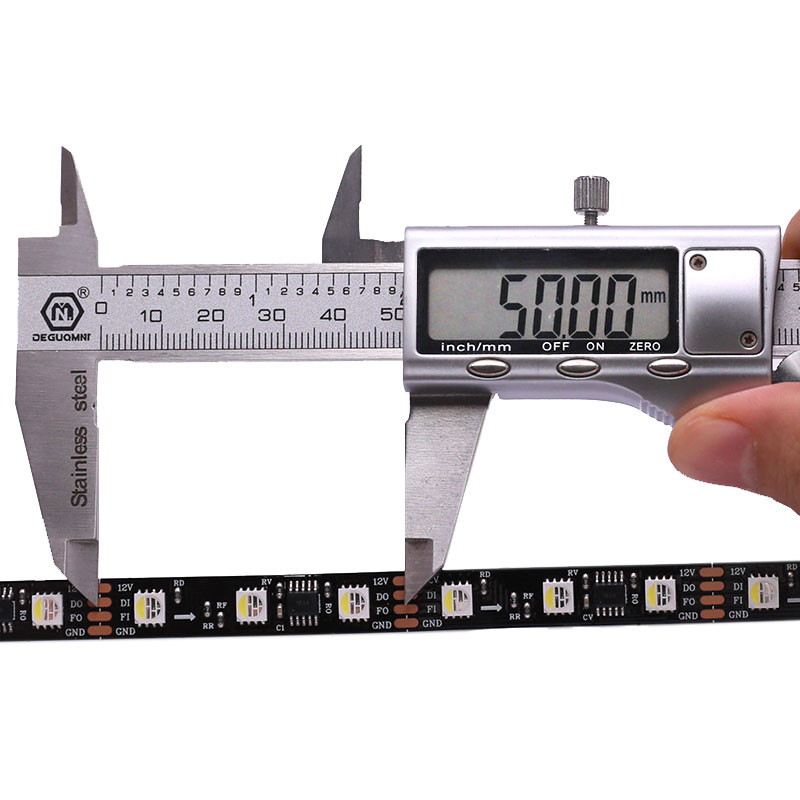

|LED Quantity:||60 LEDs/m, 300 LEDs 16.4ft|
|IC Quantity:||20 ICs/m, 100 ICs/roll|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
|PCB Color:||Black / White|
4-Pin dual data signal SK6812 Addressable LED Light Strip Wiring Diagram:
The backup data wire can be connected to the DAT or GND of the SPI controller ports.
