DC12V SK6812 Individually Addressable RGBW LED Strip Light Black Board
This DC12V individually addressable led strip light is controlled by SK6812 IC to display RGBW color chasing led light color, 60LEDs per meter, there are 300 pixels on one 5m/16ft led strip, each LED is individually addressable, you can set it to different color and brightness.
This 12V dream color RGBW SK6812 led strip is less voltage drop than 5V addressable RGBW led strip, it can run longer.

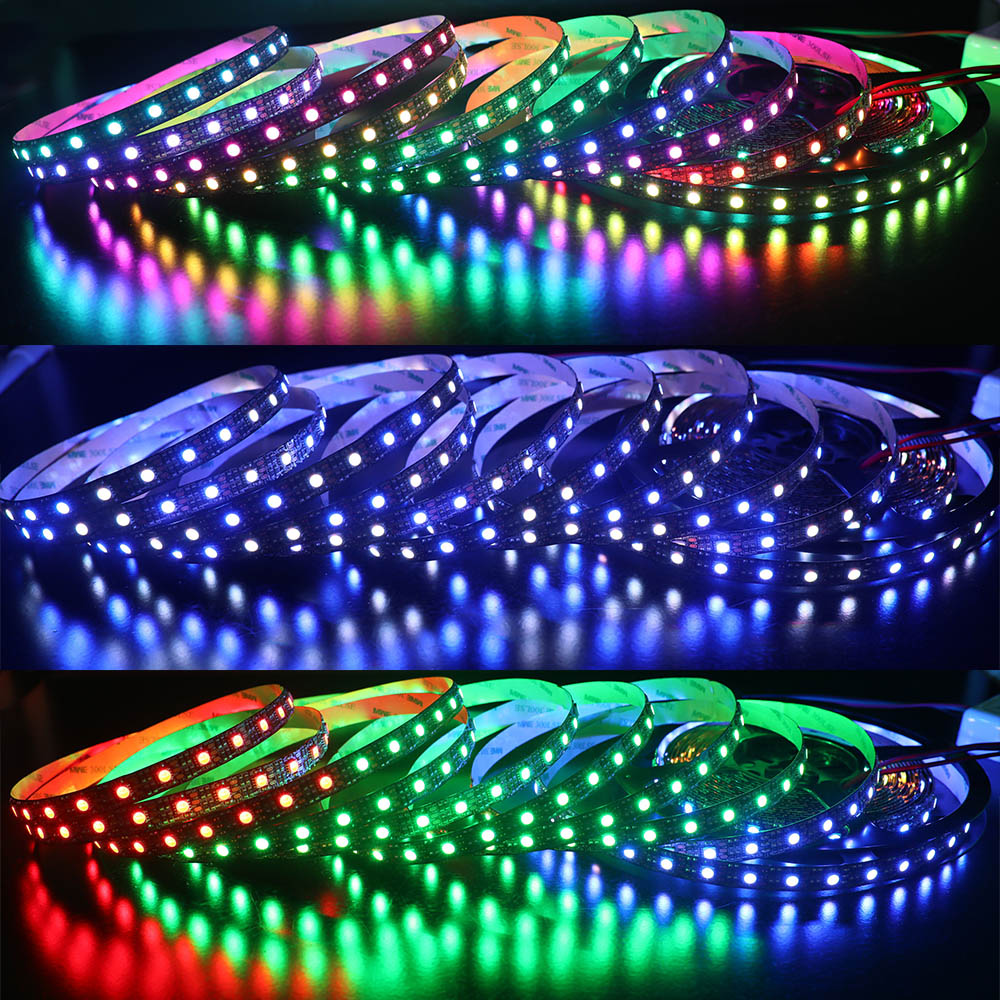

Use RGBW 4 in 1 5050 LEDs, available in more color options and color combinations. Matching the SPI controller can display a variety of color chasing effects. You can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the SK6812 led strip light.
Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data (one V+ pin, one GND pin, and one data pin). The direction of the arrow indicates the data flow direction.

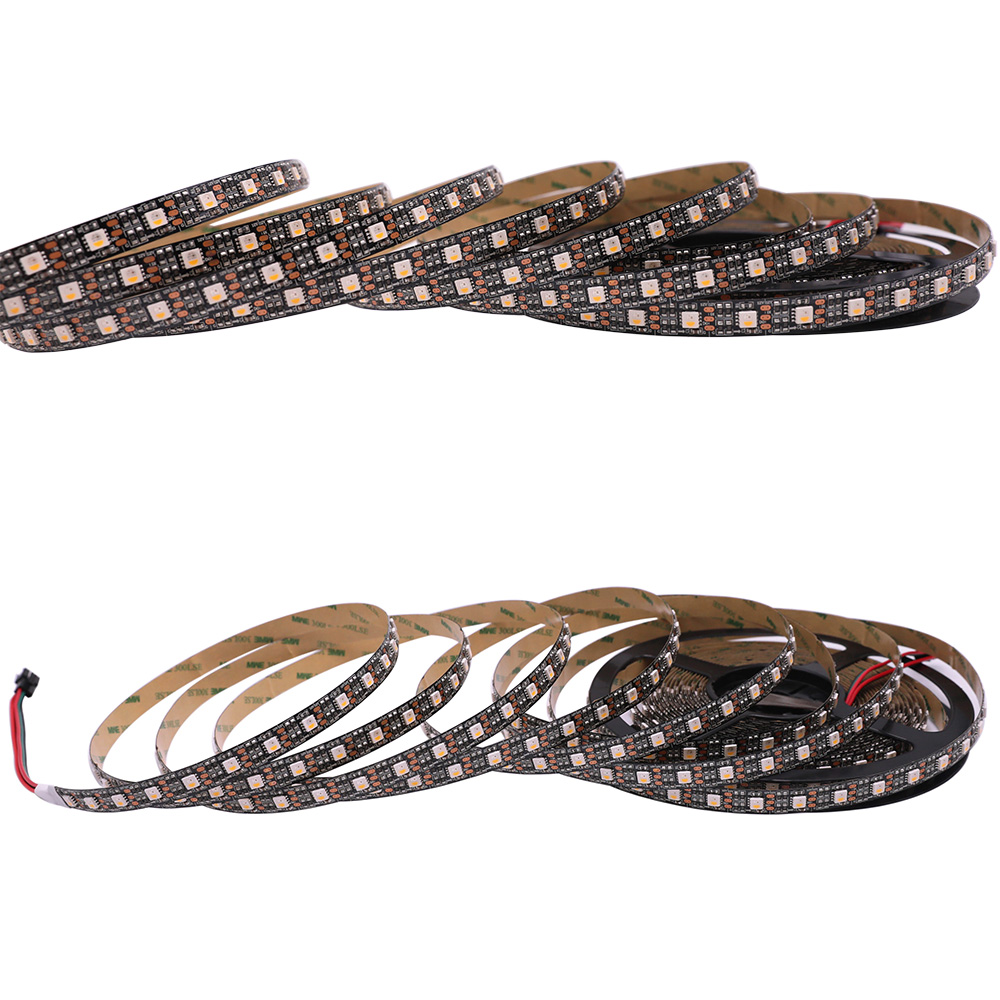

This addressable led strip comes with a 3-pin JST SM connector on each end. Every LEDs segment can be cut, you can also connect these SK6812 RGBW led strips together to make them longer. To power this individually addressable led strip, you need a 12V power supply.
Input Voltage: DC12V
IC Type: SK6812 IC
LED Chip Model: SMD5050 RGBW

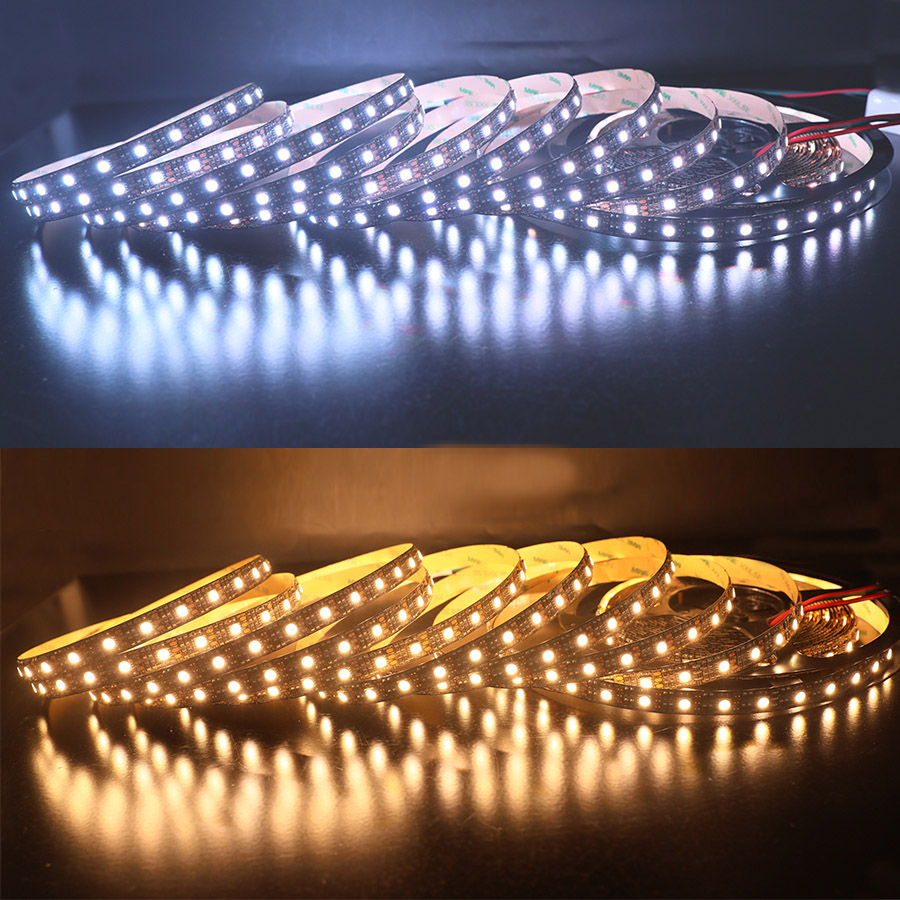

Color Temp(K): RGB+3000K / RGB+6000K

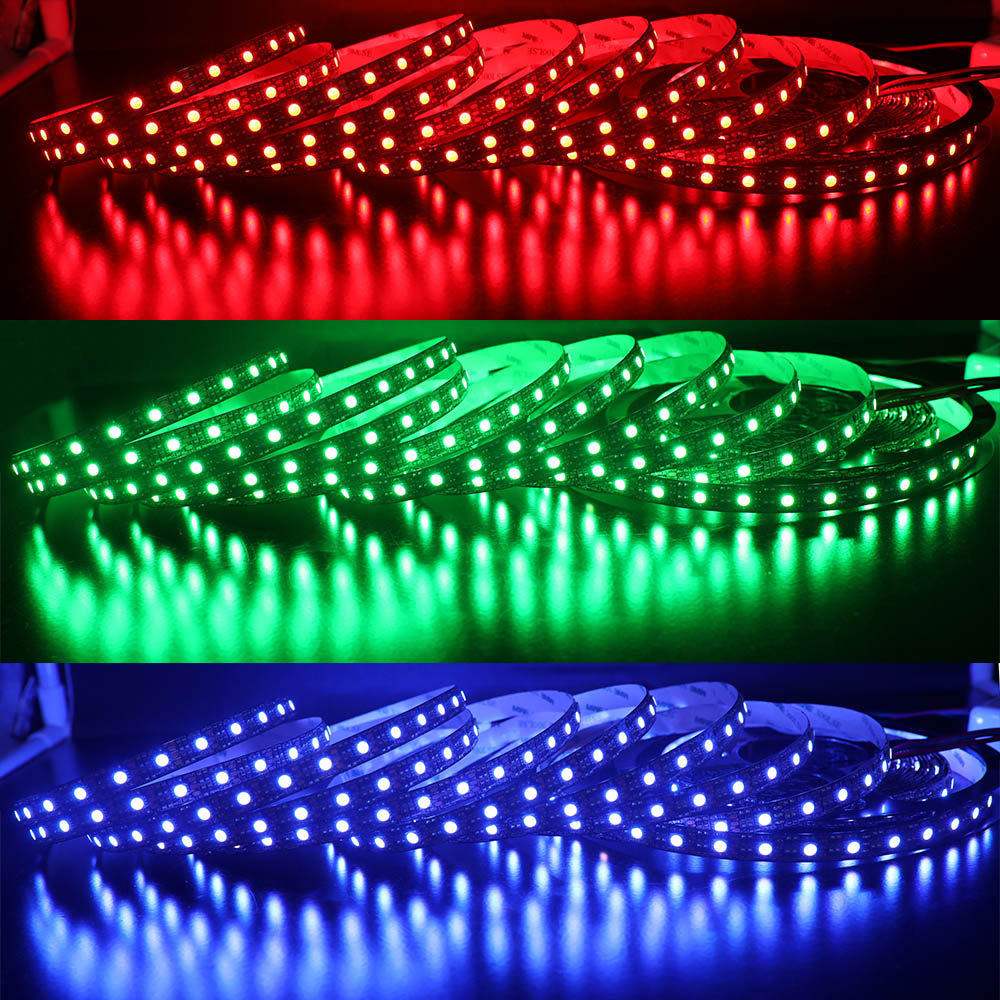

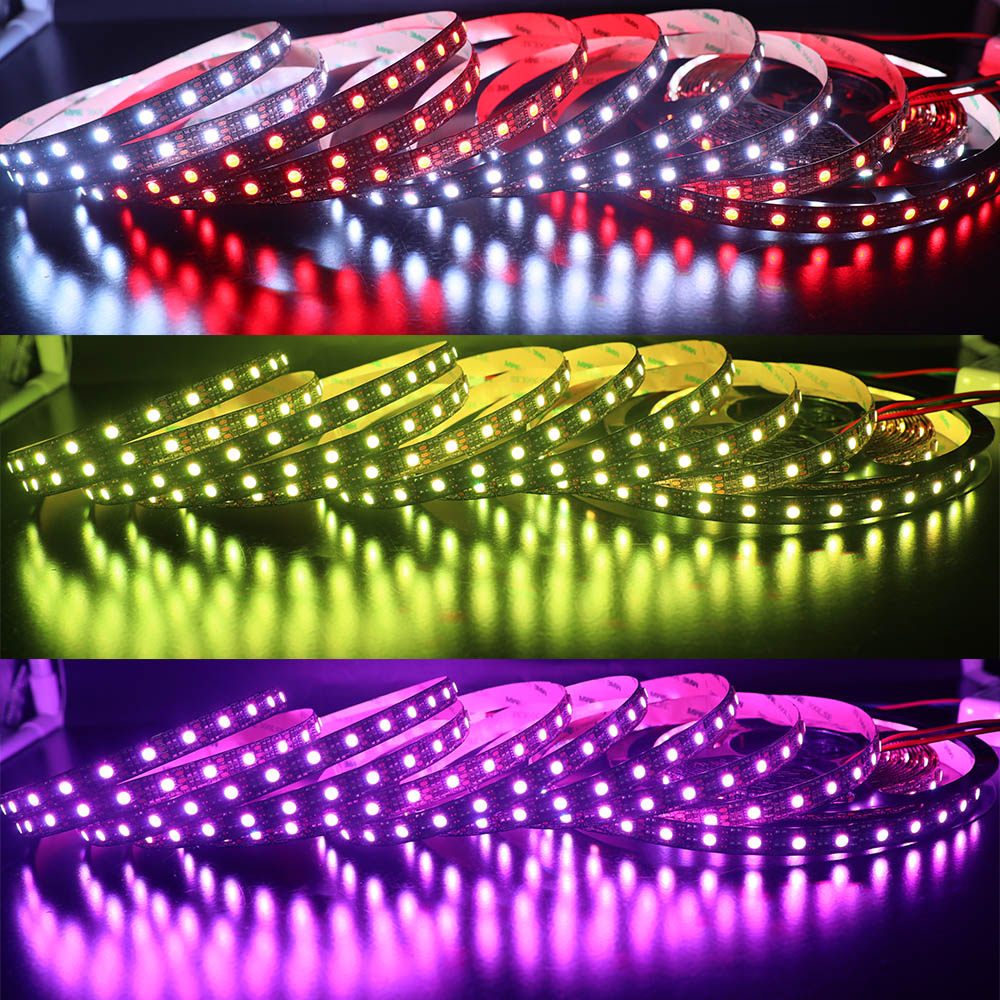

Colors: Full color RGBW
Grey Scale: 256
FPC Color: Black

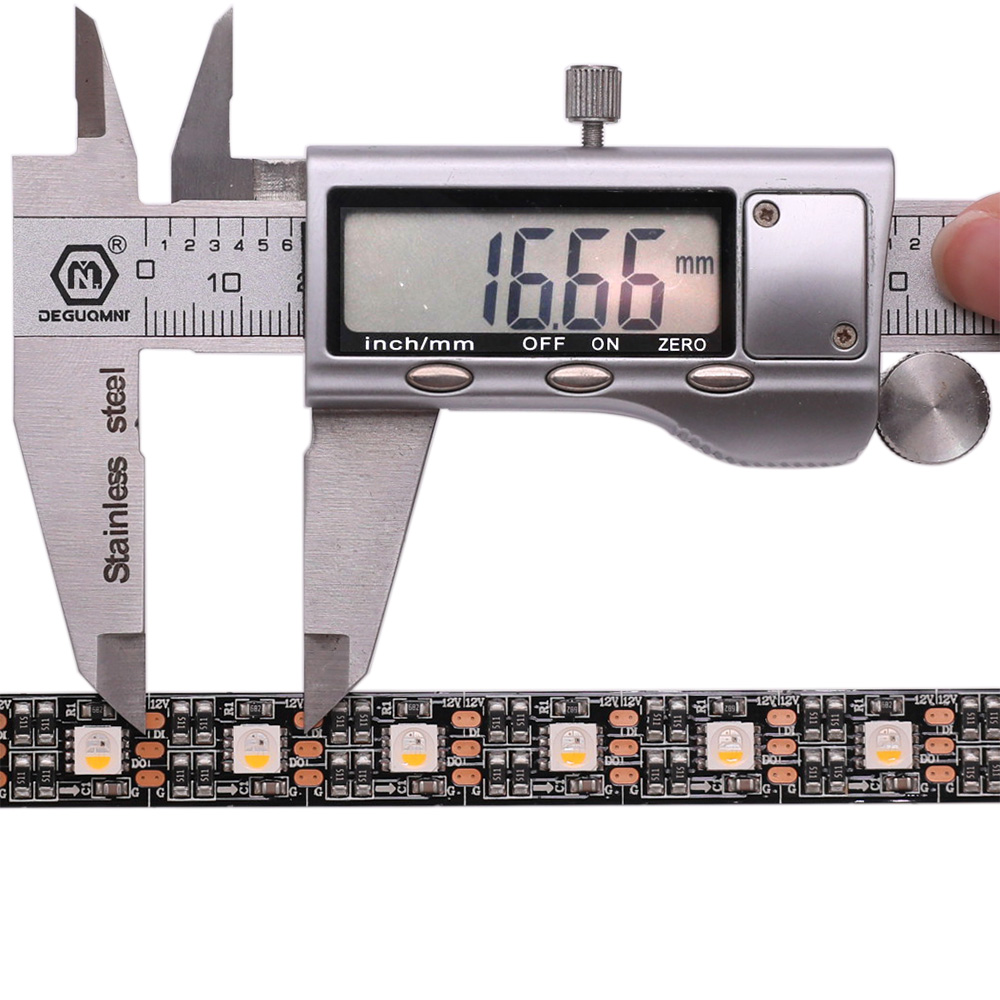

Q'ty of LED: 60LEDs/Meter; 300LEDs/Roll
Q'ty of IC: 60 pixels /Meter
Power: 18watt/meter, 90watt/roll
Control Type: Individually addressable

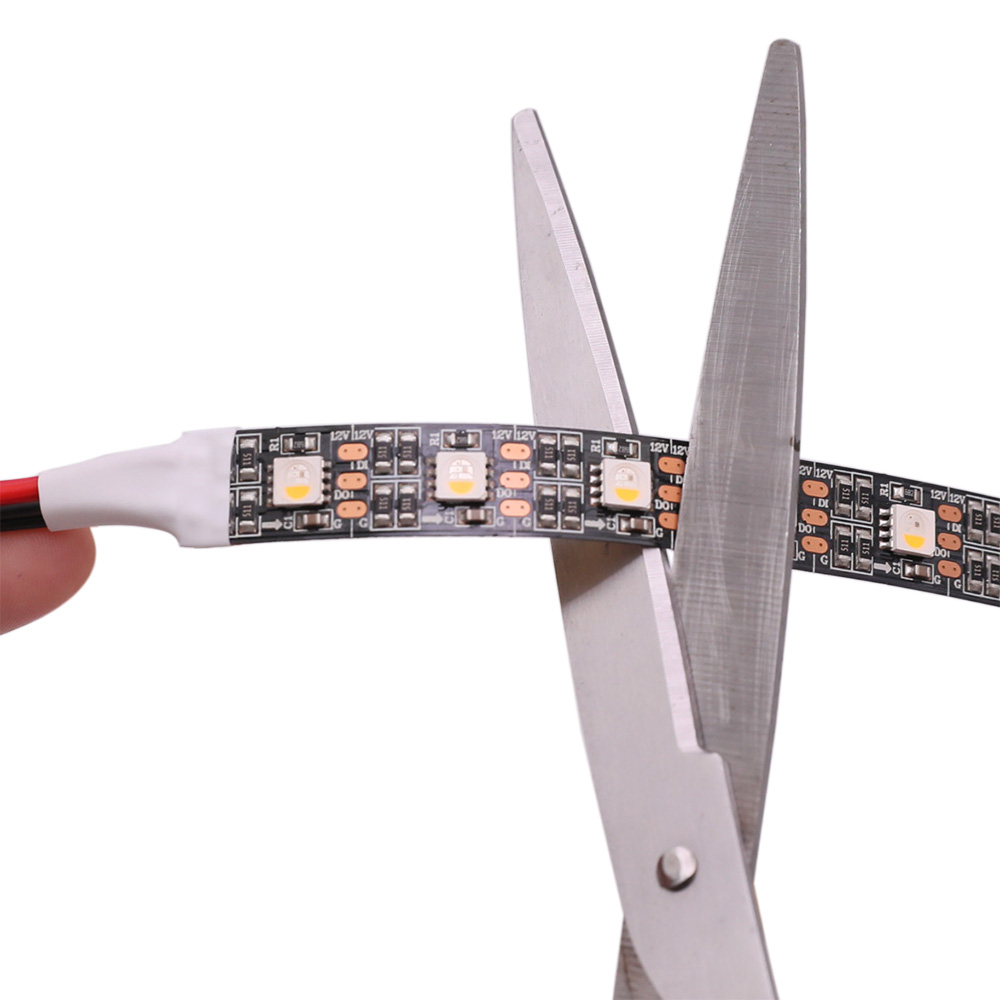

Cuttable: Single LED cuttable

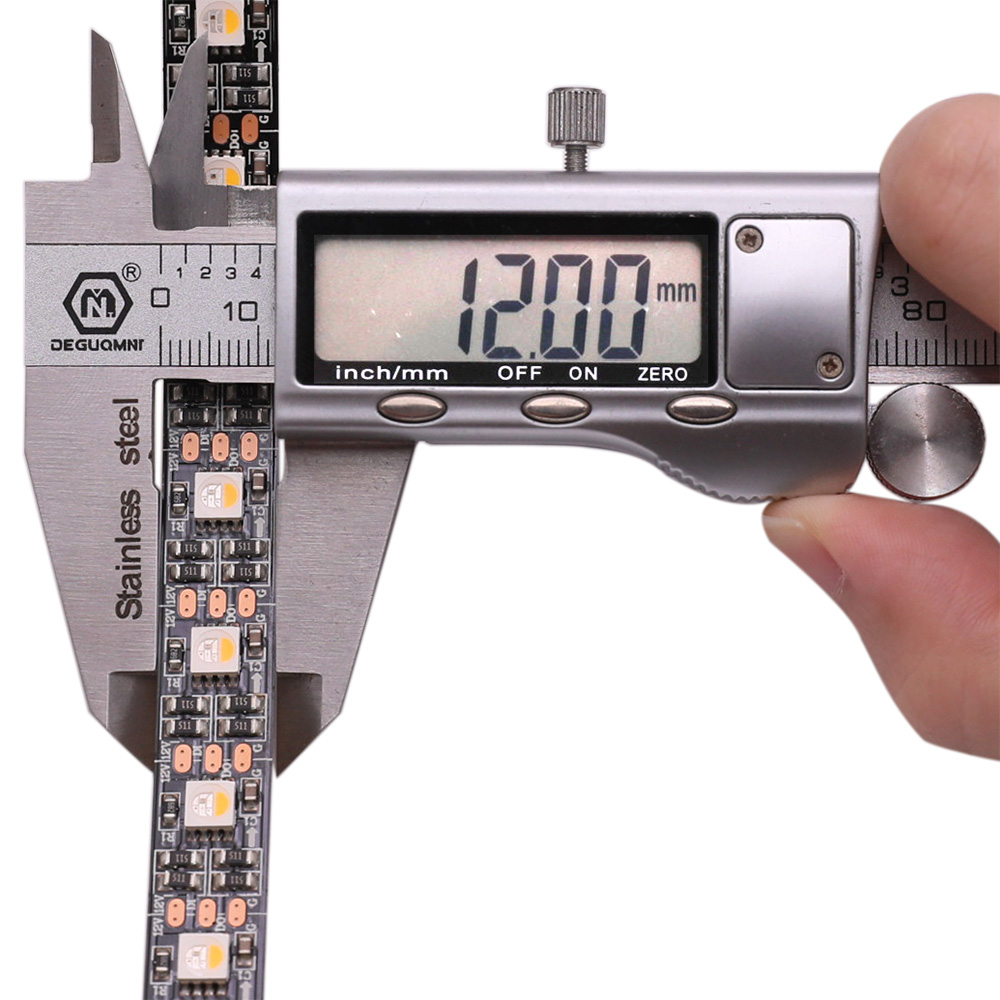

Dimensions: L500cm(196.85 in ) x W1.2cm(0.41 in ) x H0.25cm(0.1 in )
Protection Rate: Non-waterproof IP20 / Waterproof IP67
Average Life (hrs): 50000Hours+
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Connection Diagram: How to wire the addressable RGB LED strip?
These digital Addressable LED Strip Lights are applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY decor.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting
