Bendable Aluminum LED Channel C Shape For 10mm Flexible LED Strip Lights

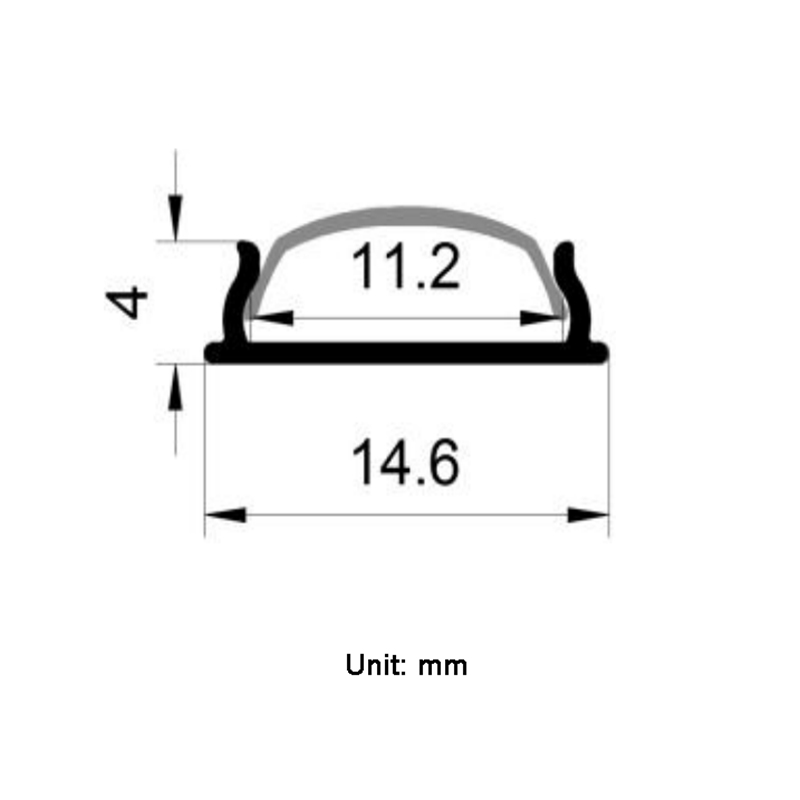

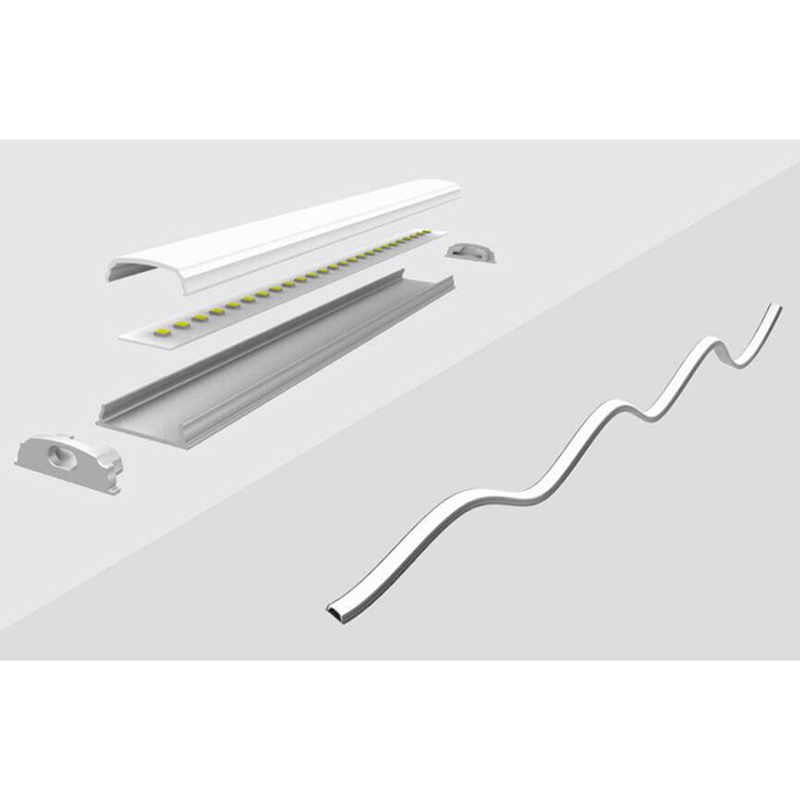

This bendable aluminum led channel is compatible with the advantages of the aluminum channel and the flexible led light strip, soft and flexible while providing mechanical protection to the led strip light. Made of 6063-T5 high-quality aluminum alloy, this LED profile with a PC light diffuser to soft and smooth LED light output. With 11.2mm/0.44in inner width, this aluminum led light channel profile is suitable for 2216 white or single color led strip lights. The standard length of the aluminum led profiles is 1 meter, silver, white, or black aluminum channel diffuser with end caps and mounting clips to make the installation more easily, is ideal for adding light to your residential and commercial linear lighting projects.

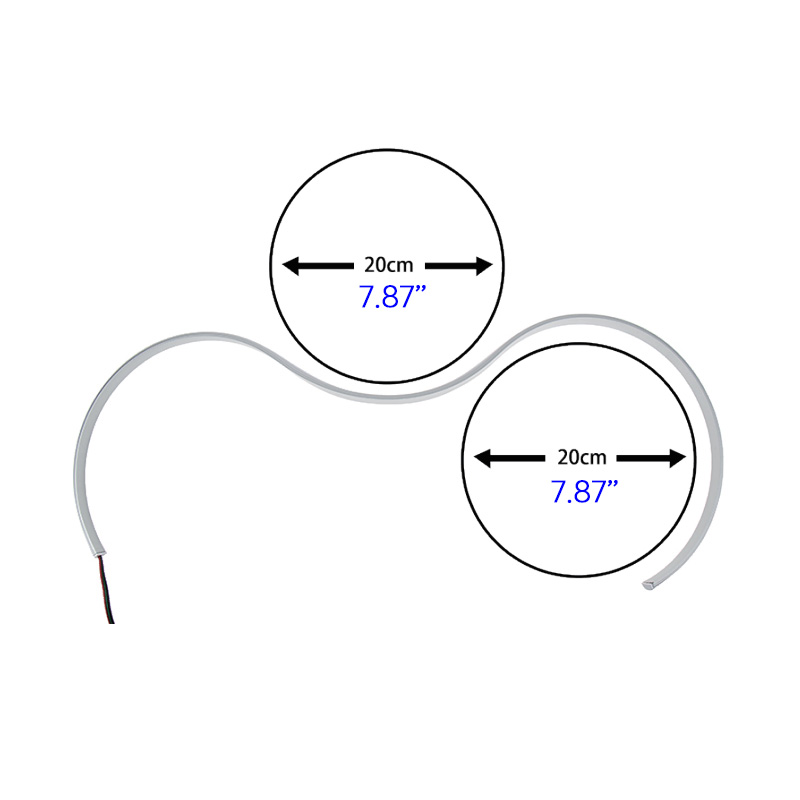

This flexible led channel cannot return to its original shape after bending.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||5050/2216/3014/2835/3528/5630/5730 flexible led strip lights|

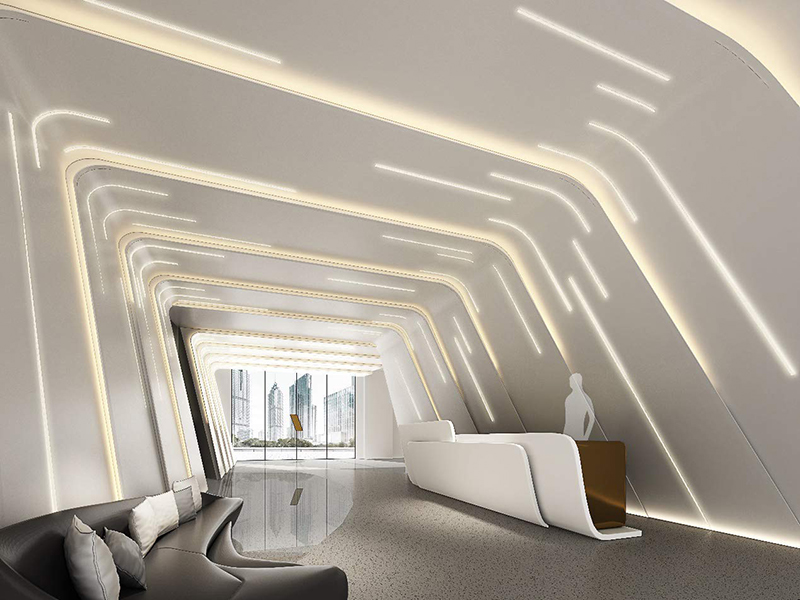

Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
