SK6813 5050 RGB Breakpoint Continue 12V Individually Addressable LED Strip 144 Per Meter

Name: SK6813 5050 RGB Breakpoint Continue 12V Individually Addressable LED Strip 144 Per Meter
Brand: SuperLightingLED
SKU: SK6813-5050RGB-144-12VBR
Price: 17.98 USD
Availability: InStock

Model: SK6813-5050RGB-144-12VBR Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $17.98

Qty Discounts Off Price
1-19 $17.98	20-49 $17.62	50-99 $17.26	100+ $16.90
* Discounts may vary based on options below

Select Specifications:

Select PCB Width:

12mm (0.47in)

Select Length:

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

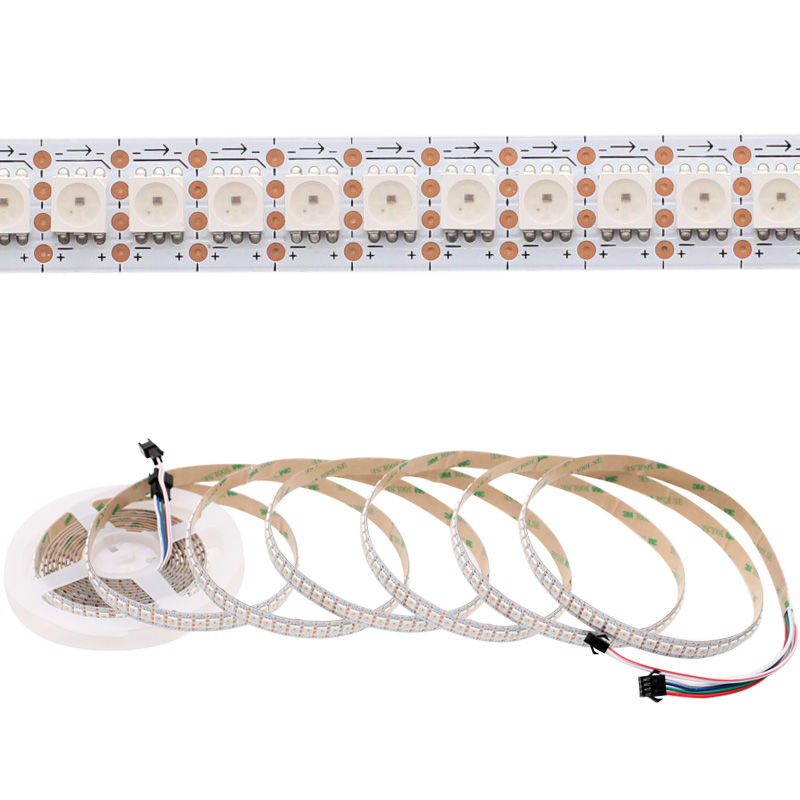

Brightest 12 volt single-row 144leds/m RGBIC led strip with 5m/16.4ft long run distance without voltage drop, our breakpoint resume SK6813 RGB 12V individually addressable led strip 144 SMD5050 per meter can be regarded as an upgrade of the previous 3-wire 5V SK6812 mini 3535 and SK6812 5050 144 pixel led strips.

Unlike breakpoint continue 12V WS2815 and GS8208 144 led strips, this dual-signal SK6813 144 led strip RGB doesn't need to add resistors inside the SMD LED or on the PCB board, presenting a clean look while maintaining functionality.

12V SK6813 5050 RGB 144 addressable led strip has a breakpoint transmission failure recovery mechanism, which enables data transmission to continue from the last interrupted position when re-powered after a power failure or abnormal interruption. It helps to avoid data loss during data transmission and ensures the continuity and stability of the lighting strip's animation effect.

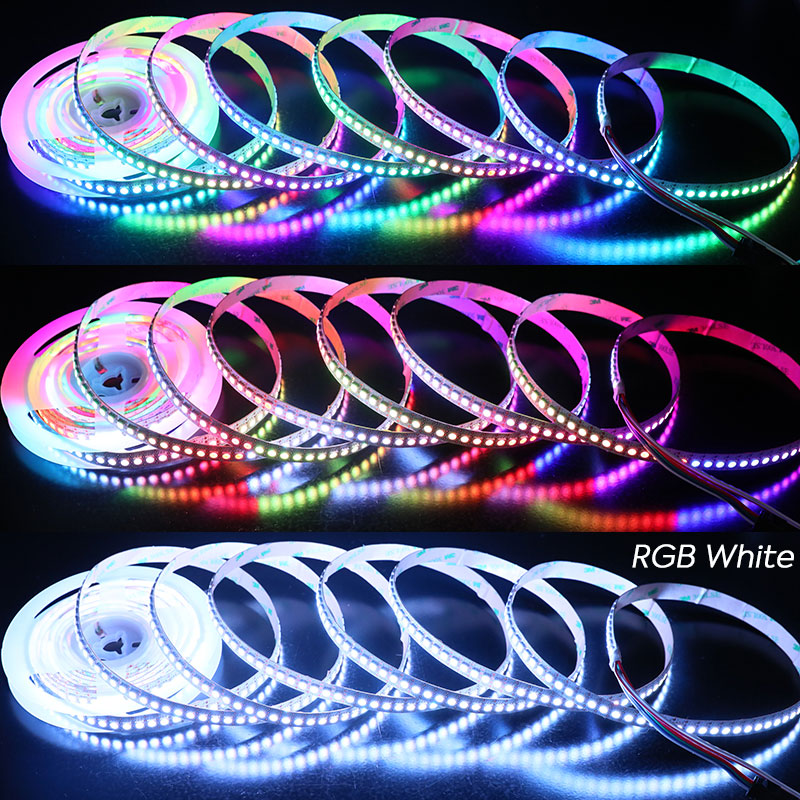

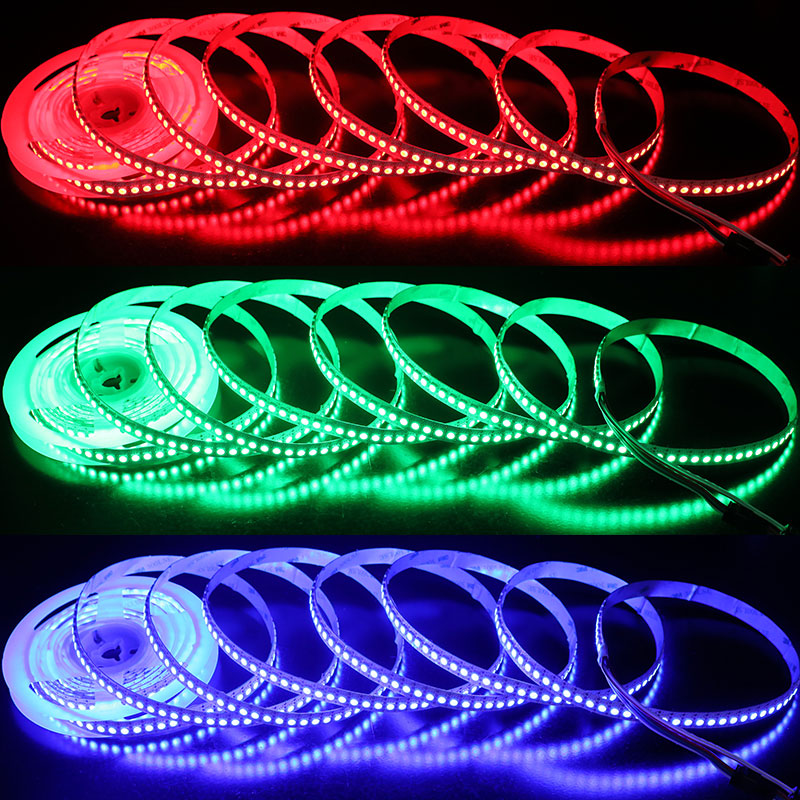

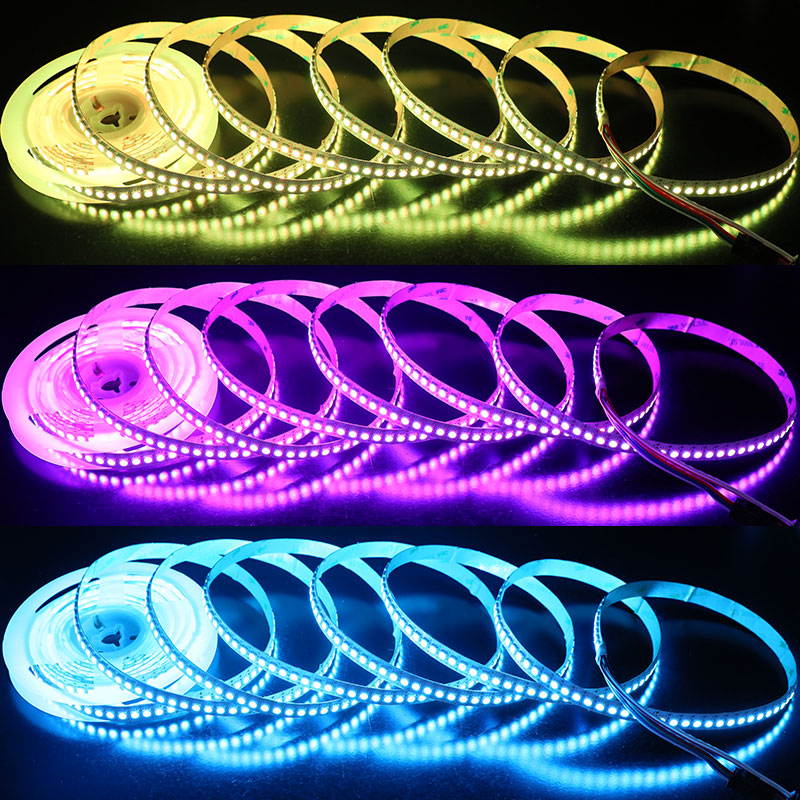

Meanwhile, the high density arrangement of 144 LED per meter enables it to provide richer and more detailed effects in decorative lighting applications. Furthermore, The SK6813 4-pin dual signal 12V individually addressable led strip performs well even with all RGB channels open. With a 12V DC power supply at one end, there is no color difference across the entire 5-meter strip.

This light strip made with IP65 surface glued waterproofing treatment will be a small bubble at the LED solder point. Please be aware of this. If you cannot accept this, please choose another waterproof rating.

SK6813 Datasheet Download

Product Specifications

Item Type:	Individually Addressable RGB 144 LED Strip
LED Chip:	SK6813 + SMD5050
Input Voltage:	DC12V
Power:	20W/m, 40m/2m, 100W/5m
LED Color Temperature:	Addressable RGB
PCB Width:	12mm/0.47in
LED Quantity:	144 LEDs/m
Control Pixel:	144 ICs/m, 288 ICs/2m, 720 ICs/5m

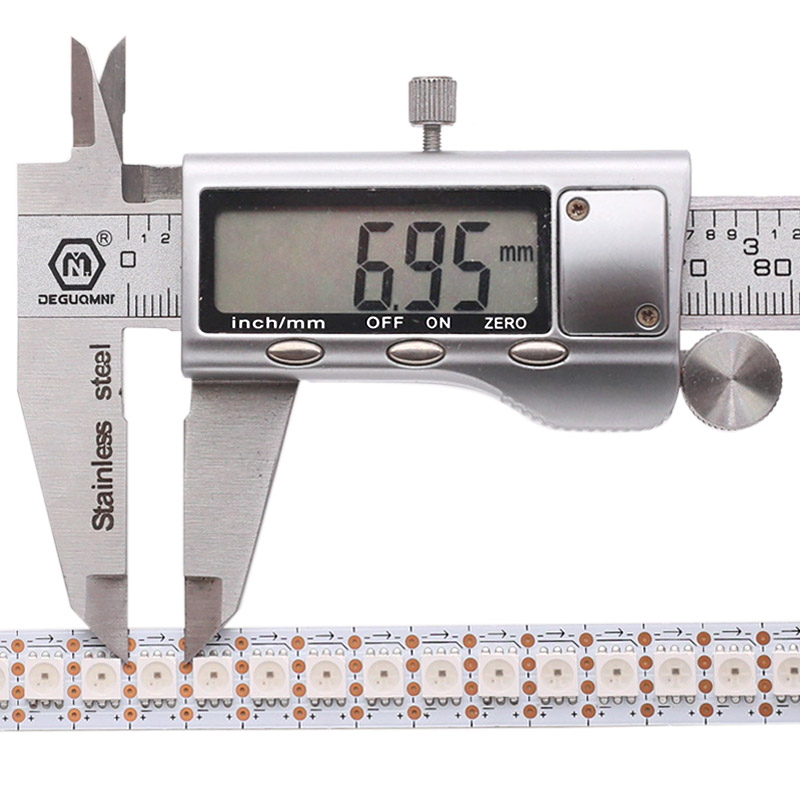

Cut Segment:	1-LED (6.94mm/0.27in)
Waterproof Rating:	Non-waterproof IP20 / Waterproof IP65 IP67 IP68
Lumen:	22 lm/LED
Beam Angle:	120°
Strip Length:	1m/3.3ft, 2m/6.6ft, 5m/16ft

How to Wire 4 Pin SK6813 LED Strip?

how to connect ws2813 ws2815 led strip

SK6813 5050 RGB Breakpoint Continue 12V Individually Addressable LED Strip 144 Per Meter

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for SK6813-5050RGB-144-12VBR

PDFSK6813-5050RGB-144-12VBR product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

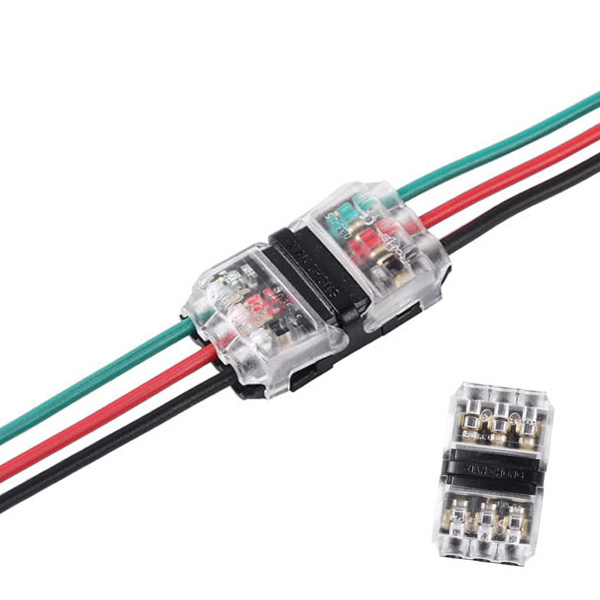

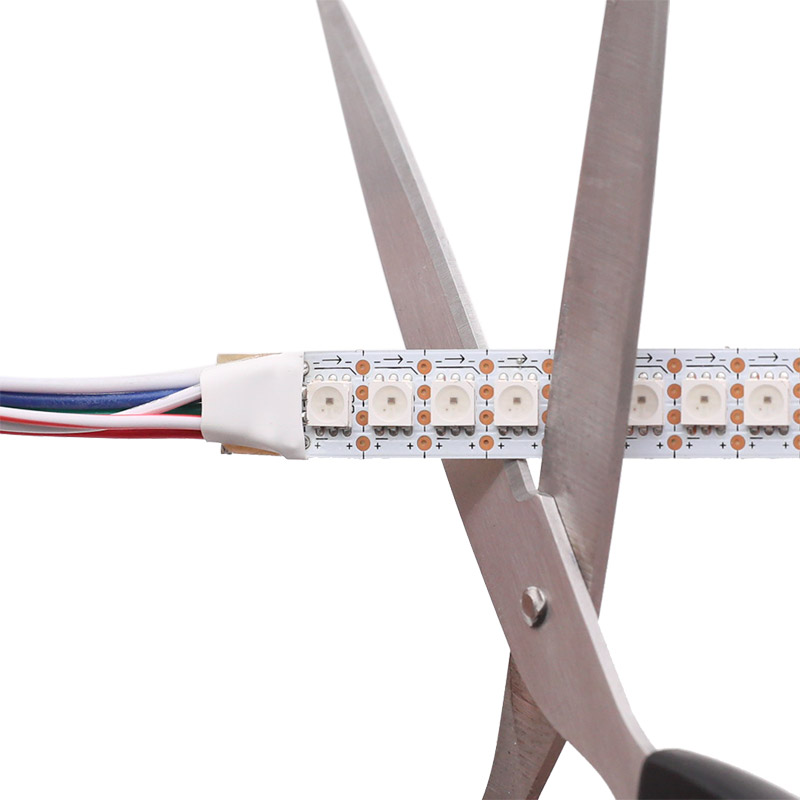

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 12mm (0.47in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
