DALI-15-100-700-U1P1 15W 100-700mA (100-277Vac)

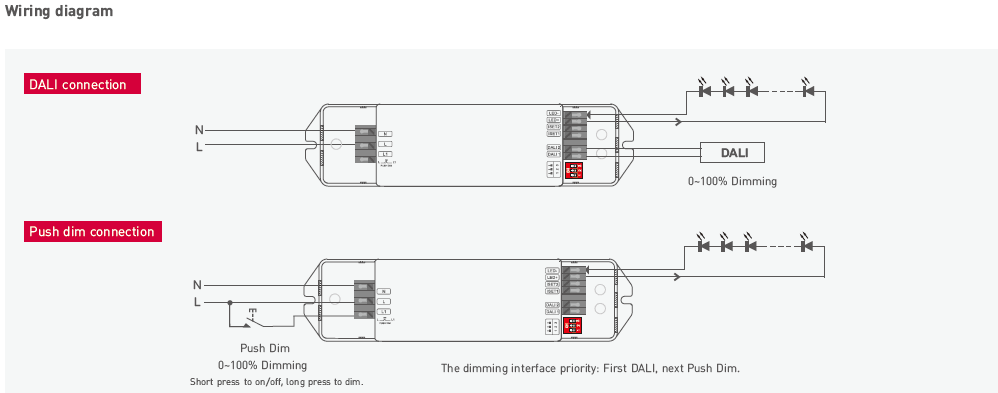

1、Dimming interface: DALI, Push DIM
2、PWM digital dimming, no alter LED color rendering index.
3、Dimming range: 0~100%, LED start at 0.1% possible.
4、Support lamp current state and fault feedback function.
5、DALI dimming curve can be either linear or logarithmic.
6、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
7、Multi-current & wide voltage, suitable for different power LED.
8、Short circuit / Over-heat / Overload / Non-load protection.
9、Class 2 power supply. Full protective plastic housing.
10、DALI bus standard: IEC62386-101, 102, 207.
11、Compliant with Safety Extra Low Voltage standard.
12、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

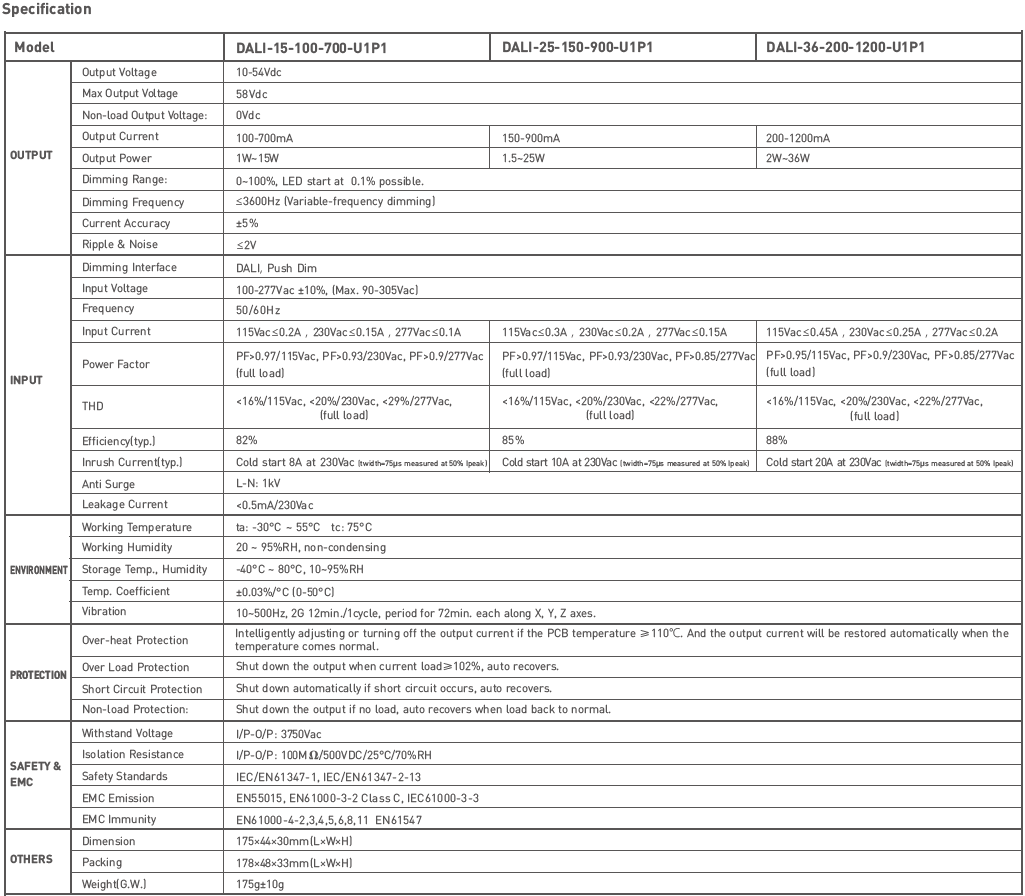

Dimming interface: DALI/PUSH DIM
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-277Vac ±10% (Max. 90-305Vac)
Current Accuracy: ±5%
Output voltage: 10-54VDC
CC output: 100mA-700mA
Output power: 1W~15W
working temperature: ta: -30°C ~ 55°C tc: 75°C
Package Size: 178×48×33mm(L×W×H)
Weight (G.W): 175g±10g
