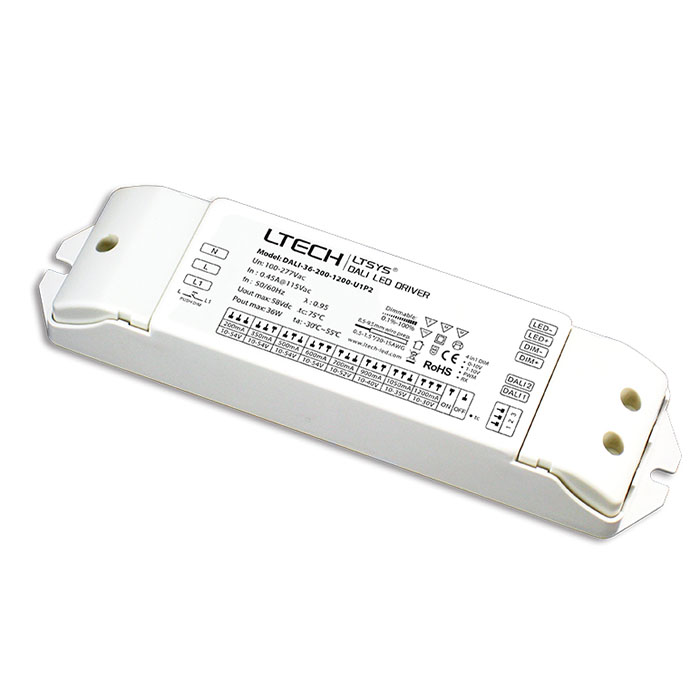

DALI-36-200-1200-U1P2 36W 200-1200mA (100-277Vac) 6 in 1

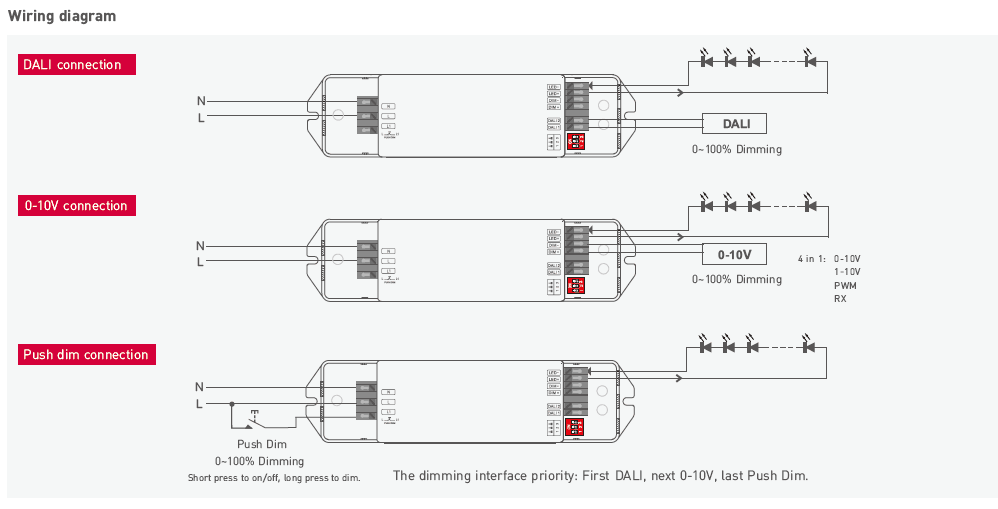

1、Dimming interface: DALI, 0-10V(1-10V/PWM/RX), Push Dim.
2、PWM digital dimming, no alter LED color rendering index.
3、Standard DALI logarithmic dimming curve.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Multiple current, wide voltage, compatible with a variety of LED lights.
6、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
7、Multi-current & wide voltage, suitable for different power LED.
8、Class 2 power supply. Full protective plastic housing.
9、DALI bus standard: IEC62386-101, 102, 207.
10、Compliant with Safety Extra Low Voltage standard.
11、Suitable for indoor environments.
Dimming interface: DALI, 0-10V(1-10V/PWM/RX)，Push Dim.
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-277Vac ±10%
Output voltage: 10-54VDC
CC output: 200mA-1200mA
Output power: 2W~36W
working temperature: tc: 75°C ta: -30°C ~ 55°C
Package Size: 178×48×33mm(L×W×H)
Weight (G.W): 175g±10g
