Product Information

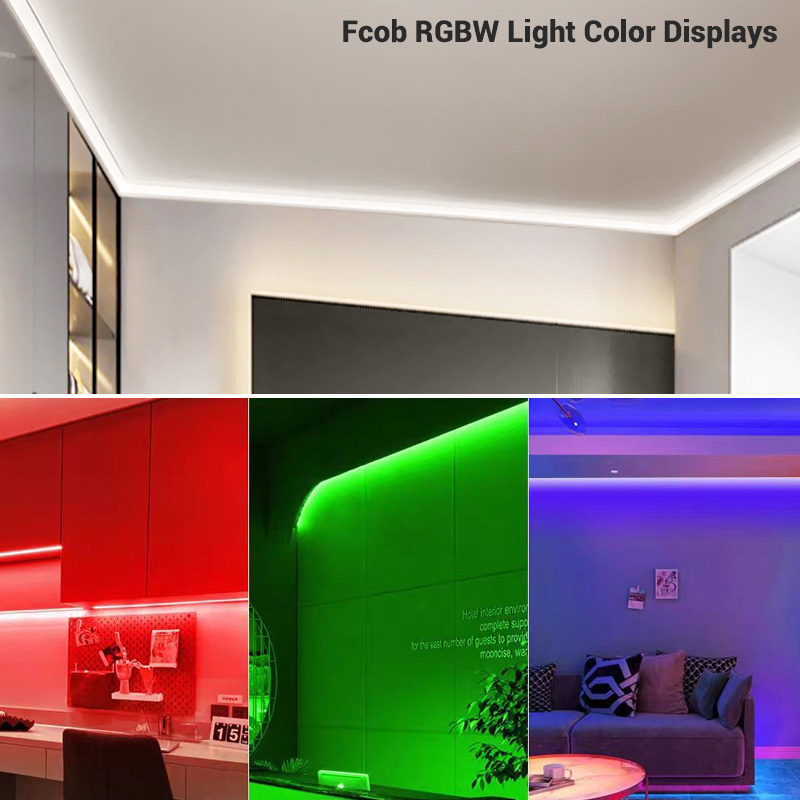

COB LED strips, with their flexible substrates, seamlessly integrated chip-on-board packaging, and uniform glare-free illumination, serve as an ideal solution for ceiling cove lighting - delivering professional-grade linear lighting environments. The high density layout of up to 960 RGBW lights per meter of on-board chips gives this strip a uniformity of light that far exceeds that of similar products.
This fcob rgbw led strip has a rich color display (red, green, blue, and white 4-channel color mixing technology) that allows for any switch from solid color to dynamic lighting, providing an immersive lighting scene for entertainment rooms. Its waterproof versions could be widely used in outdoor architectural lighting and landscape lighting.
The self-adhesive led strip lights is easy to install. Simply peel off the backing film to securely adhere the cob RGBW 24 volt dc led strip into recessed ceilings with its 3M adhesive. Mounting this RGBW cob strip in an aluminum crown or cove profile will provide protection for the fixture and soften the LED output of the RGBW ceiling lighting system.
960 cob rgbw LED tape is only available in RGB+6000K currently. For orders of RGB+3000K and RGB+4000K, we require at least 100 meters or $166 customization fee for production (30-35 days). Please be advised.
• Dimmable rgbw cob led light strips, RGBW 3000K, RGBW 4000K, RGBW 6500K
• Color change and intelligent control via RGBW controllers like BR4 Bluetooth remote model in the kit

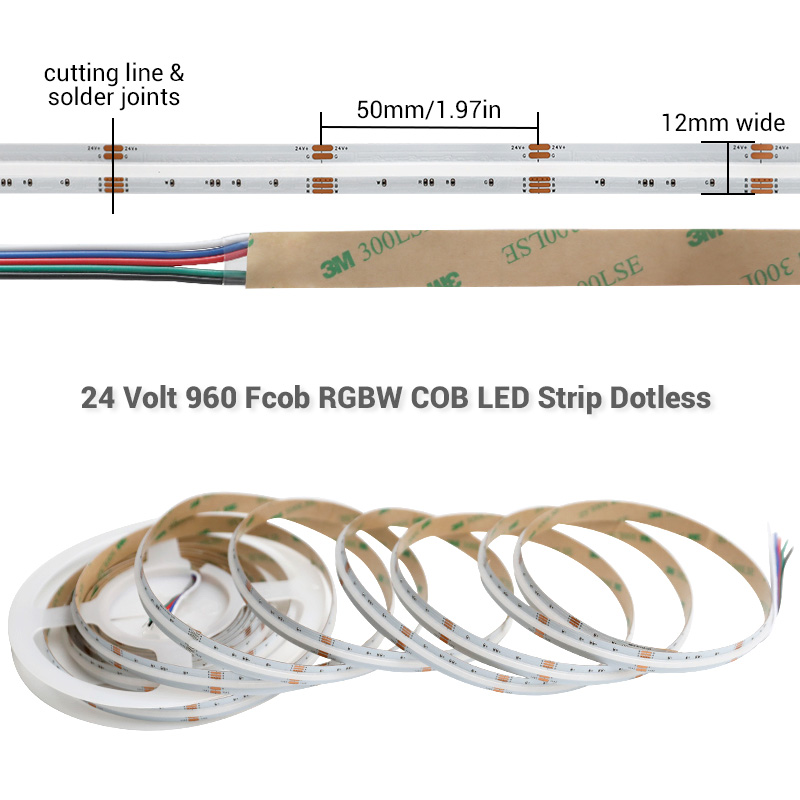

• Cutting at the cut line, individual cut lengths of 50mm (1.97inch)
• Various types of electrical connections can be made at the soldering joints using a 5-pin cob connector
• Recommended to be used up to 10 meters and need to be powered from both ends, five meters can be powered from one end with 24 volt power supply (LRS-150-24 model in the kit)
• Available in IP20 bare version, IP67 clear silicone tube waterproof version, IP68 clear silicone fully wrapped submersible version
• All of our Fcob rgbw strip lights support customized lengths, colors, outlet types and more!
RGBW 3000K COB LED Strip Spectrum Test Report
RGBW 4000K COB LED Strip Spectrum Test Report
RGBW 6500K COB LED Strip Spectrum Test Report
Product Specification
| LED Type: | Fcob COB RGBW Tape Light |
| LED Chip: | 1022 |
| Input Voltage: | DC24V |
| LED Quantity: | 960 Chips/m (R 240,G 240,B 240,W 240) |
| PCB Width: | 12mm/0.47in for IP20, 14mm/0.55in for IP67 IP68 |
| White Color: | Warm White (2800-3200K); Netural White(4000-4500K); Daylight White(6000-6500K) |
|
Power:
|
20W/m, 100W/Roll
|
| CRI: | Ra>90 |
|
Cut Length:
|
50mm/1.97in
|
| Beam Angle: | 180° |
| Length: | 5m/16.4ft reel |
RGBW LED Strip Lights Wiring Diagram
