CV Receiving controller T4-CV (kit optional)

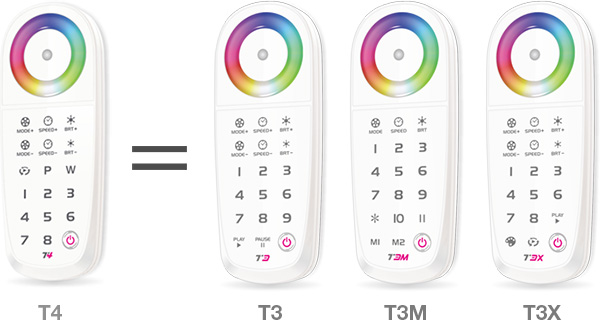

T4-CV is the 2.4GHZ RF wireless synchronization/zone RGBW controller which adopts LTECH four global initiate technology(two invention patents, two patents of utility), which has the powerful function of most RF remote control can not realize, especially receiver between receiver without any cables can achieve dynamic effect synchronously, bring great convenience for users to install; T4 adopts the function of T3 / T3M/T3X RGB remote control for the past two years by customers like three functions in one, but use more simple.
To feel more features advantages waiting for you!

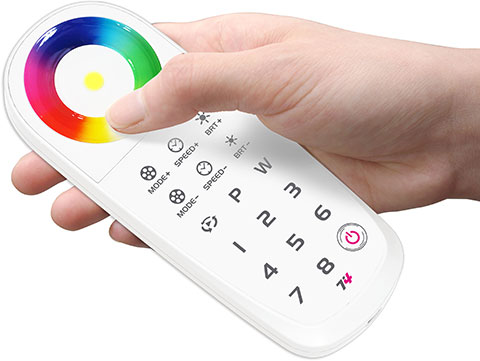

● Remote control adopts the capacitive touch control technology on the full color wheel, make the LED color selection more user-friendly. Unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control.
● T4 is available for RGB and RGBW LED lights. A single ON/OFF function for White color and also dimming brightness independently.
● T4 integrated sync control and zone control in two working ways, you could switch anytime anywhere to meet your needs at different times and different places.
● Meanwhile, T4 adding the new programable method, user can easily change a new DIY effects. How the programming so simple!
RGB LED Controller T4-CV
T4-CV CV Receiving controller
Input voltage :DC5V-DC24V
Max current load : 5A×4CH Max 20A
Max output power :100W/240W/480W(5V/12V/24V)
Compatible remote control : workable with T4 remote control
Working temperature : -30℃～55℃
Dimension : L175×W44×H30mm
Package size : L178×W48×H33mm
Weight (G.W.) :150g
