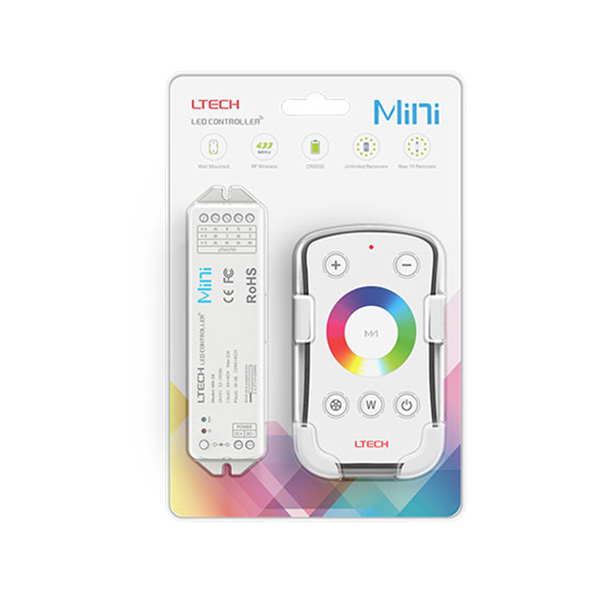

RGBW Controller M4+M4-3A
Mini series LED controller collected pithy research and development of LED controller for 12 years, abandon the past there are many disadvantages of infrared remote control, using advanced RF remote control, wireless signal with strong penetrating power, no longer restricted by all kinds of blockage.
4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design:One receiver compatible with six different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.
M4, M8 Remote Control
Working voltage :DC3V(Battery CR2032 )
Working Frequency: 433.92 MHz
Remote Distance :40-50m
Working Temp. :-20℃~55℃
Weight (N.W.) :42g

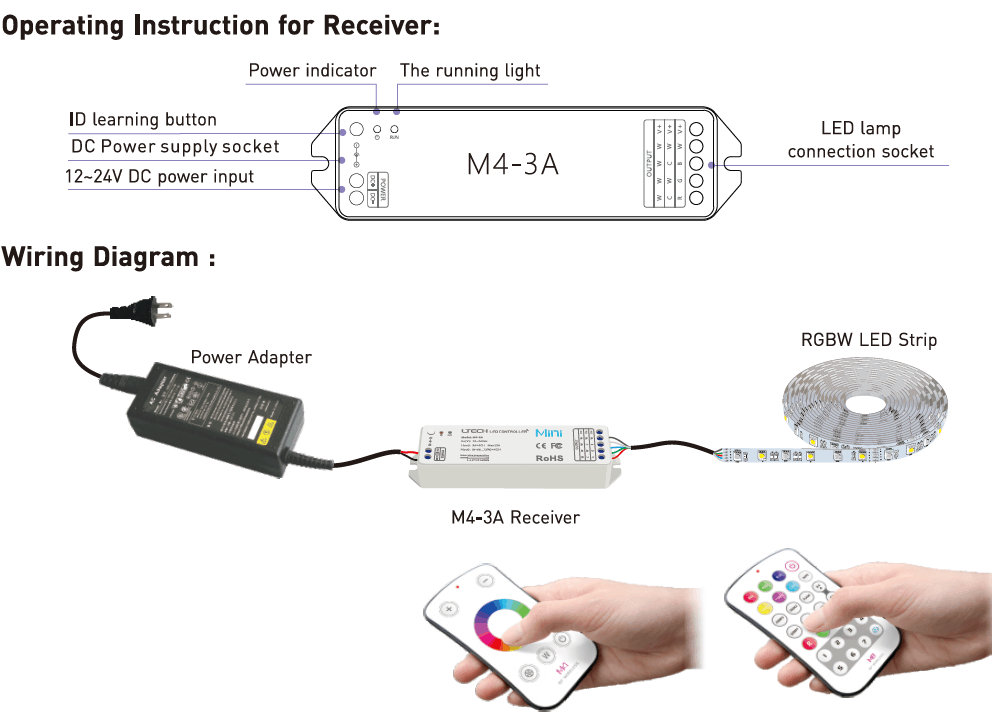

M4-3A Receiving controller
Power input :DC12V-DC24V
Max Current load: Max 3A ×4CH
Max Output power :144W/288W (12V/24V)
Compatible remote :M4/M8
Working Temp.: -30℃~55℃
Weight (N.W.): 47g
