DC12V 3W Single Color LED Spotlight SL1-12
1. It can be used with Miboxer controller.

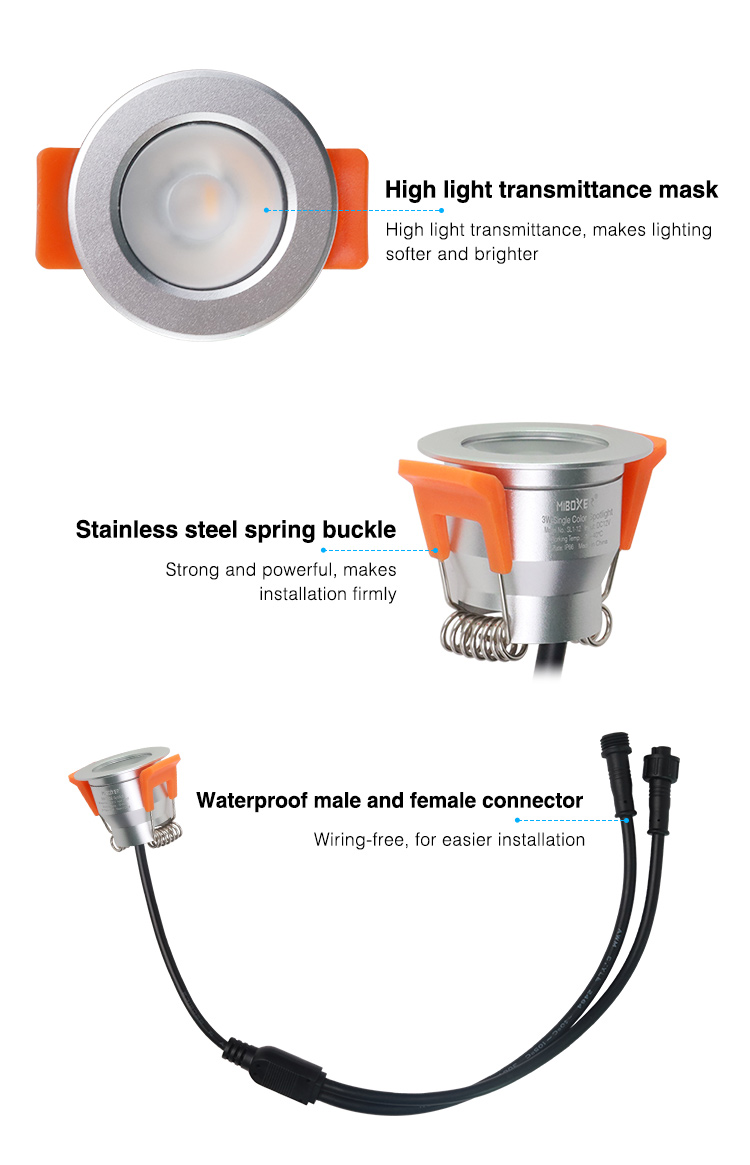

2. The shell is made by high-quality automotive aluminum precision processing, which shows exquisite appearance, smooth hand feeling and advanced waterproof technology after surface treatment.

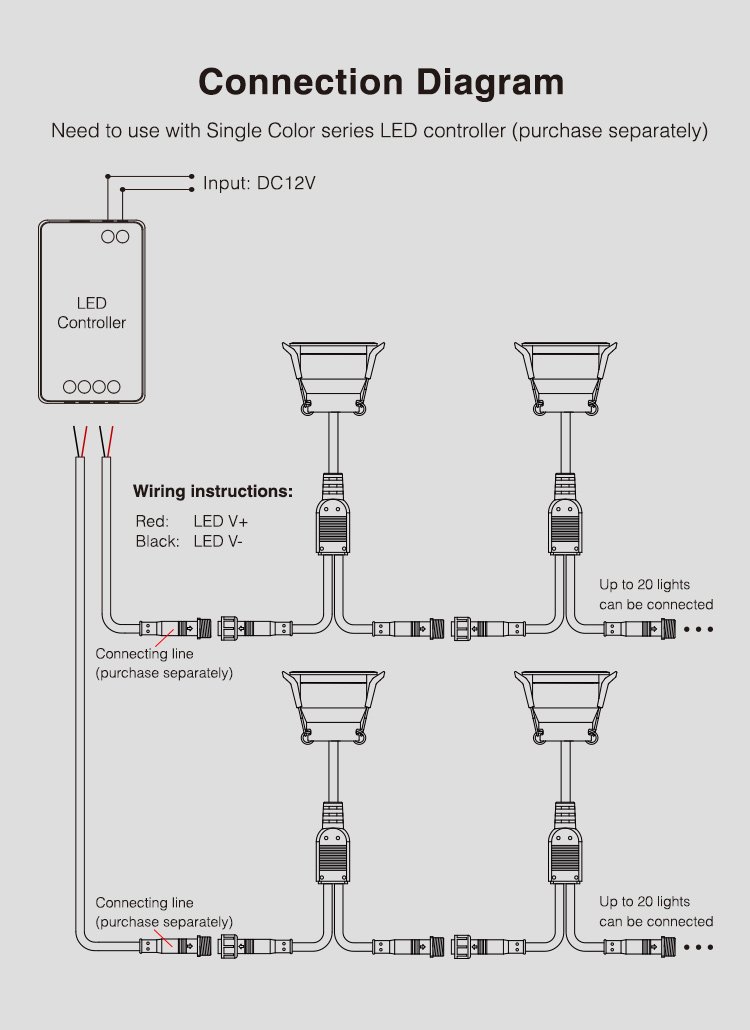

·Can be extended in series
Product Name: 3W Single Color LED Spotlight
Model No.: SL1-12
Input Voltage: DC12V
Color Temperature: 1800K~2200K
Beam Angle: 36°

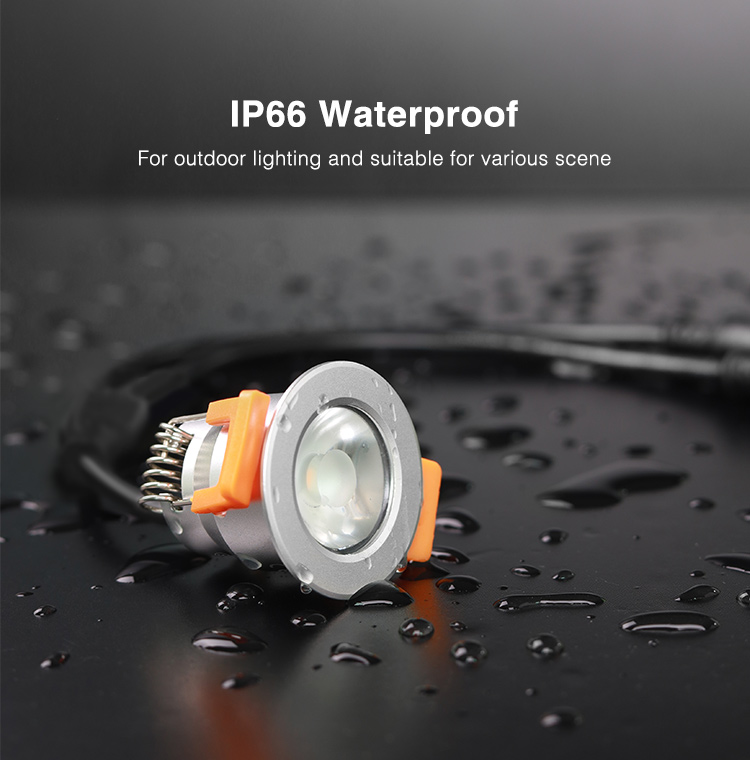

IP Rate: IP66
Lifespan: 50000 hours

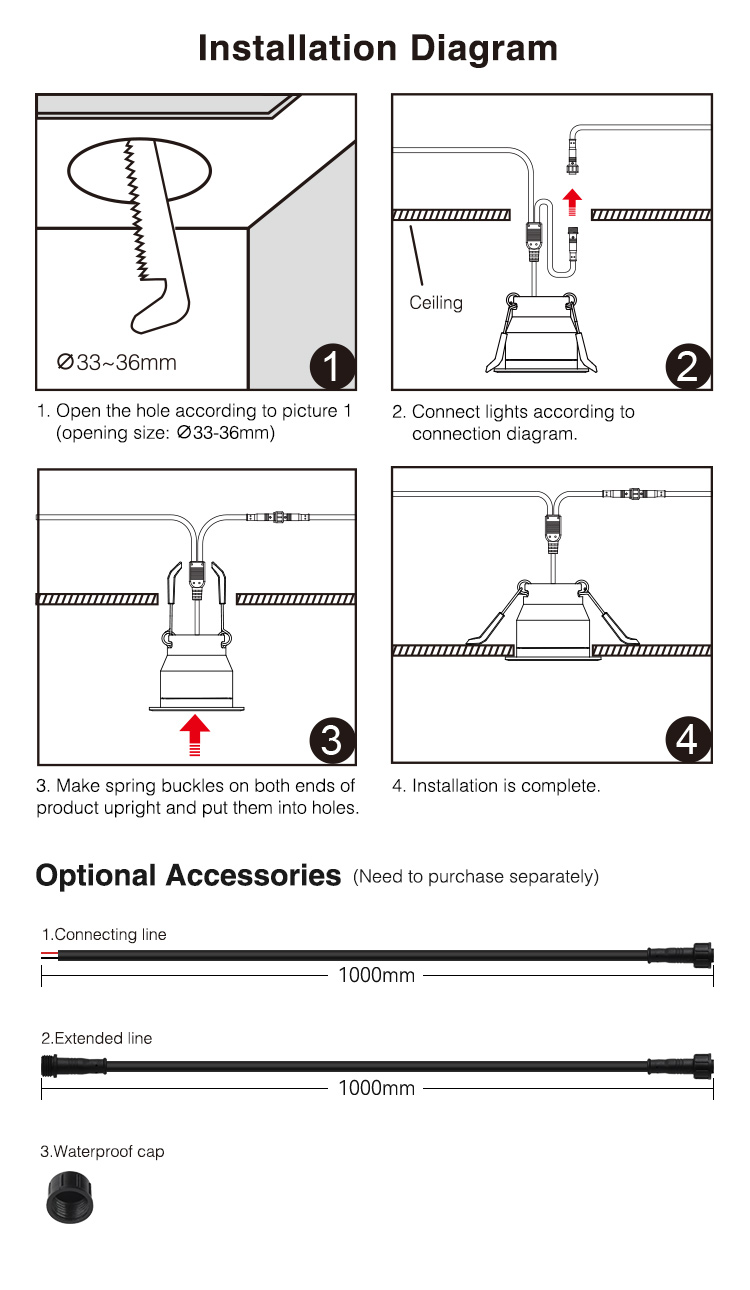

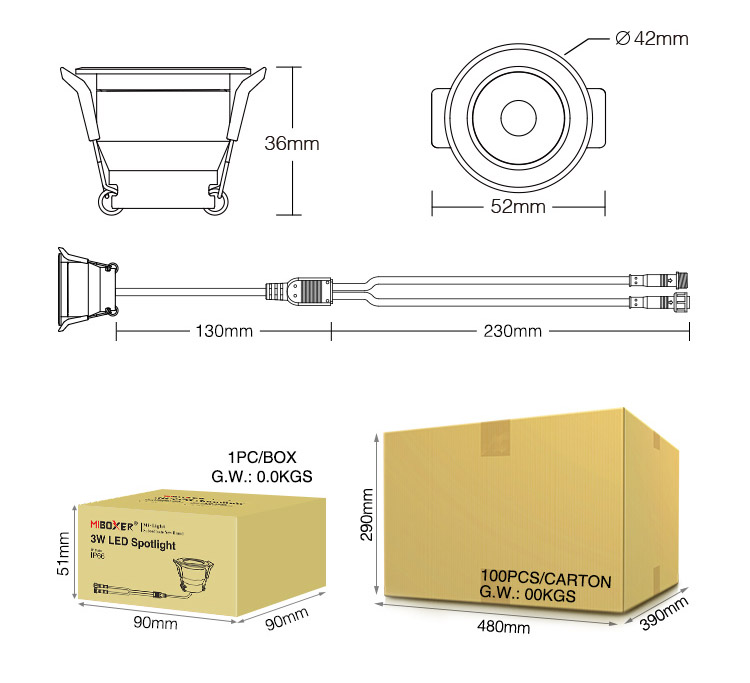

Hole Size: ø33~36mm
Working Temperature: -10~40℃
1. Please check if input voltage is DC12V, otherwise devices will be damaged.
2. It is forbidden to cover or wrap metal parts of lights with plastic or EVA insulation materials, which will affect heat dissipation of lights.
3. Non-professional users are not allowed to disassemble the equipment directly, otherwise the equipment may be damaged.
